Model Whirlpool 34HG-2CKX-ON GAS RANGE – Common Parts & Diagrams

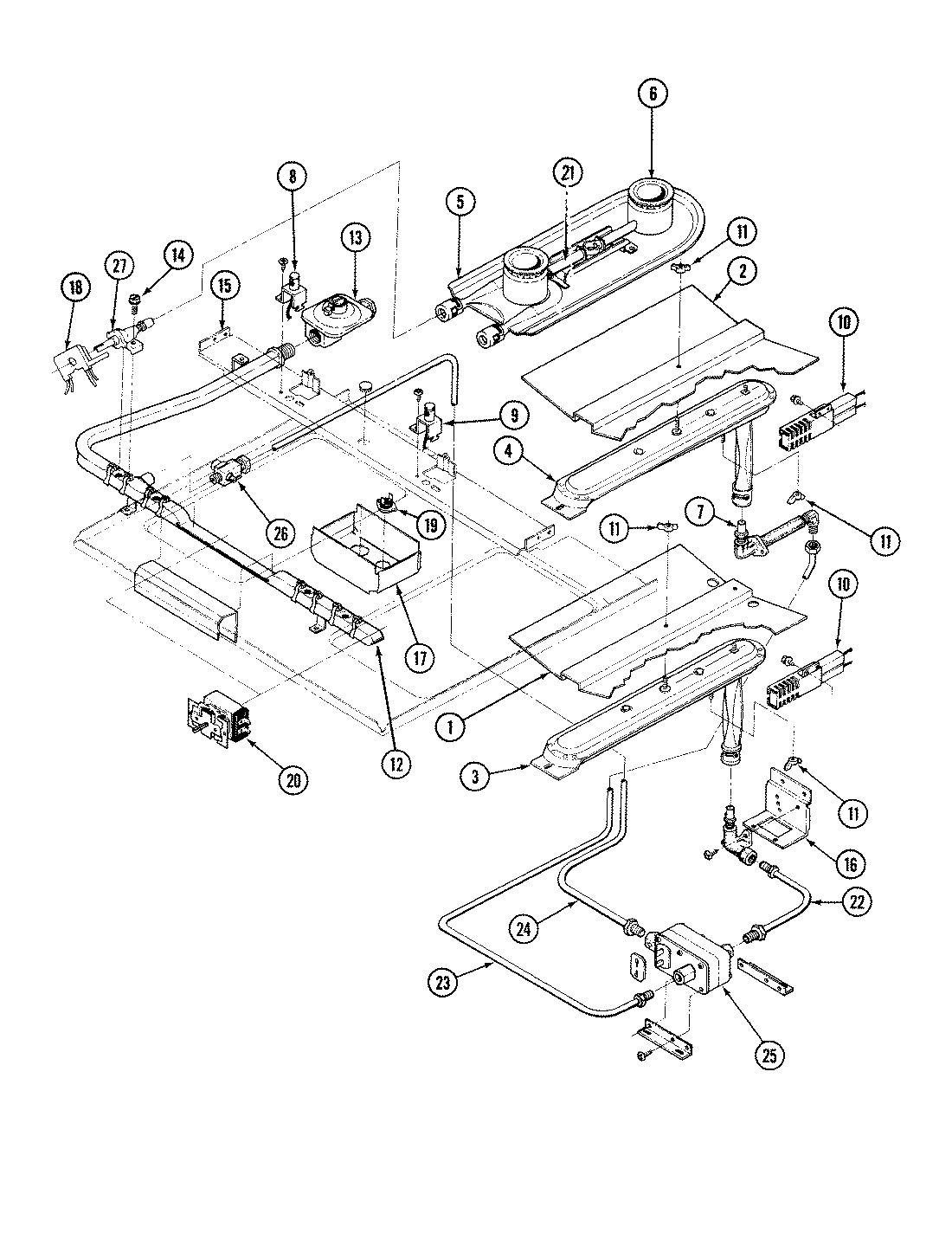

04 - GAS CONTROLS

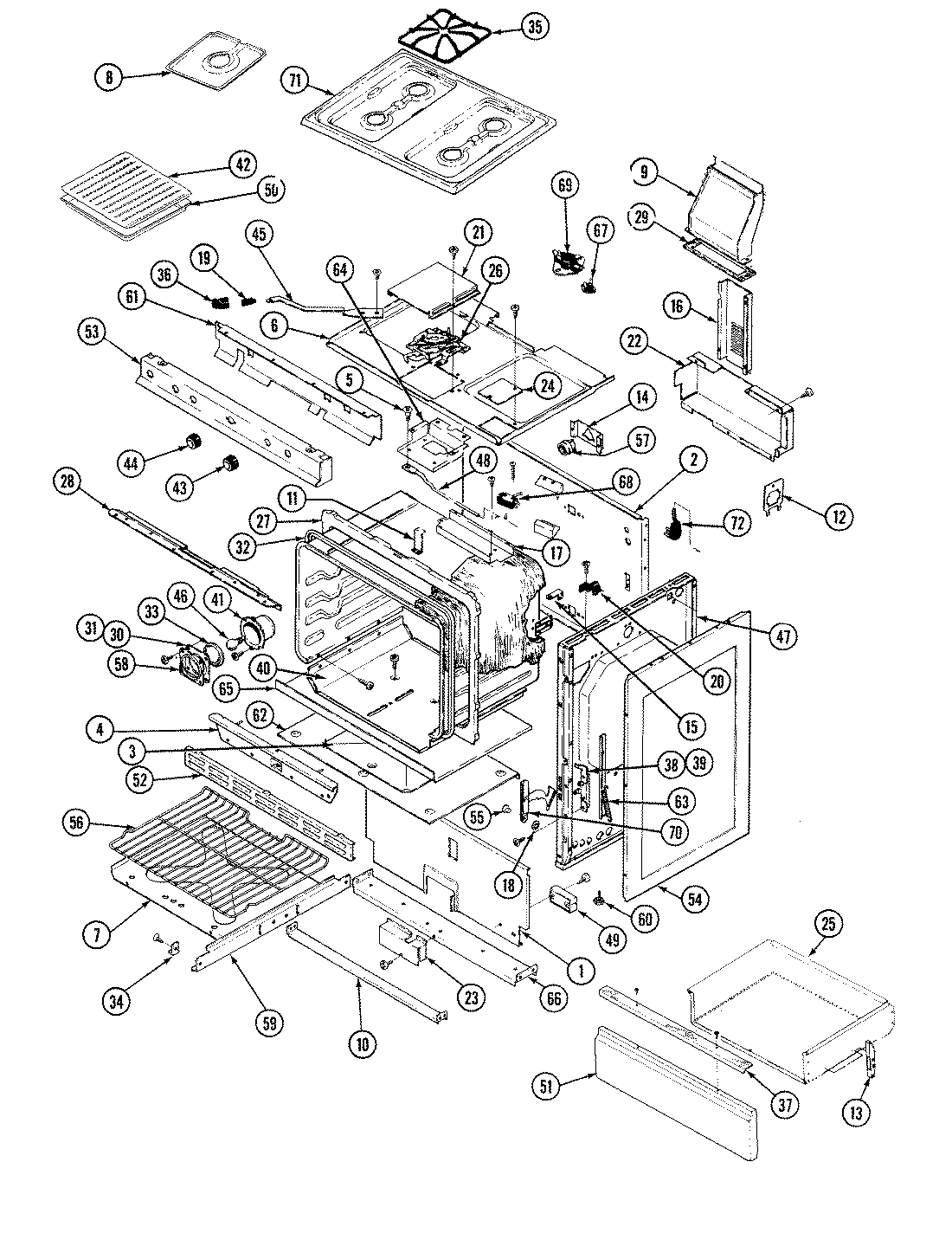

01 - BODY

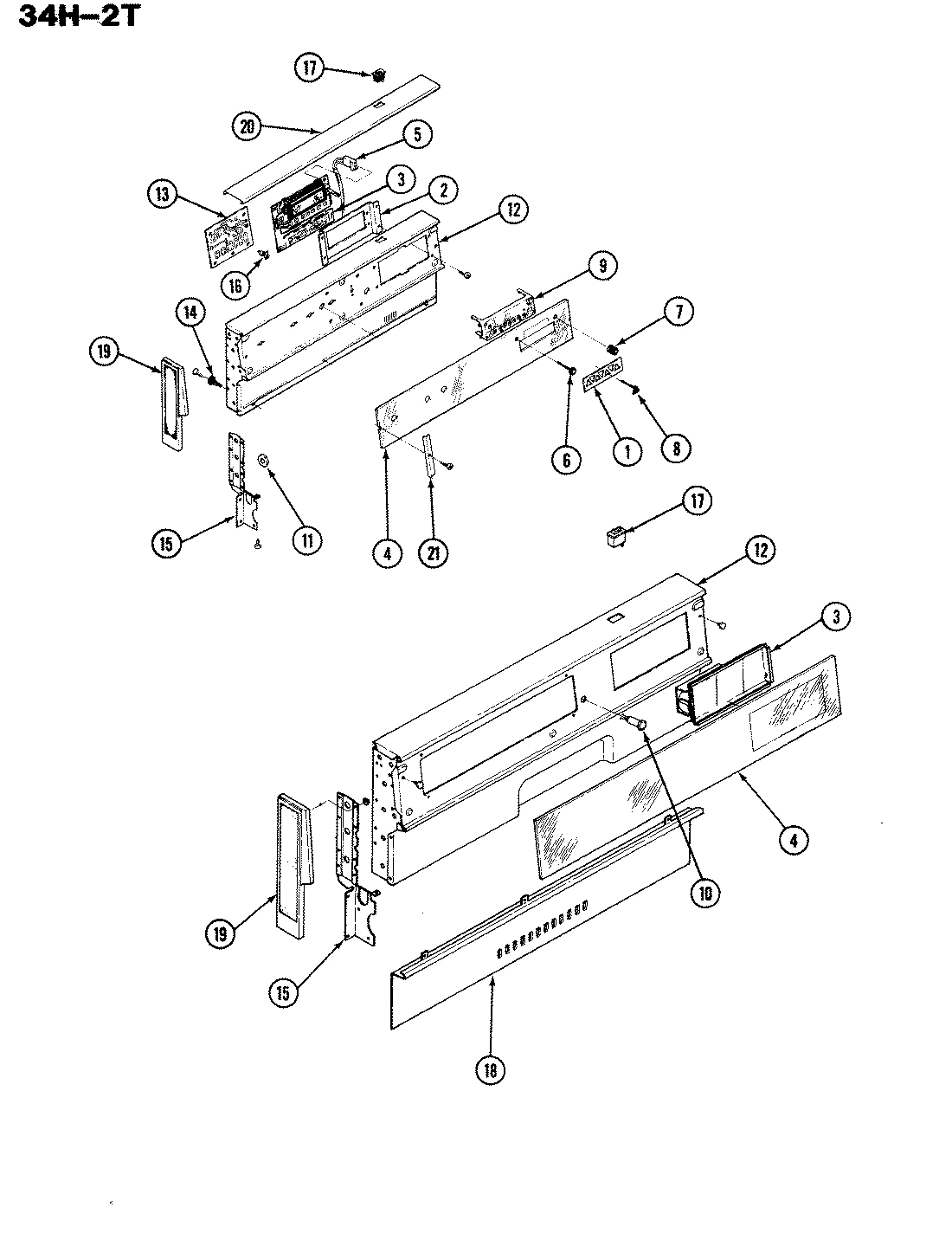

02 - CONTROL PANEL

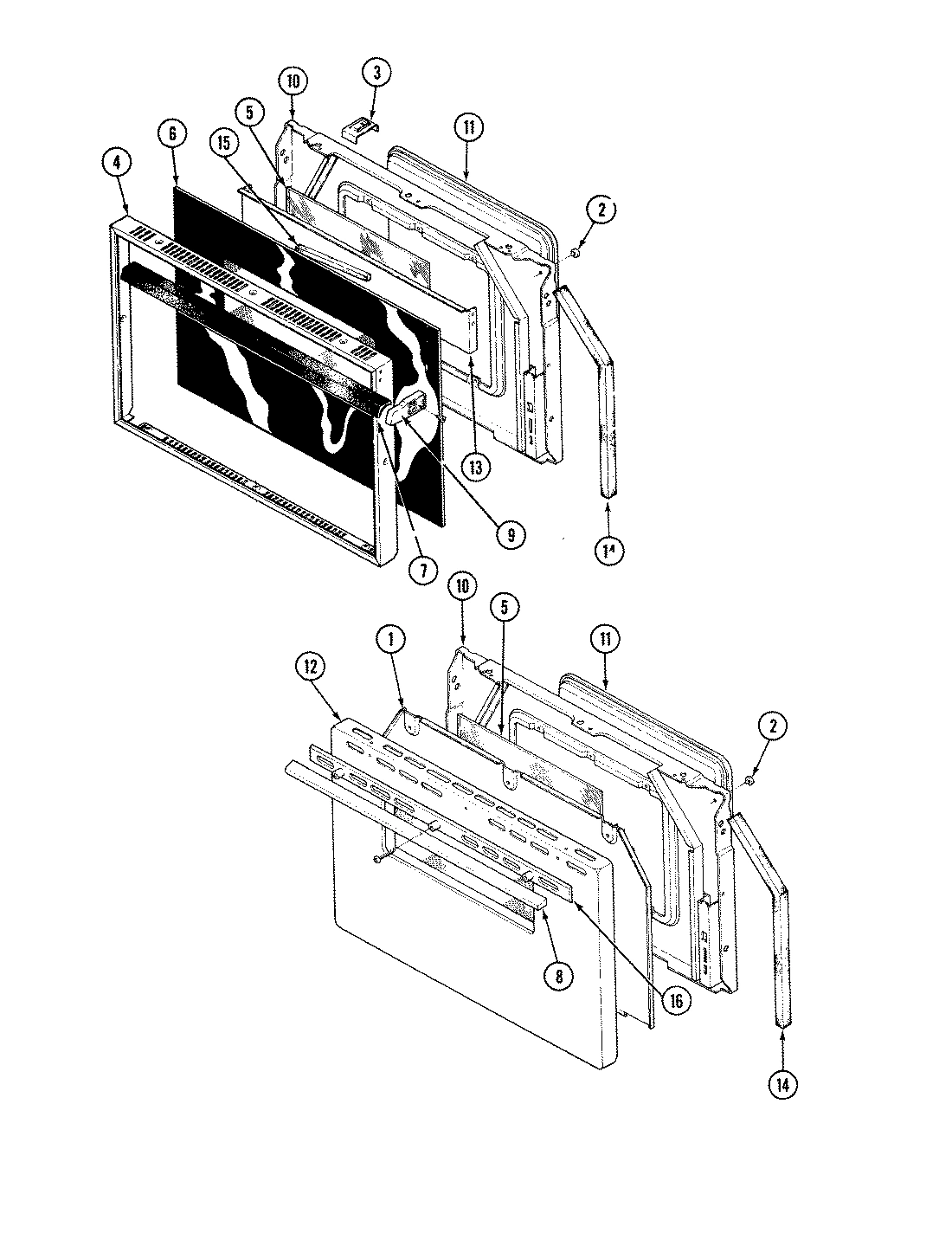

03 - DOOR
Common parts from model Whirlpool 34HG-2CKX-ON GAS RANGE
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BAFFLE WPL 3601F09351 Contact Us For Availability
2
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
2
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BAFFLE WPL 3601F11645 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
3
CLOCK WPL 7601P10260 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
GLASS, BKGD WPL 7910P05260 Contact Us For Availability
4
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
4
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
5
GLASS, INNER WPL 7902P09760 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
BOX, BURNER WPL 4011F07580 Contact Us For Availability
6
GLASS WPL 7902P05260 Contact Us For Availability
6
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
6
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01213 Contact Us For Availability
7
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
7
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
KNOB, SELECTOR WPL 7711P38160 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
BOX, FLUE WPL 4006W02613 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
BRACE WPL 3802F00380 Contact Us For Availability
10
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
10
LIGHT, INDICATOR WPL 7407P01360 Contact Us For Availability
10
LINING WPL 2402W12815 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
BRACKET WPL 3801F09351 Contact Us For Availability
11
NUT, SPEED WPL 7103P04460 Contact Us For Availability
11
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
12
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
12
BACKGUARD ASSY WPL 2601W19990 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
13
RUNNER (INNER) WPL 3406F02651 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
14
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
15
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
15
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
15
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
15
SPRING WPL 7803P00260 Contact Us For Availability
15
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
15
SUPPORT WPL 3807F01080 Contact Us For Availability
15
SUPPORT WPL 3807F01280 Contact Us For Availability
15
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
16
TRIM, HANDLE WPL 7720P06360 Contact Us For Availability
17
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
17
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
18
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
18
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
19
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
19
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
20
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
20
CLIP WPL 7112P02960 Contact Us For Availability
20
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
21
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
21
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
21
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
22
COVER, MODULE WPL 4005F17680 Contact Us For Availability
22
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
23
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
23
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
24
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
24
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
25
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
26
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
26
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
26
INSULATION, DOOR LOCK WPL 7002P04860 Contact Us For Availability
26
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
27
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
27
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
27
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
28
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
29
GASKET WPL 7201P01360 Contact Us For Availability
30
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
31
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
32
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
33
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
34
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
35
GRATE WPL 2003W00100 Contact Us For Availability
36
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
38
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
39
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
40
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
41
HOUSING WPL 4001F02013 Contact Us For Availability
42
INSERT WPL 3413F00211 Contact Us For Availability
43
KNOB, THERMOSTAT WPL 7731P02060 Contact Us For Availability
44
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
45
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
46
BULB, OVEN WPL 7407P02660 Contact Us For Availability
47
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
47
LINING, INNER SIDE WPL 4009W05880 Contact Us For Availability
48
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
49
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
50
PAN, BROIL WPL 3401F00411 Contact Us For Availability
52
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
53
TRIM ASSY, MANIFOLD WPL 7712A05360 Contact Us For Availability
55
PIN, HING WPL 7113P00260 Contact Us For Availability
56
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
57
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
58
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
59
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
60
WPL 3604F01651 WPL 3604F01651 Contact Us For Availability
60
WPL 7101P25260 WPL 7101P25260 Contact Us For Availability
61
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
62
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
62
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
64
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
64
WPL 3807F195 WPL 3807F195 Contact Us For Availability
65
WPL 3807F22180 WPL 3807F22180 Contact Us For Availability
65
WPL 3807W20745 WPL 3807W20745 Contact Us For Availability
66
WPL 3807F32945 WPL 3807F32945 Contact Us For Availability
67
WPL 7403P00460 WPL 7403P00460 Contact Us For Availability
67
WPL 7403P08760 WPL 7403P08760 Contact Us For Availability
67
WPL 7403P18760 WPL 7403P18760 Contact Us For Availability
67
WPL 7403P18860 WPL 7403P18860 Contact Us For Availability
68
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
68
WPL 7403P09260 WPL 7403P09260 Contact Us For Availability
69
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
71
WPL 8026P00660 WPL 8026P00660 Contact Us For Availability
72
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
73
WPL 8112P00960 WPL 8112P00960 Contact Us For Availability
73
WPL 8112P03460 WPL 8112P03460 Contact Us For Availability
× ![]()
