Model Whirlpool 34GA-92CK GAS RANGE – Common Parts & Diagrams
04 - GAS CONTROLS

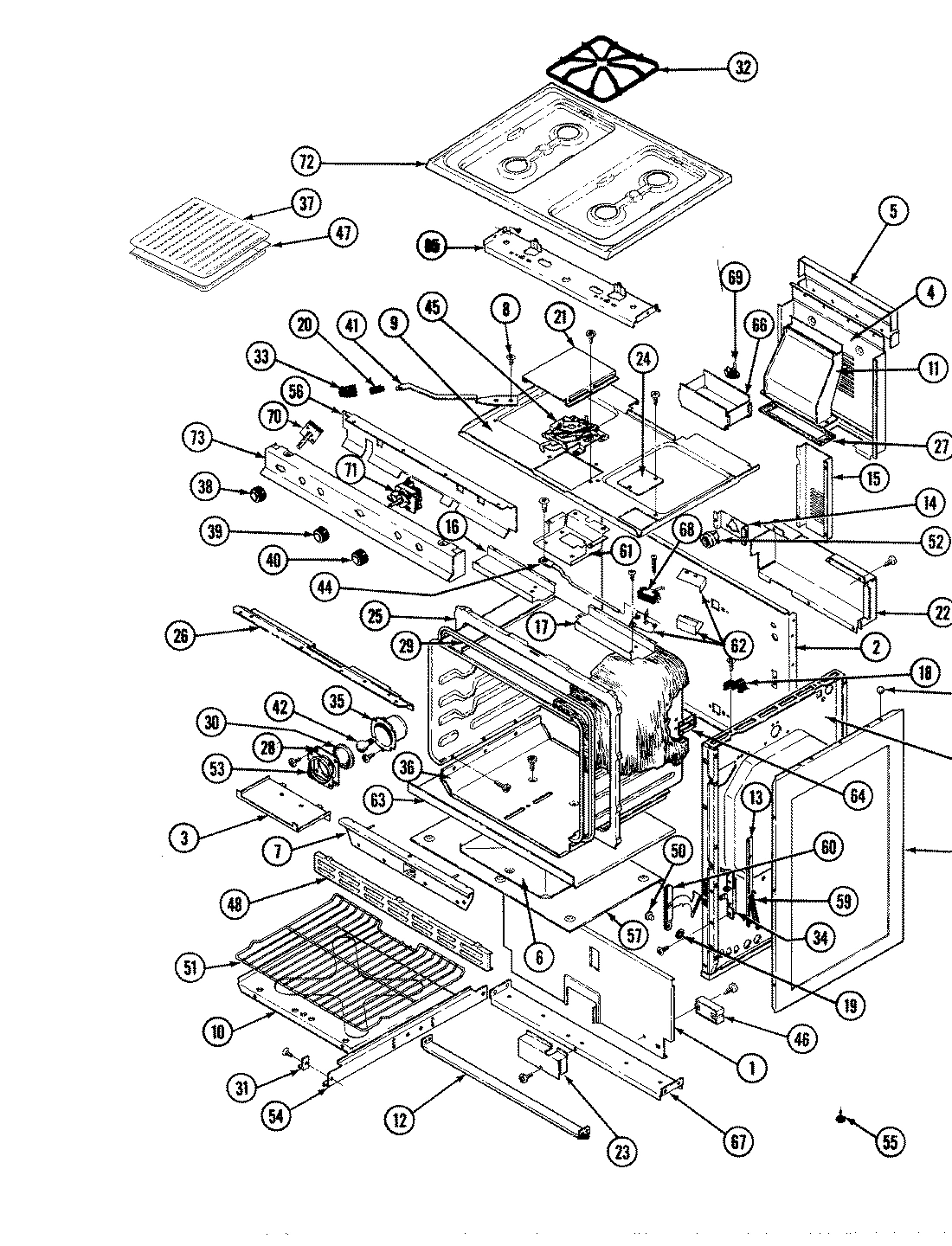

01 - BODY

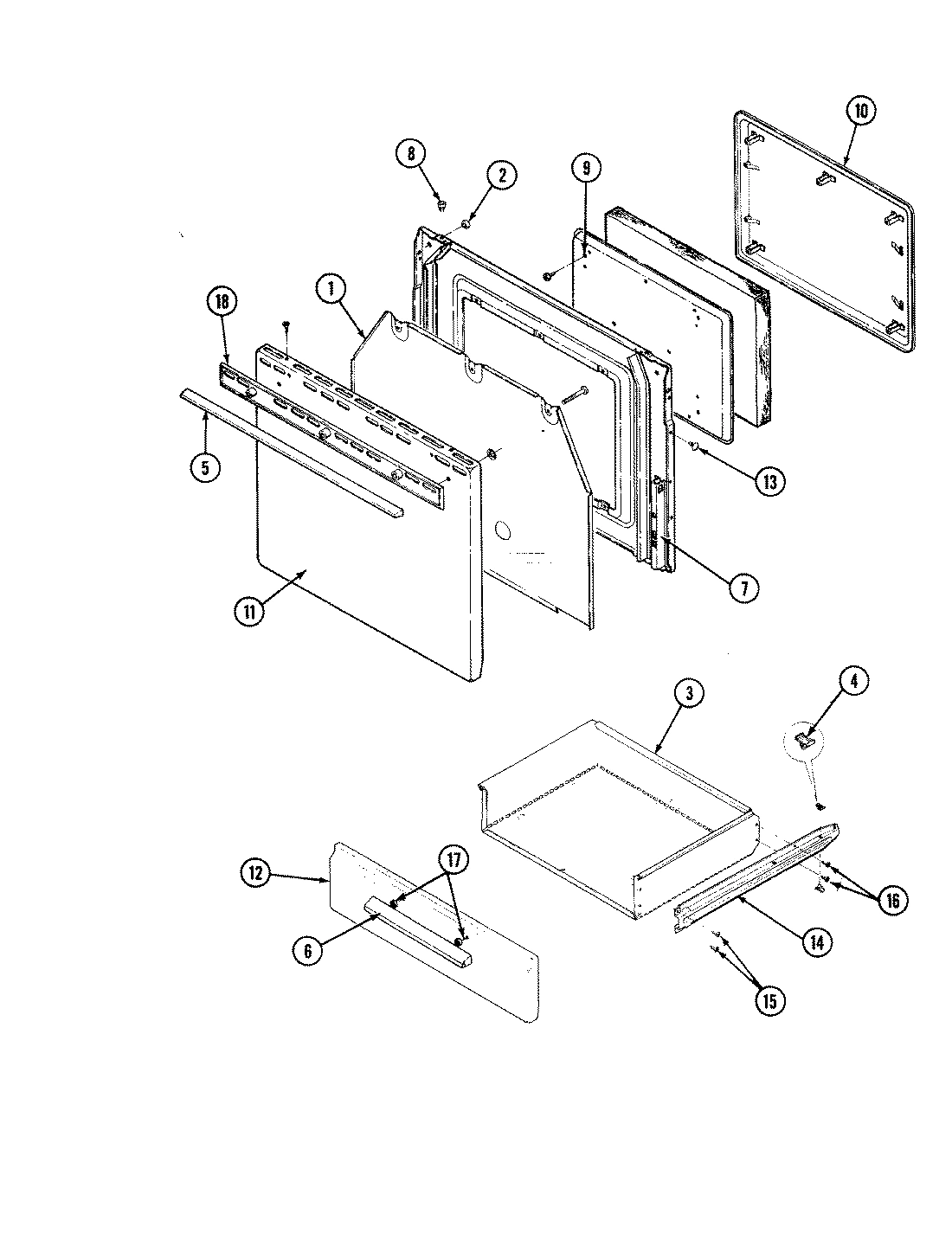

03 - DOOR

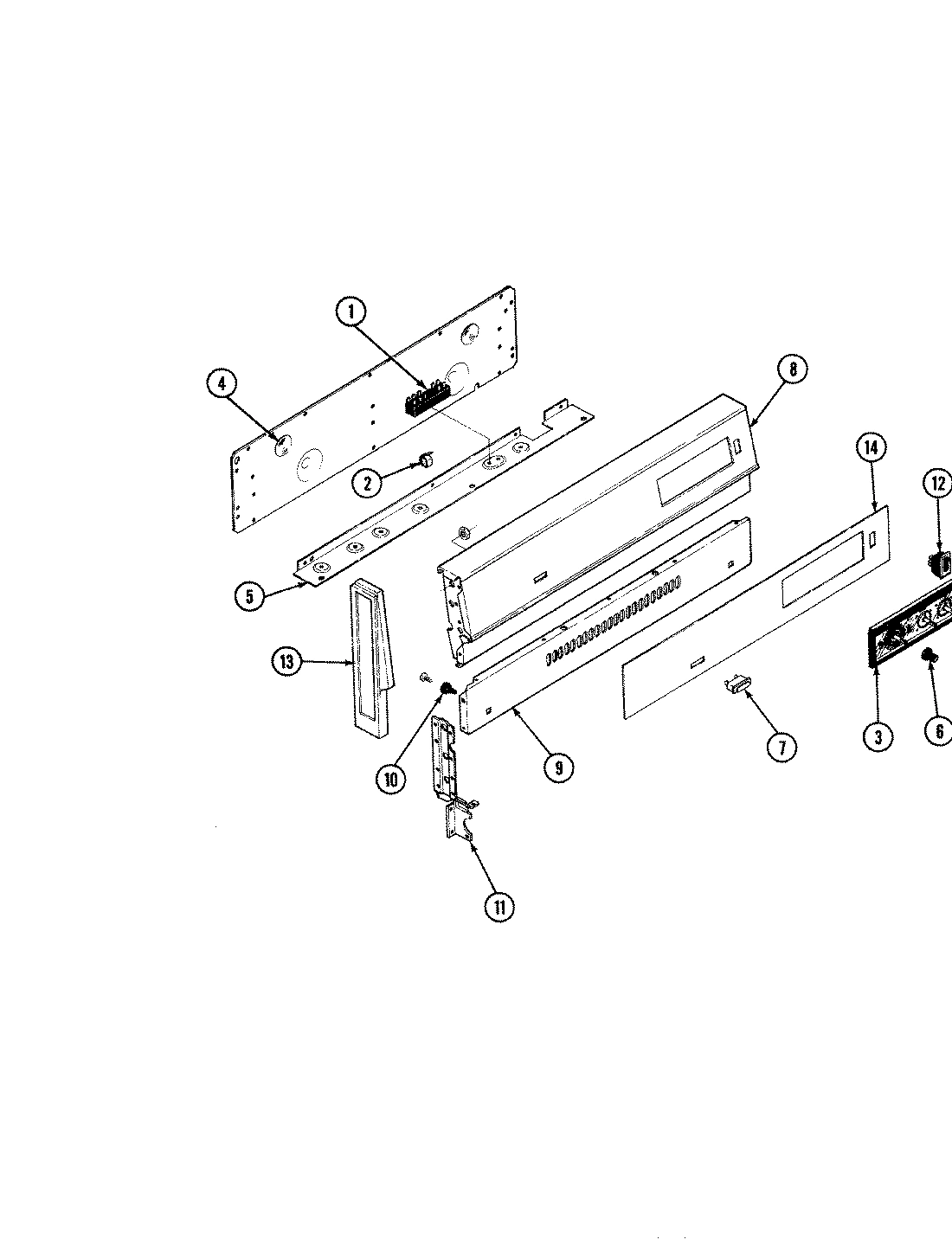

02 - CONTROL PANEL
Common parts from model Whirlpool 34GA-92CK GAS RANGE
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
1
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
1
BAFFLE WPL 3601F09551 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
CLIP WPL 7112P02960 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
+ CLOCK WPL 7601P04560 Contact Us For Availability
3
CLOCK WPL 7601P18660 Contact Us For Availability
4
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
4
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
4
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
4
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
5
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
5
COVER, BOTTOM BKGD WIRE WPL 4005F07380 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
6
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
6
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
7
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
7
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
7
BLOCK WPL 7401P01860 Contact Us For Availability
7
LINING WPL 2402W12815 Contact Us For Availability
7
LIGHT, SIGNAL LOCK WPL 7407P01060 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
8
NUT, SNAP WPL 7103P11460 Contact Us For Availability
8
BACKGUARD ASSY, ALM WPL 2601W11184 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
BOX, BURNER WPL 4011F07580 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
9
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
9
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
9
SCREW WPL 7101P05860 Contact Us For Availability
9
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
10
SCREW WPL 7101P05760 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02019 Contact Us For Availability
10
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
PAD ASSY, O.D. SOLID WPL 2410W02815 Contact Us For Availability
10
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
11
MIXER, AIR WPL 3411F00434 Contact Us For Availability
11
BOX, FLUE WPL 4006W02615 Contact Us For Availability
11
PANEL, OVEN DR-A WPL 2401F04374 Contact Us For Availability
11
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
11
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
12
3/8`` MICRO LOXIT NUT WPL 1555257 Contact Us For Availability
12
BRACE WPL 3802F00380 Contact Us For Availability
12
PANEL, STORAGE DRAWER ALM WPL 2416F01774 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
13
NUT, WING WPL 7103P03060 Contact Us For Availability
13
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
13
BRACKET WPL 3801F09351 Contact Us For Availability
13
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
13
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
13
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
13
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
13
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
14
PIPE MANIFOLD WPL 7513P10360 Contact Us For Availability
14
PIPE MANIFOLD WPL 7513P13460 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
14
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
14
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
14
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
14
TRIM, BKGD INSERT WPL 7703P11260 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
15
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
15
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
16
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
16
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
16
SCREW WPL 7101P29660 Contact Us For Availability
16
SLEEVE WPL 7214P00360 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
16
SCREW WPL 7101P06160 Contact Us For Availability
16
SEAL WPL 7208P00260 Contact Us For Availability
17
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
18
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
18
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
18
TRIM, HANDLE WPL 7720P06360 Contact Us For Availability
19
SWITCH WPL 7403P01760 Contact Us For Availability
19
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
19
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
19
SWITCH WPL 7403P25960 Contact Us For Availability
19
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
19
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
20
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
20
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
20
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
21
VALVE WPL 7502P22260 Contact Us For Availability
21
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
22
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
22
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
23
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
23
COVER, MODULE WPL 4005F17680 Contact Us For Availability
24
TUBING, 3/8 X 51-1/2 WPL 3414F04844 Contact Us For Availability
24
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
25
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
25
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
26
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
26
VALVE, BROIL & BAKE WPL 7501P09160 Contact Us For Availability
26
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
26
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
27
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
27
GASKET WPL 7201P01360 Contact Us For Availability
27
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
28
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
29
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
29
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
30
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
31
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
32
GRATE WPL 2003W00100 Contact Us For Availability
32
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
34
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
34
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
35
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
35
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
35
SCREW WPL 7101P06460 Contact Us For Availability
36
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
37
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
37
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
37
INSERT, BR WPL Y3413F01619 Contact Us For Availability
38
WPL 7711P26060 WPL 7711P26060 Contact Us For Availability
38
WPL 7711P26160 WPL 7711P26160 Contact Us For Availability
39
WPL 7711P15660 WPL 7711P15660 Contact Us For Availability
40
WPL 7711P15160 WPL 7711P15160 Contact Us For Availability
41
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
41
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
41
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
42
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
43
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
43
WPL 4009W06980 WPL 4009W06980 Contact Us For Availability
43
WPL 4009W07480 WPL 4009W07480 Contact Us For Availability
44
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
44
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
45
WPL 8002P02160 WPL 8002P02160 Contact Us For Availability
46
WPL 7431P00660 WPL 7431P00660 Contact Us For Availability
47
WPL 3401F00419 WPL 3401F00419 Contact Us For Availability
47
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
47
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
48
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
49
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
49
WPL 2618F07374 WPL 2618F07374 Contact Us For Availability
50
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
51
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
52
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
53
WPL 3 WPL 3 Contact Us For Availability
× ![]()
Login and Registration Form
