Model Whirlpool 34GA-3TKX-ON GAS RANGE – Common Parts & Diagrams
02 - BODY

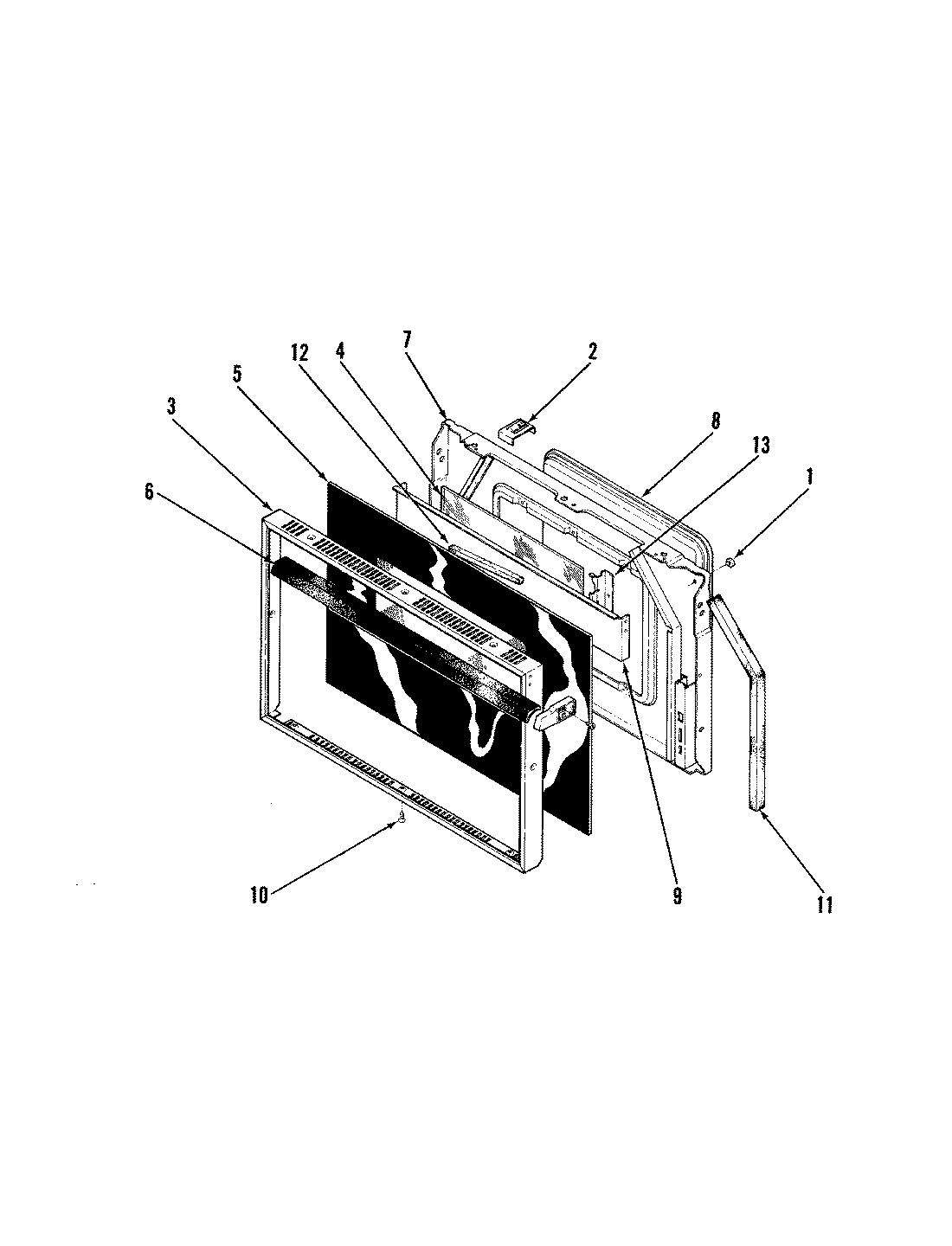

04 - DOOR

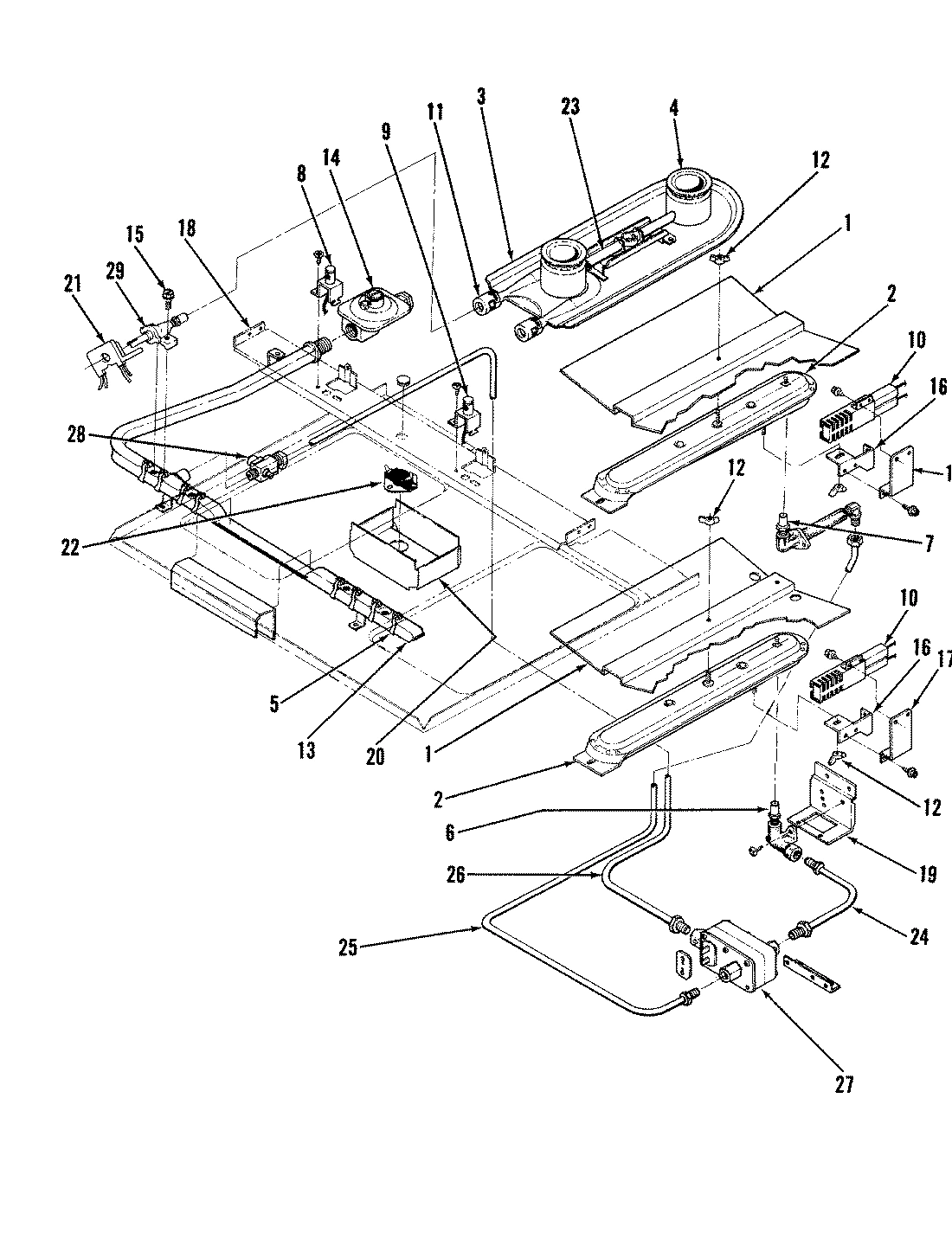

03 - CONTROL SYSTEM

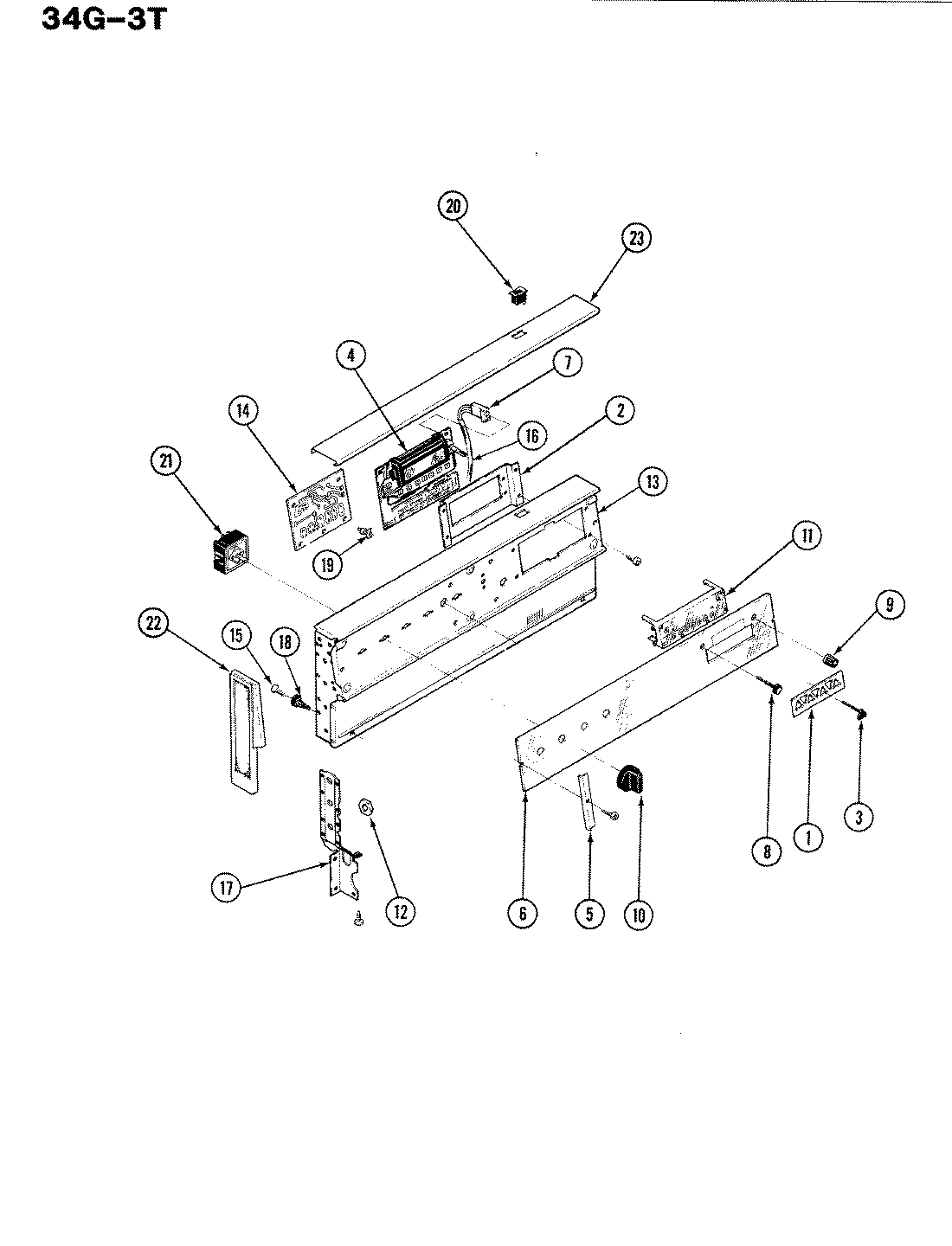

01 - BACKGUARD
Common parts from model Whirlpool 34GA-3TKX-ON GAS RANGE
1
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
1
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
1
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
1
TRIM, BEZEL WPL 7740P01060 Contact Us For Availability
2
BACK, BR LEFT WPL 4002F06045 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
FRAME, SERV DOOR WPL 7706E056 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
2
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
3
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300252 Contact Us For Availability
3
BUTTON, SET WPL 7711P33560 Contact Us For Availability
4
BACK, MAIN WPL 4002F06820 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
COVER, BKGD BOTTOM WPL 4005F15520 Contact Us For Availability
4
COVER, BACKGUARD WPL 4005F19480 Contact Us For Availability
4
CLOCK WPL 7601P07160 Contact Us For Availability
4
CLOCK WPL 7601P10160 Contact Us For Availability
5
BAFFLE WPL 3601F11645 Contact Us For Availability
5
COVER, MODULE WPL 4005F17480 Contact Us For Availability
5
GLASS, DOOR SOLID WPL 7902P06360 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
6
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
6
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
6
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P01960 Contact Us For Availability
6
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
6
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
6
FITTING WPL 1285324 Contact Us For Availability
6
GLASS, BACKGUARD WPL 7902P21760 Contact Us For Availability
7
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
7
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
7
LINING WPL 2402W12815 Contact Us For Availability
7
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
7
FITTING, BROIL BURNE WPL 7507P02460 Contact Us For Availability
7
HARNESS, WIRE WPL 5170A00560 Contact Us For Availability
7
HARNESS, SENSOR WPL 5170A00760 Contact Us For Availability
7
WIRE HARNESS, CLOCK WPL 5170A06760 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011J075 Contact Us For Availability
8
PIN WPL 1584209 Contact Us For Availability
8
PIN WPL 1584211 Contact Us For Availability
8
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
BOTTOM, OVEN WPL 2205F01213 Contact Us For Availability
9
RETAINER, GLASS WPL 3804F05160 Contact Us For Availability
9
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
9
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
10
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
10
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
10
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
11
BRACKET WPL 0284303 Contact Us For Availability
11
BRACKET WPL 3801F09351 Contact Us For Availability
11
BOX, FLUE WPL 4006W02613 Contact Us For Availability
11
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
11
SEAL WPL 1726250 Contact Us For Availability
11
MIXER, AIR WPL Y0607215 Contact Us For Availability
11
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
11
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
12
BRACKET WPL 0284306 Contact Us For Availability
12
BRACKET WPL 0284315 Contact Us For Availability
12
BRACKET WPL 0284316 Contact Us For Availability
12
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
12
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
12
SPRING WPL 7803P00260 Contact Us For Availability
12
SEAL WPL 1726252 Contact Us For Availability
12
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
12
WING NUT WPL 1555254 Contact Us For Availability
12
NUT, GRIP WPL 7103P02260 Contact Us For Availability
13
BUMPER WPL 1784202 Contact Us For Availability
13
CLAMP WPL Y0315206 Contact Us For Availability
13
PROBE, OVEN SENSOR WPL 7430P00160 Contact Us For Availability
13
PROBE, OVEN SENSOR WPL 7430P00460 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
13
PANEL, BKGD ALMOND WPL 2601W18784 Contact Us For Availability
13
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
13
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
14
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
14
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
14
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
15
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
15
SCREW SPECIAL WPL 1986286 Contact Us For Availability
15
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
15
MIXER, AIR WPL 3411F00635 Contact Us For Availability
15
SCREW WPL 1986341 Contact Us For Availability
16
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
16
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
16
SUPPORT WPL 0862434 Contact Us For Availability
16
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
17
COVER, DOOR LOCK WPL 4005J137 Contact Us For Availability
17
SUPPORT WPL 0862420 Contact Us For Availability
17
SUPPORT WPL 0862417 Contact Us For Availability
17
SUPPORT WPL 0862418 Contact Us For Availability
18
COVER, OV VALVE WPL 4005F17551 Contact Us For Availability
18
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
18
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
19
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
19
SUPPORT, VALVE WPL 3807F21645 Contact Us For Availability
19
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
19
SWITCH WPL 7403P18860 Contact Us For Availability
19
SUPPORT, RELAY BOARD WPL 8004P01460 Contact Us For Availability
20
DRAWER ASSY. WPL 0384227 Contact Us For Availability
20
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
20
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
21
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
21
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
22
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
22
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
22
TRIM WPL 1916211 Contact Us For Availability
22
TRIM WPL 1916212 Contact Us For Availability
23
FRONT, FRAME OVEN WPL 2201F02523 Contact Us For Availability
23
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
23
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
23
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
24
FRAME, SERV DOOR WPL 7706P05660 Contact Us For Availability
24
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
25
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
25
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
26
GASKET WPL 7201P01360 Contact Us For Availability
26
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
27
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
27
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
28
GASKET, OVEN WPL 7201P00160 Contact Us For Availability
28
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
29
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
29
VALVE WPL 7502P03160 Contact Us For Availability
29
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
30
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
31
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
32
GRATE WPL 2003W00100 Contact Us For Availability
33
HANDLE, DOOR LOCK WPL 7701P00360 Contact Us For Availability
34
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
35
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
35
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
36
HOUSING, LAMP WPL 0537253 Contact Us For Availability
36
INSERT WPL Y0507229 Contact Us For Availability
38
LEVER, DOOR LOCK WPL 8009P00760 Contact Us For Availability
39
BULB, OVEN WPL 7407P02660 Contact Us For Availability
40
LINING, IN SIDE WPL 4009W03420 Contact Us For Availability
41
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
43
PANEL, STORAGE DRAW WPL 2416F01474 Contact Us For Availability
43
PANEL, LOWER FRONT WPL 2614F00820 Contact Us For Availability
45
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
45
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
45
PANEL, SIDE (HV WHT) WPL 2618F05276 Contact Us For Availability
45
PANEL, SIDE COFFEE WPL 2618F05278 Contact Us For Availability
46
PIN, HINGE WPL 7113P00260 Contact Us For Availability
47
RACK, OVEN WPL 7801P01160 Contact Us For Availability
48
RECEPT WPL 7408P00260 Contact Us For Availability
49
WPL 0749227 WPL 0749227 Contact Us For Availability
50
WPL Y0766215 WPL Y0766215 Contact Us For Availability
51
WPL 3406J007 WPL 3406J007 Contact Us For Availability
52
WPL 1986347 WPL 1986347 Contact Us For Availability
53
WPL Y0787421 WPL Y0787421 Contact Us For Availability
54
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
55
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
55
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
56
WPL 0115101 WPL 0115101 Contact Us For Availability
57
WPL 3807F195 WPL 3807F195 Contact Us For Availability
58
WPL 3807F193 WPL 3807F193 Contact Us For Availability
61
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
63
WPL 7712A02860 WPL 7712A02860 Contact Us For Availability
63
WPL 2001F03594 WPL 2001F03594 Contact Us For Availability
64
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
64
WPL 8026P00660 WPL 8026P00660 Contact Us For Availability
× ![]()
