Model Whirlpool 34GA-3EKX GAS RANGE – Common Parts & Diagrams
01 - BACKGUARD

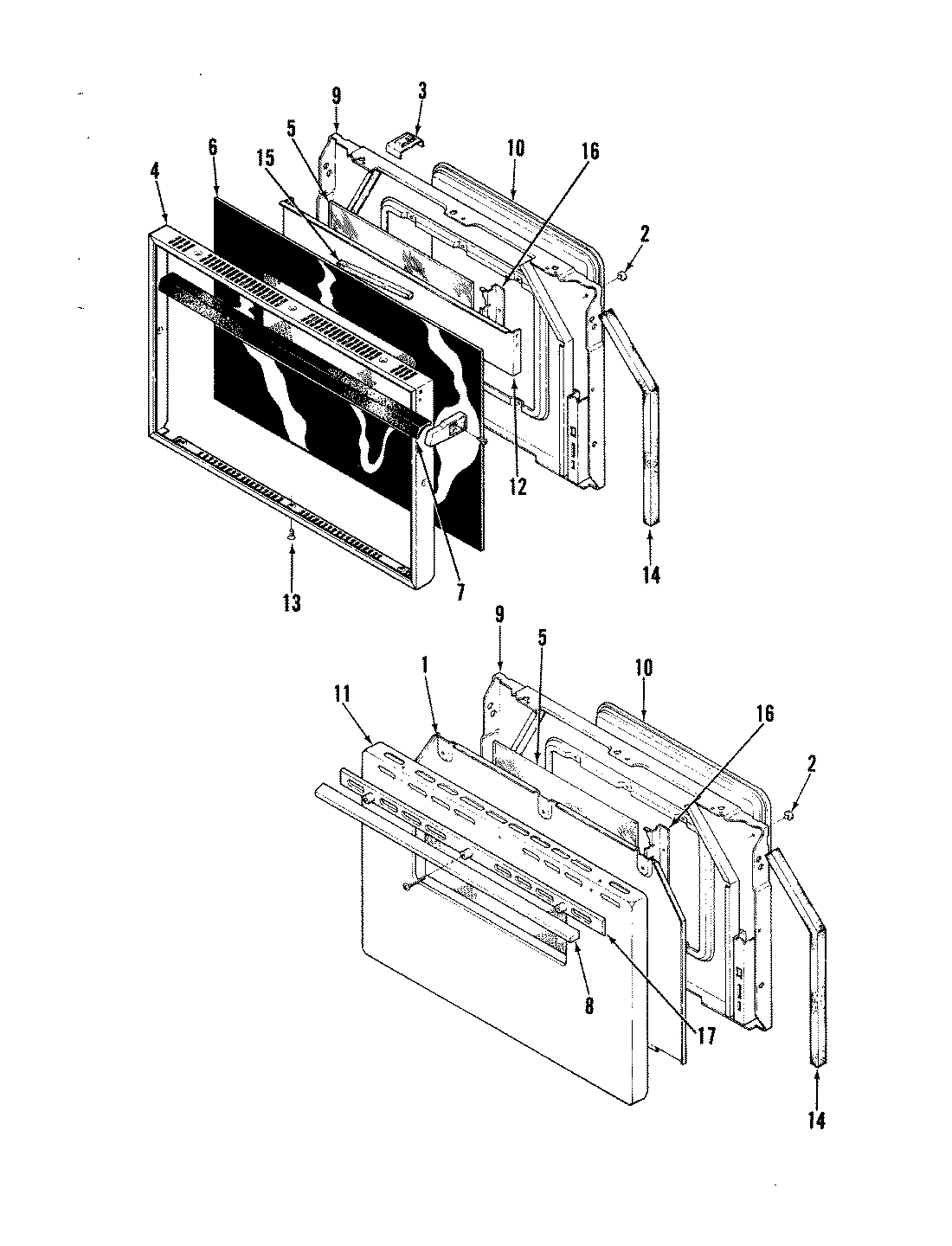

03 - DOOR

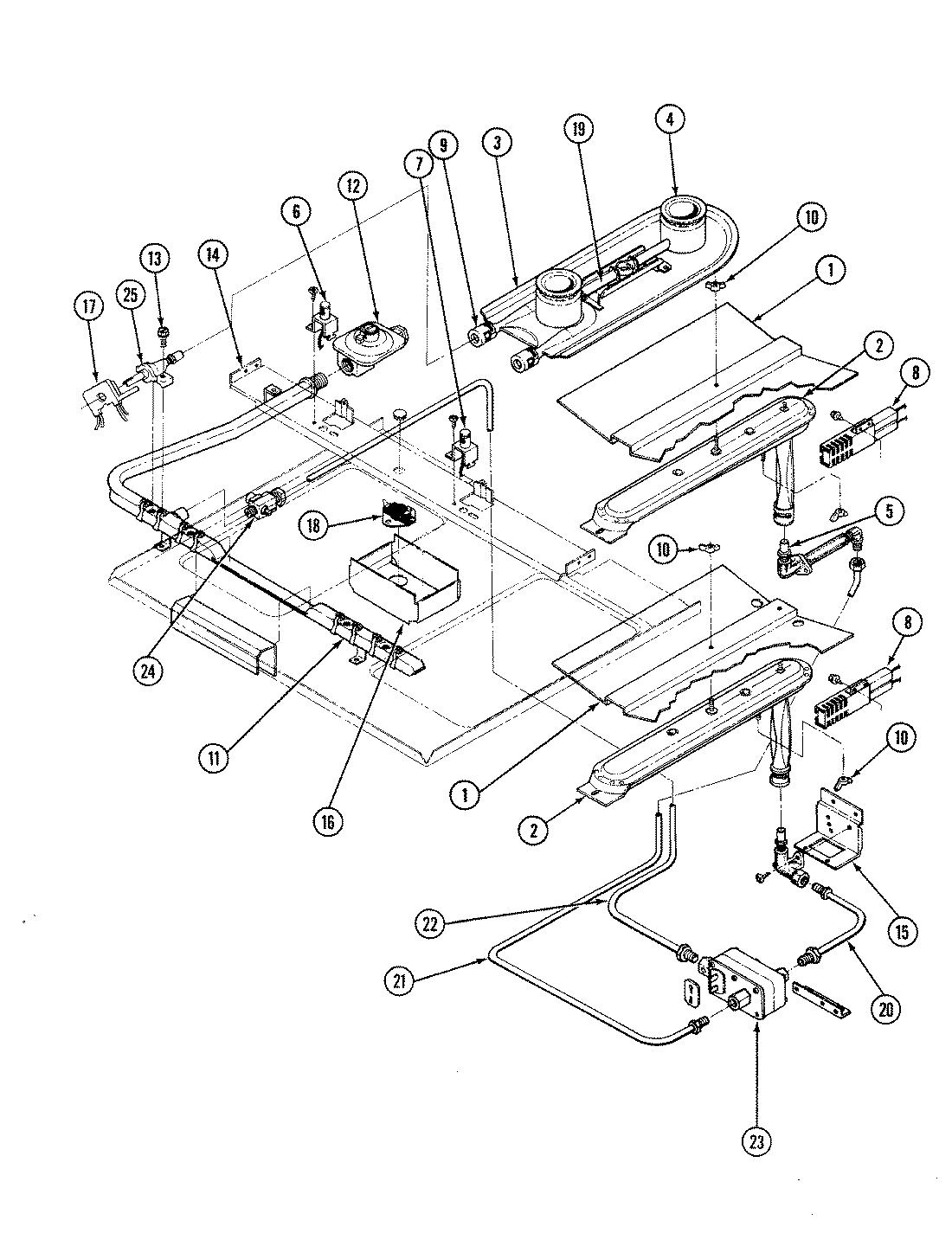

04 - GAS CONTROLS

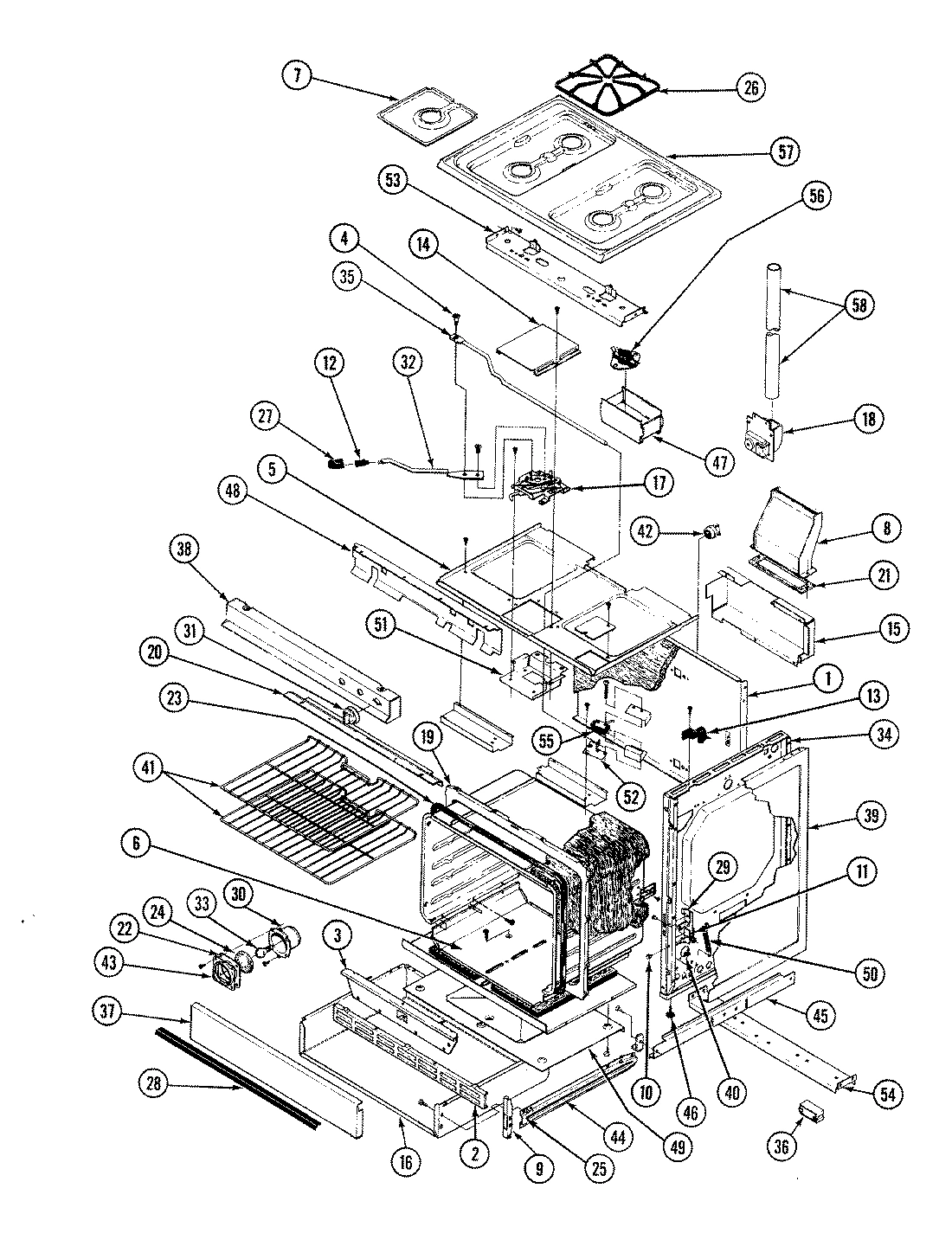

02 - BODY
Common parts from model Whirlpool 34GA-3EKX GAS RANGE
1
PAD, INNER OV DR WPL 2410F01151 Contact Us For Availability
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
1
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
1
BACK, MAIN WPL 4002F06420 Contact Us For Availability
1
BACK, MAIN WPL 4002F07020 Contact Us For Availability
2
+ CLOCK WPL 7601P04760 Contact Us For Availability
2
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BAFFLE WPL 3601F11645 Contact Us For Availability
3
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300252 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, BKGD WPL 4005F16120 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
5
GLASS, BKGD WPL 7902P11560 Contact Us For Availability
5
FITTING, BROIL BURNE WPL 7507P02460 Contact Us For Availability
5
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
5
BOX, BURNER WPL 4011F07580 Contact Us For Availability
6
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
6
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01213 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
7
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
8
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
8
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
8
BRACKET WPL 0284303 Contact Us For Availability
8
BRACKET WPL 3801F09351 Contact Us For Availability
8
BOX, FLUE WPL 4006W02613 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P01360 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
MIXER, AIR WPL 3411F00134 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
9
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
10
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
10
PAD ASSY, O.D. SOLID WPL 2410W02812 Contact Us For Availability
10
NUT, WING WPL 7103P03060 Contact Us For Availability
10
BUMPER WPL 1784202 Contact Us For Availability
10
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
11
TRIM, MANIFOLD PANEL WPL 7712P00660 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
11
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
12
SUPPORT WPL 0862417 Contact Us For Availability
12
SUPPORT WPL 0862418 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05160 Contact Us For Availability
12
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
12
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
13
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
13
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
13
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
14
SWITCH WPL 7403P02060 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
14
SEAL WPL 1726250 Contact Us For Availability
14
COVER, DOOR LOCK WPL 4005J137 Contact Us For Availability
15
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
15
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
15
SEAL WPL 1726252 Contact Us For Availability
15
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
15
COVER, MODULE WPL 4005F17480 Contact Us For Availability
15
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
15
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
16
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
16
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
16
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
16
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
16
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
16
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
17
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
17
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
18
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
18
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
19
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
19
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
20
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
20
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
21
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
21
GASKET WPL 7201P01360 Contact Us For Availability
22
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
22
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
23
CLOCK, AUTOMATIC WPL 7601P03460 Contact Us For Availability
23
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
24
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
24
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
25
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
25
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
25
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
26
GRATE WPL 2003W00100 Contact Us For Availability
27
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
28
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
29
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
29
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
29
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
30
KNOB, THERMOSTAT WPL 7711P32260 Contact Us For Availability
30
INSERT WPL 3413F00211 Contact Us For Availability
30
HOUSING WPL 4001F02013 Contact Us For Availability
30
KNOB, SELECTOR WPL 7711P26160 Contact Us For Availability
31
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
32
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
33
BULB, OVEN WPL 7407P02660 Contact Us For Availability
34
LINING, IN SIDE WPL 4009W03420 Contact Us For Availability
35
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
36
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
36
PAN, BROIL WPL 3401F00411 Contact Us For Availability
37
PANEL, SVC DR ALMOND WPL 2416F01974 Contact Us For Availability
37
PANEL, LOWER FRONT WPL 2614F00820 Contact Us For Availability
38
TRIM ASSY, MANIFOLD WPL 7712A01360 Contact Us For Availability
39
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
40
PIN, HINGE WPL 7113P00260 Contact Us For Availability
41
RACK, OVEN WPL 7801P01160 Contact Us For Availability
42
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
43
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
44
RUNNER WPL Y0766215 Contact Us For Availability
45
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
46
SCREW, LEVELING WPL 7101P05460 Contact Us For Availability
47
SHIELD WPL 3604F01651 Contact Us For Availability
48
SHIELD, MANI WPL 3604F08551 Contact Us For Availability
49
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
49
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
50
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
50
WPL 0115101 WPL 0115101 Contact Us For Availability
51
WPL 3807F195 WPL 3807F195 Contact Us For Availability
52
WPL 3807F193 WPL 3807F193 Contact Us For Availability
53
WPL 3807F22180 WPL 3807F22180 Contact Us For Availability
54
WPL 3807F21645 WPL 3807F21645 Contact Us For Availability
55
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
55
WPL 7403P09260 WPL 7403P09260 Contact Us For Availability
56
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
57
WPL 2001F03594 WPL 2001F03594 Contact Us For Availability
58
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
58
WPL 8026P00660 WPL 8026P00660 Contact Us For Availability
59
WPL 8112P03060 WPL 8112P03060 Contact Us For Availability
× ![]()
