Model Whirlpool 34FN-3EXW-ON GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

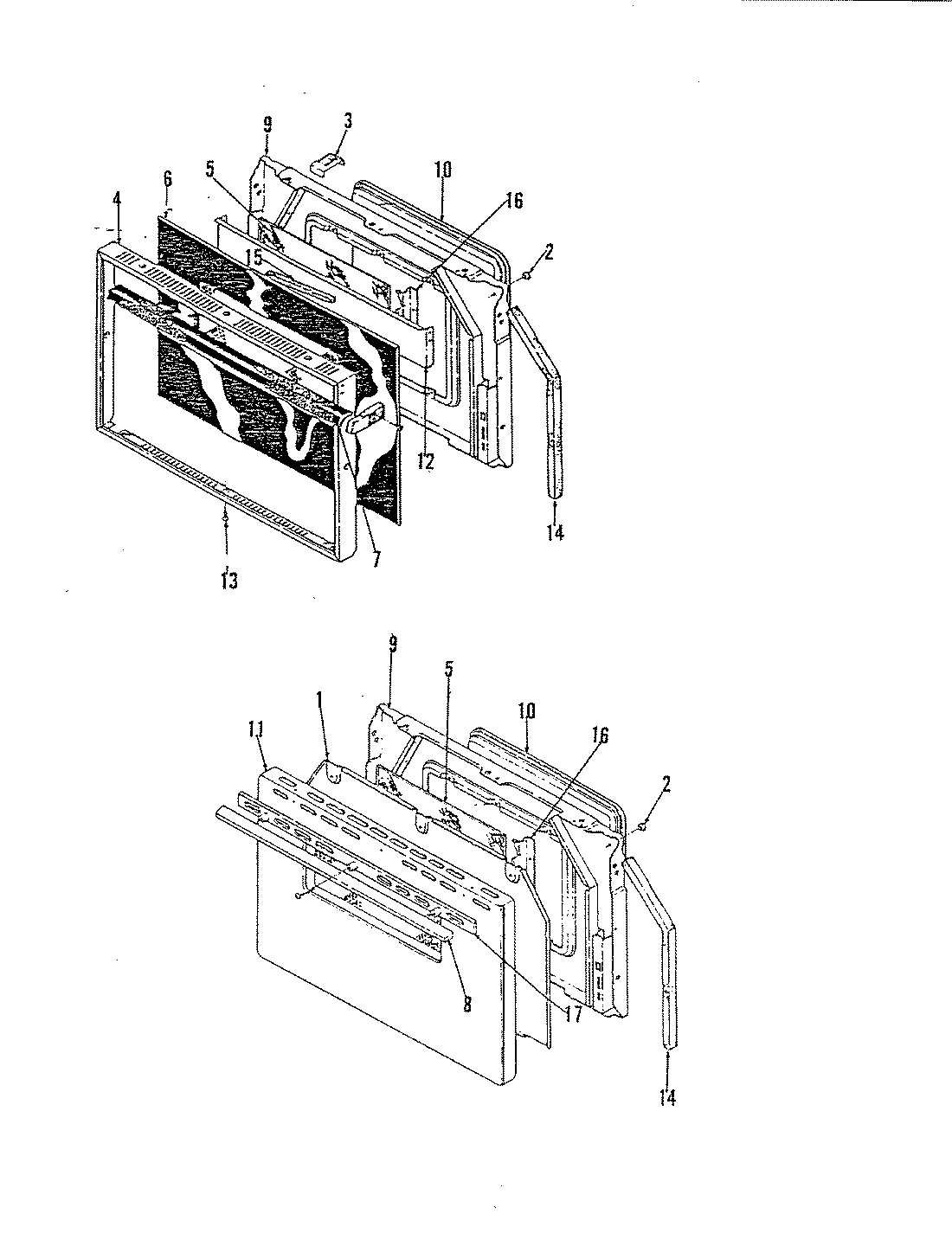

03 - DOOR

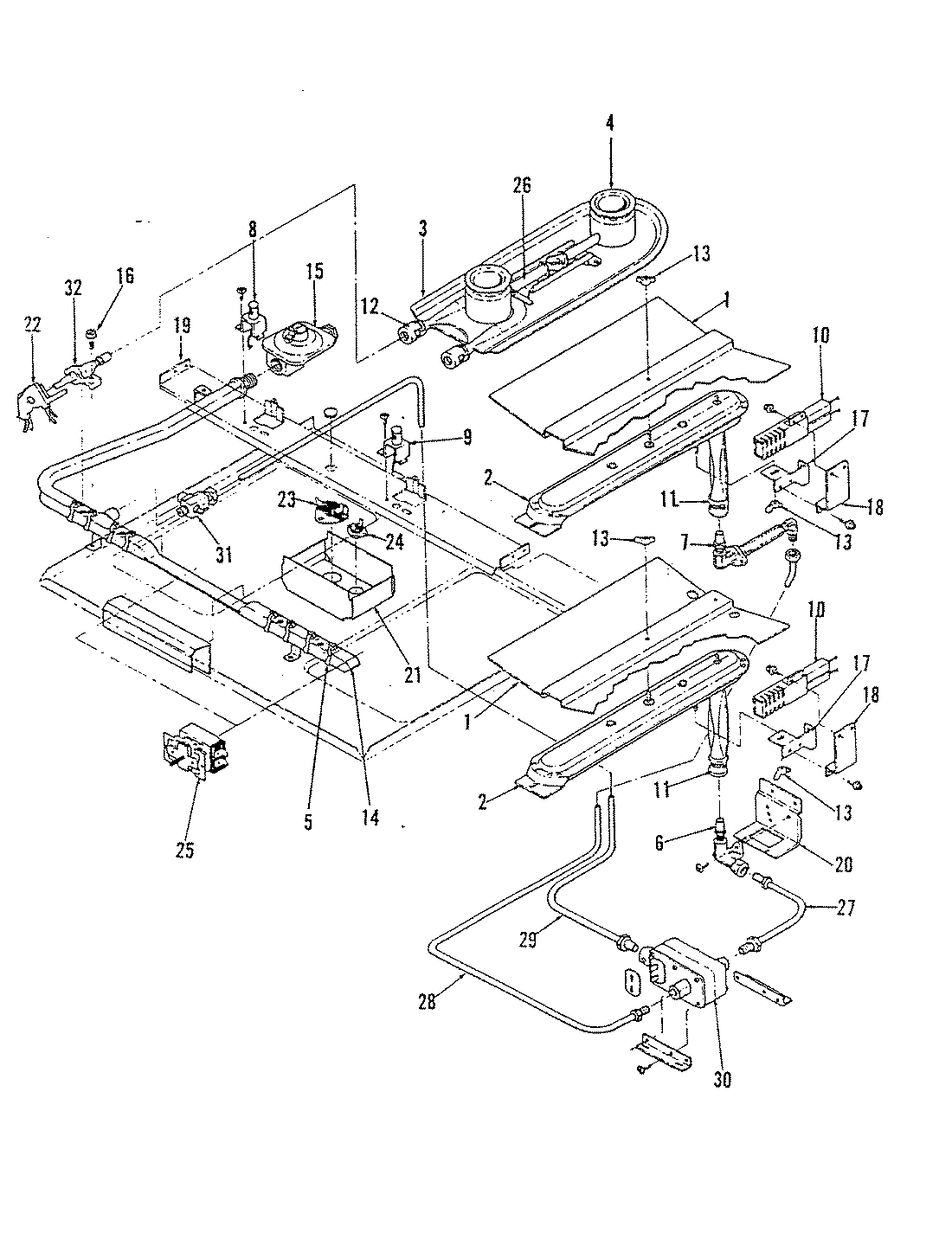

04 - GAS CONTROLS

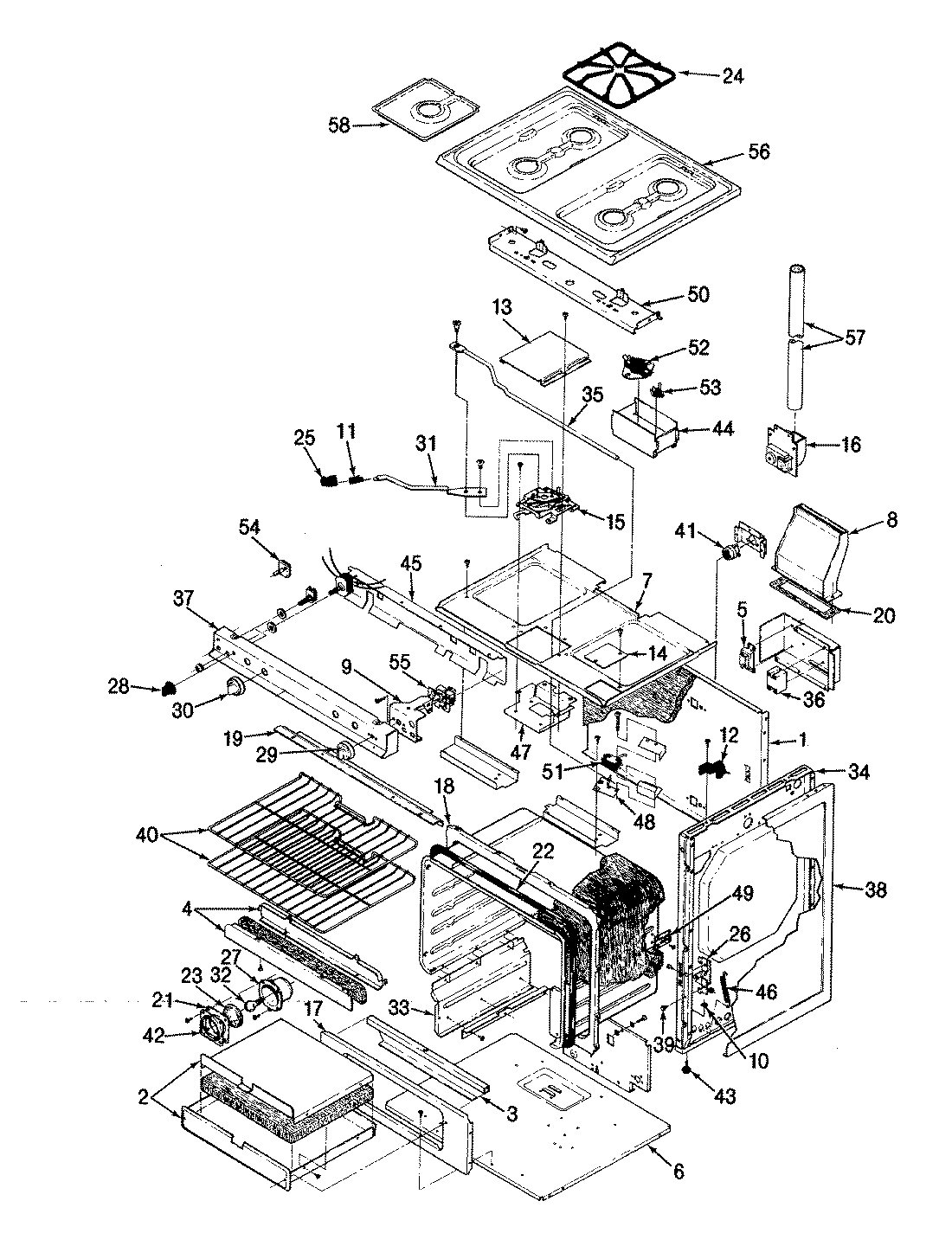

01 - BODY
Common parts from model Whirlpool 34FN-3EXW-ON GAS RANGE
1
(RIGHT) WPL 3801F10934 Contact Us For Availability
1
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
1
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
1
BAFFLE WPL 3601F058 Contact Us For Availability
1
BAFFLE WPL 0153320 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
1
BACK, MAIN WPL 4002F04620 Contact Us For Availability
2
BRACKET, CLOCK MNTG WPL 3801F10845 Contact Us For Availability
2
CATCH WPL 1135224 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
2
BURNER ASSY., OVEN WPL 0298234 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
+ BAFFLE WPL 0153332 Contact Us For Availability
3
BRACKET WPL 0284291 Contact Us For Availability
3
CLIP, DOOR GLASS WPL 7112E031 Contact Us For Availability
3
FRAME, BROILER DOOR WPL 7706E015 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300253 Contact Us For Availability
3
BAFFLE WPL 0153327 Contact Us For Availability
4
+ CLOCK WPL 7601P04760 Contact Us For Availability
4
GASKET WPL 1313269 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
4
+ BAFFLE WPL 0153330 Contact Us For Availability
5
BALLAST WPL 1023200 Contact Us For Availability
5
COVER, BKGD BOTTOM WPL 4005F15520 Contact Us For Availability
5
COVER, BKGD WPL 4005F16120 Contact Us For Availability
5
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
5
GLASS, DOOR WPL 7902E097 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
COVER, SPARK MODULE WPL 4005F15620 Contact Us For Availability
5
BLOCK WPL 1867269 Contact Us For Availability
5
BLOCK WPL 1867271 Contact Us For Availability
5
BOLT, DOOR LOCK WPL 7116E002 Contact Us For Availability
6
EXTRUSION WPL 7706P09760 Contact Us For Availability
6
GLASS, DOOR WPL 7902E065 Contact Us For Availability
6
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
6
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
6
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
6
FITTING WPL 1285325 Contact Us For Availability
6
BOTTOM, MISC WPL 0236238 Contact Us For Availability
7
GLASS, BKGD WPL 7902P11560 Contact Us For Availability
7
HANDLE, DOOR WPL 7701E019 Contact Us For Availability
7
FITTING WPL 1285326 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011J067 Contact Us For Availability
7
+ BOTTOM ASY OVN WPL Y0234281 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
8
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
BRACKET WPL 0284303 Contact Us For Availability
8
BRACKET WPL 0284312 Contact Us For Availability
8
BRACKET WPL 0284316 Contact Us For Availability
8
BRACKET WPL 3801F082 Contact Us For Availability
8
BRACKET WPL 3801F093 Contact Us For Availability
8
BOX, FLUE WPL 4006W02613 Contact Us For Availability
9
KNOB,THERMOSTAT(ELE) WPL 1360331 Contact Us For Availability
9
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
9
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
BRACKET WPL 0284306 Contact Us For Availability
9
+ BRACKET WPL 0284307 Contact Us For Availability
9
BUMPER WPL 1784202 Contact Us For Availability
9
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
9
CLAMP WPL Y0315206 Contact Us For Availability
10
PANEL, BROILER DRWR WPL 2403K013 Contact Us For Availability
10
PAD ASSY, OV DR W/W WPL 2410W02712 Contact Us For Availability
10
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
10
+ PAD ASSEMBLY WPL 2430F016 Contact Us For Availability
10
KNOB, VALVE WPL 7711P15160 Contact Us For Availability
10
KNOB, THERMO WPL 7711P18960 Contact Us For Availability
10
RING, SNAP WPL 1013214 Contact Us For Availability
11
PIN WPL 1584209 Contact Us For Availability
11
PIN WPL 1584211 Contact Us For Availability
11
MIXER, AIR WPL 0607214 Contact Us For Availability
11
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
12
MODULE, SPARK WPL 1522102 Contact Us For Availability
12
MIXER, AIR WPL Y0607215 Contact Us For Availability
12
CLIP WPL 1141237 Contact Us For Availability
13
LIGHT, INDICATOR WPL 1406245 Contact Us For Availability
13
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
13
WING NUT WPL 1555254 Contact Us For Availability
13
COVER - LOCK WPL 4005J037 Contact Us For Availability
14
GRIP NUT WPL 1555247 Contact Us For Availability
14
SEAL WPL 1726250 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
14
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
15
PANEL, BKGD LOWER WPL 2620W01400 Contact Us For Availability
15
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
15
SEAL WPL 1726252 Contact Us For Availability
15
STOP, DOOR WPL Y0112241 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 1665248 Contact Us For Availability
15
EXTRUSION, SIDE PANEL (LT) WPL 1259599 Contact Us For Availability
15
EXTRUSION, TRIM WPL 1259600 Contact Us For Availability
16
SCREW WPL 1986341 Contact Us For Availability
16
PLATE, SWITCH MNTG. WPL 3605F09120 Contact Us For Availability
16
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
16
SCREW VALVE WPL 1986319 Contact Us For Availability
16
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
17
SLEEVE WPL 1762216 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
SUPPORT WPL 0862434 Contact Us For Availability
17
FRAME ASSY. WPL 0462232 Contact Us For Availability
18
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
18
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
18
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
18
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
19
SUPPORT WPL 0862417 Contact Us For Availability
19
SUPPORT WPL 0862418 Contact Us For Availability
19
SWITCH WPL 1832379 Contact Us For Availability
19
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
20
SWITCH WPL 1832397 Contact Us For Availability
20
SUPPORT WPL 0862445 Contact Us For Availability
20
GASKET WPL 1313276 Contact Us For Availability
21
SWITCH, SELECTOR WPL 1832415 Contact Us For Availability
21
TRIM, BACKGUARD WPL 7728E010 Contact Us For Availability
21
SUPPORT WPL 0862462 Contact Us For Availability
21
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
21
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
22
TRIM WPL 1916960 Contact Us For Availability
22
TRIM WPL 1916961 Contact Us For Availability
22
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
22
GASKET, OVEN WPL 1313279 Contact Us For Availability
23
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
23
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
24
GRATE WPL Y0505218 Contact Us For Availability
25
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
25
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
25
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
25
+ HINGE, MAIN TOP WPL 0529103 Contact Us For Availability
25
+ HINGE, MAIN TOP WPL 0529104 Contact Us For Availability
25
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
26
TUBE WPL 1930342 Contact Us For Availability
26
+ HINGE, OVEN DOOR (LT) WPL Y0528261 Contact Us For Availability
26
+ HINGE WPL Y0528262 Contact Us For Availability
27
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
27
INSERT, BROIL PAN WPL 0507243 Contact Us For Availability
27
HOUSING, LAMP WPL 0537253 Contact Us For Availability
28
KNOB, SELECTOR WPL 7711E106 Contact Us For Availability
28
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
29
KNOB, THERMOSTAT WPL 7711E107 Contact Us For Availability
29
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
30
VALVE, SAFETY WPL 1945269 Contact Us For Availability
30
KNOB, VALVE WPL 1356400 Contact Us For Availability
31
VALVE, SHUT OFF WPL 1951367 Contact Us For Availability
31
CATCH, DOOR LOCK WPL 8002E009 Contact Us For Availability
31
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
31
LEVER, DOOR LOCK WPL 8009E003 Contact Us For Availability
31
LEVER, DOOR LOCK WPL 8009P00760 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951372 Contact Us For Availability
33
LINING, MISC. WPL 0606391 Contact Us For Availability
34
LINING, INNER SIDE WPL 4009W02820 Contact Us For Availability
35
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
36
MODULE, SPARK WPL 1522106 Contact Us For Availability
37
TRIM, MANIFOLD PANEL WPL 7712P00860 Contact Us For Availability
38
PANEL, SIDE WPL 0801240N Contact Us For Availability
39
RACK, OVEN WPL 7801P01160 Contact Us For Availability
40
RACK WPL 1636255 Contact Us For Availability
41
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
42
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
43
SCREW, SPECIAL WPL 1986214 Contact Us For Availability
44
HOUSING WPL 0537252 Contact Us For Availability
44
SHIELD WPL Y0787421 Contact Us For Availability
45
SHIELD WPL 3604F058 Contact Us For Availability
45
SLEEVE, HEAT SHRINK WPL 7214P00460 Contact Us For Availability
46
STOP, MAIN TOP WPL 0115101 Contact Us For Availability
47
SUPPORT, DOOR WPL 3807F188 Contact Us For Availability
48
WPL 3807F193 WPL 3807F193 Contact Us For Availability
49
WPL 0862446 WPL 0862446 Contact Us For Availability
50
WPL 0862470 WPL 0862470 Contact Us For Availability
51
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
52
WPL 1832404 WPL 1832404 Contact Us For Availability
53
WPL 7403E004 WPL 7403E004 Contact Us For Availability
54
WPL 7403E015 WPL 7403E015 Contact Us For Availability
55
WPL 7515E005 WPL 7515E005 Contact Us For Availability
56
WPL 1916179 WPL 1916179 Contact Us For Availability
56
WPL 1916180 WPL 1916180 Contact Us For Availability
56
WPL 2001F03591 WPL 2001F03591 Contact Us For Availability
56
WPL Y0902288N WPL Y0902288N Contact Us For Availability
57
WPL 8026P00660 WPL 8026P00660 Contact Us For Availability
58
WPL 946251 WPL 946251 Contact Us For Availability
× ![]()
Login and Registration Form
