Model Whirlpool 3488XVB GAS RANGE – Common Parts & Diagrams

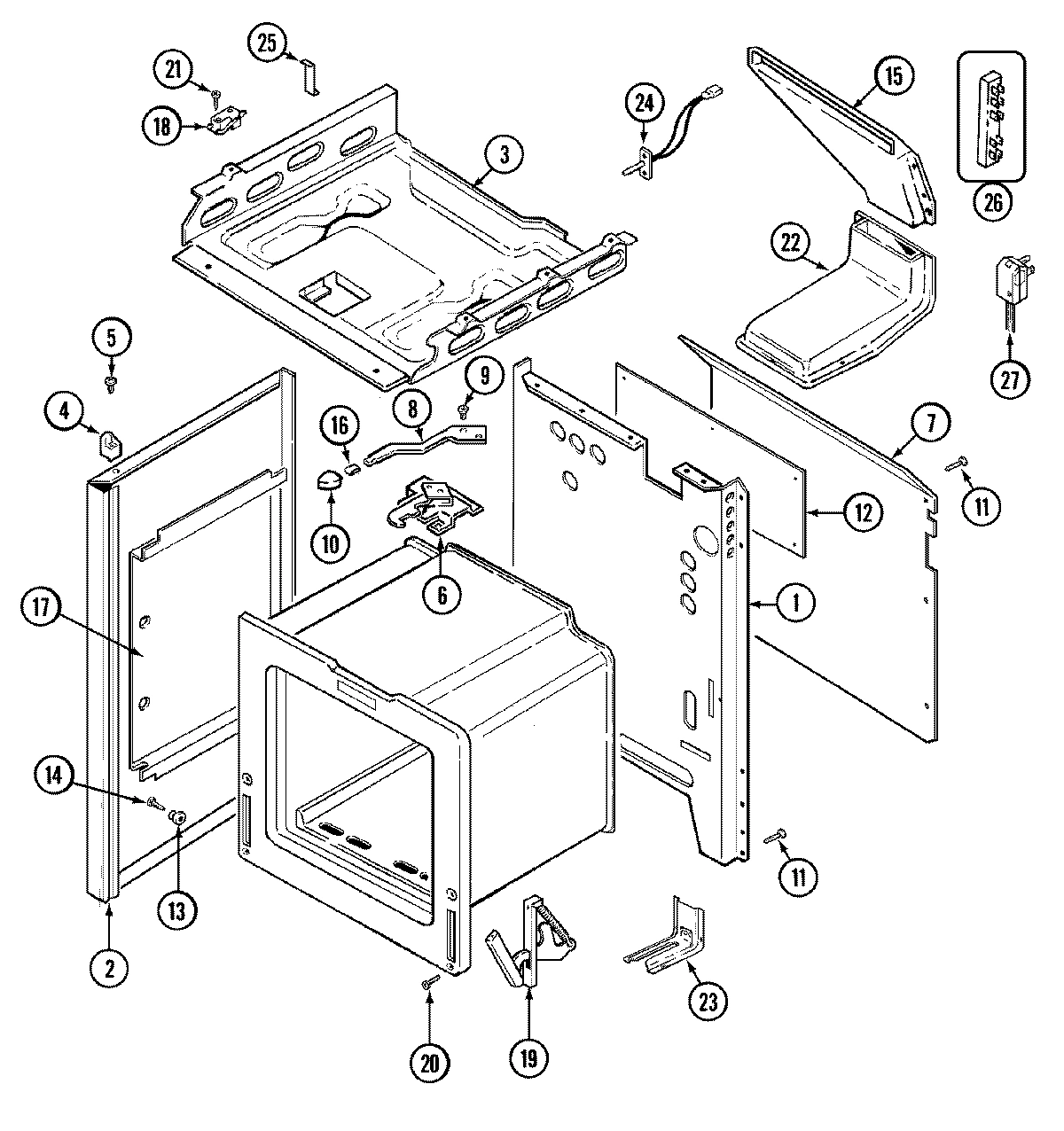

01 - BODY

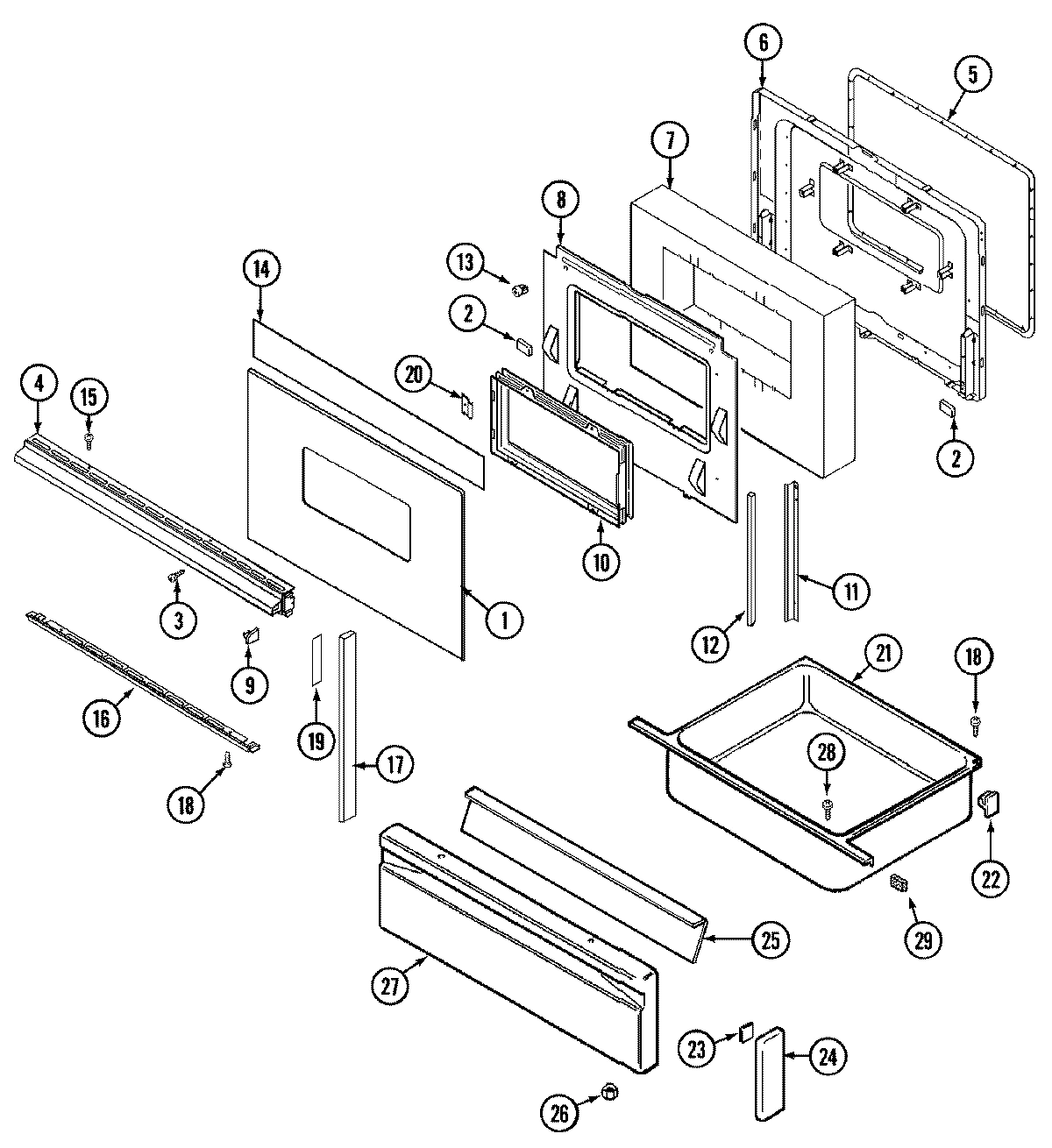

03 - DOOR/DRAWER
08 - WIRING INFORMATION

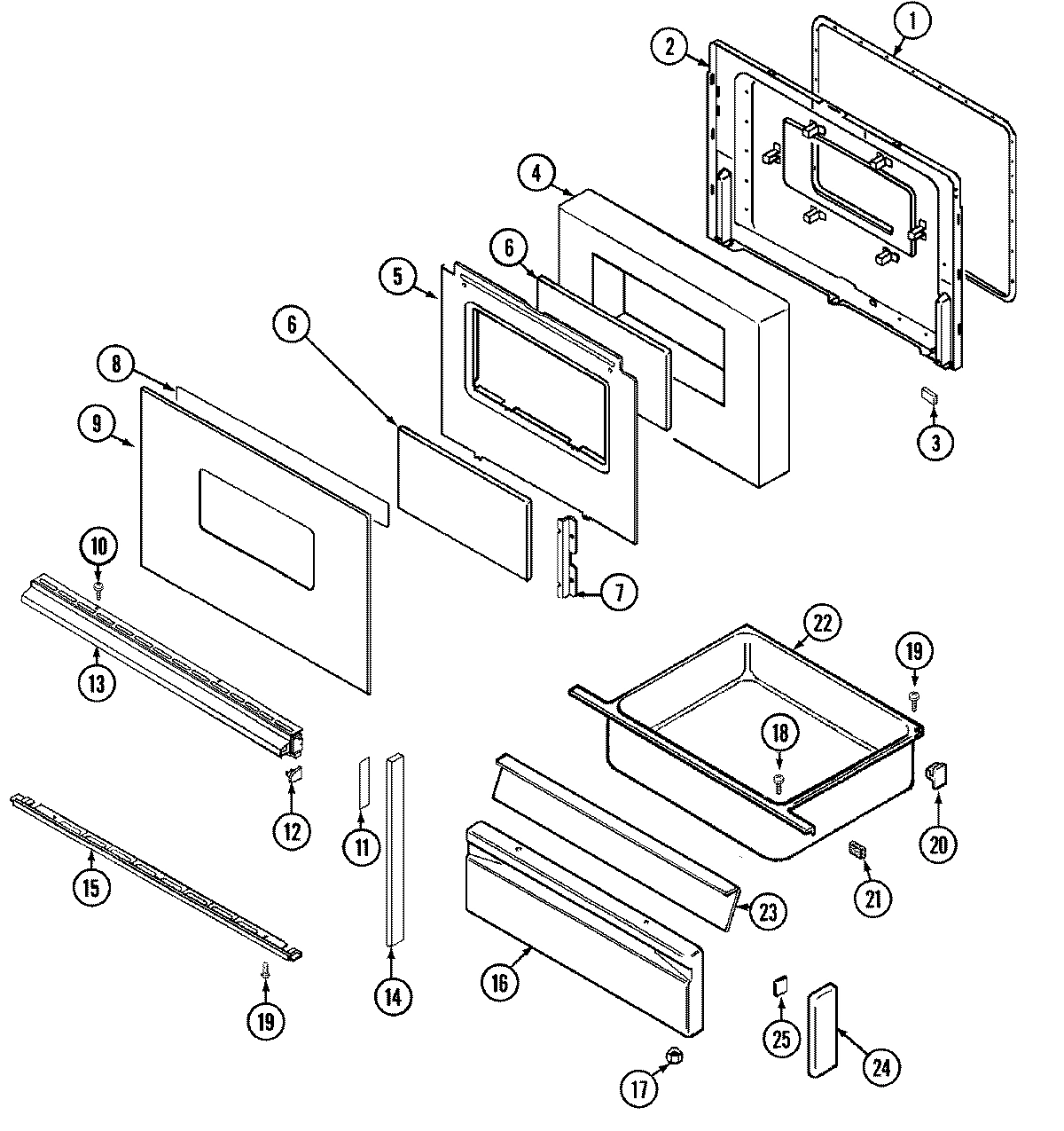

04 - DOOR/DRAWER (SER. PRE. 15)

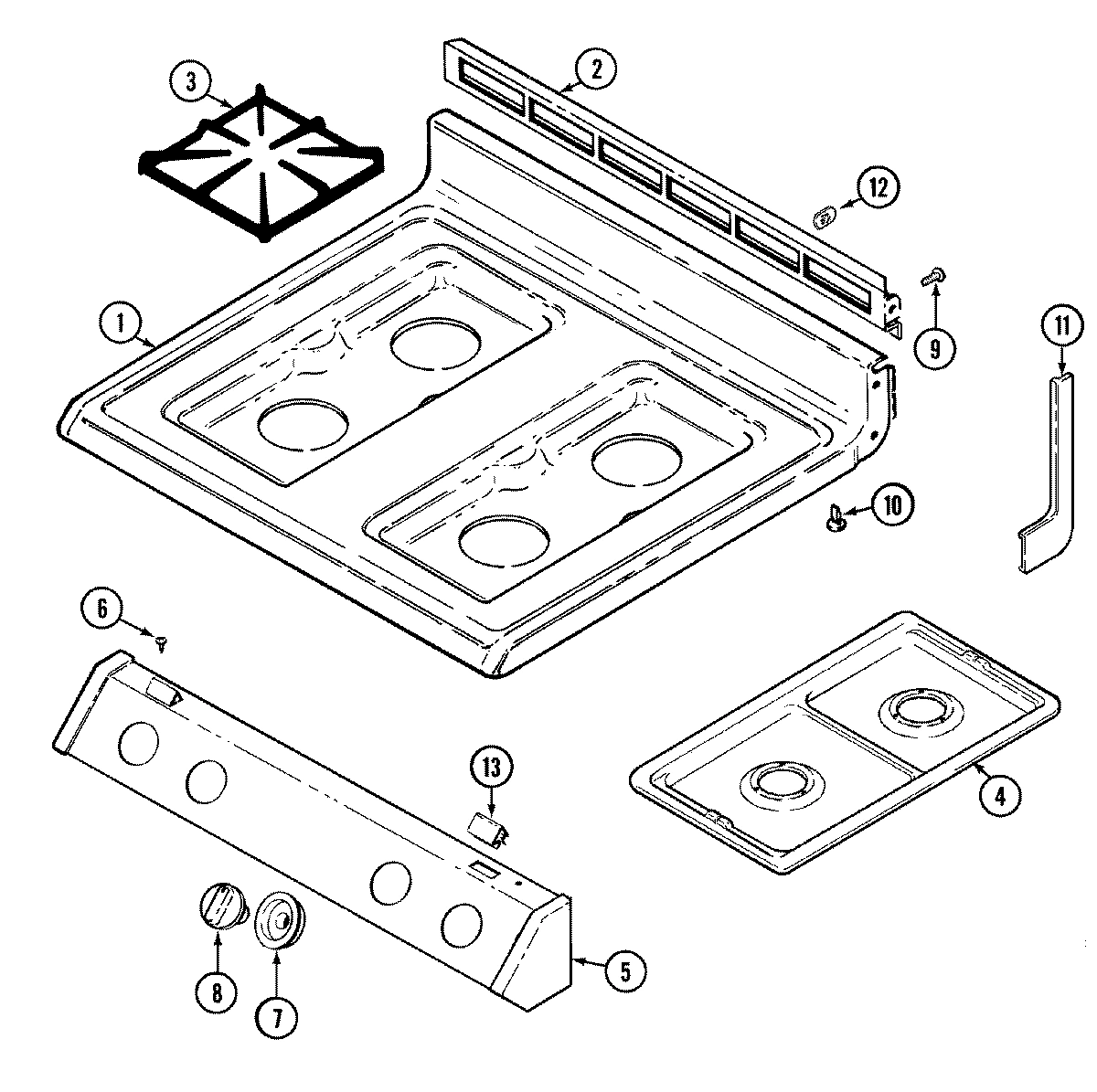

07 - TOP ASSEMBLY

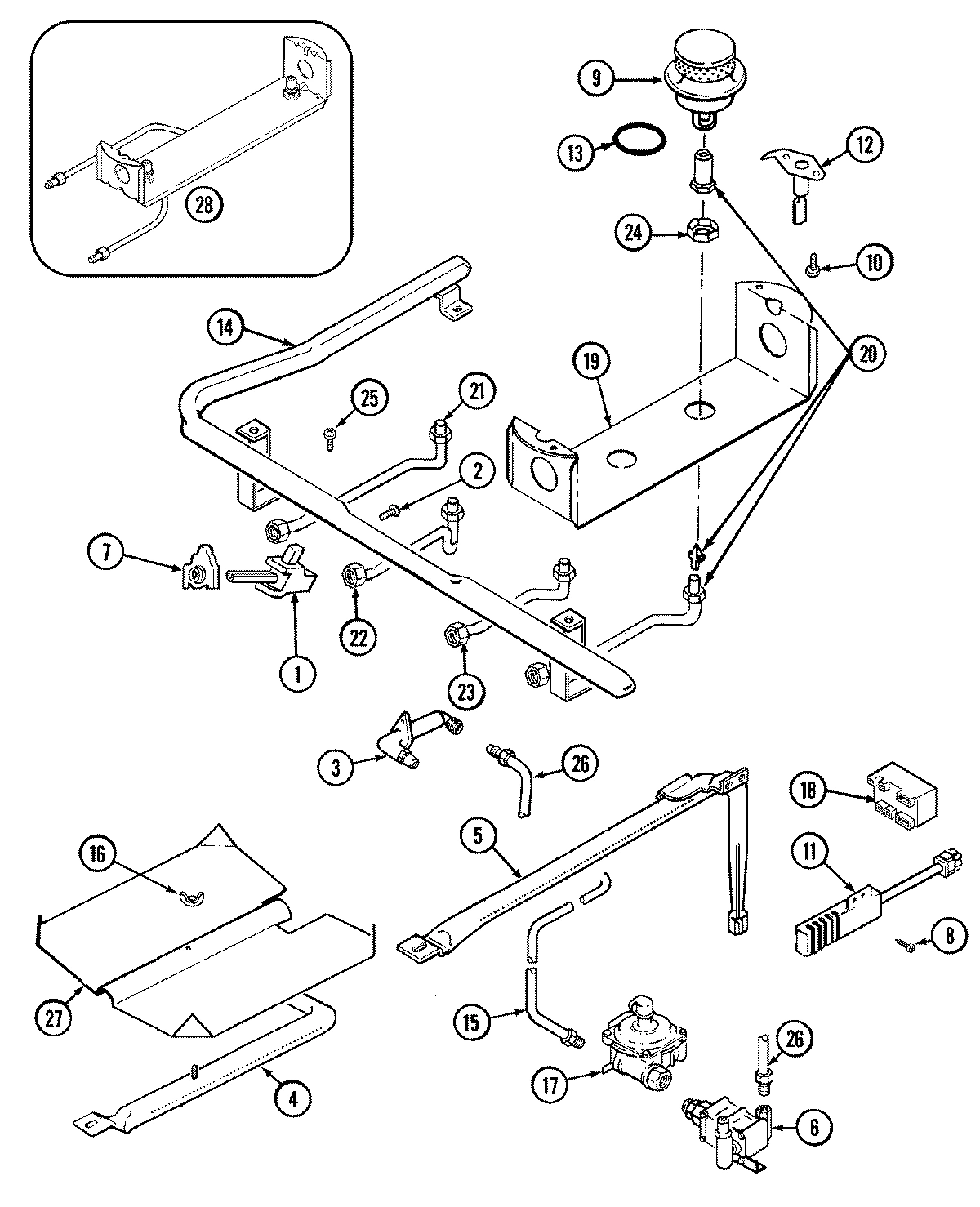

05 - GAS CONTROLS

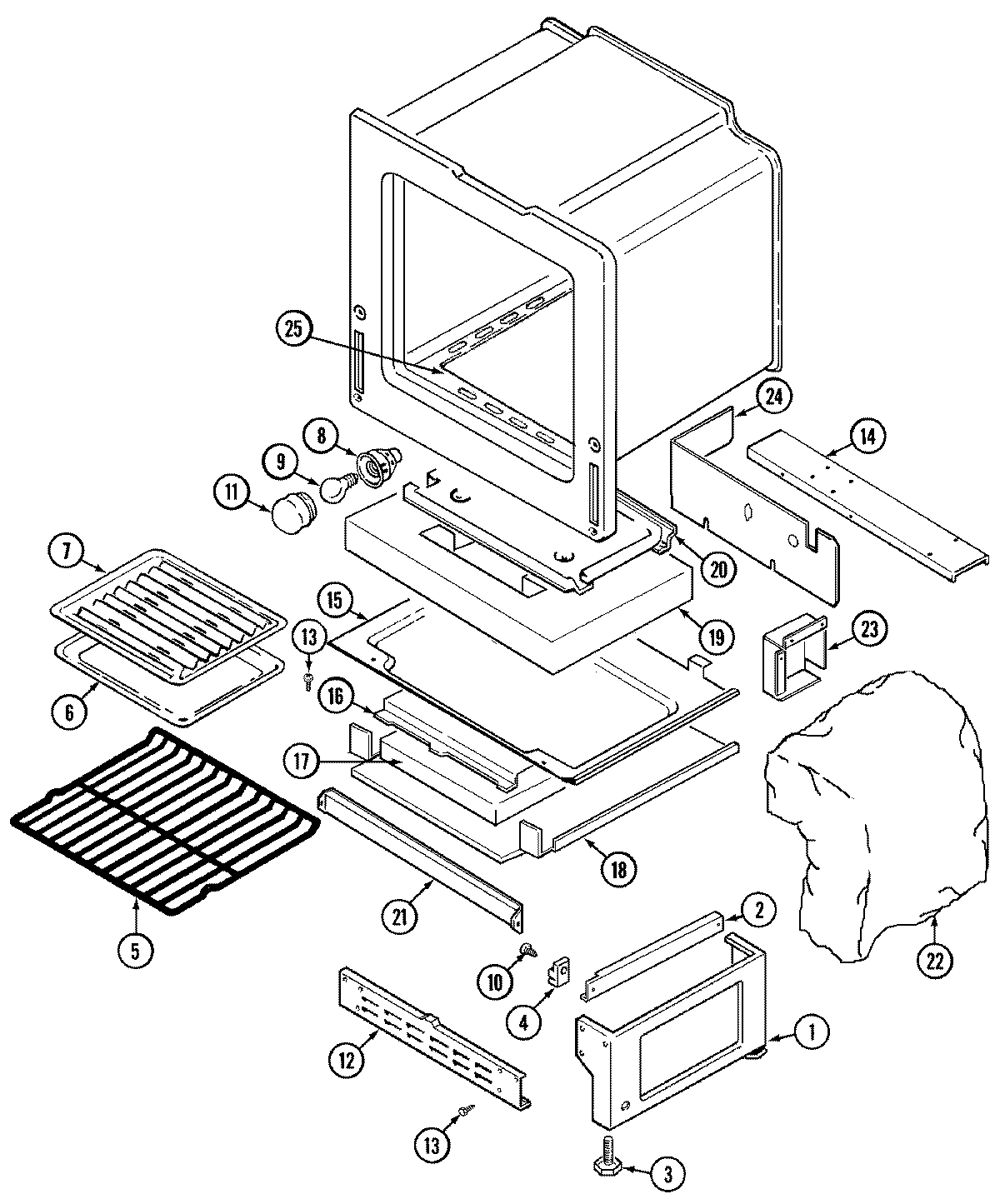

06 - OVEN/BASE

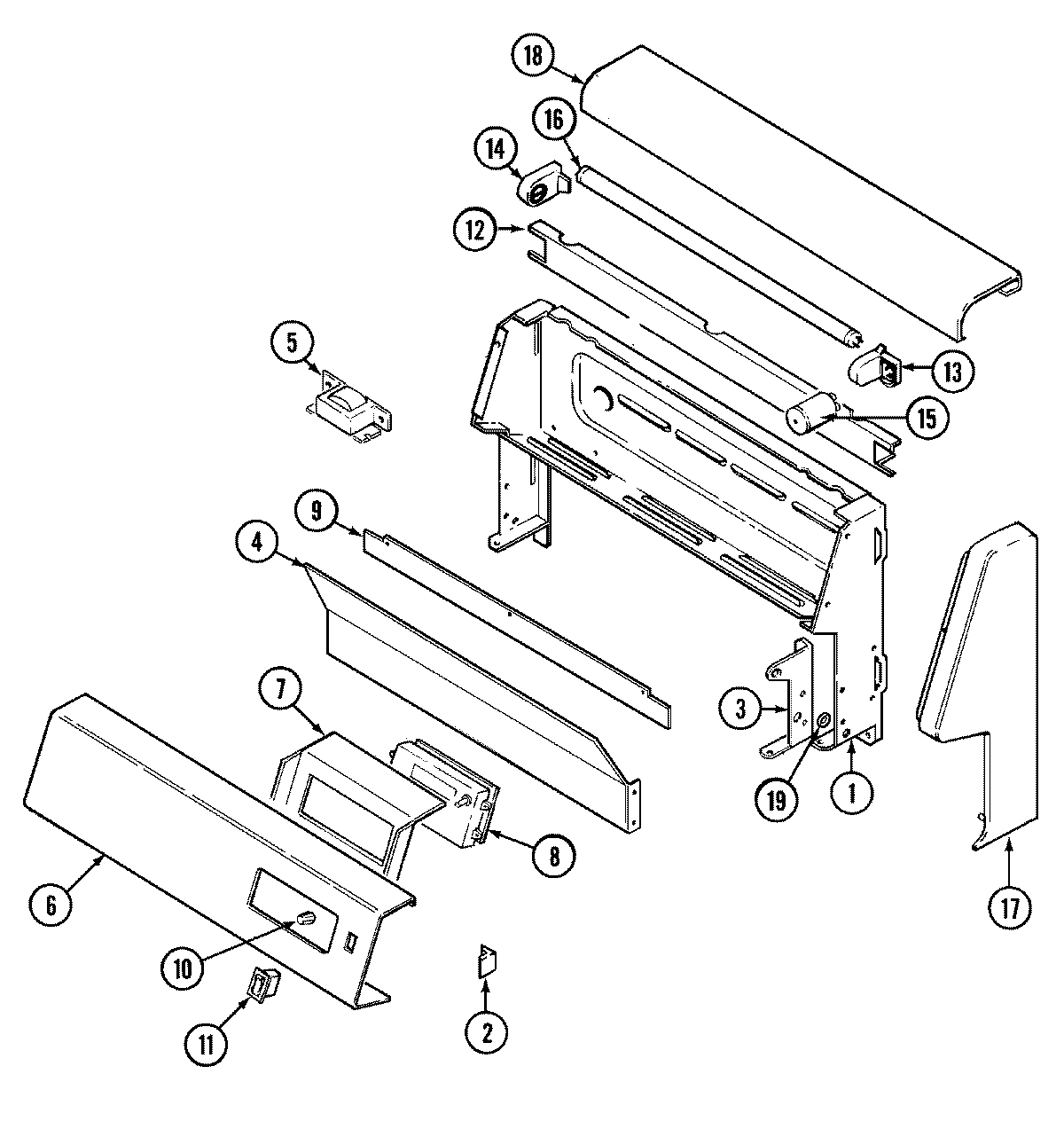

02 - CONTROL PANEL
Common parts from model Whirlpool 3488XVB GAS RANGE
1
BACK, MAIN WPL 4002F19980 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
TOP, MAIN (BLK) WPL 2001W08509 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
3
BOX, BURNER WPL 4011F23180 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
GRATE (BLK) WPL 74001653 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
5
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13060 Contact Us For Availability
5
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
5
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
BALLAST WPL 7412P00760 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
6
LATCH, DOOR WPL 74001069 Contact Us For Availability
6
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SCREW WPL 7101P07460 Contact Us For Availability
6
COVER, VALVE WPL 4005F33451 Contact Us For Availability
6
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 7703P59460 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
7
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F33745 Contact Us For Availability
8
LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02360 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
8
SCREW WPL 7101P32860 Contact Us For Availability
8
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
CLOCK (BLK) WPL 74002254 Contact Us For Availability
8
CLOCK (BLK) WPL 7601P23060 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED (3 WPL W10124350 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
10
GLIDE WPL 8016P01560 Contact Us For Availability
10
SCREW WPL 7101P31560 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
11
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
END CAP, HANDLE (RT-BLK) WPL 74002539 Contact Us For Availability
12
END CAP, HANDLE (LT-BLK) WPL 74002540 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
13
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
13
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
13
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
14
SCREW WPL 7101P34560 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
14
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
14
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
15
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
15
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
15
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
15
STARTER WPL 7415P00160 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
16
NUT, WING WPL 7103P03060 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
16
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
END CAP, PANEL (RT-BLK) WPL 74002794 Contact Us For Availability
17
END CAP, PANEL (LT-BLK) WPL 74002795 Contact Us For Availability
17
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
17
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
18
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
18
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
18
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
18
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
18
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
18
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
19
HINGE WPL 7106P05660 Contact Us For Availability
19
NUT, SPEED WPL 7103P04460 Contact Us For Availability
19
SUPPORT, TOP BURNER WPL 3807F44445 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
SCREW WPL 7101P11560 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
20
PAN, BAKE BURNER WPL 3401F02547 Contact Us For Availability
20
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
20
HARNESS, SENSOR & LOCK WPL 5170P20460 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 5180D15160 Contact Us For Availability
21
SCREW WPL 7101P03160 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
MANUAL, USE & CARE WPL 16007437 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P06660 Contact Us For Availability
22
BOX, VENT WPL 4006W11345 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
22
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
22
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
23
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
23
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
24
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
24
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
24
PALNUT WPL 7103P11960 Contact Us For Availability
24
COVER, VALVE WPL 4005F42951 Contact Us For Availability
25
SCREW WPL 7101P29060 Contact Us For Availability
25
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
25
TAPE WPL 8270P09860 Contact Us For Availability
25
SCREW WPL 7101P29660 Contact Us For Availability
25
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
25
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
26
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
27
CORD, POWER WPL 7402P04360 Contact Us For Availability
27
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
28
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
28
ORI WPL 5187D03560 Contact Us For Availability
29
WPL 5125A31260 WPL 5125A31260 Contact Us For Availability
29
WPL 5140D03560 WPL 5140D03560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001191 Contact Us For Availability
× ![]()
Login and Registration Form
