Model Whirlpool 3468XVB GAS RANGE – Common Parts & Diagrams

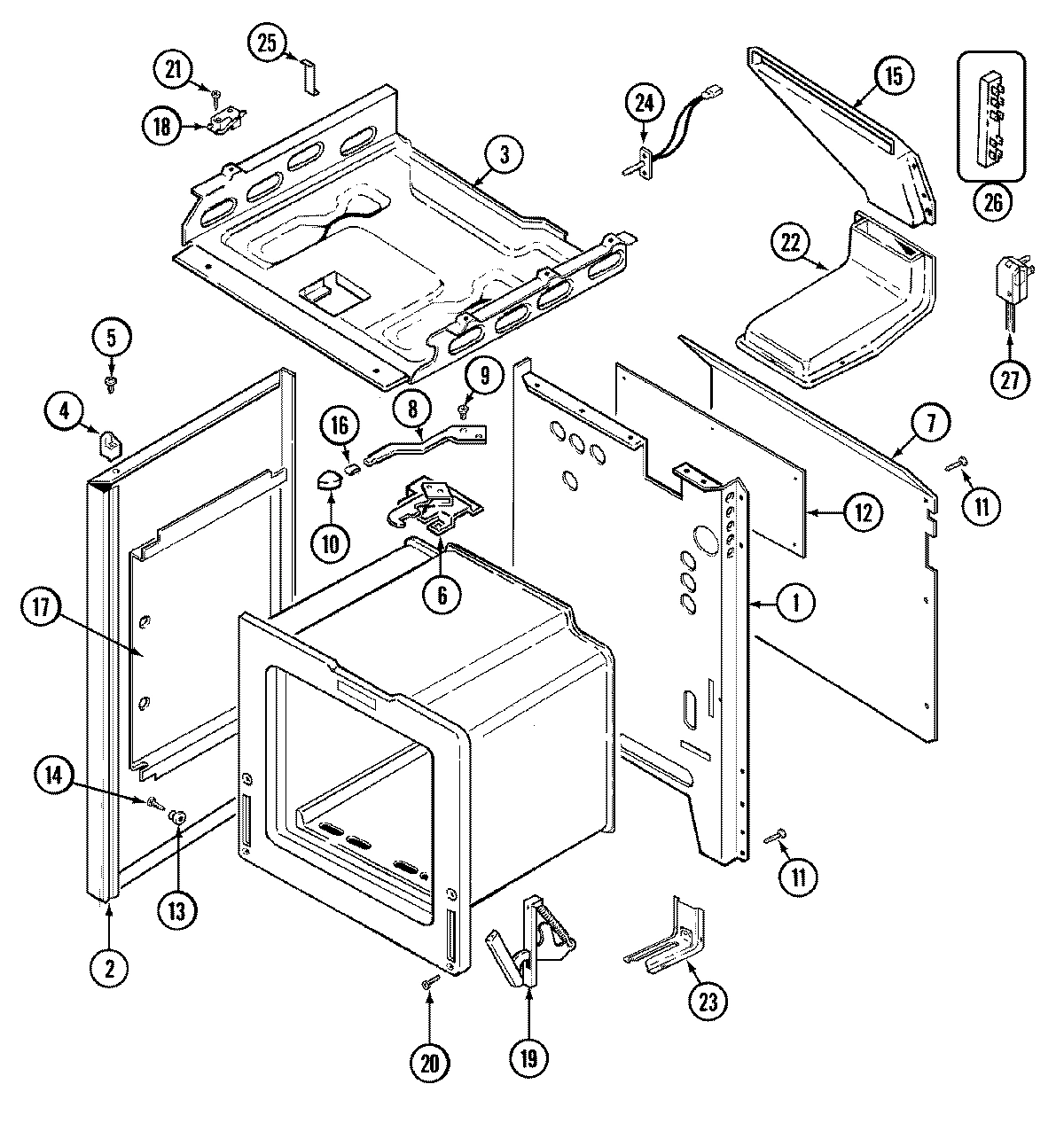

01 - BODY
03 - DOOR/DRAWER (3468XVB)
04 - GAS CONTROLS
06 - TOP ASSEMBLY
02 - CONTROL PANEL
07 - WIRING INFORMATION
05 - OVEN/BASE
Common parts from model Whirlpool 3468XVB GAS RANGE
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
TOP, MAIN (BLK) WPL 2001W08509 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
SCREW WPL 7118P01860 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74001907 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
GRATE (BLK) WPL 74001653 Contact Us For Availability
3
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
3
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
4
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 7703P60660 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
5
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002177 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13060 Contact Us For Availability
5
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
5
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
5
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
6
LATCH, DOOR WPL 74001069 Contact Us For Availability
6
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
6
CLOCK (BLK) WPL 74002254 Contact Us For Availability
6
CLOCK (BLK) WPL 7601P23060 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
7
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
BRACKET, CLOCK WPL 74002080 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED (3 WPL W10124350 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
9
SCREW WPL 7101P34360 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
10
SCREW WPL 7101P31560 Contact Us For Availability
10
GLIDE WPL 8016P01560 Contact Us For Availability
10
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
11
SCREW WPL 7101P32860 Contact Us For Availability
11
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
11
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
END CAP, PANEL (LT-BLK)----NA WPL 74001342 Contact Us For Availability
11
END CAP, PANEL (RT-BLK) WPL 74001343 Contact Us For Availability
12
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
12
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
12
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
12
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
13
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
13
NUT, SPEED WPL 7103P04460 Contact Us For Availability
13
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
14
WIRES, LOOSE WPL 5125A35460 Contact Us For Availability
14
HARNESS, SENSOR & LOCK WPL 5170P20460 Contact Us For Availability
14
HARNESS, CONTROL PANEL WPL 5180D15260 Contact Us For Availability
15
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
15
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
15
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
MANUAL, USE & CARE WPL 16007437 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P06660 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 74003701 Contact Us For Availability
16
NUT, WING WPL 7103P03060 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
18
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
18
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
18
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
18
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
HINGE WPL 7106P05660 Contact Us For Availability
19
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
19
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
22
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
22
BOX, VENT WPL 4006W11345 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW WPL 7101P34460 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 74001159 Contact Us For Availability
24
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
24
SCREW WPL 7101P29060 Contact Us For Availability
24
COVER, VALVE WPL 4005F42951 Contact Us For Availability
25
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
25
SCREW WPL 7101P29660 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
26
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
26
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
26
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
27
CORD, POWER WPL 7402P04360 Contact Us For Availability
27
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
28
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
28
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
29
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
29
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
29
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001191 Contact Us For Availability
× ![]()
Login and Registration Form
