Model Whirlpool 3442XRA GAS RANGE – Common Parts & Diagrams
07 - TOP ASSEMBLY

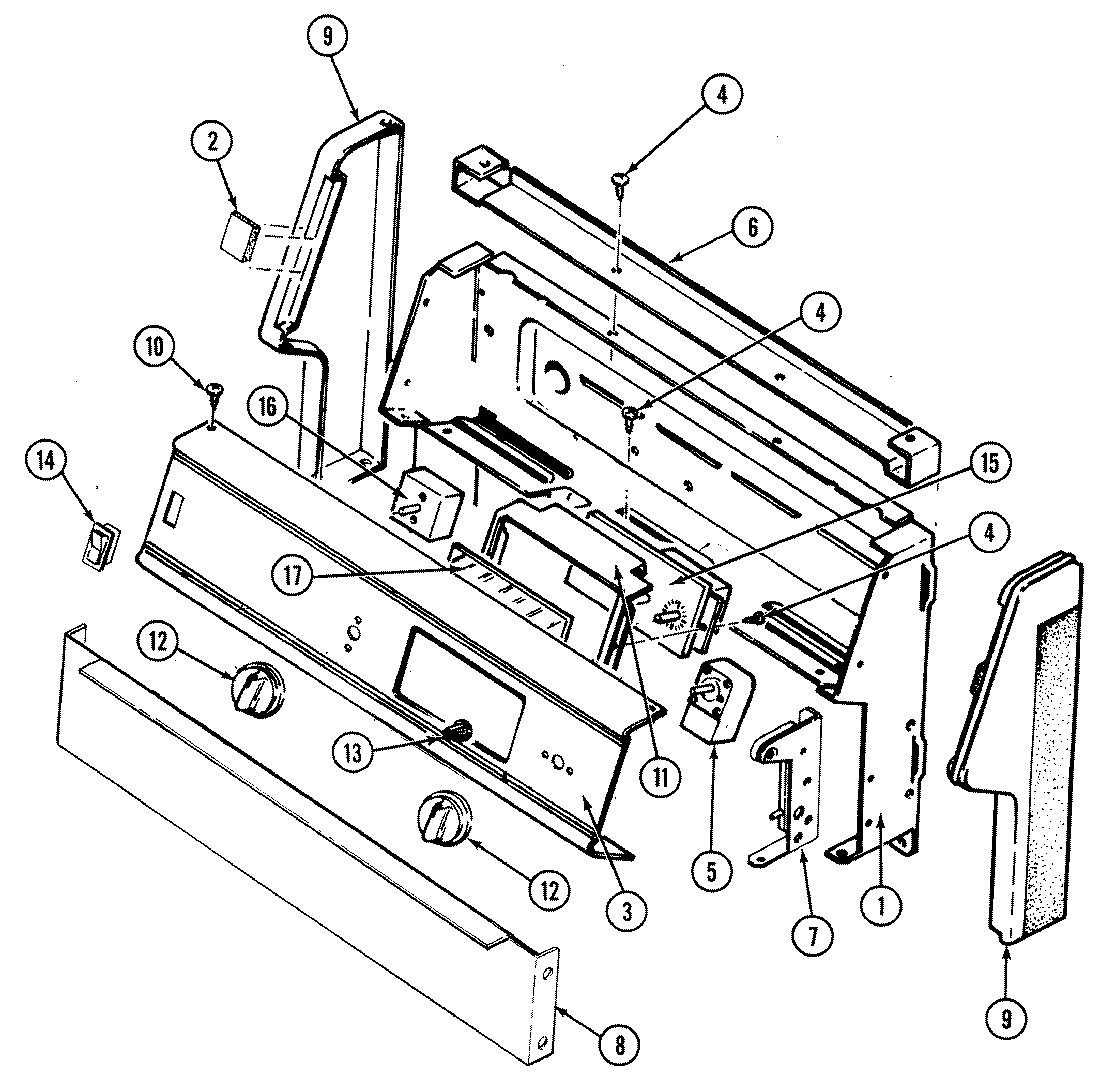

02 - CONTROL PANEL

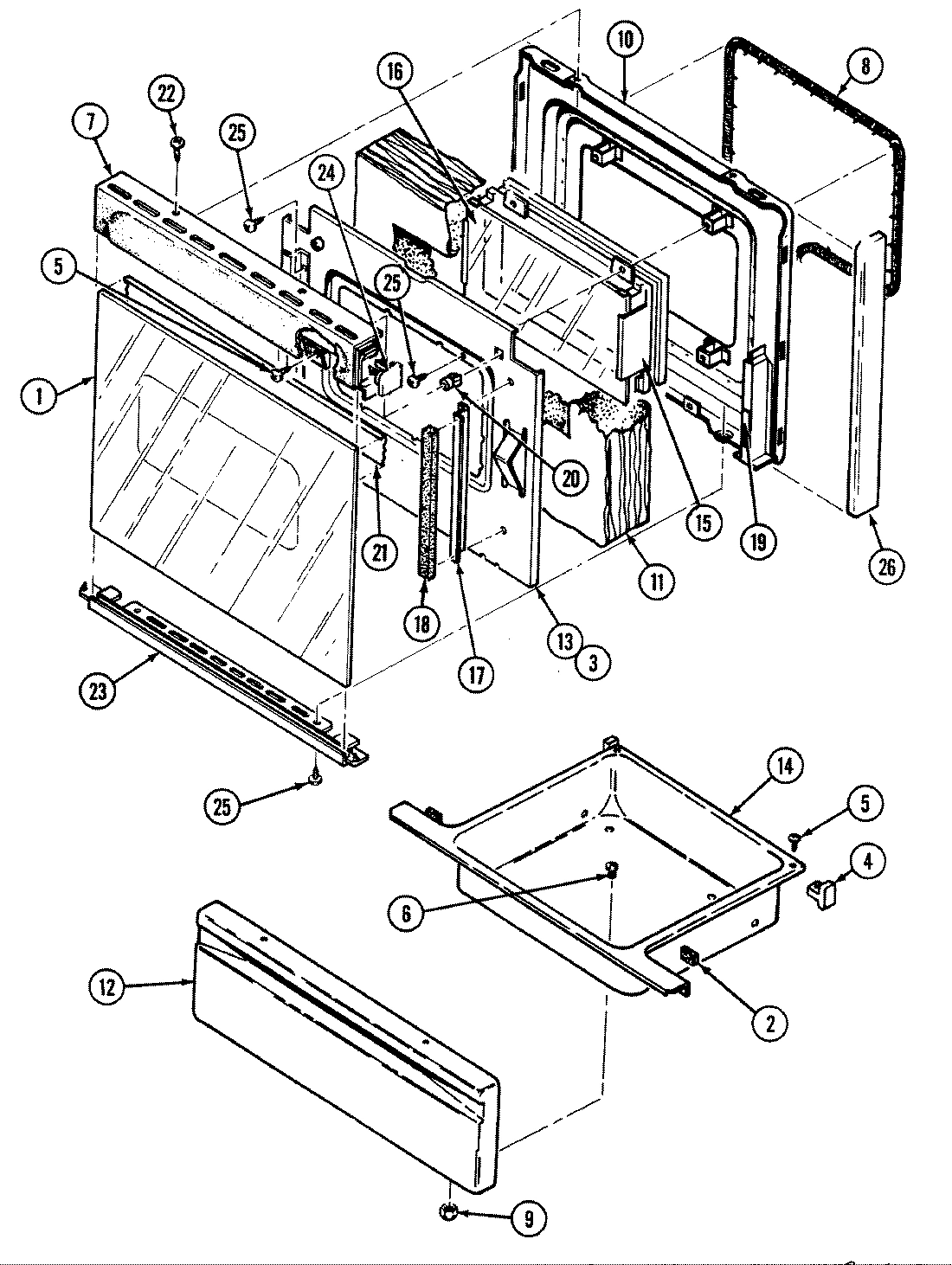

03 - DOOR/DRAWER (3442XRx)

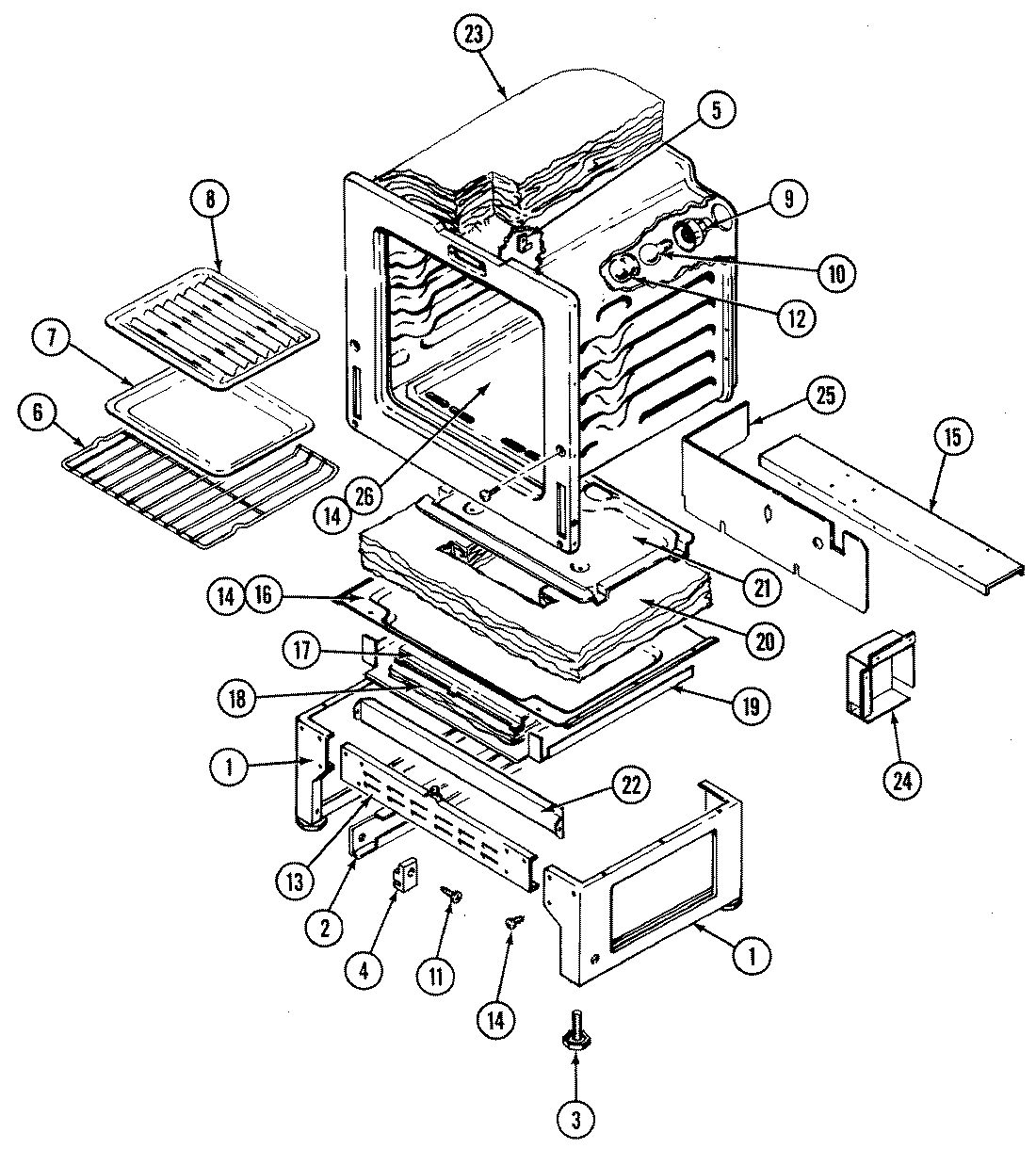

06 - OVEN/BASE

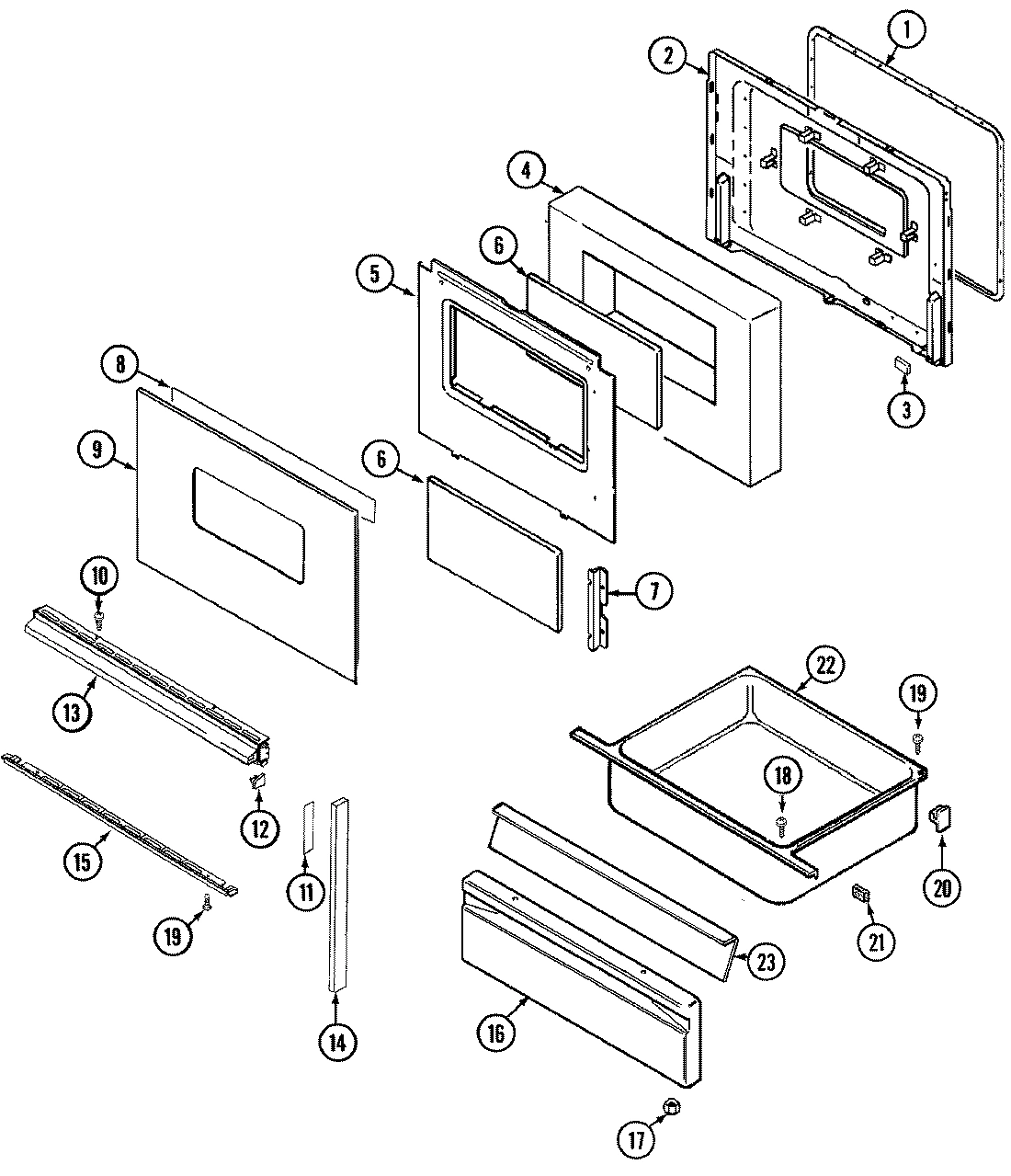

04 - DOOR/DRAWER (SER. PRE. 30 3442XRx)

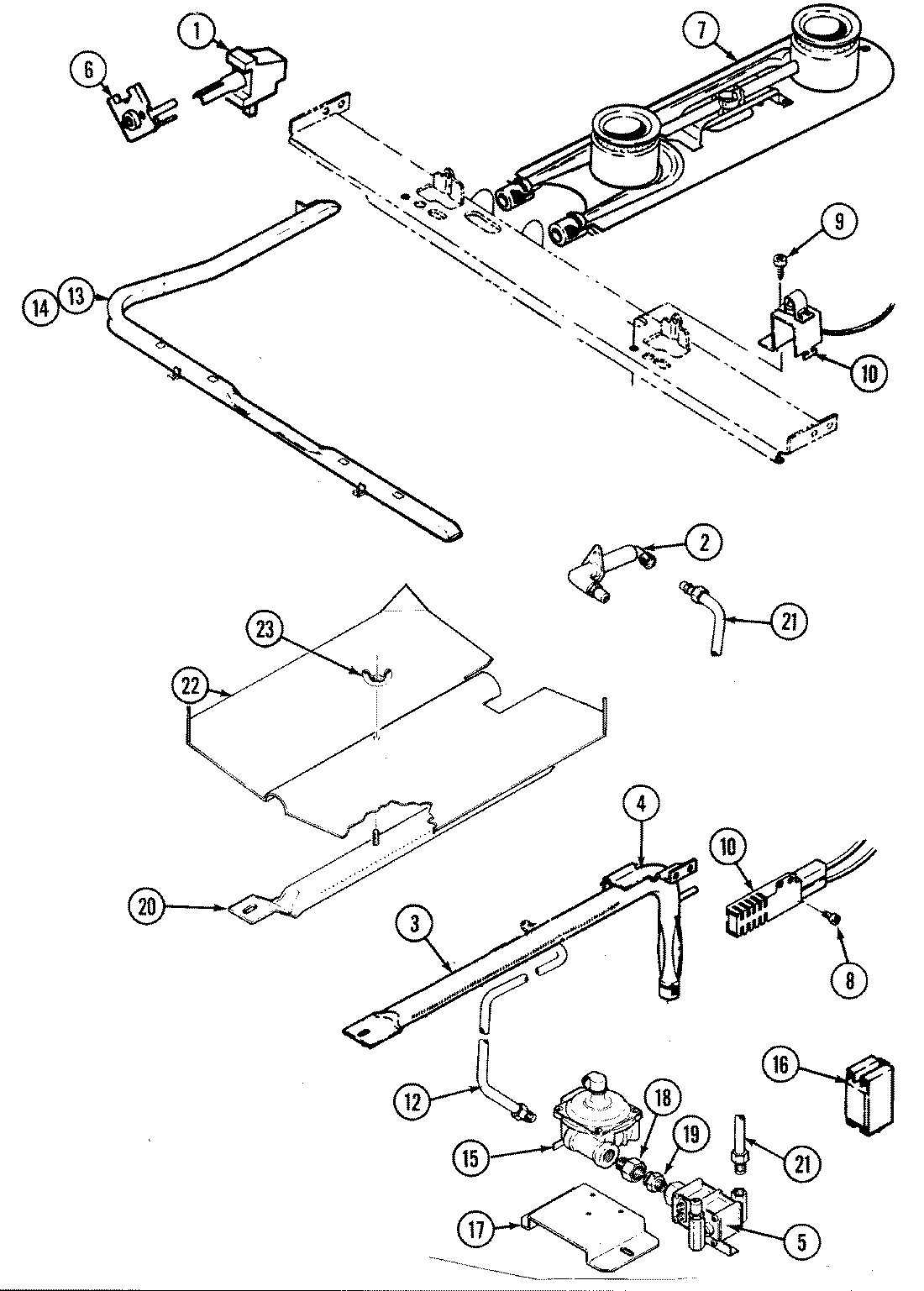

05 - GAS CONTROLS

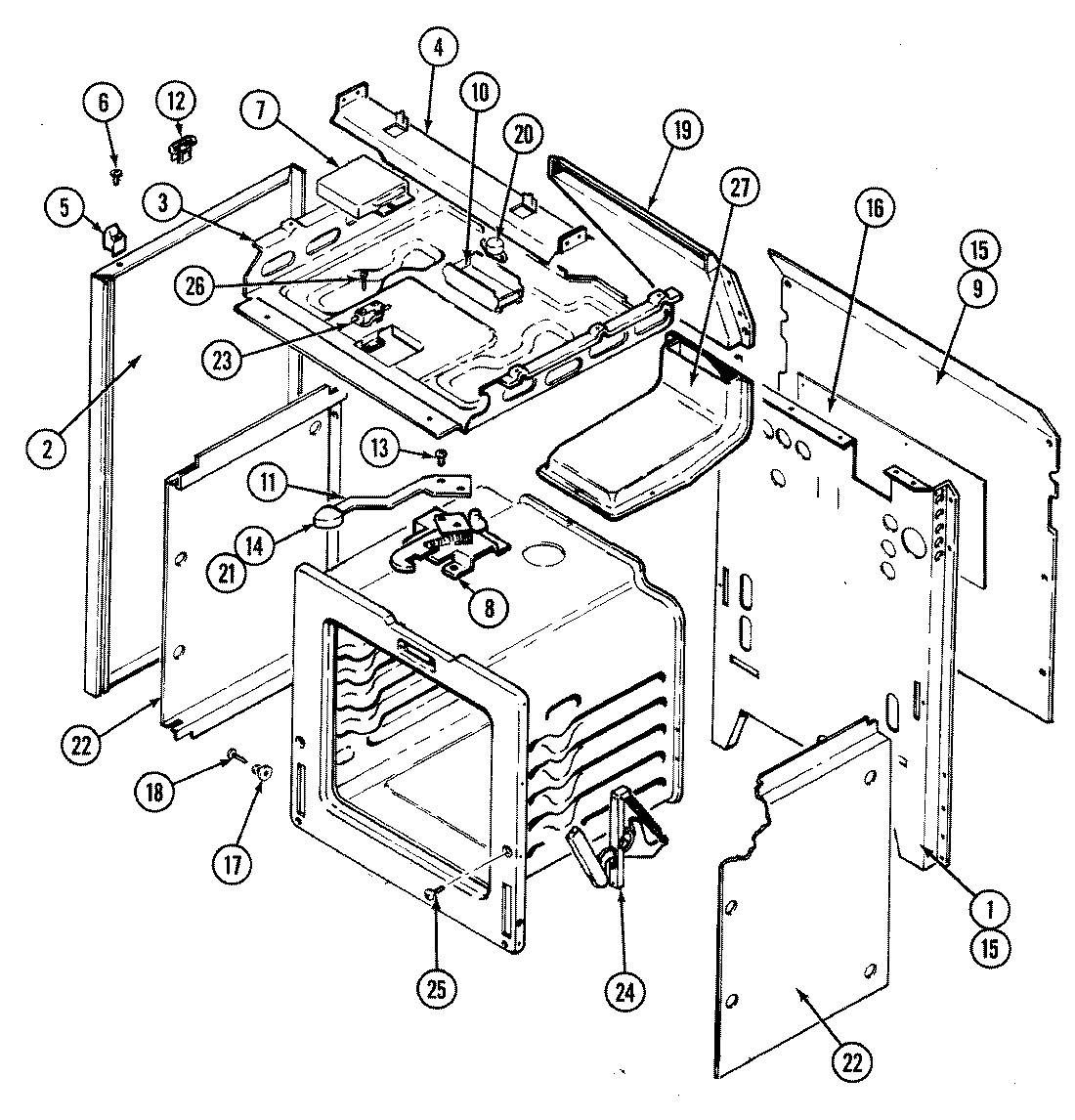

01 - BODY
Common parts from model Whirlpool 3442XRA GAS RANGE
1
TOP, MAIN (ALM) WPL 2001W08184 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08684 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SIDE PEDESTAL WPL 4020F00380 Contact Us For Availability
1
BASE, MAIN WPL 4020W00680 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, BURNER WPL 74002383 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
1
BACK, MAIN WPL 4002F17580 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
PANEL BACKGUARD WPL 7703P24560 Contact Us For Availability
3
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F21080 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002485 Contact Us For Availability
5
ANEL, MANIFOLD WPL 7712P16260 Contact Us For Availability
5
THERMOSTAT WPL 7404P09760 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
6
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
7
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
7
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
7
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
7
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
BURNER, TOP WPL 74003332 Contact Us For Availability
7
COVER LOCK & SWITCH WPL 4005F34751 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 74002486 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
LATCH ASSY. WPL 8002P02460 Contact Us For Availability
9
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
10
GLIDE WPL 8016P01360 Contact Us For Availability
10
SCREW WPL 7118P01960 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W19419 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
10
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
10
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
SUPPORT, THERMAL DISC WPL 3807F42051 Contact Us For Availability
10
SCREW WPL 7101P07660 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
BRACKET, CLOCK SUPPORT WPL 3801F24945 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
11
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
11
WASHER WPL 7109P01560 Contact Us For Availability
11
LEVER LOCK WPL 8009P01560 Contact Us For Availability
11
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
12
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
12
KNOB, INFINITE WPL 7737P02860 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
13
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
13
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
13
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
13
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P10560 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
NUT, SPEED WPL 7103P12960 Contact Us For Availability
14
MANUAL, USE & CARE WPL 8113P01360 Contact Us For Availability
14
INSERT, INSTRUCTION SHEET WPL 8113P03860 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
14
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
15
CLOCK WPL 7601P17060 Contact Us For Availability
15
FRAME, WINDOW WPL 7907P00960 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SUPPORT VALVE/REGULATOR WPL 3807F44351 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
15
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
16
SCREW WPL 7101P30960 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P23660 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability
16
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
16
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
16
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
17
GASKET WPL 7201P05660 Contact Us For Availability
17
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
WIRES, LOOSE WPL 5125A36360 Contact Us For Availability
18
HARNESS, WIRE BACKGUARD WPL 5180D15560 Contact Us For Availability
18
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
18
SEAL WPL 7208P00260 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
18
UNION PIPE FITTING (FEMALE) WPL 7507M12560 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
UNION PIPE (MALE) WPL 7507M12460 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
SPACER WPL 8010P07560 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
20
SWITCH, HIGH LIMIT WPL 7403P27560 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02345 Contact Us For Availability
21
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
21
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
22
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
23
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
23
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
23
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
23
NUT, WING WPL 7103P03060 Contact Us For Availability
23
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
23
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
23
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
23
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
24
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
24
HARNESS WPL 5195D11160 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
25
COVER VALVE WIRE WPL 4005F34051 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
SCREW WPL 7101P03160 Contact Us For Availability
26
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
27
BOX, VENT WPL 4006W11345 Contact Us For Availability
27
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
Login and Registration Form
