Model Whirlpool 3428PVW-D GAS RANGE – Common Parts & Diagrams
03 - DOOR

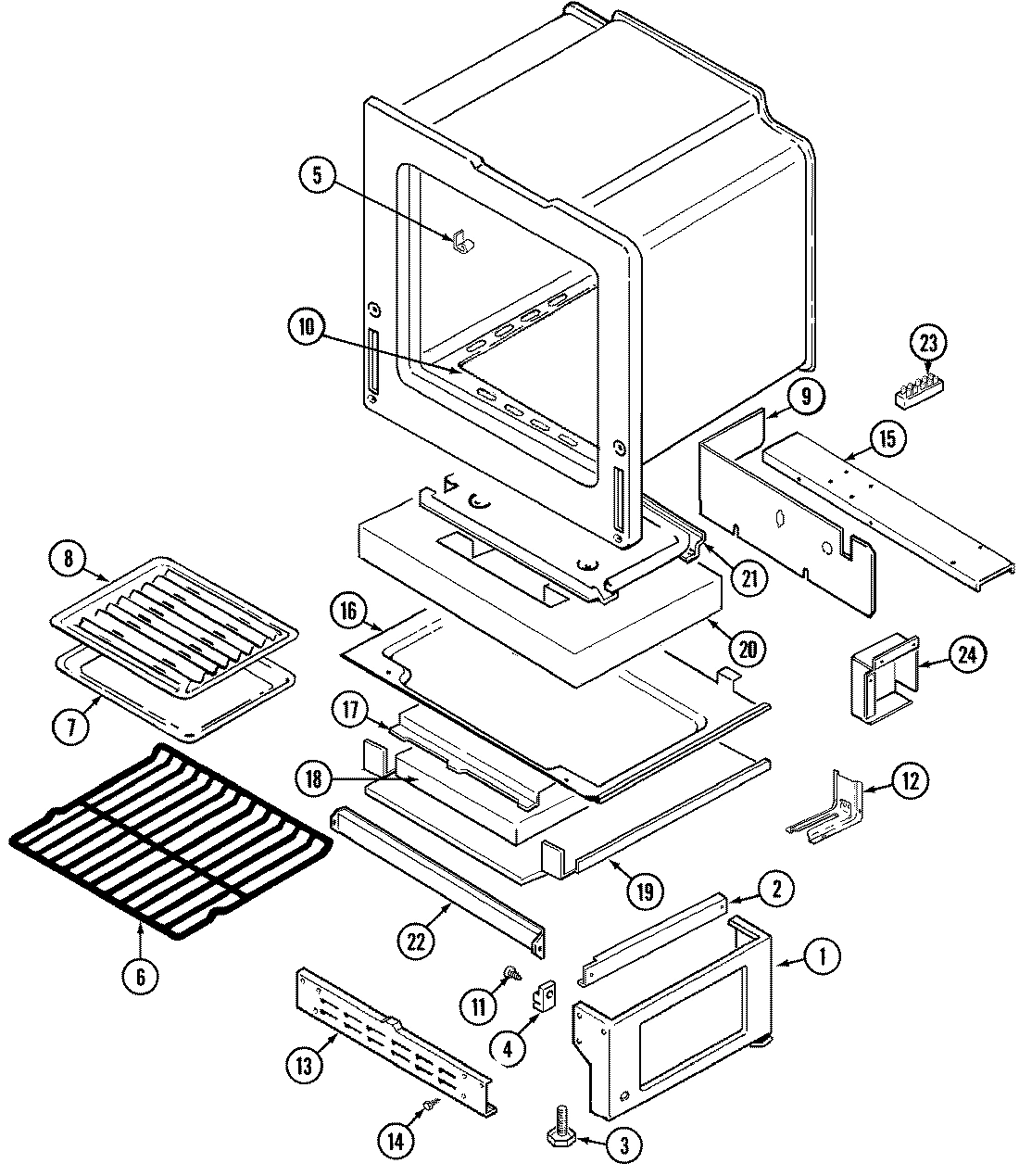

05 - OVEN/BASE

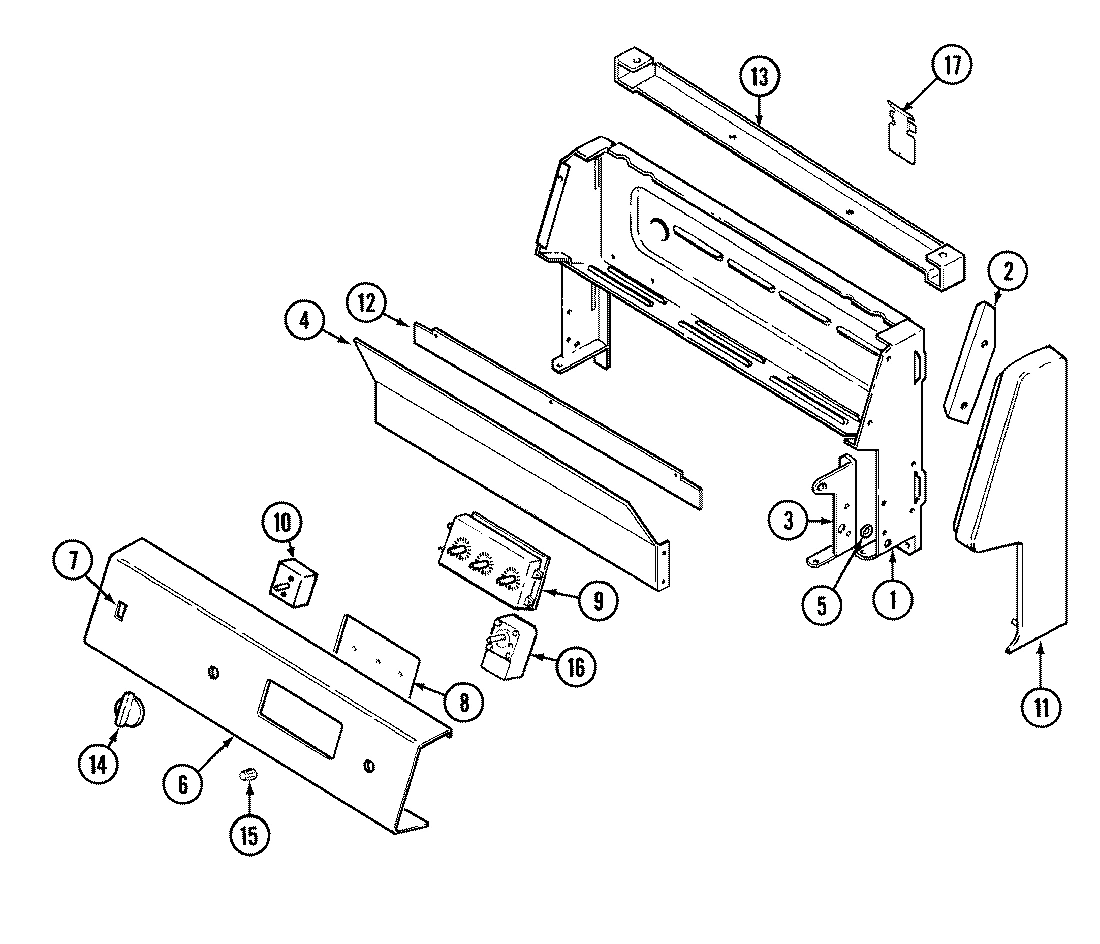

02 - CONTROL PANEL

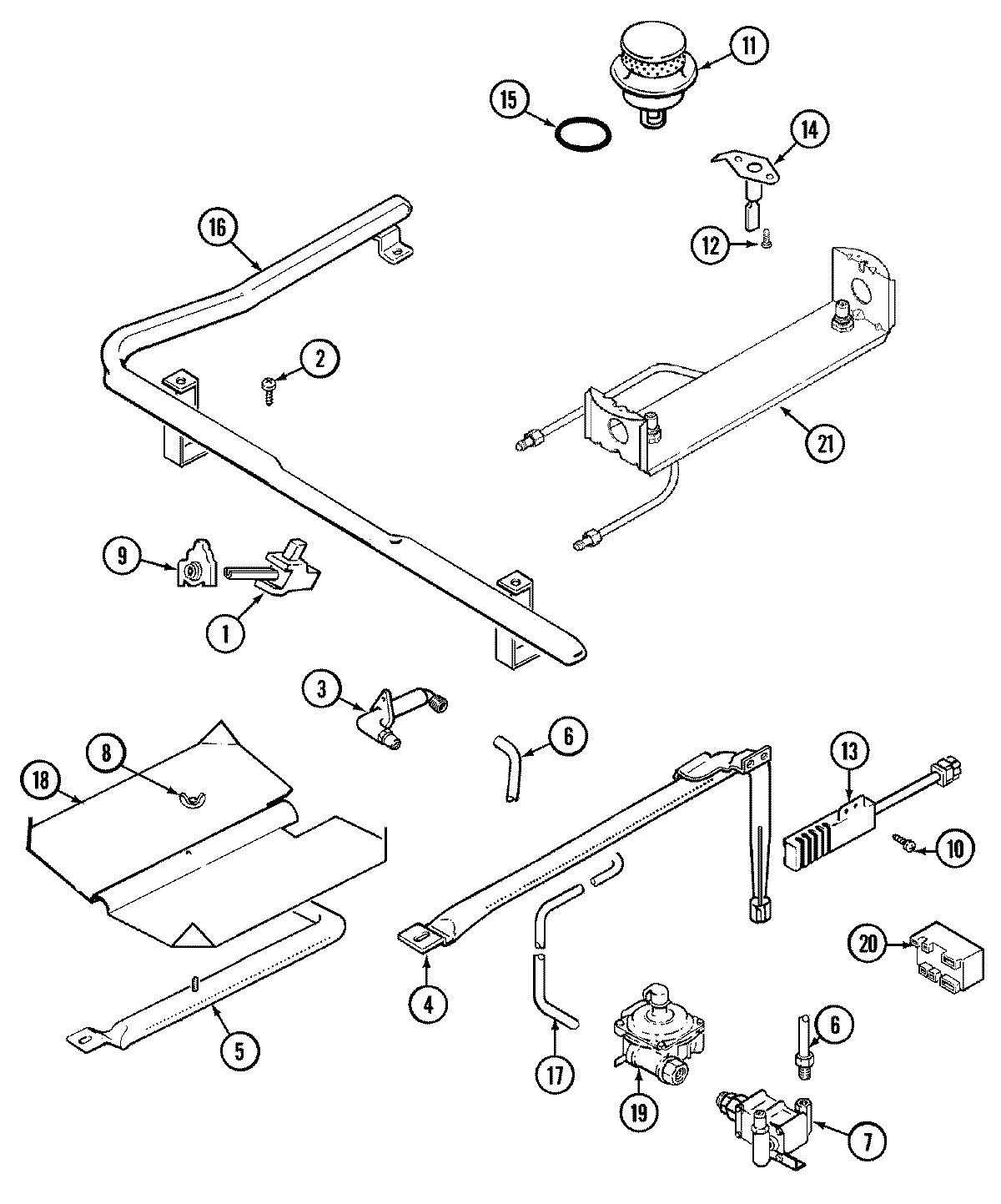

04 - GAS CONTROLS

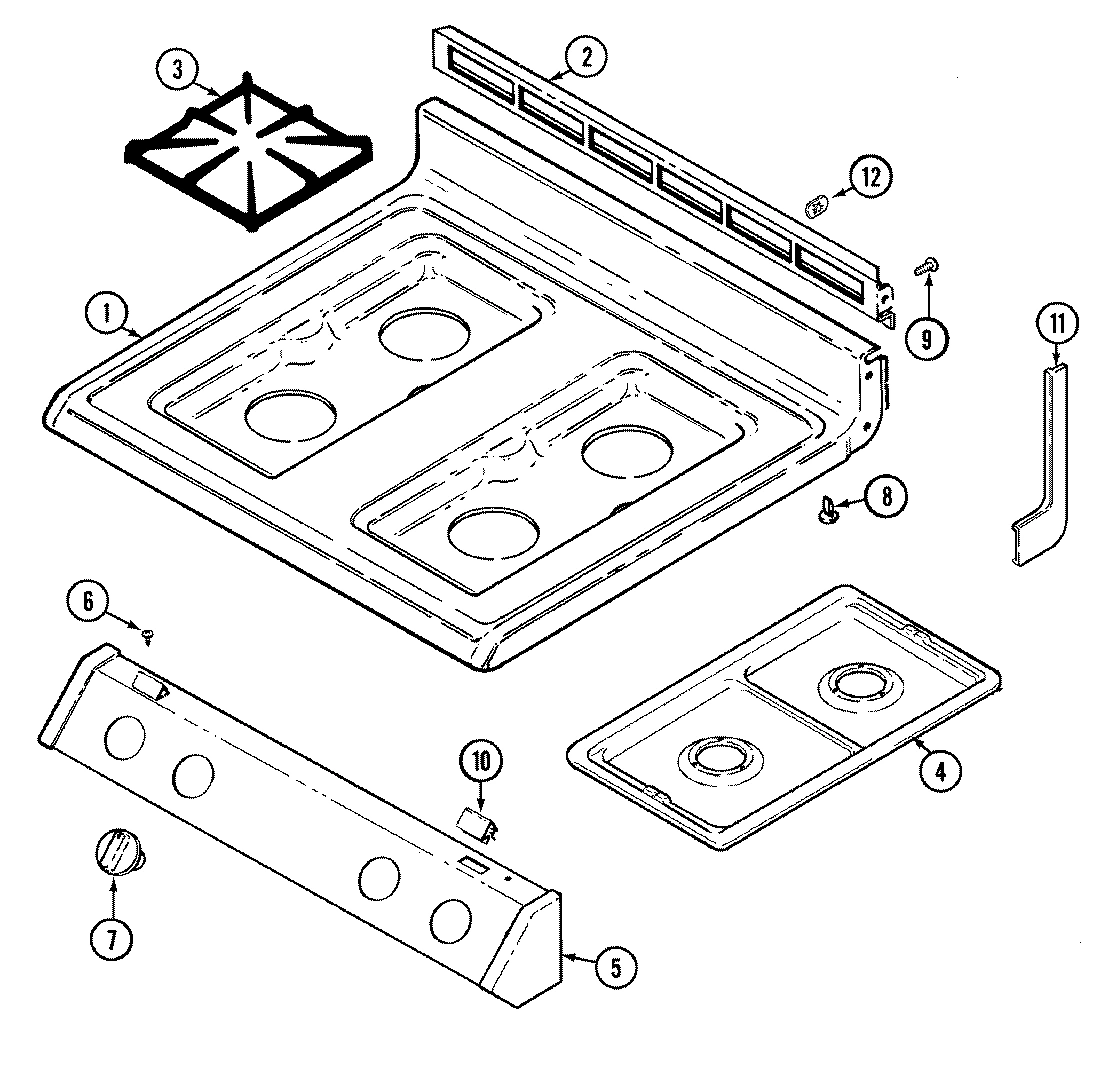

06 - TOP ASSEMBLY

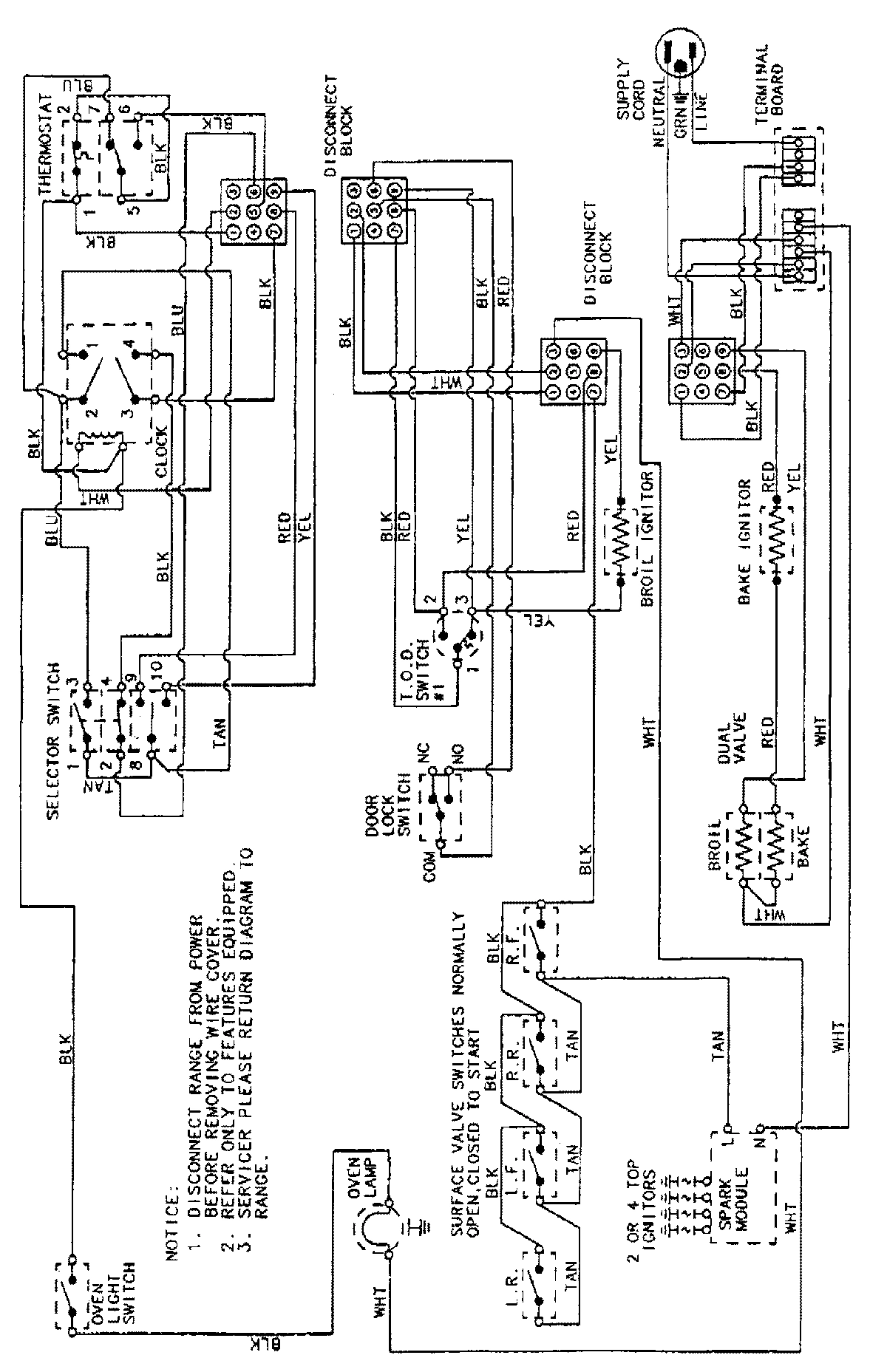

07 - WIRING INFORMATION

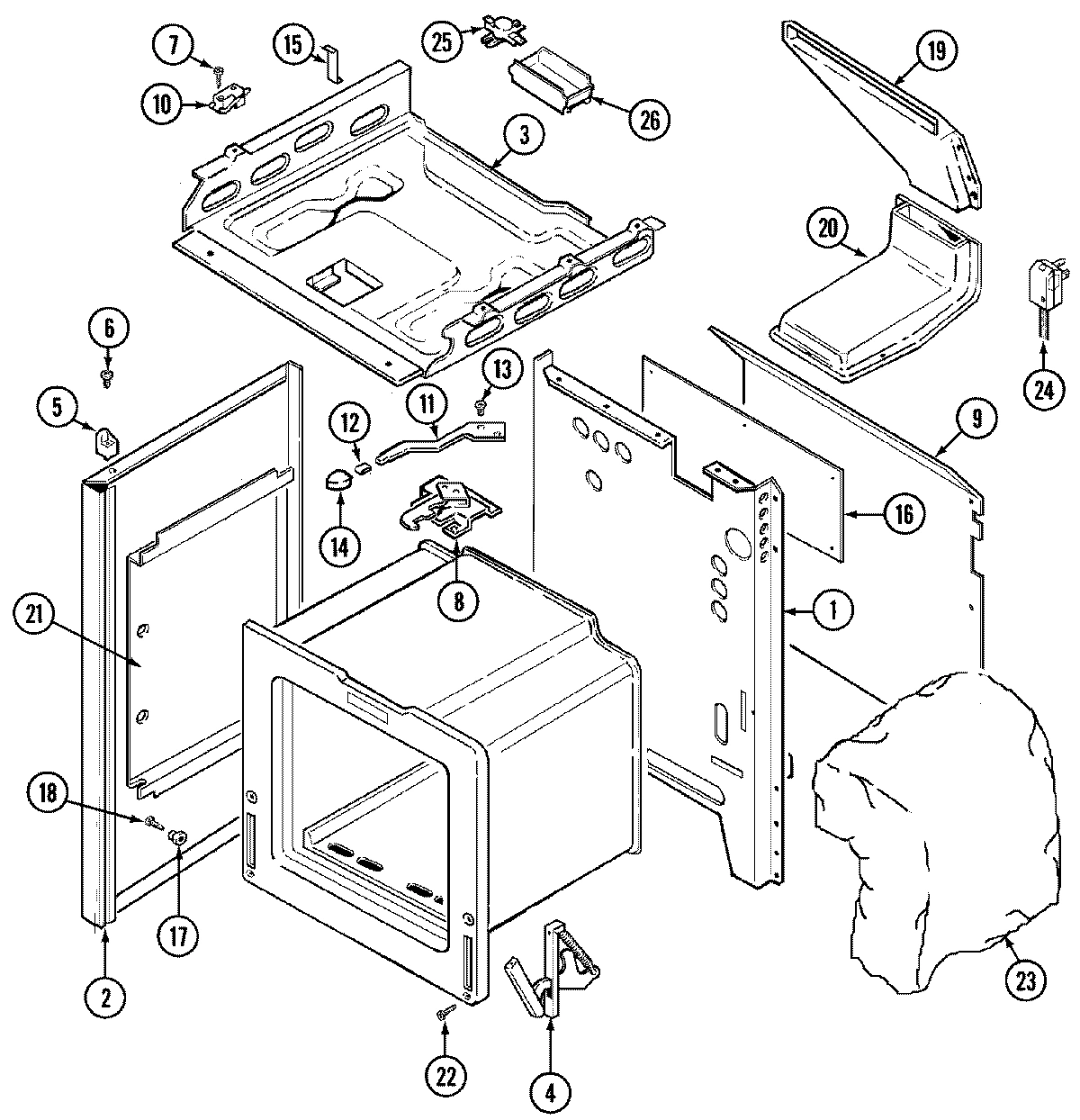

01 - BODY
Common parts from model Whirlpool 3428PVW-D GAS RANGE
1
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P21960 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
2
LINING, DOOR WPL 2402W21019 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
3
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
BOX, BURNER WPL 74002685 Contact Us For Availability
4
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
HINGE WPL 7106P05560 Contact Us For Availability
5
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13560 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 74002484 Contact Us For Availability
6
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
8
SEAL WPL 7208P00260 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
GASKET WPL 7201P05660 Contact Us For Availability
8
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
GLIDE WPL 8016P01560 Contact Us For Availability
8
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
8
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
8
LATCH, DOOR WPL 74001069 Contact Us For Availability
8
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
8
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
8
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
9
COVER, VALVE WPL 4005F42951 Contact Us For Availability
9
CLOCK (BLK) WPL 74001560 Contact Us For Availability
9
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
10
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
10
SWITCH, SELECTOR WPL 7403P23660 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
11
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
11
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability
11
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
12
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
12
SCREW WPL 7101P34460 Contact Us For Availability
12
NUT, SPEED WPL 7103P04460 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
12
SCREW WPL 7101P31560 Contact Us For Availability
12
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
13
PANEL, DOOR (WHT) WPL 2401F09871 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
BRACKET, PANEL WPL 3801F27851 Contact Us For Availability
14
KNOB, INFINITE WPL 7737P02860 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
14
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
15
PANEL, LOWER (WHT) WPL 2403F03471 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F47651 Contact Us For Availability
15
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
15
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
15
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
16
SCREW WPL 7101P30960 Contact Us For Availability
16
THERMOSTAT WPL 7404P10260 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
COVER, WIRE WPL 4005F44845 Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
MANUAL, USE & CARE WPL 74002252 Contact Us For Availability
18
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
20
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
20
BOX, VENT WPL 74002367 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
21
ORIFICE FITTING ASSY WPL 5187D02560 Contact Us For Availability
21
RETAINER, INSULATION (SIDE) WPL 74002599 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
22
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
22
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 74001800 Contact Us For Availability
23
INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
24
CORD, POWER WPL 7402P04360 Contact Us For Availability
25
SCREW WPL 7101P34960 Contact Us For Availability
25
SWITCH, HIGH LIMIT WPL 7403P27560 Contact Us For Availability
26
SUPPORT, THERMAL DISC WPL 3807F42051 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001188 Contact Us For Availability
× ![]()
