Model LG 32UQ850V-W – Common Parts & Diagrams

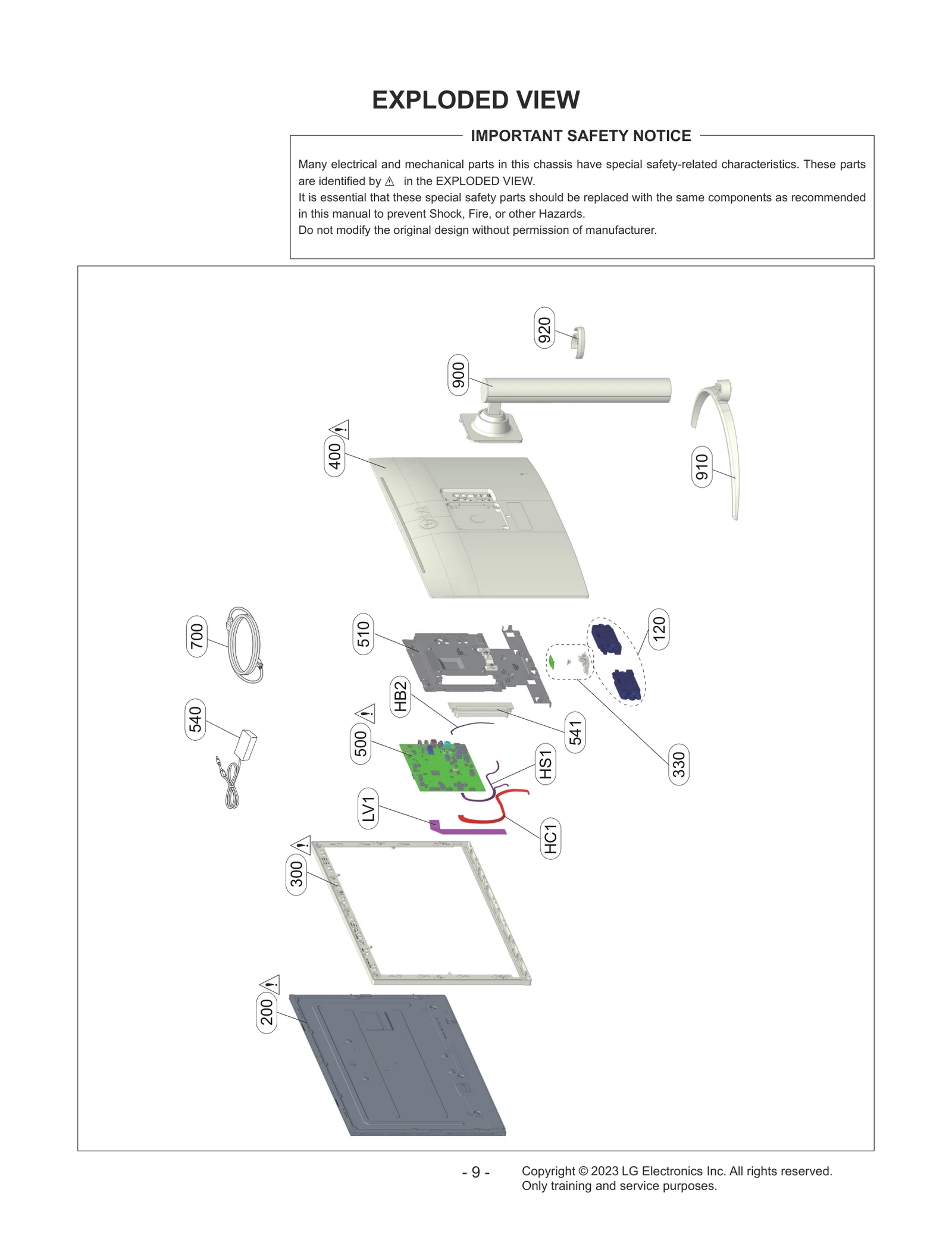

Diagram 0
Diagram 1
Common parts from model LG 32UQ850V-W
120
Speaker Assembly LGE EAB63628201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65881002 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65881003 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65881001 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR85292413 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30487403 Contact Us For Availability
500
BPR Total Assembly LGE EBU67575502 Contact Us For Availability
510
Frame Assembly LGE ADV30060404 Contact Us For Availability
541
Cover LGE MCK70125001 Contact Us For Availability
910
Base Assembly LGE AAN30013302 Contact Us For Availability
920
Package Assembly LGE AGF79358852 Contact Us For Availability
A01
Manual Assembly LGE AFN30096421 Contact Us For Availability
A04
Card LGE 3840TRL039A Contact Us For Availability
A07
Card LGE 3840TWL061C Contact Us For Availability
A08
Cable,Assembly LGE EAD65185202 Contact Us For Availability
A09
Card LGE MBM64637211 Contact Us For Availability
A10
Card LGE MBM65364059 Contact Us For Availability
A11
Card LGE MBM67507701 Contact Us For Availability
A15
Cable,Assembly LGE EAD63932603 Contact Us For Availability
A17
Cable,Assembly LGE EAD65185302 Contact Us For Availability
HB2
Harness,Single LGE EAD64926002 Contact Us For Availability
HC1
Harness,Single LGE EAD56480806 Contact Us For Availability
LV1
Cable,FFC LGE EAD63825243 Contact Us For Availability
× ![]()
