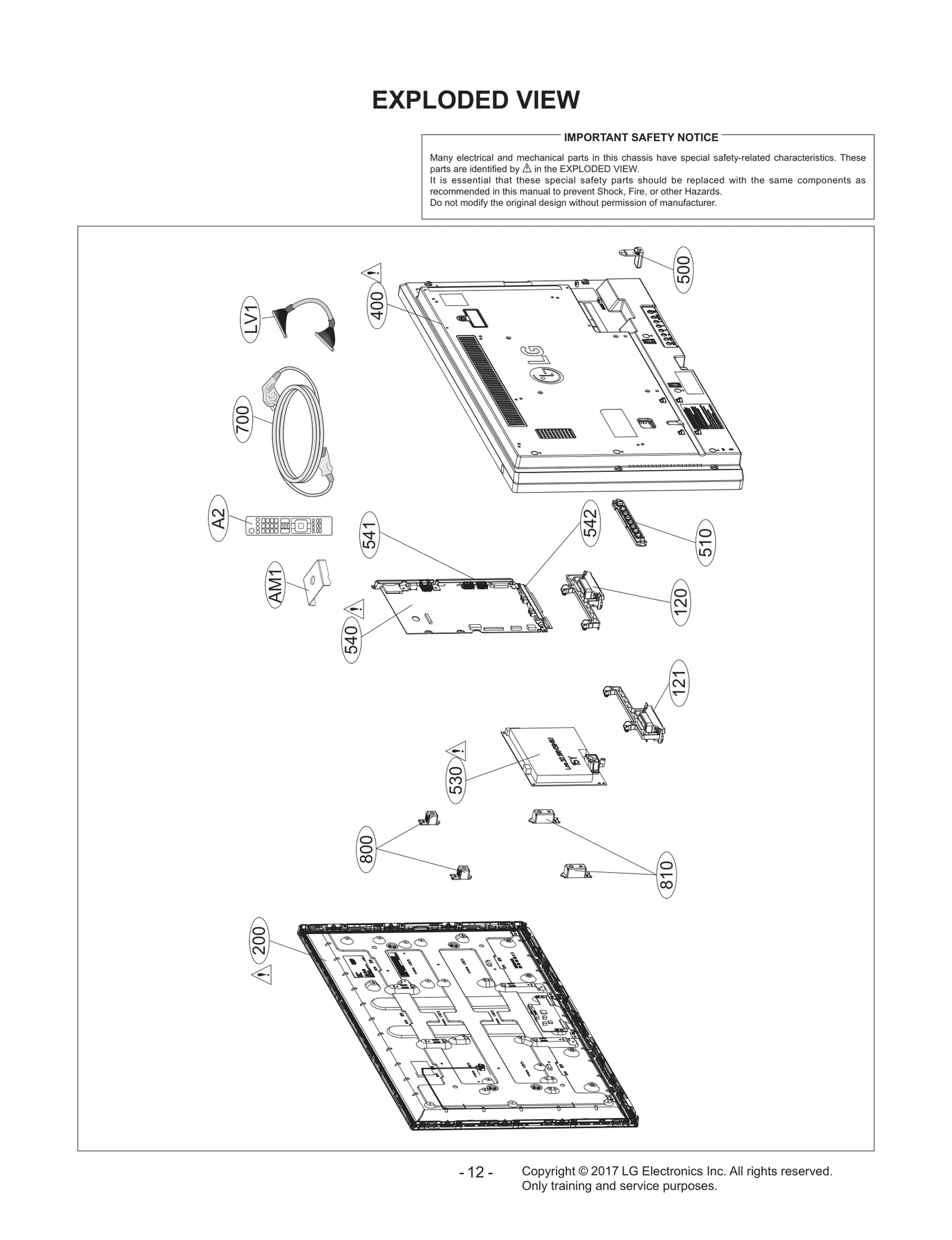

Model LG 32SM5KC-B – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB63928401 Contact Us For Availability
View on Model
121
Speaker,Full Range
Speaker,Full Range LGE EAB63928402 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ63308701 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ87879854 Contact Us For Availability
View on Model
500
Chassis Assembly
Chassis Assembly LGE EBT63756607 Contact Us For Availability
View on Model
510
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT63973501 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY63630208 Contact Us For Availability
View on Model
540
Chassis Assembly
Chassis Assembly LGE EBT64434304 Contact Us For Availability
View on Model
541
Cover
Cover LGE MCK68550901 Contact Us For Availability
View on Model
800
Supporter
Supporter LGE MJH63102904 Contact Us For Availability
View on Model
810
Supporter,VESA
Supporter,VESA LGE MJH63693403 Contact Us For Availability
View on Model
A4
Cable,Assembly
Cable,Assembly LGE EAD57734003 Contact Us For Availability
View on Model
A6
Cable,Assembly
Cable,Assembly LGE EAD62707902 Contact Us For Availability
View on Model
AM1
Cover
Cover LGE MCK68607501 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63788004 Contact Us For Availability
View on Model
S2
Harness,Multi
Harness,Multi LGE EAD63606601 Contact Us For Availability
View on Model
S4
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
View on Model
S5
Harness,Single
Harness,Single LGE EAD63245305 Contact Us For Availability
View on Model
S6
Harness,Multi
Harness,Multi LGE EAD63266918 Contact Us For Availability
View on Model
