Model LG 32MP58HQ-W – Common Parts & Diagrams

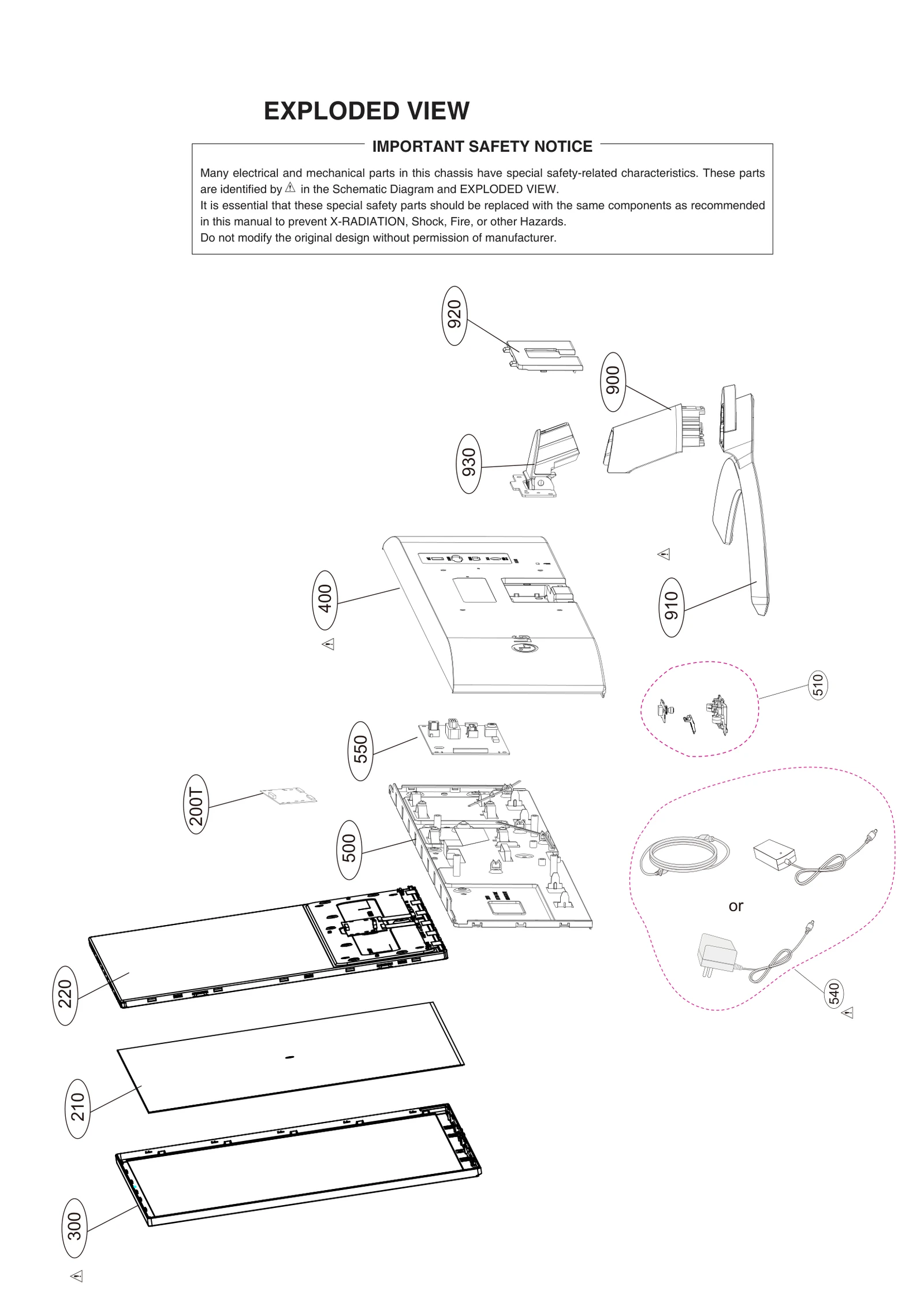

Diagram 0
Diagram 1
Common parts from model LG 32MP58HQ-W
200
Module,Assembly LGE EAT62953204 Contact Us For Availability
200T
Time Control LGE EAT62693301 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ63208001 Contact Us For Availability
220
Back Light Assembly LGE EBV61678001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75267201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88673501 Contact Us For Availability
500
Frame Assembly LGE ADV75906102 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR81775907 Contact Us For Availability
550
BPR Total Assembly LGE EBU63596902 Contact Us For Availability
900
Base Assembly LGE AAN75768701 Contact Us For Availability
910
Base Assembly LGE AAN75630009 Contact Us For Availability
920
Cover LGE MCK69145001 Contact Us For Availability
930
Base Assembly LGE AAN75768601 Contact Us For Availability
940
Package Assembly LGE AGF77182227 Contact Us For Availability
A1
Manual Assembly LGE AFN77421521 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE MBM65364023 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE 3840TWL061C Contact Us For Availability
C124
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C140
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C141
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C144
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C148
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK201
Jack,Phone LGE 6612F00099H Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072907 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072905 Contact Us For Availability
LV1
Cable,FFC LGE EAD63846801 Contact Us For Availability
LV2
Cable,FFC LGE EAD63807301 Contact Us For Availability
R100
Resistor,Metal Oxide Film LGE EBC01402307 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R114
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R196
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
× ![]()
