Model LG 32GX850A-B – Common Parts & Diagrams

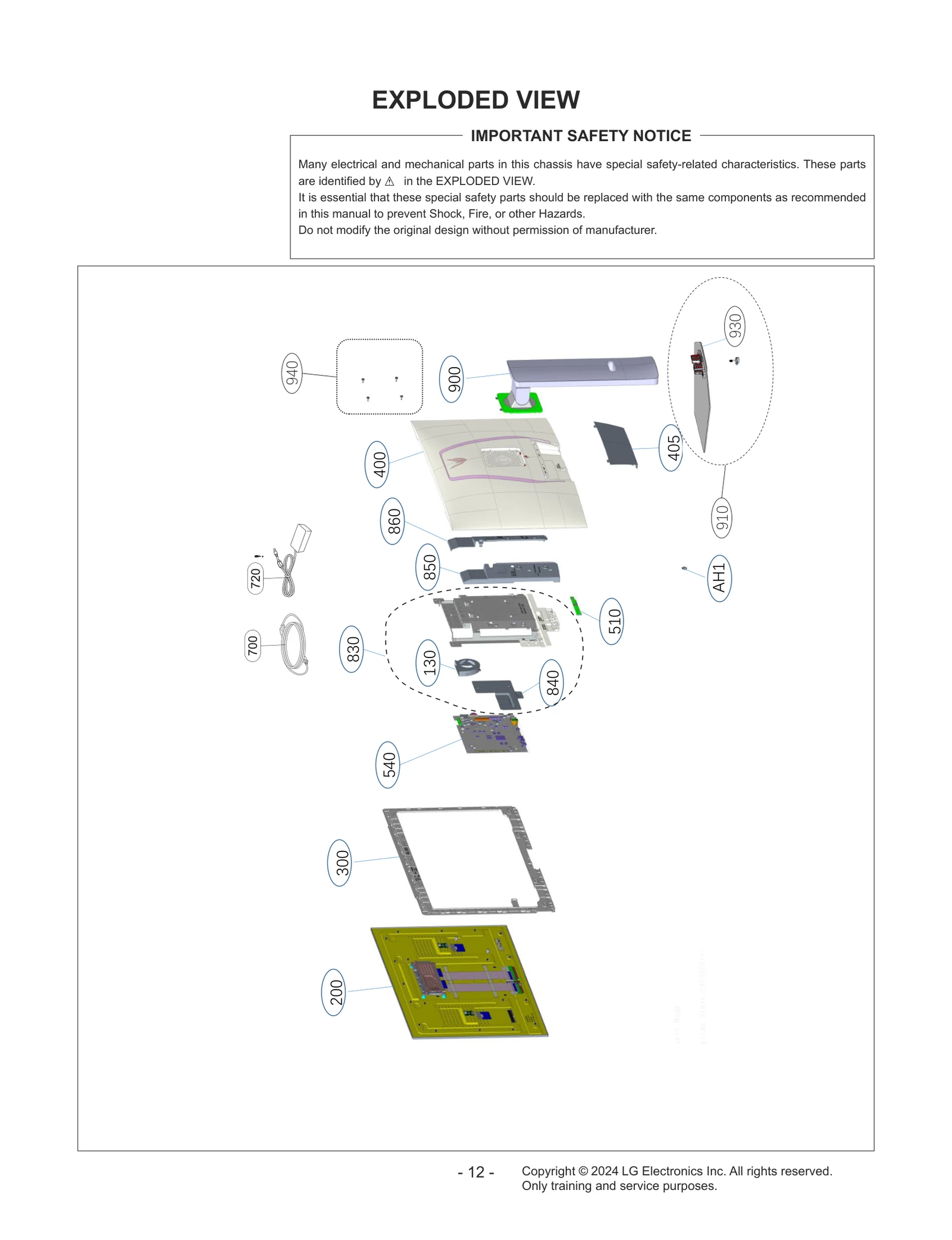

Diagram 0
Diagram 1
Common parts from model LG 32GX850A-B
200
OLED,Module-AM LGE EAJ30047601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76767903 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30669314 Contact Us For Availability
405
Package Assembly LGE AGF78443841 Contact Us For Availability
540
BPR Total Assembly LGE EBU67879411 Contact Us For Availability
700
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
830
Frame Assembly LGE ADV30102434 Contact Us For Availability
840
Plate,Metal LGE MGJ67610407 Contact Us For Availability
850
Cover LGE MCK30068001 Contact Us For Availability
860
Cover LGE MCK30068002 Contact Us For Availability
900
Base Assembly LGE AAN30154534 Contact Us For Availability
910
Base Assembly LGE AAN30154618 Contact Us For Availability
940
Screw,Machine LGE FAB30006505 Contact Us For Availability
A01
Manual Assembly LGE AFN30155421 Contact Us For Availability
A04
Card LGE 3840TRL039A Contact Us For Availability
A08
Cable,Assembly LGE EAD65912803 Contact Us For Availability
A10
Card LGE MBM67507701 Contact Us For Availability
A15
Cable,Assembly LGE EAD65185308 Contact Us For Availability
A16
Cable,Assembly LGE EAD65573101 Contact Us For Availability
AH1
Package Assembly LGE AGF78443809 Contact Us For Availability
HC1
Cable,FFC LGE 6631900038R Contact Us For Availability
HR2
Harness,Single LGE EAD62122704 Contact Us For Availability
HR3
Harness,Single LGE EAD63149705 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787516 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787627 Contact Us For Availability
× ![]()
