Model LG 32CS460 – Common Parts & Diagrams

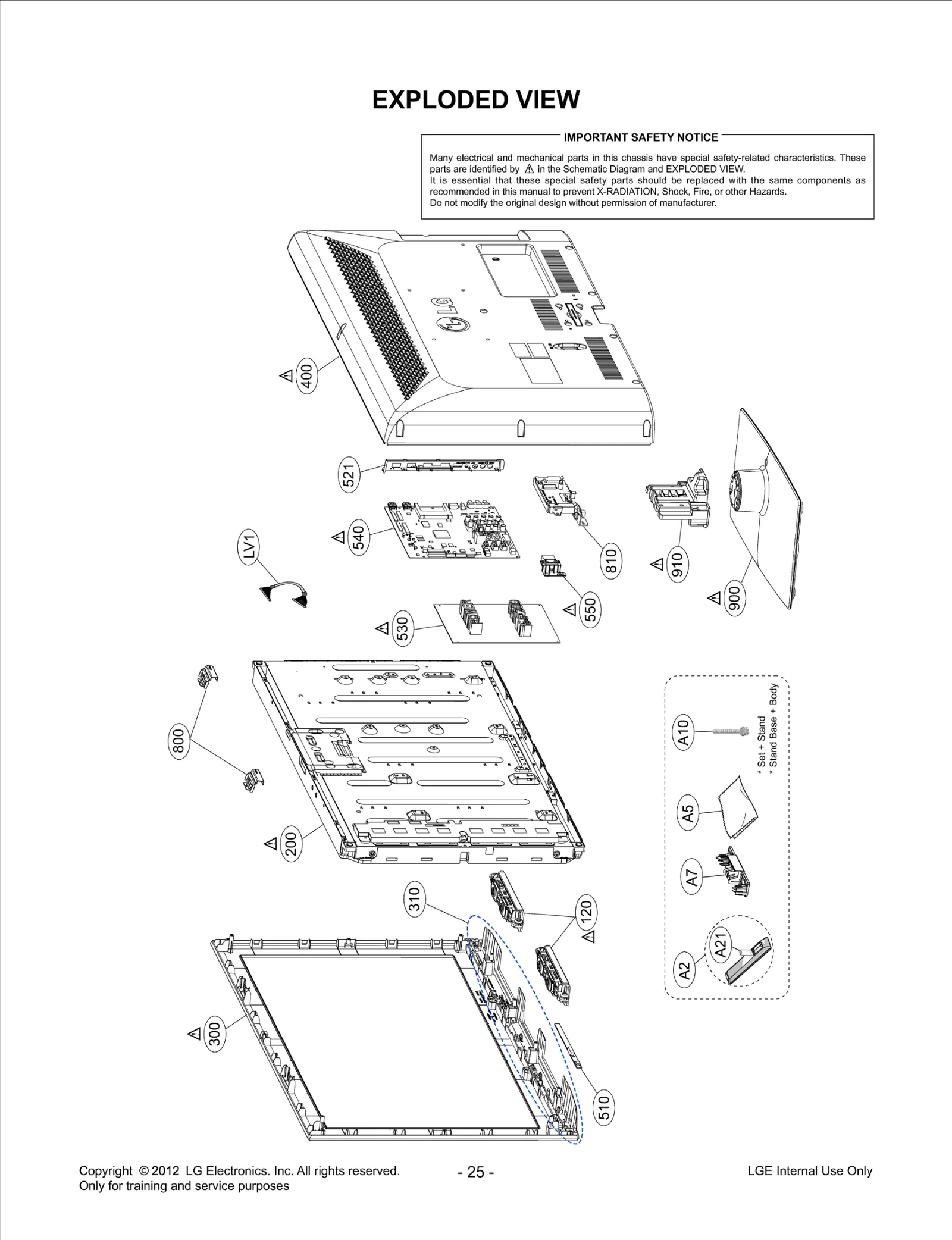

Diagram 0
Diagram 1
Common parts from model LG 32CS460
200
LCD,Module-TFT LGE EAJ62090901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73668403 Contact Us For Availability
310
Bracket LGE MAZ63330002 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85722512 Contact Us For Availability
521
Bracket LGE MAZ63311307 Contact Us For Availability
530
SMPS,AC/DC LGE EAY62769501 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75338005 Contact Us For Availability
550
Socket,Power LGE EAG63233201 Contact Us For Availability
800
Supporter LGE MJH61884806 Contact Us For Availability
810
Supporter LGE MJH61879302 Contact Us For Availability
900
Base Assembly LGE AAN72947813 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73655839 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A7
Cover LGE MCK66009302 Contact Us For Availability
A10
Screw,Tapping LGE FAB30021301 Contact Us For Availability
C242
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C538
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
L407
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62108505 Contact Us For Availability
N/A1
Solder Soldering LGE RAC31704101 Contact Us For Availability
× ![]()
