Model Whirlpool 3201XTW GAS RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER

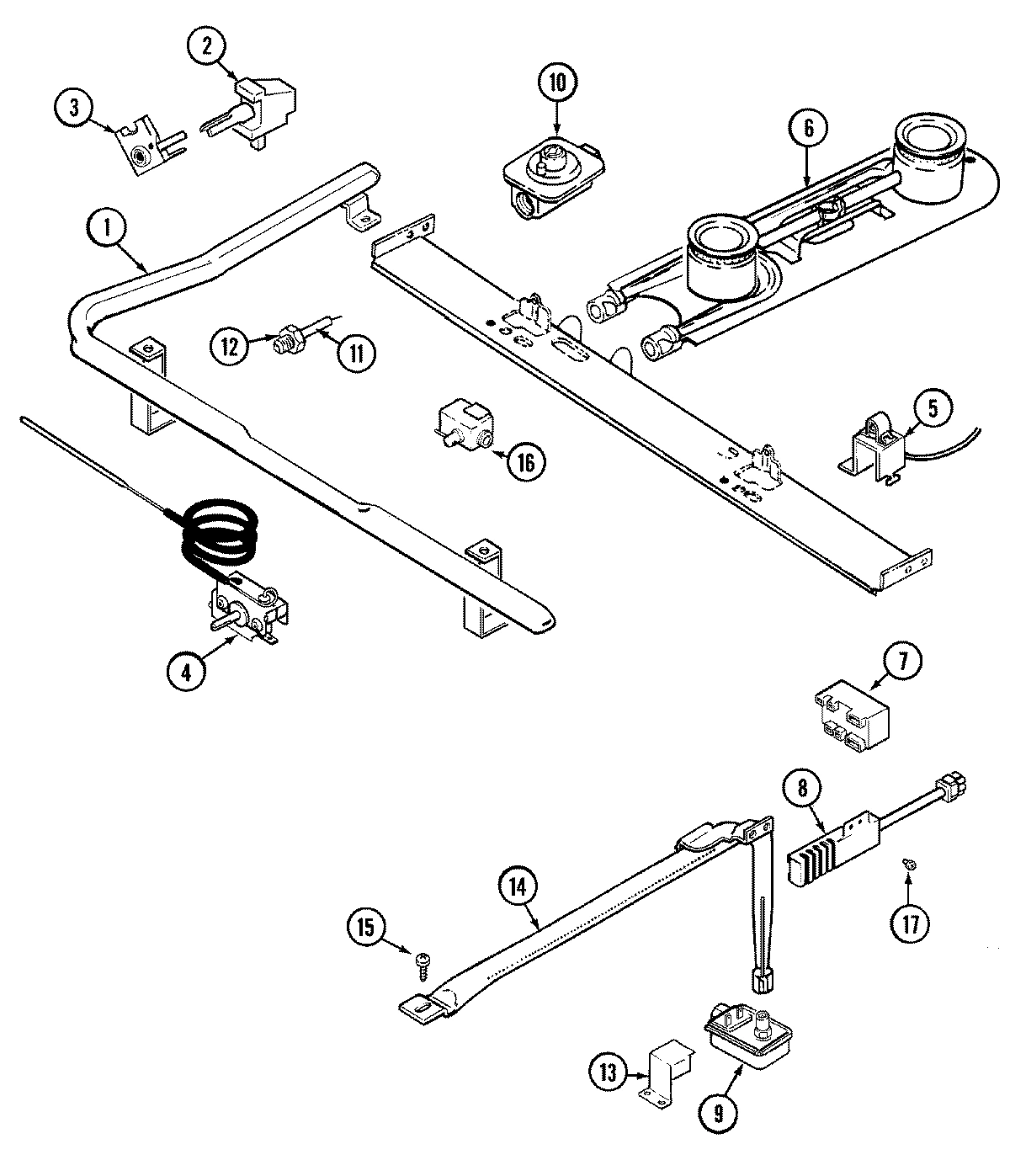

03 - GAS CONTROLS
01 - BODY

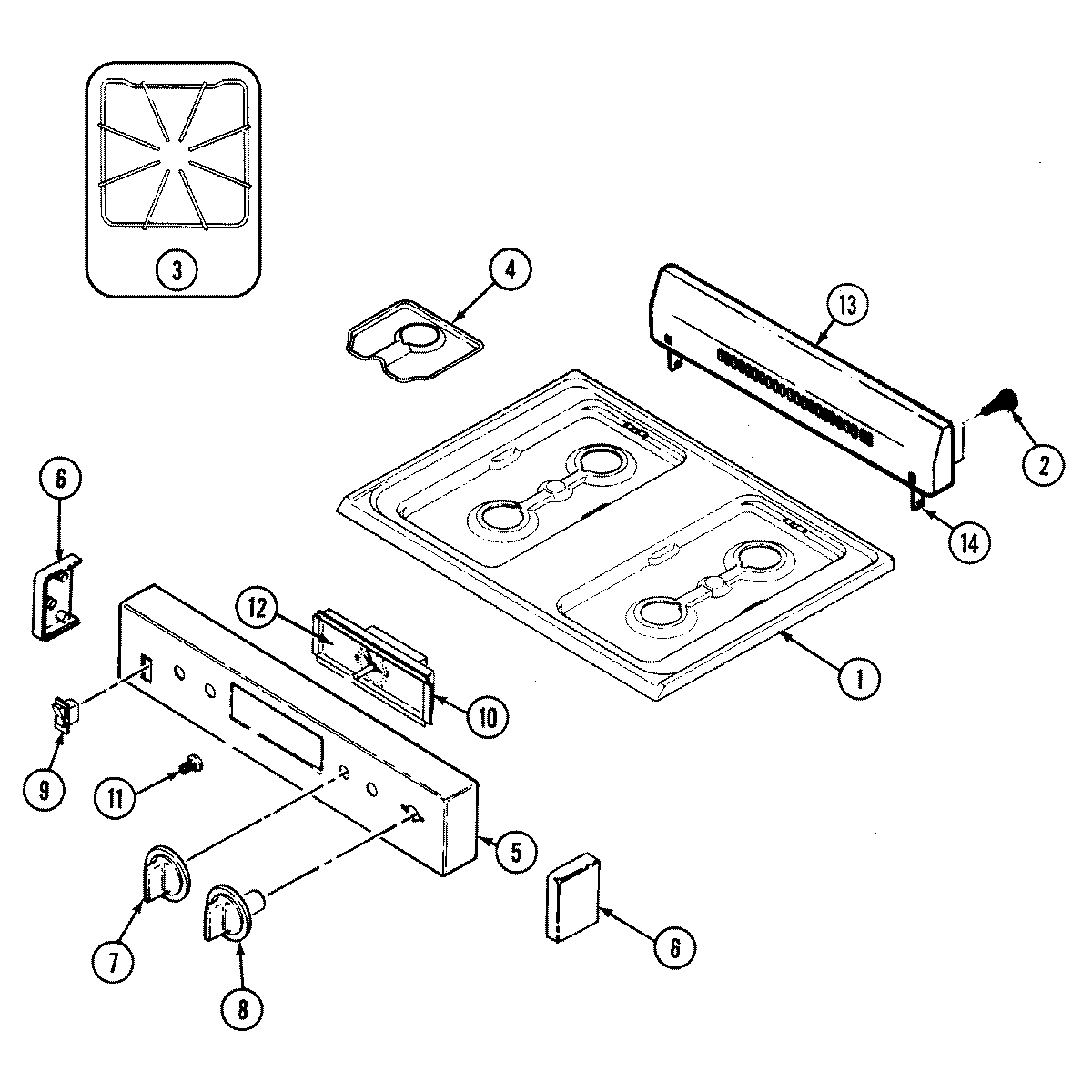

04 - TOP ASSEMBLY
Common parts from model Whirlpool 3201XTW GAS RANGE
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P15960 Contact Us For Availability
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F09881 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
3
BOX, BURNER WPL 4011F22480 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PANEL, CONTROL (BLACK) WPL 2616F09709 Contact Us For Availability
5
SHIELD, MANIFOLD COVER WPL 3604F19851 Contact Us For Availability
5
SCREW----NA WPL 7101P31160 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
6
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
EXTENSION, FLUE ASSY WPL 4022W00351 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P06560 Contact Us For Availability
9
VALVE, OVEN WPL 7501P14460 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
SWITCH, ROCKER (BLK) WPL 7403P24760 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
10
UNION PIPE FITTING (FEMALE) WPL 7507M12560 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
BRACKET, CLOCK MTG. WPL 3801F25351 Contact Us For Availability
10
SCREW WPL 7101P07460 Contact Us For Availability
10
CLOCK WPL 7602P10960 Contact Us For Availability
11
NUT, GRIP WPL 7103P02260 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
12
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
SEALANT WPL 8312P01660 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
GLASS WPL 7902P03460 Contact Us For Availability
13
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
13
COVER, VALVE WPL 4005F33451 Contact Us For Availability
13
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
13
BACKGUARD WPL 2601W34909 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
14
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
14
SCREW WPL 7101P30060 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability
14
BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability
15
LINING, DOOR WPL 2402W18516 Contact Us For Availability
15
COVER, THERMOSTAT WPL 4005F42351 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
16
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
16
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
19
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
19
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
OVEN BOTTOM ASSY. WPL 5504A00116 Contact Us For Availability
20
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
20
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
21
INSULATION WPL 4804F02560 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
22
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
22
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
23
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
23
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
23
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
24
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
24
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
24
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
25
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
25
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
25
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
26
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
26
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
26
RACK, OVEN WPL 7801P03660 Contact Us For Availability
27
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
27
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
27
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
27
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
28
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
28
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
28
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
28
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
