Model Whirlpool 31MN-23KX-ON GAS RANGE – Common Parts & Diagrams
01 - ACCESS

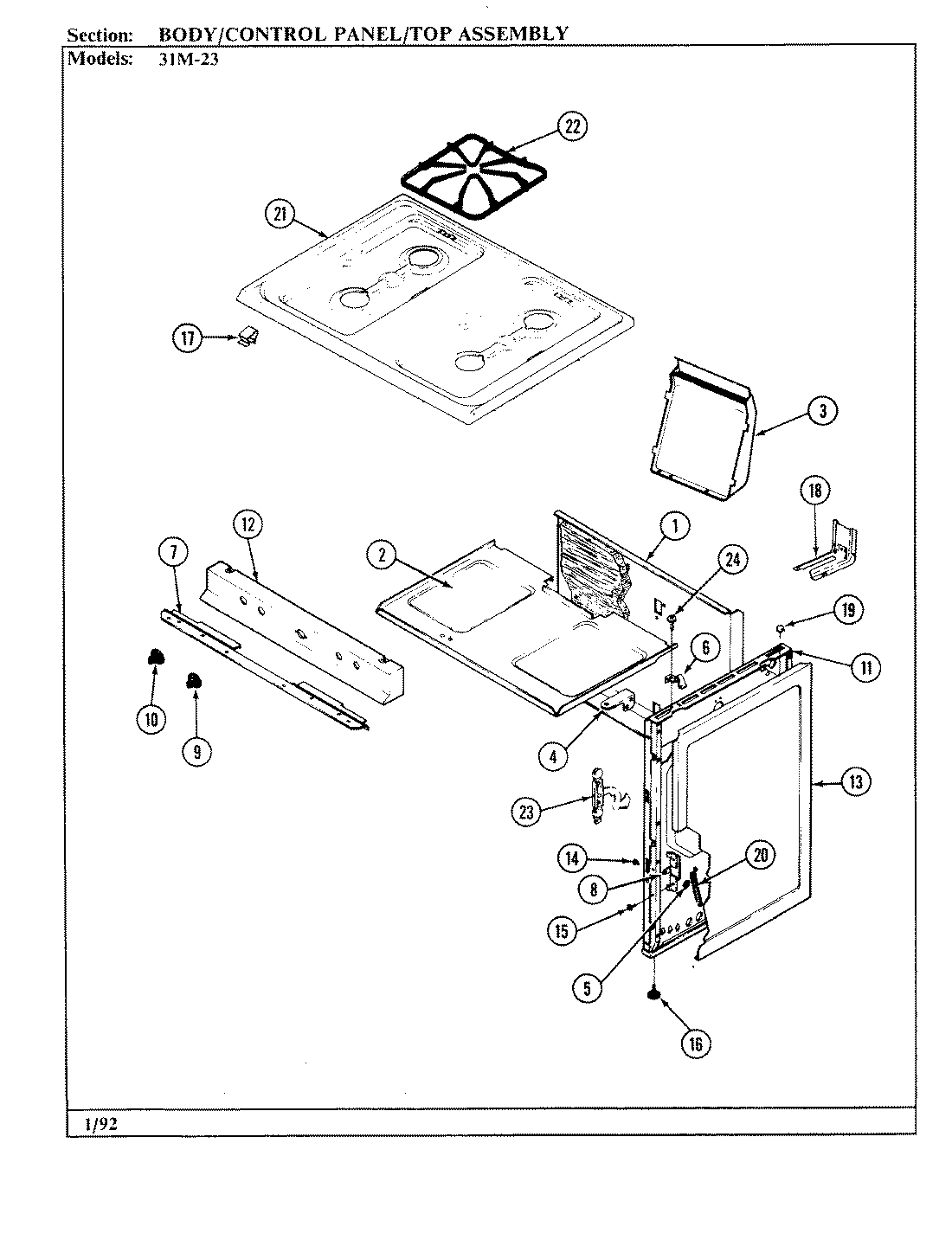

02 - BODY/CONTROL PANEL/TOP ASSEMBLY

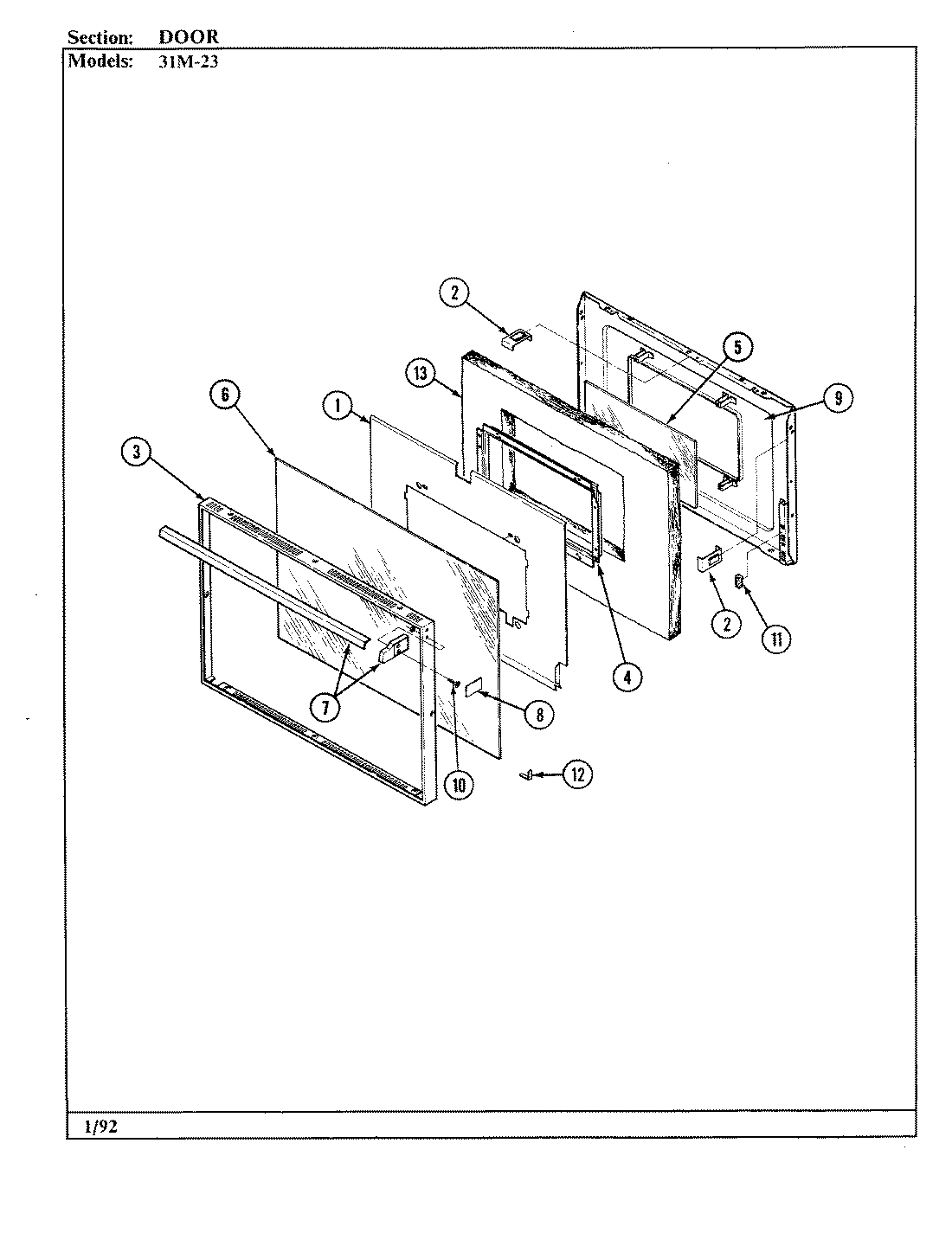

04 - DOOR

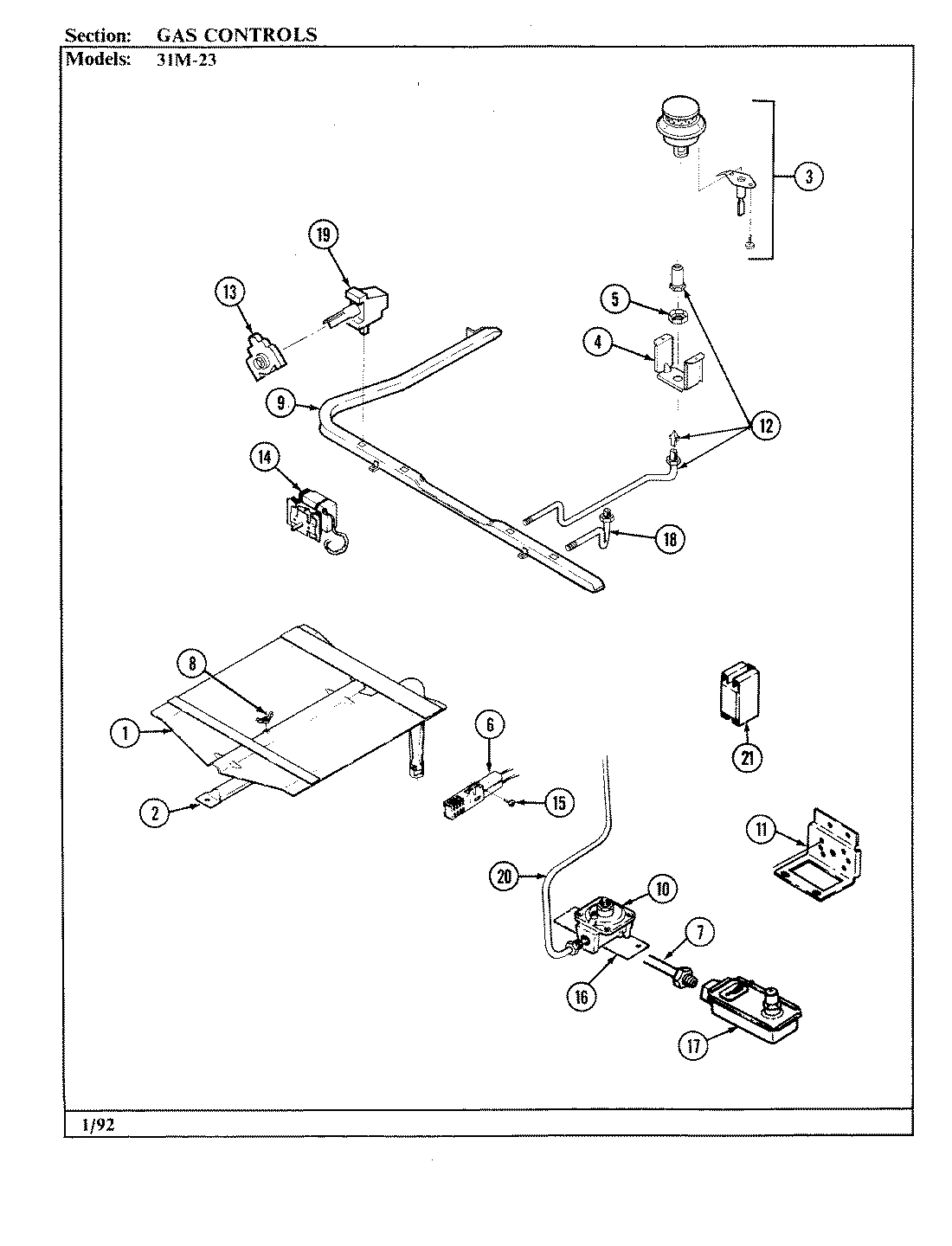

05 - GAS CONTROLS

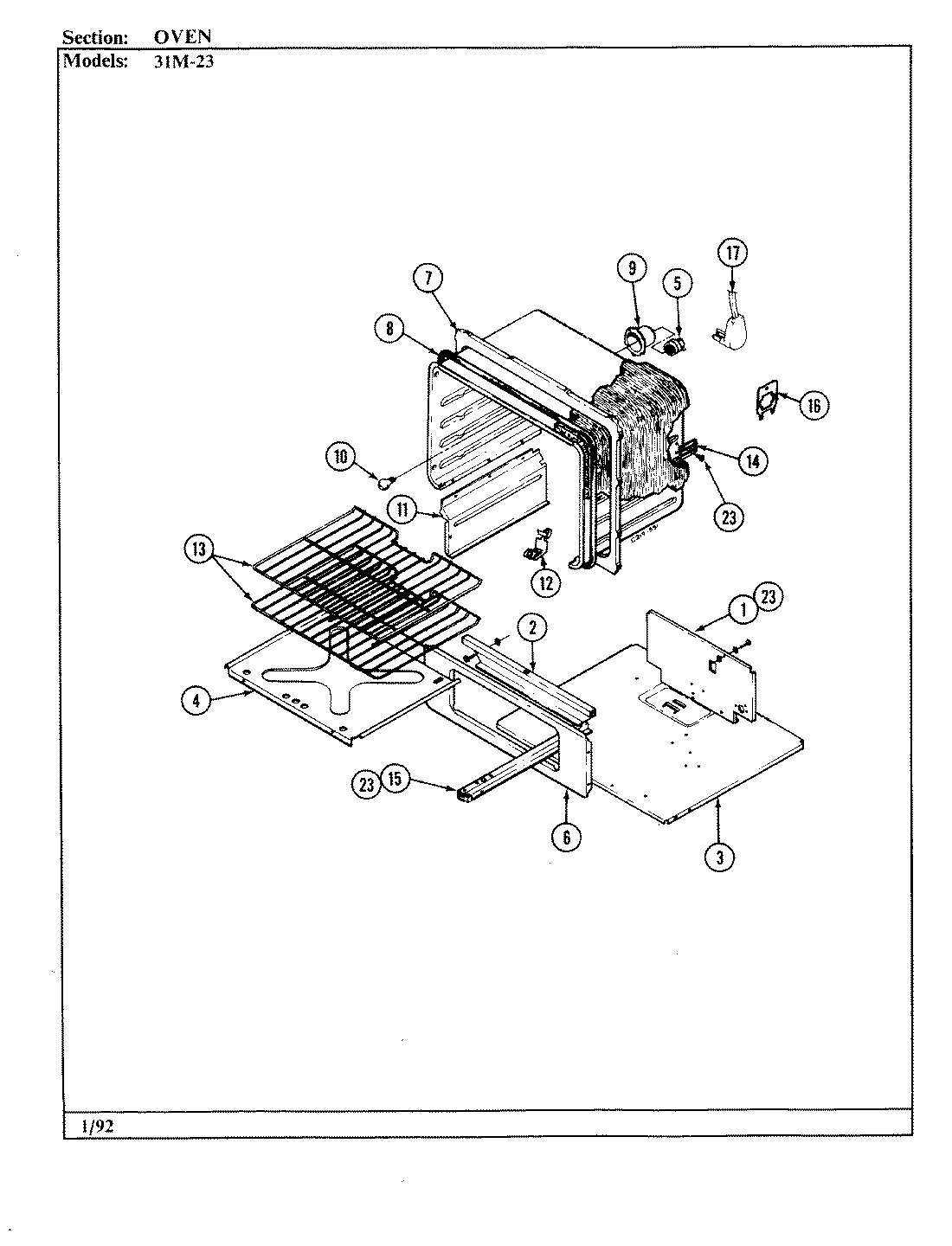

06 - OVEN

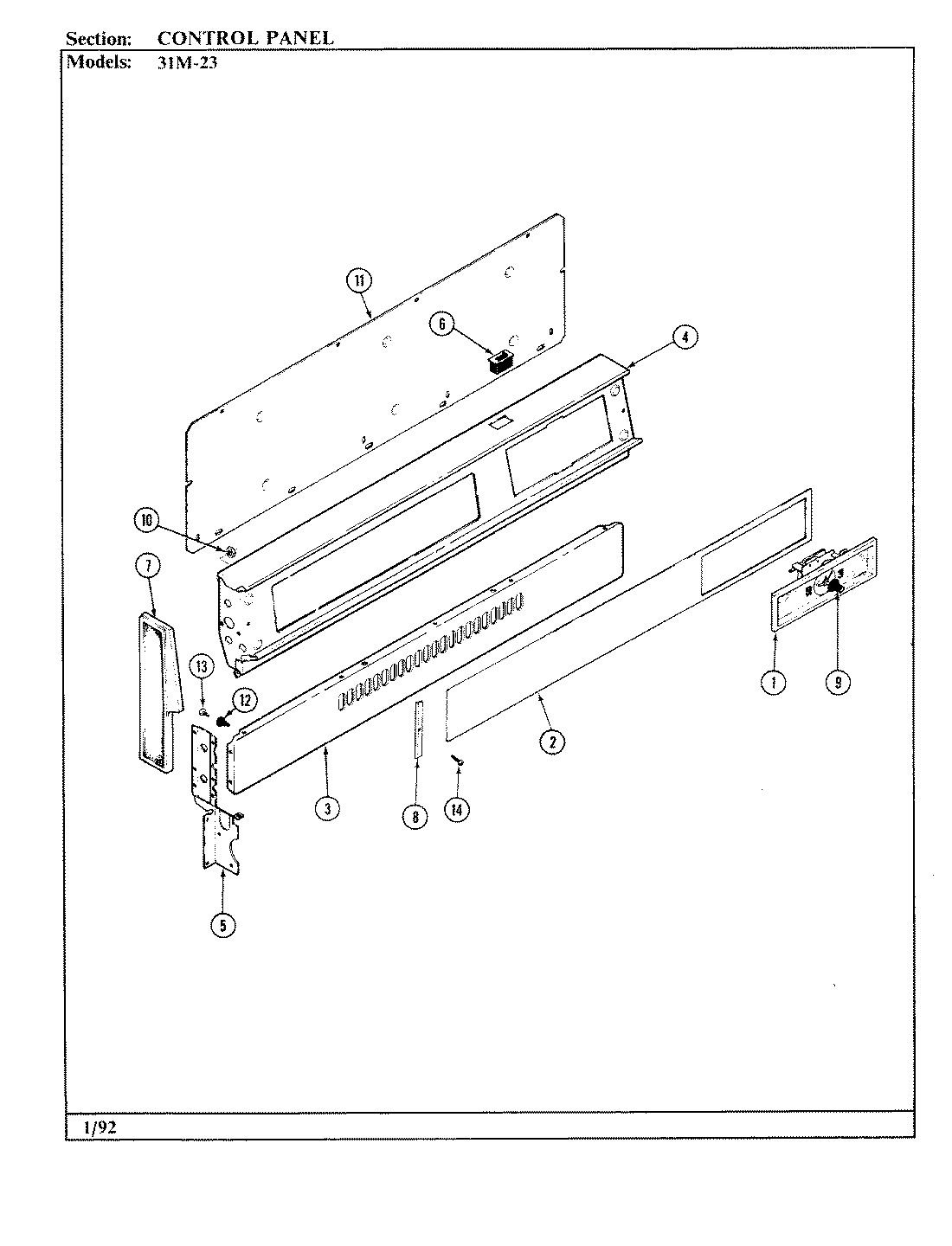

03 - CONTROL PANEL
Common parts from model Whirlpool 31MN-23KX-ON GAS RANGE
1
PAN, BROIL WPL 3401F00419 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
COVER, BKGD BROIL SECTION WPL 4005F27945 Contact Us For Availability
1
CLOCK, INT. TIMER WPL 7602P09160 Contact Us For Availability
2
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
2
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
2
BOX, BURNER WPL 4011F19680 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
2
GLASS BKGD WPL 7910P16460 Contact Us For Availability
3
BOX, FLUE WPL 4006W02680 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
BURNER, SEALED WPL 3412D01509 Contact Us For Availability
3
BURNER, SEALED (BLACK) WPL 3412D01609 Contact Us For Availability
3
WIRE, IGNITER WPL 5111A36060 Contact Us For Availability
3
WIRE IGNITER WPL 5111A36160 Contact Us For Availability
3
SCREW WPL 7118P01060 Contact Us For Availability
3
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
3
IGNITER TOP BURNER WPL 7432P07260 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
3
PANEL BKGD LOWER WPL 2620W05309 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
SUPPORT, ORIFICE FITTING WPL 3807F37845 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01221 Contact Us For Availability
4
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
4
PANEL, BACKGUARD WPL 2601W19984 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
5
SCREW WPL 7118P00460 Contact Us For Availability
5
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
5
PALNUT WPL 7103P11960 Contact Us For Availability
5
COVER WPL 4005F08880 Contact Us For Availability
5
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
5
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
5
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
6
CATCH WPL 8002P00160 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
6
RACEWAY, WIRE WPL 3830F00680 Contact Us For Availability
6
COVER, WIRE WPL 4005F30451 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
FRAME, LOWER OVEN WPL 2201F07419 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
7
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
7
SCREW WPL 7101P11460 Contact Us For Availability
7
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
7
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
7
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
7
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
8
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
8
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
8
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
SEAL WPL 7212P00160 Contact Us For Availability
8
TRIM GLASS RETAINER WPL 7742P01560 Contact Us For Availability
9
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
9
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
9
LINING, OVEN DOOR WPL 2402W15416 Contact Us For Availability
9
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
9
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
9
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
10
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
10
SCREW WPL 7101P30560 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
10
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
11
LINK, BROILER WPL 7807P00160 Contact Us For Availability
11
LINING, INNER SIDE WPL 4009W07880 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
SUPPORT WPL 3807F12034 Contact Us For Availability
11
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
11
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
11
COVER BKGD WIRE WPL 4005F39380 Contact Us For Availability
12
SPRING WPL 7803P01460 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 7712A05860 Contact Us For Availability
12
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
12
FITTING, ORIFICE (REAR 9,000) WPL 7507P06960 Contact Us For Availability
12
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
13
INSULATION WPL 7002P00260 Contact Us For Availability
13
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
13
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
13
INSULATION, DOOR WPL 4804F02160 Contact Us For Availability
13
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
13
RACK, OVEN WPL 7801P03060 Contact Us For Availability
13
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
14
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
14
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
14
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
14
GROMMET, NYLON WPL 8008P01360 Contact Us For Availability
14
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
14
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
14
HARNESS, MAIN (COMPLETE) WPL 5180A02060 Contact Us For Availability
14
SCREW WPL 7101P00860 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW WPL 7101P11560 Contact Us For Availability
16
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
16
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
16
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
16
BRACKET WPL 3801F02145 Contact Us For Availability
16
COVER, DISCONNECT WPL 4005F27745 Contact Us For Availability
17
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
17
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
17
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
17
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
17
CORD, SET WPL 5700A23060 Contact Us For Availability
17
BLOCK, DISCONNECT WPL 7401P01260 Contact Us For Availability
17
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
18
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
18
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
18
FITTING, ORIFICE (FRT 9,000) WPL 7507P07360 Contact Us For Availability
19
RIVET WPL 7107P01760 Contact Us For Availability
19
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
19
SCREW WPL 7101P29660 Contact Us For Availability
19
VALVE, TOP BURNER WPL 7502P23260 Contact Us For Availability
20
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
20
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
21
TOP, MAIN WPL 2001F08081 Contact Us For Availability
21
TOP, MAIN WPL 2001F08084 Contact Us For Availability
21
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
21
MODULE, SPARK WPL 7431P02160 Contact Us For Availability
22
GRATE, BLACK WPL 2003F02900 Contact Us For Availability
23
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
24
HARNESS SUPPLY WPL 5120A00860 Contact Us For Availability
24
HARNESS, LOOSE WIRE WPL 5125A32460 Contact Us For Availability
24
HARNESS, LOWER WPL 5185D25360 Contact Us For Availability
× ![]()
