Model Whirlpool 31JN-3KLX GAS RANGE – Common Parts & Diagrams

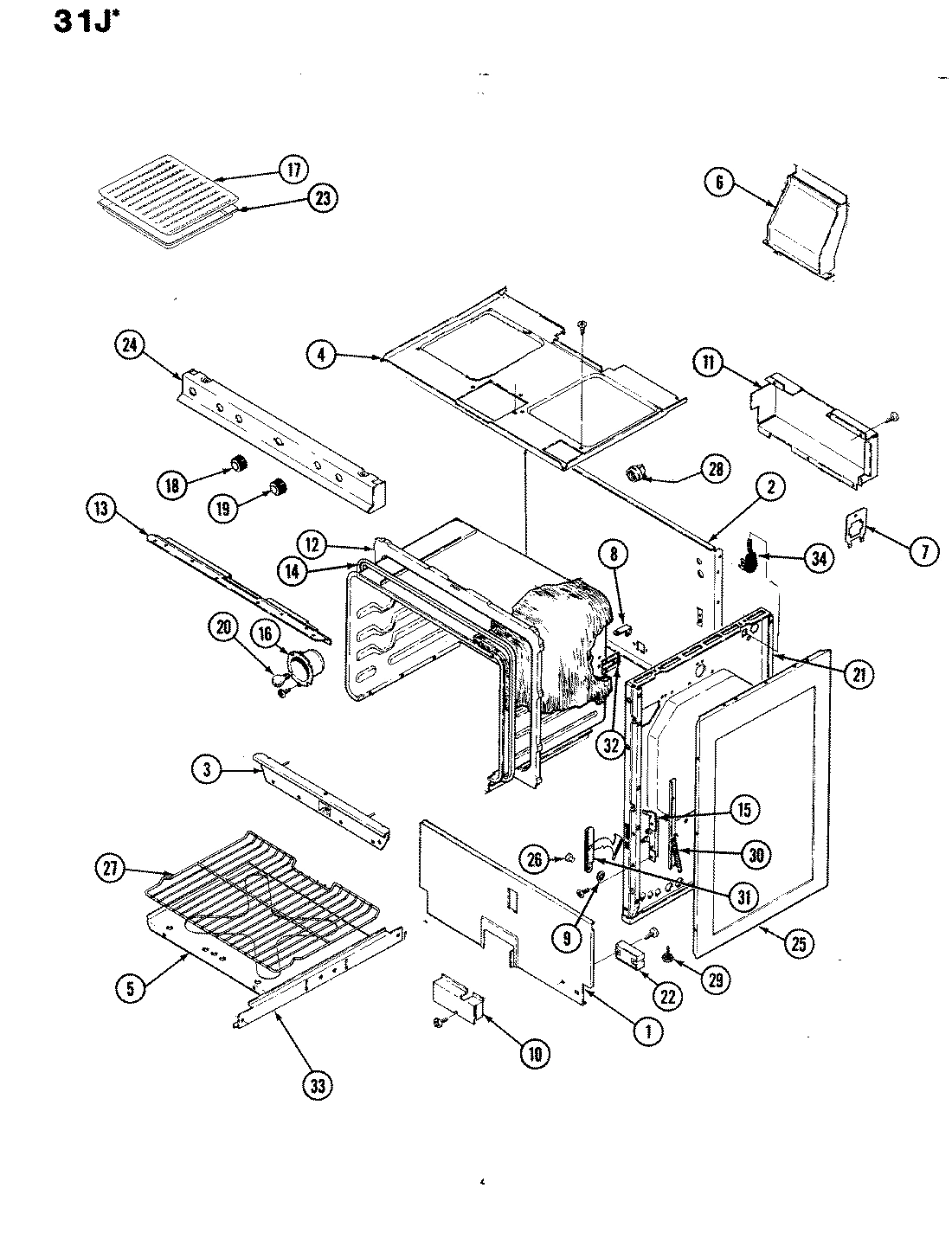

01 - BODY

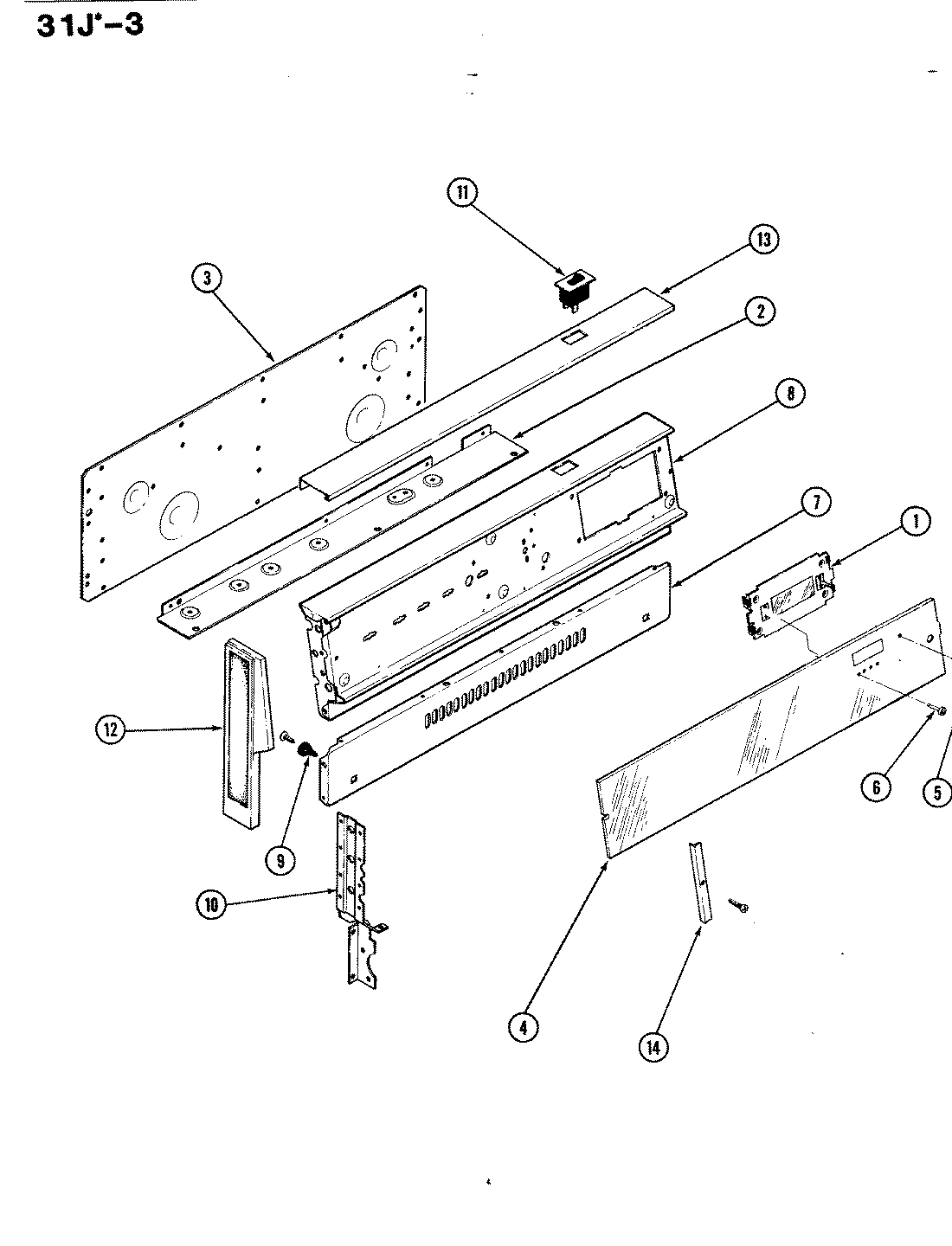

02 - CONTROL PANEL

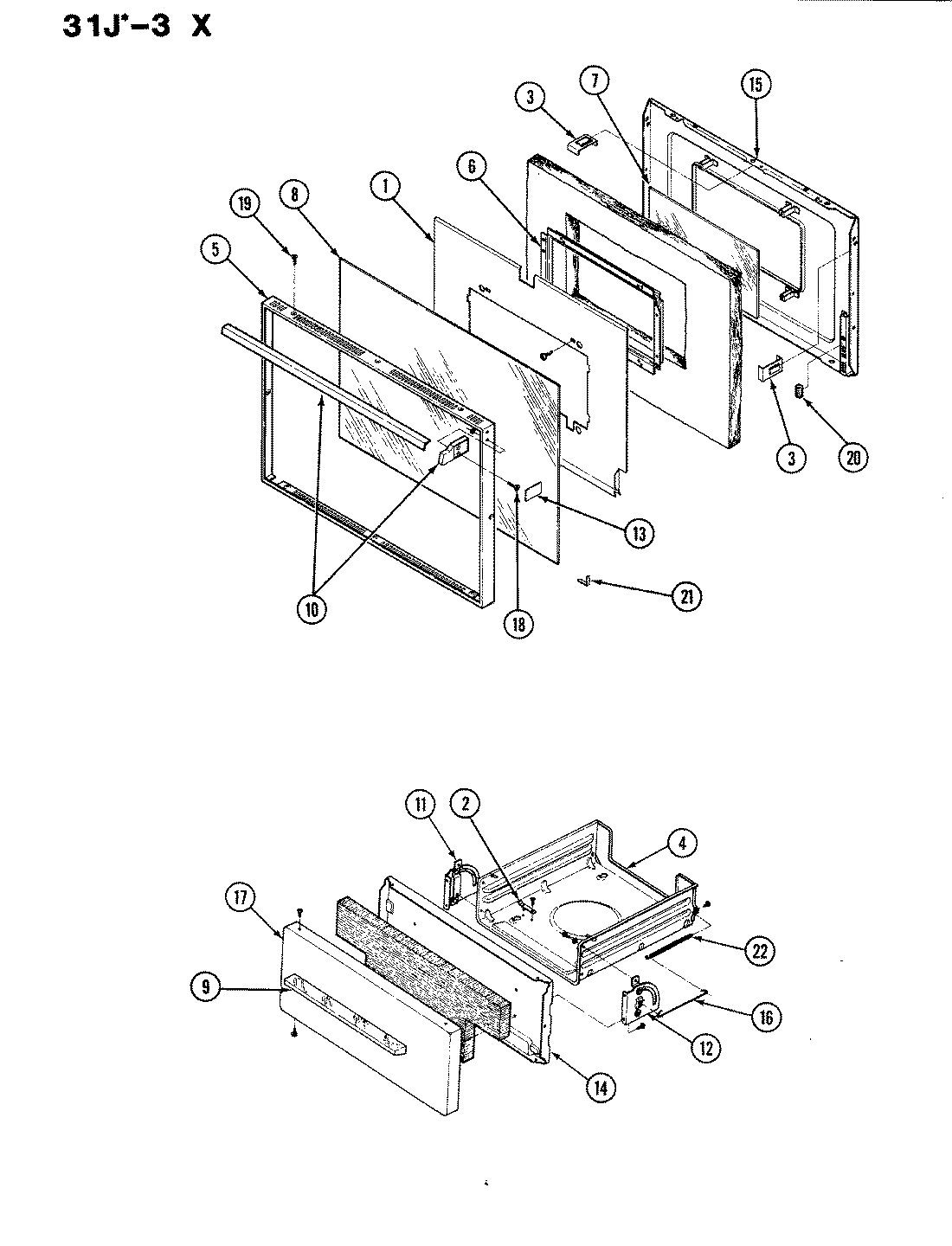

03 - DOOR

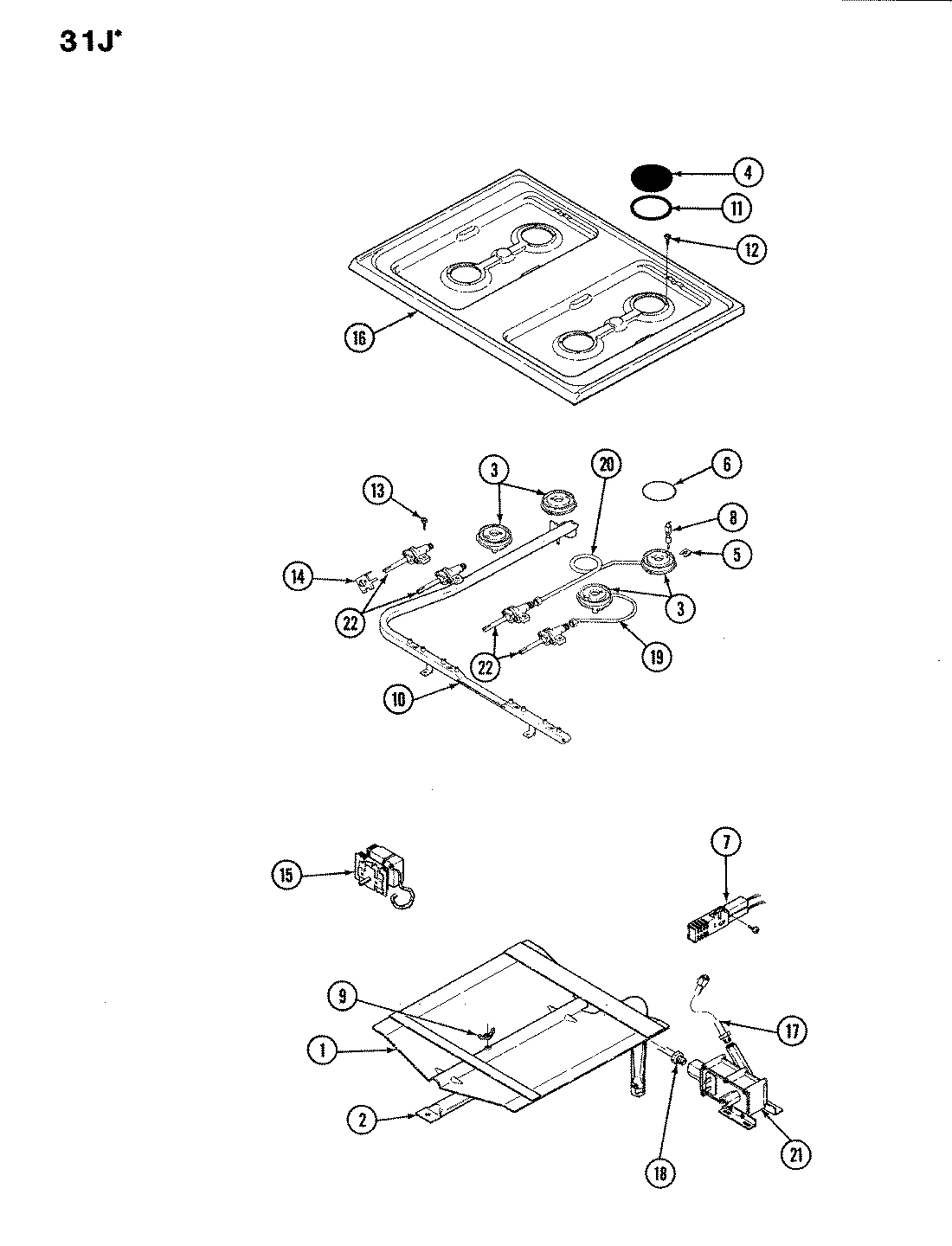

04 - TOP ASSY./CONTROL SYSTEM
Common parts from model Whirlpool 31JN-3KLX GAS RANGE
1
BACK, BROILER SECTION WPL 4002F09745 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
1
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
1
SCREW WPL 7101P06160 Contact Us For Availability
1
CLOCK WPL 7602P08860 Contact Us For Availability
1
CLOCK WPL 7602P09760 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
1
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
1
BLOCK WPL 7401P01860 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
3
BLOCK, UPPER DISCONT WPL 7401P01060 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
3
BURNER, TOP WPL 7505P18760 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7910P04160 Contact Us For Availability
4
GLASS, BKGD WPL 7910P12860 Contact Us For Availability
4
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
COVER, IGNITOR WPL 4005F00680 Contact Us For Availability
5
CLIP WPL 7112P07260 Contact Us For Availability
6
BOX, FLUE WPL 4006W02680 Contact Us For Availability
6
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
6
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
6
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
6
GRATE, BURNER WPL Y04000012 Contact Us For Availability
7
BRACKET WPL 3801F02145 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
SCREW WPL 7101P05760 Contact Us For Availability
7
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
7
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
8
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
8
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
8
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
8
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
8
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
8
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
9
COVER, BKGD BROIL SECTION WPL 4005F27945 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
9
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
10
COVER WPL 4005F08880 Contact Us For Availability
10
COVER, MODULE WPL 4005F16780 Contact Us For Availability
10
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
10
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
10
SCREW WPL 7101P07460 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
10
REGULATOR WPL 7510P04060 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
10
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
11
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
11
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
11
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
11
RING, BLACK WPL 2014F00100 Contact Us For Availability
12
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE FRAME, UPPER (N WPL W10124350 Contact Us For Availability
12
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
12
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
12
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
12
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
12
SCREW WPL 7101P25660 Contact Us For Availability
13
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
13
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
13
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
13
MIXER, AIR WPL 3411F00635 Contact Us For Availability
13
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
SCREW WPL 7101P29660 Contact Us For Availability
14
SEAL WPL 7212P00160 Contact Us For Availability
14
SCREW WPL 7101P00860 Contact Us For Availability
14
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
14
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
14
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
14
LINING, BROILER WPL 2404F02123 Contact Us For Availability
14
SCREW WPL 7101P05860 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
14
SWITCH WPL 7403P25860 Contact Us For Availability
14
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
14
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
15
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
15
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
15
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
15
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
15
THERMOSTAT WPL 7404P06360 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
16
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
16
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
TOP, MAIN SNOW WHITE WPL 2001F06391 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
16
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
16
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
17
INSERT WPL 3413F00211 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
18
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
18
SCREW WPL 7101P12360 Contact Us For Availability
18
TUBING 3/8 X 59 WPL 3414F05044 Contact Us For Availability
18
TUBING, OVEN (3/8``) WPL 3414F09944 Contact Us For Availability
18
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
19
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
19
KNOB, VALVE WPL 7733P05360 Contact Us For Availability
19
KNOB WPL 7733P05960 Contact Us For Availability
19
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
19
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
20
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
20
BULB, OVEN WPL 7407P02660 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
20
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
20
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
21
LINING, INNER SIDE WPL 04000019 Contact Us For Availability
21
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
SUPPORT WPL 3807F12034 Contact Us For Availability
21
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
21
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
22
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
22
VALVE, TOP B WPL 7502P14160 Contact Us For Availability
22
WPL 7502P22060 WPL 7502P22060 Contact Us For Availability
22
WPL 7502P22960 WPL 7502P22960 Contact Us For Availability
23
PAN, BROIL WPL 3401F00423 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
23
WPL 5110P82460 WPL 5110P82460 Contact Us For Availability
23
WPL 5110P82560 WPL 5110P82560 Contact Us For Availability
24
TRIM ASSY, MANIFOLD WPL 7712A05160 Contact Us For Availability
24
WPL 5415A01660 WPL 5415A01660 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
25
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
26
PIN, HINGE WPL 7113P00260 Contact Us For Availability
27
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
RETAINER WPL 3804F01050 Contact Us For Availability
28
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
29
SPACER, MAIN WPL 8010P04860 Contact Us For Availability
29
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
30
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
31
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
32
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
33
WPL 3404A01351 WPL 3404A01351 Contact Us For Availability
33
WPL 3404A01451 WPL 3404A01451 Contact Us For Availability
33
WPL 7101P11560 WPL 7101P11560 Contact Us For Availability
34
WPL 7402P02460 WPL 7402P02460 Contact Us For Availability
× ![]()
Login and Registration Form
