Model Whirlpool 31JN-1KXS-ON GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

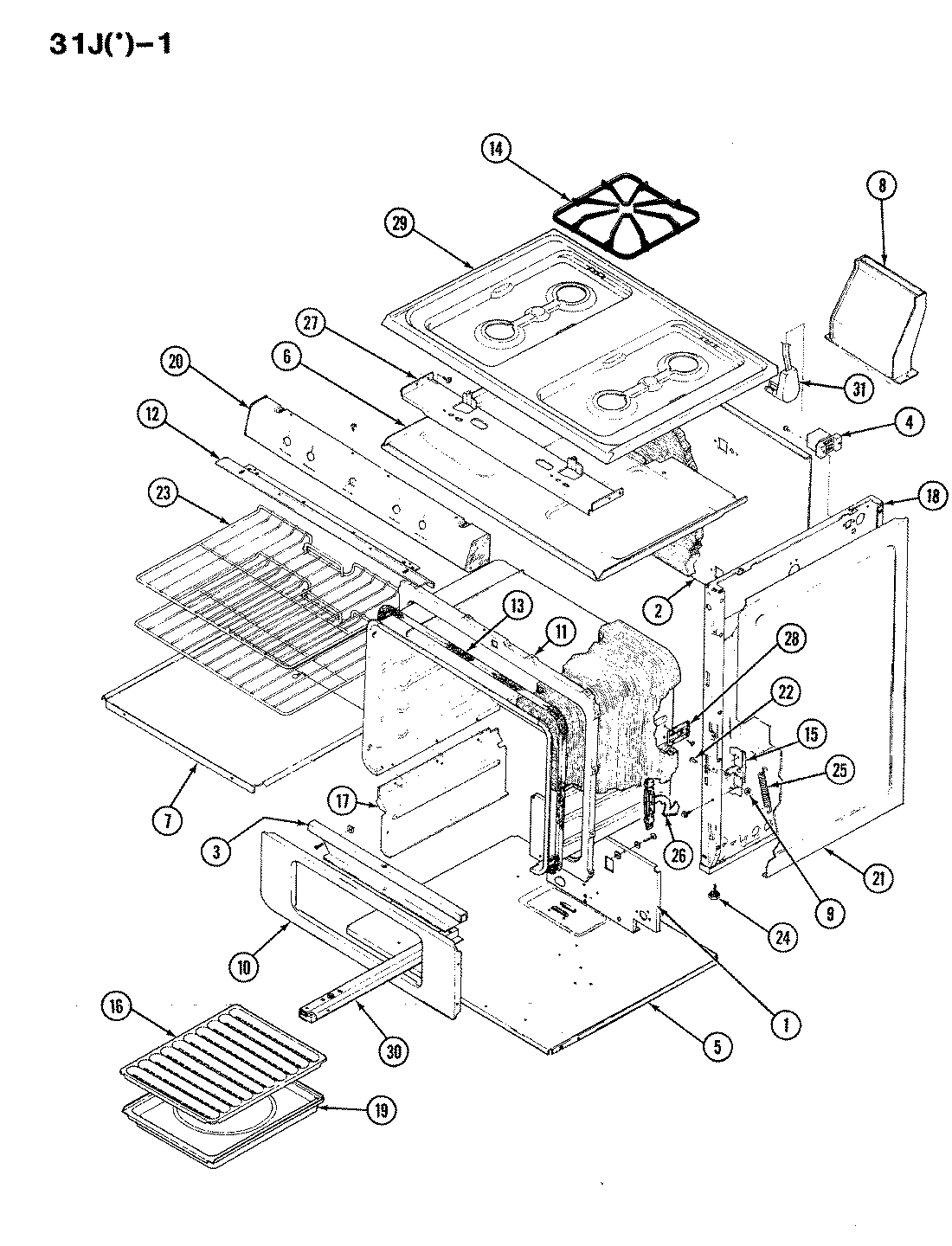

01 - BODY

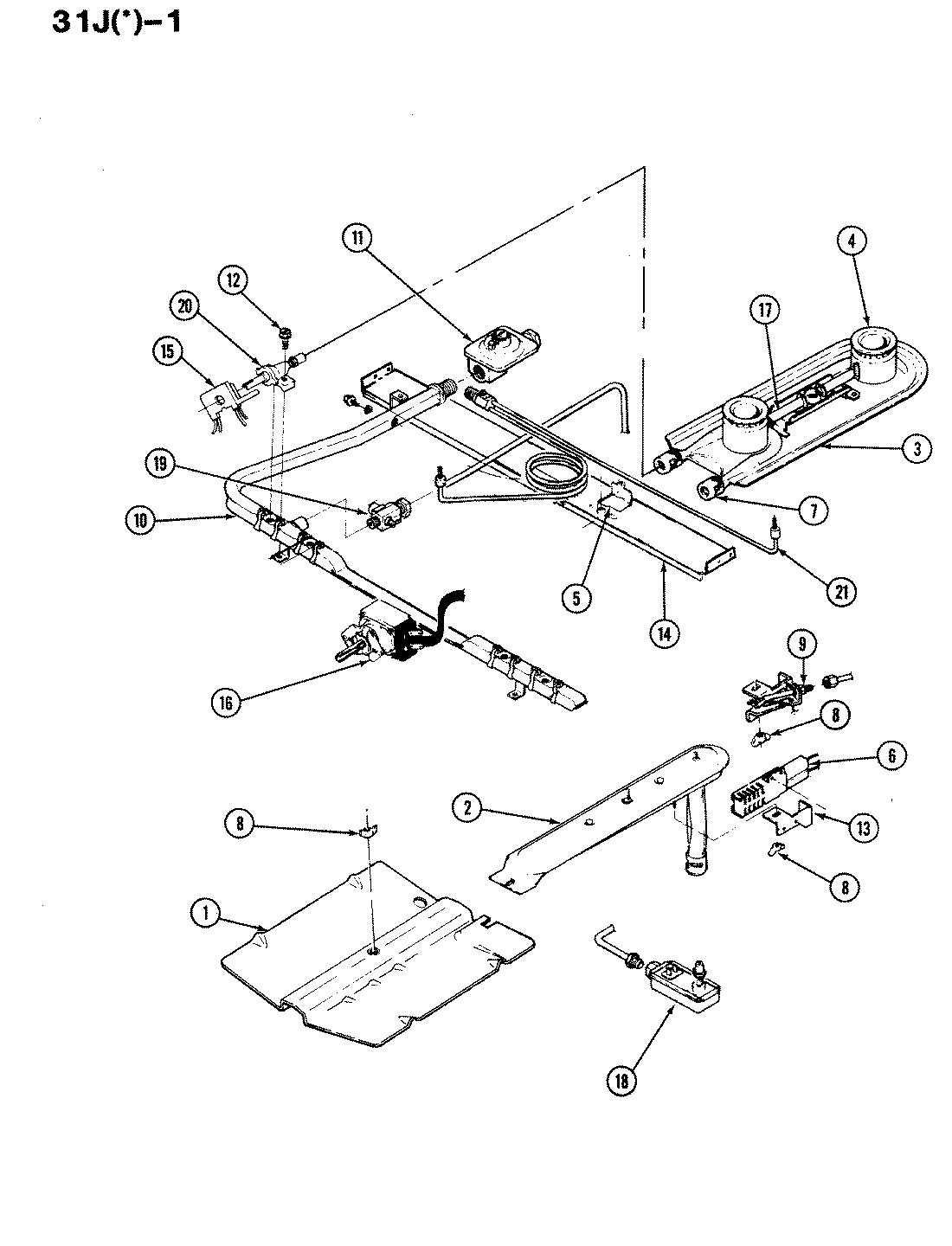

03 - CONTROL SYSTEM

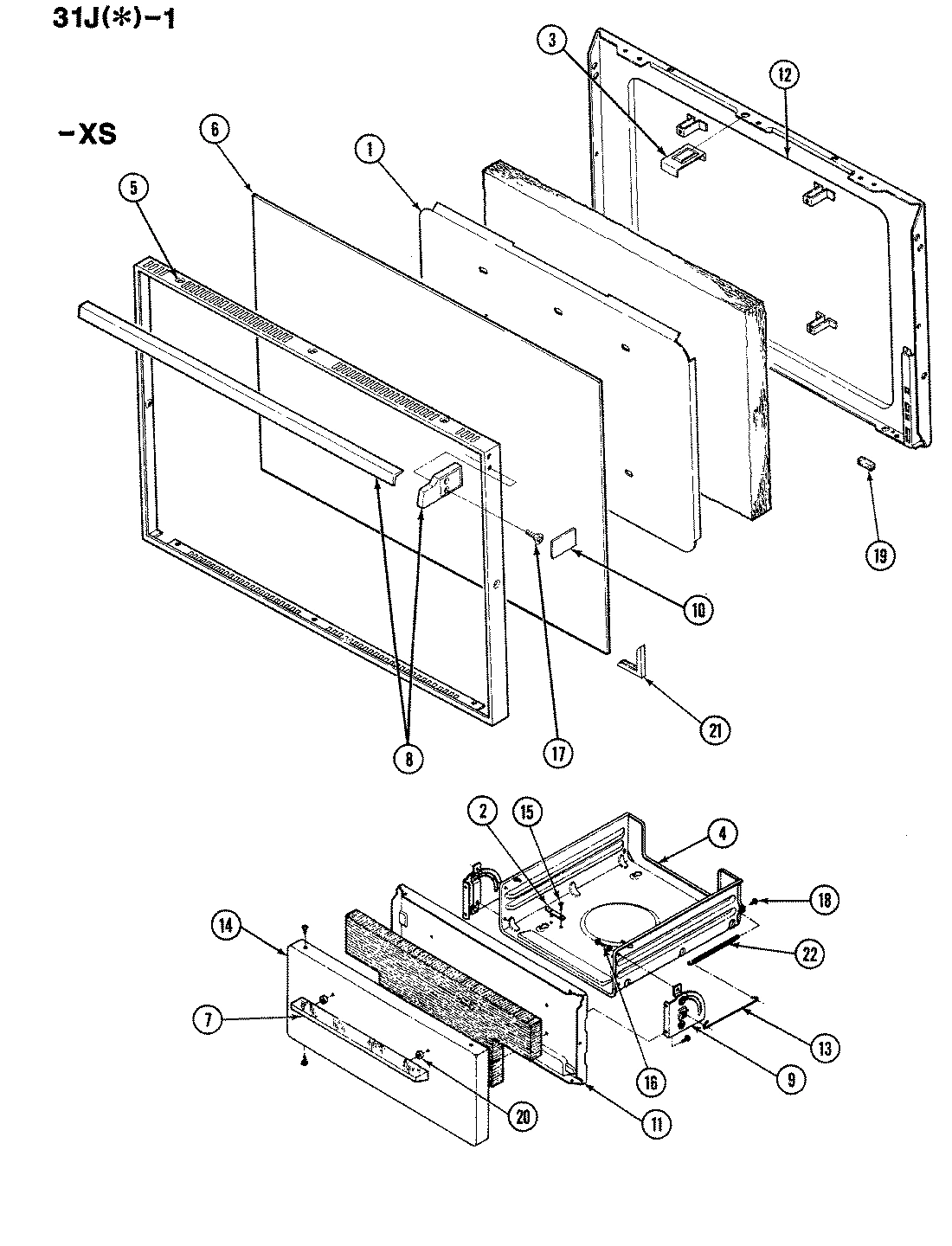

04 - DOOR
Common parts from model Whirlpool 31JN-1KXS-ON GAS RANGE
1
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
2
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
3
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
3
BAFFLE, OVEN TOP WPL 3601F05945 Contact Us For Availability
3
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
SUPPORT WPL 3807F01280 Contact Us For Availability
4
SUPPORT, BKG LEFT WPL 3807W01080 Contact Us For Availability
4
CAP, TERMINAL BLOCK WPL 7401P00560 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, IGNITOR WPL 4005F00680 Contact Us For Availability
4
COVER, MODULE WPL 4005F16780 Contact Us For Availability
4
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
5
TRIM, BKGD WPL 7703P19360 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
END CAP, BACKGUARD (LT-BLK) WPL 7726P00960 Contact Us For Availability
6
END CAP, BACKGUARD (RT-BLK) WPL 7726P02060 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
6
KNOB, THERMOSTAT WPL 7711P31260 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
BRACKET WPL 3801F02045 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F19845 Contact Us For Availability
8
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
COVER WPL 4005F00545 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
9
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
10
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
RETAINER, BURNER CAP THREADED WPL 3804F00144 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
11
LINING, BROILER WPL 2404F02123 Contact Us For Availability
12
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
12
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
12
MIXER, AIR WPL 3411F00635 Contact Us For Availability
12
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
12
SHIELD WIRE WPL 3604F04251 Contact Us For Availability
12
SCREW, TOP HINGE WPL 7101P02860 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
SCREW WPL 7101P29660 Contact Us For Availability
12
SLEEVE WPL 7214P00360 Contact Us For Availability
12
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
12
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
13
SEAL WPL 7212P00160 Contact Us For Availability
13
SUPPORT WPL 3807F12034 Contact Us For Availability
13
LINK, BROILER WPL 7807P00160 Contact Us For Availability
14
GRATE WPL 2003W00100 Contact Us For Availability
14
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
14
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
14
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
14
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
14
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
15
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
15
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
15
SWITCH, TOP BURNER WPL 7403P10760 Contact Us For Availability
15
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
15
SWITCH WPL 7403P25860 Contact Us For Availability
15
SWITCH WPL 7403P25960 Contact Us For Availability
15
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
15
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
15
SCREW WPL 7101P07660 Contact Us For Availability
15
SCREW WPL 7101P11460 Contact Us For Availability
16
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
16
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
16
THERMOSTAT WPL 7404P06360 Contact Us For Availability
16
THERMOSTAT WPL 7515P00860 Contact Us For Availability
17
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
17
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
17
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
17
SCREW WPL 7101P12360 Contact Us For Availability
18
SCREW WPL 7101P06160 Contact Us For Availability
18
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
18
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
18
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
18
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
18
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
19
PAN, BROIL WPL 3401F00423 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
PANEL, MANIFOLD BLACK WPL 2616F02490 Contact Us For Availability
20
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
20
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
20
VALVE WPL 7502P22260 Contact Us For Availability
20
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
21
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
23
RETAINER WPL 3804F01050 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
24
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
25
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
26
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
28
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
29
TOP, MAIN WPL 2001F03581 Contact Us For Availability
30
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
30
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
31
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
