Model Whirlpool 31HA-93KX-ON GAS RANGE – Common Parts & Diagrams

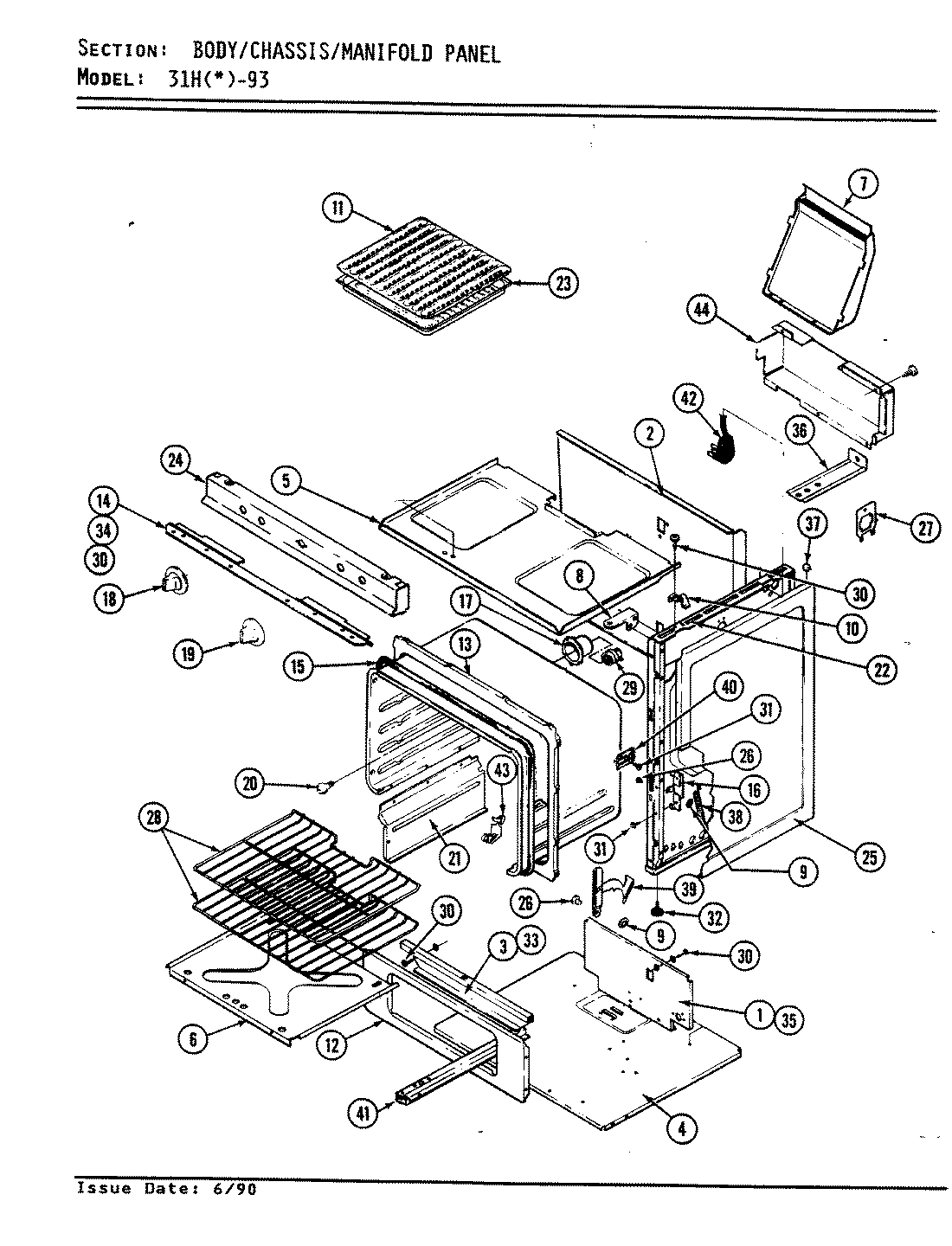

02 - CONTROL PANEL/BODY/OVEN

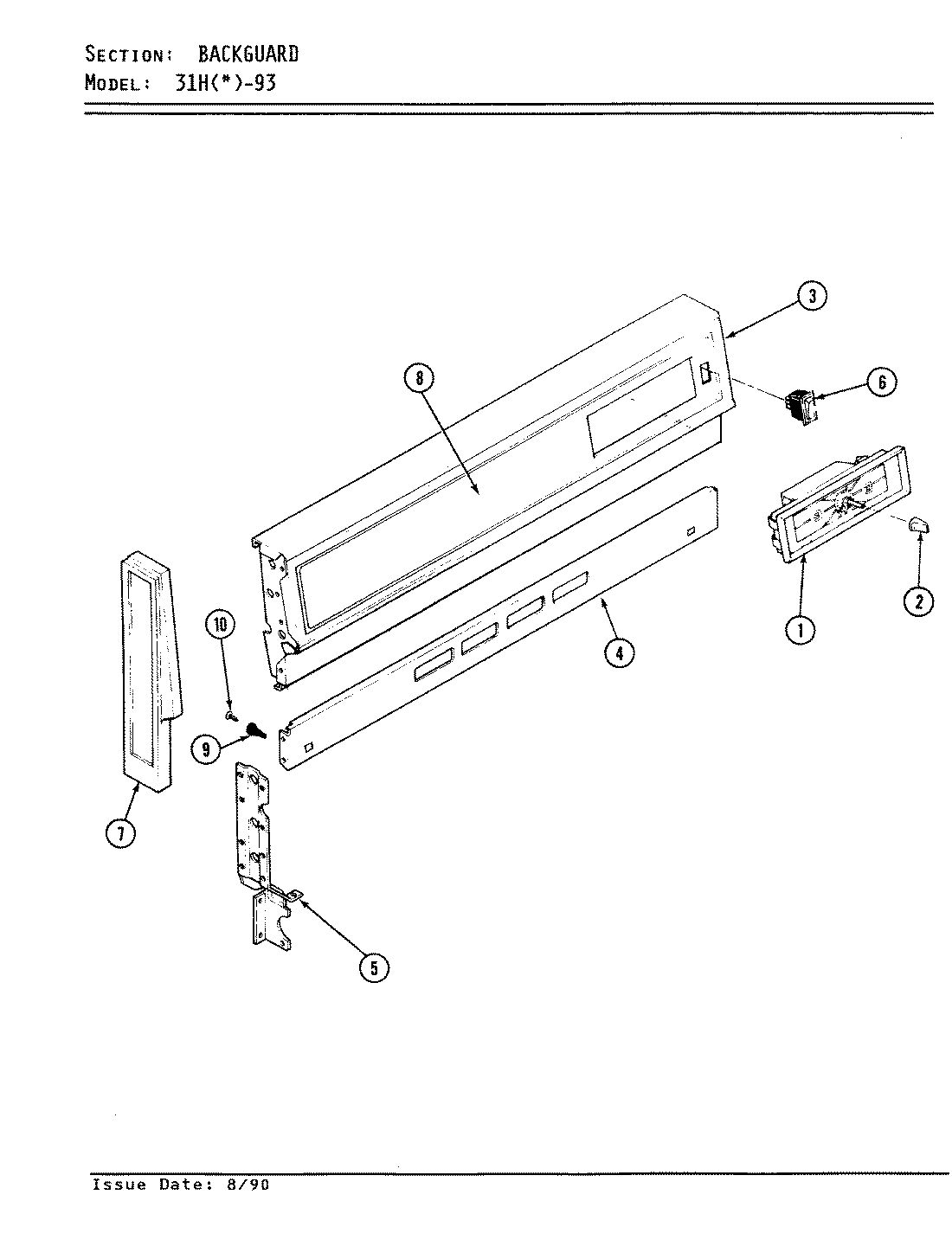

01 - CONTROL PANEL

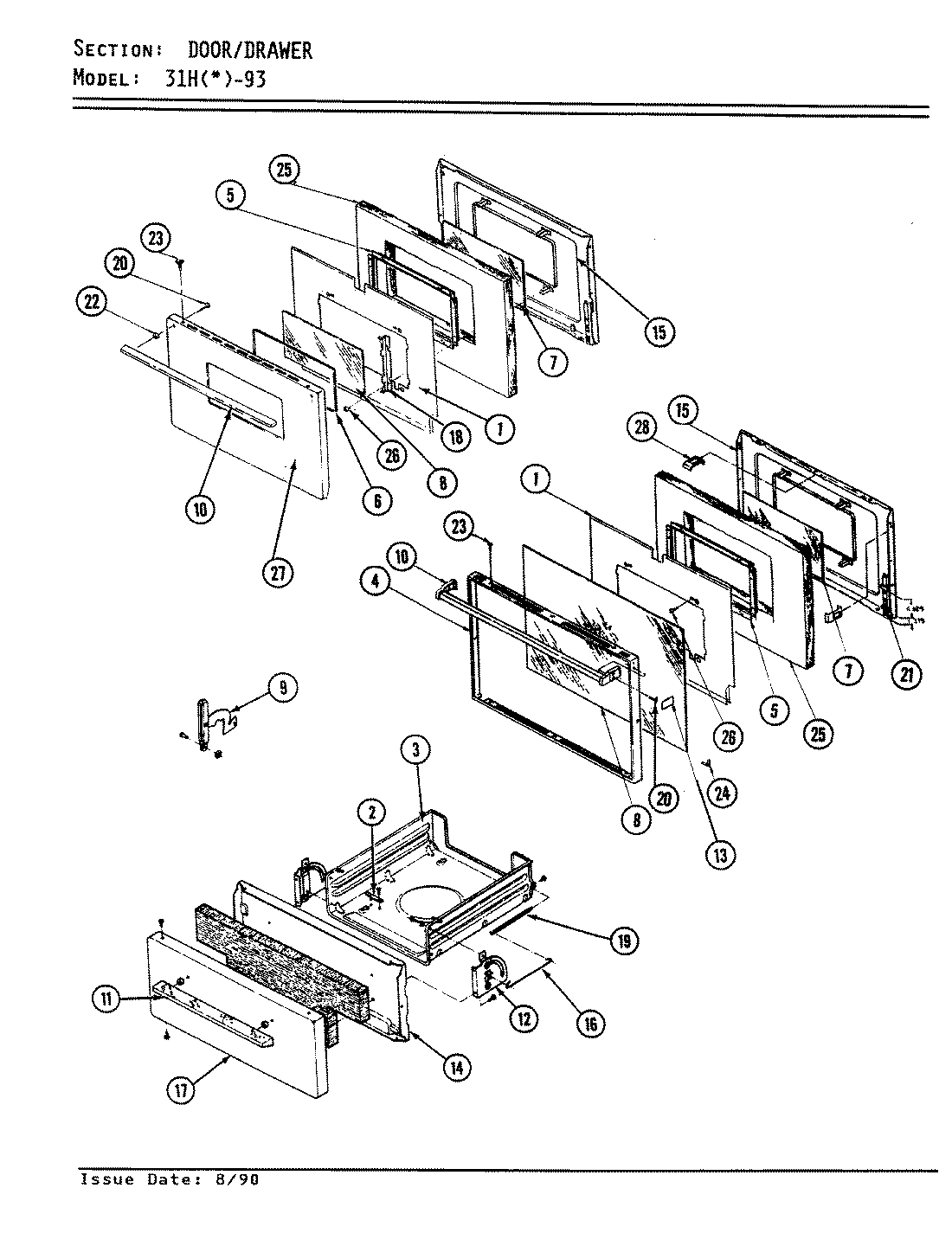

03 - DOOR/DRAWER

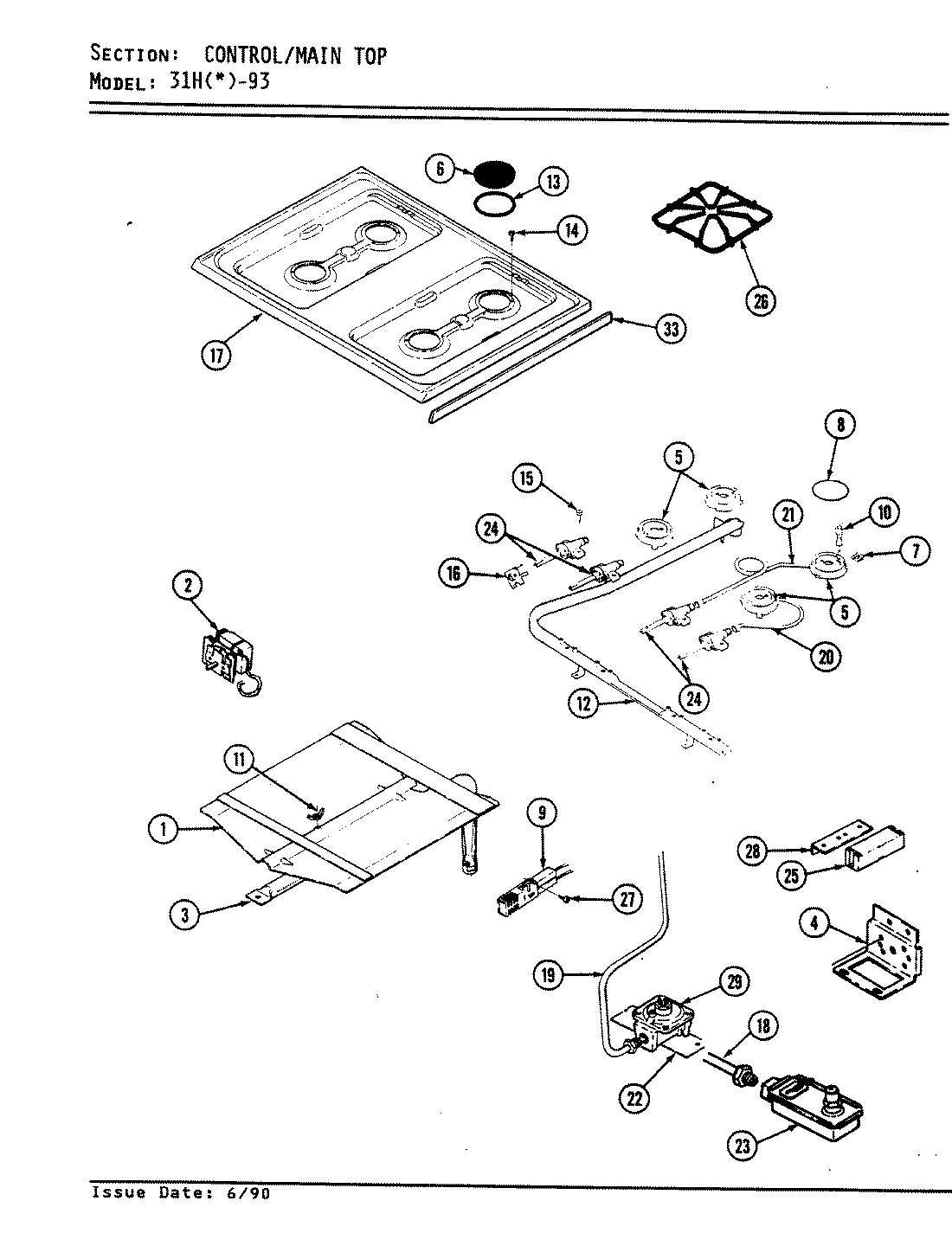

04 - TOP ASSY./CONTROL SYSTEM
Common parts from model Whirlpool 31HA-93KX-ON GAS RANGE
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
COVER, BKGD BROIL SECTION WPL 4005F27945 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
CLOCK WPL 7602P08560 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10860 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
2
THERMOSTAT WPL 7404P06360 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BKGD ASSY, ALM WPL 2601W28284 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
4
PANEL, LOWER BKGD. (BLK) WPL 2620W05323 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
SUPPORT WPL 3807F12034 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
5
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
5
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
5
CONVERSION KIT TO LP WPL 5415A01460 Contact Us For Availability
5
+ NAT. GAS CONVERSION KIT WPL 5415A01560 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
5
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01223K Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
6
CAP, BURNER WPL 7504P00560 Contact Us For Availability
6
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
7
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BACKGUARD TRIM WPL 7703P20660 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
10
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
11
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
11
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
11
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
12
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
12
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
12
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
12
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
13
RING, BLACK WPL 2014F00100 Contact Us For Availability
14
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
14
LINING, BROILER WPL 2404F02123 Contact Us For Availability
14
SCREW WPL 7101P25660 Contact Us For Availability
15
SEAL WPL 7212P00160 Contact Us For Availability
15
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
16
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
16
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
16
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
16
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
17
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
17
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
17
TOP, MAIN WHITE WPL 2001F06381 Contact Us For Availability
17
TOP, MAIN ALMOND WPL 2001F06384 Contact Us For Availability
18
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
18
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
19
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
19
SPRING WPL 7803P01460 Contact Us For Availability
19
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
19
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
20
BULB, OVEN WPL 7407P02660 Contact Us For Availability
20
SCREW WPL 7101P12360 Contact Us For Availability
20
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
21
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
22
LINING, INNER SIDE WPL 4009W07180 Contact Us For Availability
22
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
22
NUT, NYLON WPL 7103P04560 Contact Us For Availability
22
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
22
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
23
PAN, BROIL WPL 3401F00423 Contact Us For Availability
23
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
23
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
24
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
24
SCREW WPL 7118P00460 Contact Us For Availability
24
PANEL, MANIFOLD (BLK) WPL 7712A05860 Contact Us For Availability
24
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
24
SLEEVE WPL 7214P00360 Contact Us For Availability
24
VALVE----NA WPL 7502P10360 Contact Us For Availability
25
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
25
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
26
PIN, HINGE WPL 7113P00260 Contact Us For Availability
26
SCREW WPL 7101P06160 Contact Us For Availability
26
GRATES WPL 2003W00600 Contact Us For Availability
27
BRACKET WPL 3801F02145 Contact Us For Availability
27
COVER, DISCONNECT WPL 4005F27745 Contact Us For Availability
27
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
27
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
28
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
29
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
29
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
30
MANUAL, USE & CARE WPL 8112P05360 Contact Us For Availability
31
SCREW WPL 7101P11260 Contact Us For Availability
32
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
33
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
34
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
35
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
36
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
36
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
36
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
37
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
40
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
41
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
41
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
41
SCREW WPL 7101P11560 Contact Us For Availability
42
CORD, POWER WPL 7402P02460 Contact Us For Availability
42
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
43
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
44
COVER, MODULE WPL 4005F16780 Contact Us For Availability
× ![]()
