Model Whirlpool 31HA-92KXS-EL GAS RANGE – Common Parts & Diagrams

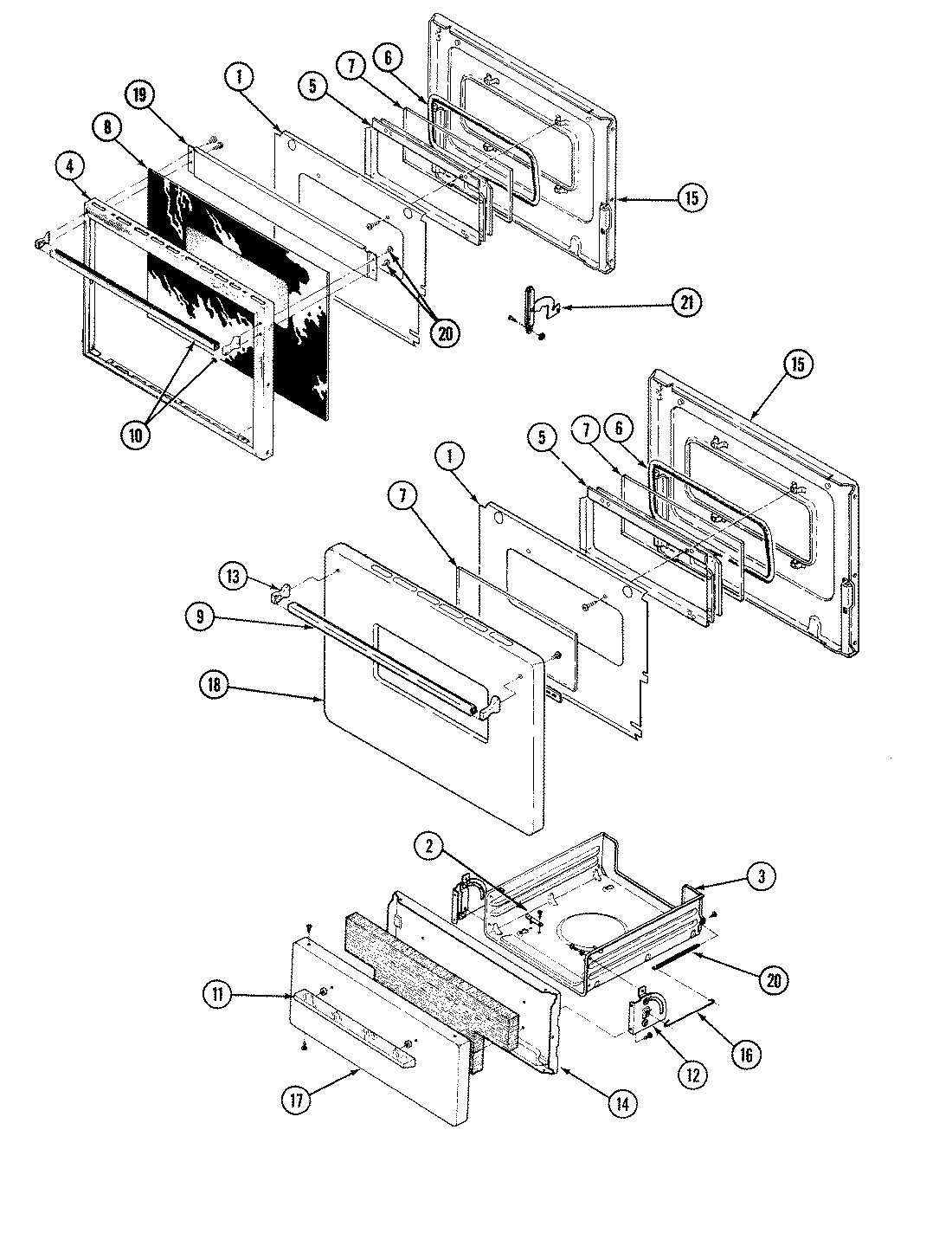

04 - DOOR PARTS

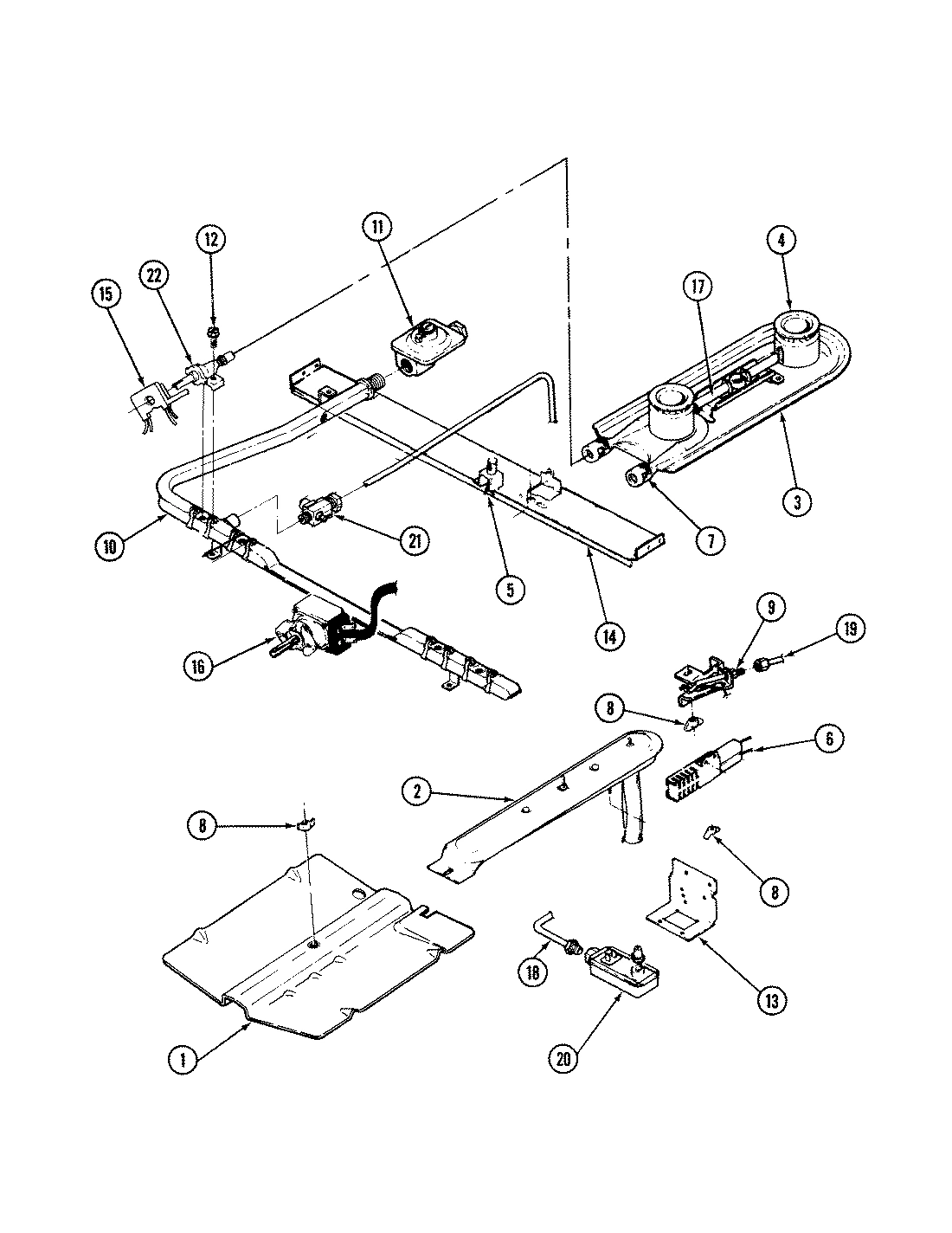

03 - CONTROL PARTS

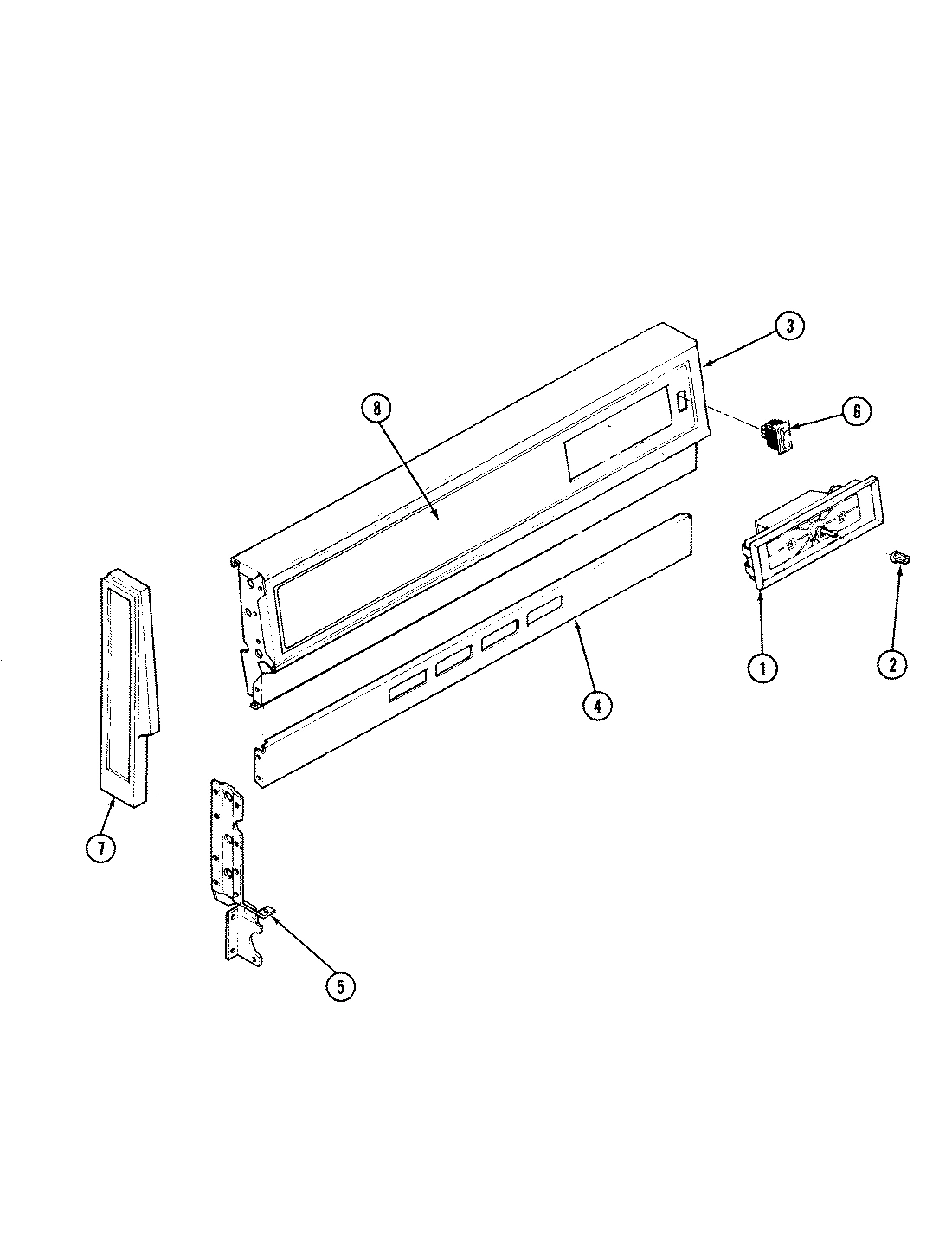

01 - BACKGUARD PARTS

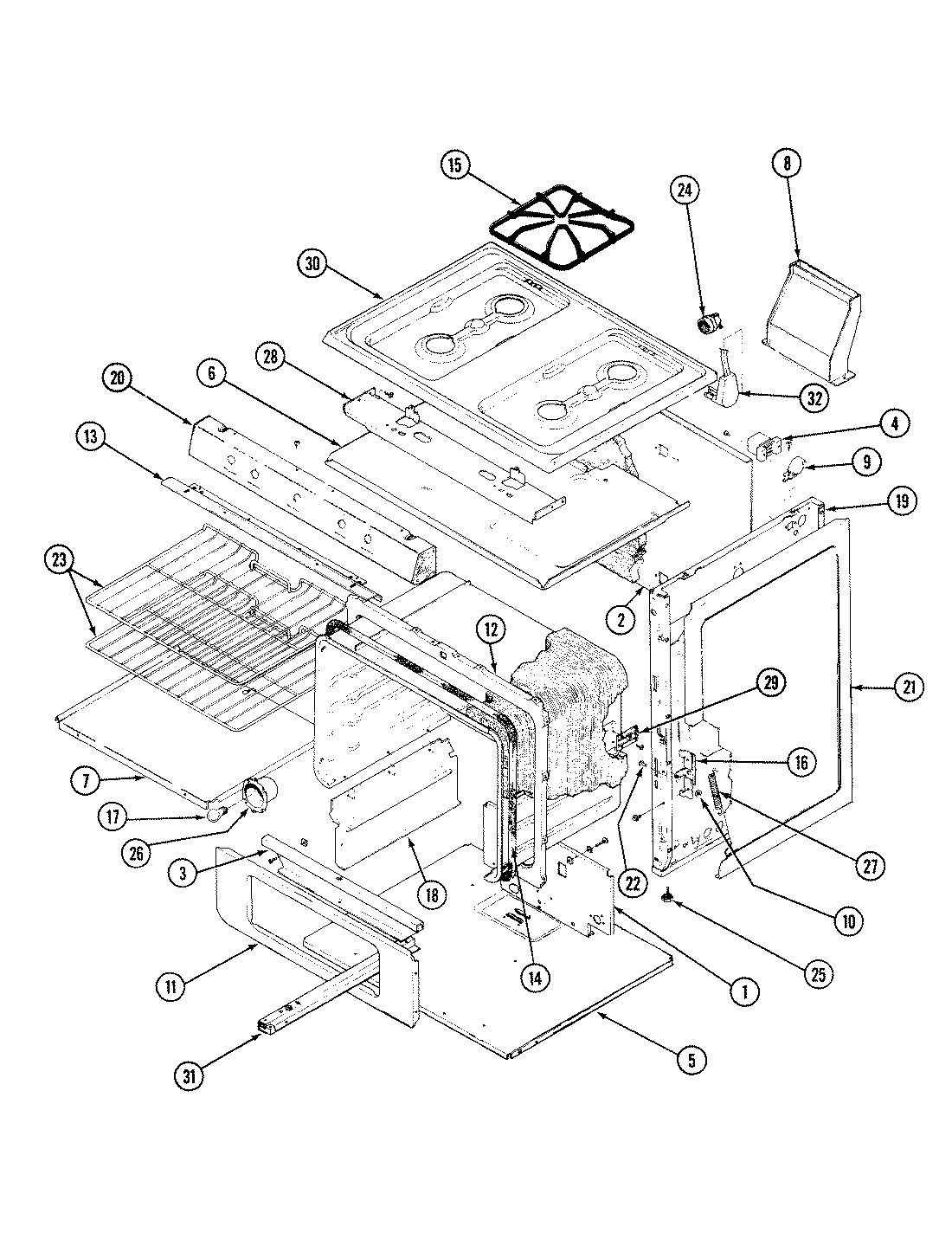

02 - BODY PARTS
Common parts from model Whirlpool 31HA-92KXS-EL GAS RANGE
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
COVER, BKGD. WIRE WPL 4005F07180 Contact Us For Availability
1
CLOCK WPL 7602P08560 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10860 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BACK, BROILER WPL 4002F16645 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00911 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
PANEL, BKDG ALMOND WPL 2601W25984 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
4
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
4
BLOCK, UPPER DISCONT WPL 7401P01060 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
SUPPORT WPL 3807F01080 Contact Us For Availability
5
SUPPORT WPL 3807F01280 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F09780 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
7
MIXER, AIR WPL 3411F00434 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
7
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01217 Contact Us For Availability
7
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
TRIM, BKGD INSERT WPL 7703P18760 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
9
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
9
SCREW WPL 7101P06160 Contact Us For Availability
9
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
10
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P13360 Contact Us For Availability
10
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
11
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
11
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
12
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
12
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
12
MIXER, AIR WPL 3411F00635 Contact Us For Availability
12
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
12
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
12
SCREW WPL 7101P29660 Contact Us For Availability
13
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
SUPPORT WPL 3807F12034 Contact Us For Availability
13
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
14
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
14
LINING, BROILER WPL 2404F02123 Contact Us For Availability
14
SEAL WPL 7212P00160 Contact Us For Availability
15
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
15
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
15
GRATE WPL 2003W00100 Contact Us For Availability
15
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
15
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
15
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
16
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
16
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
16
INSERT WPL 3413F00211 Contact Us For Availability
16
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
16
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
17
PANEL, DRAWER (ALM) WPL 2416F01374 Contact Us For Availability
17
BULB, OVEN WPL 7407P02660 Contact Us For Availability
18
LINING, SIDE BRO COM WPL 4009F00645 Contact Us For Availability
19
SEAL WPL 1726252 Contact Us For Availability
19
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
19
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
19
PAN, BROIL WPL 3401F00411 Contact Us For Availability
19
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
19
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
20
SPRING WPL 7803P01460 Contact Us For Availability
20
PANEL, UPPER FRONT (ALM) WPL 2616F01084 Contact Us For Availability
21
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
21
TRIM, INSERT MANIFOLD PANEL WPL 7728P05160 Contact Us For Availability
21
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
21
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
22
PIN, HINGE WPL 7113P00260 Contact Us For Availability
23
RACK, OVEN WPL 7801P03060 Contact Us For Availability
24
RETAINER WPL 3804F01050 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
25
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
26
HOUSING WPL 4001F01611 Contact Us For Availability
27
SPRING WPL 7803P00260 Contact Us For Availability
28
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
29
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
30
TOP, MAIN - A WPL 2001F03504 Contact Us For Availability
31
TRACK WPL 3404A00151 Contact Us For Availability
31
TRACK, BROILER DWR WPL 3404A01345 Contact Us For Availability
31
TRACK, BROILER DWR WPL 3404A01445 Contact Us For Availability
32
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
