Model Whirlpool 31HA-5KX GAS RANGE – Common Parts & Diagrams
03 - CONTROL SYSTEM

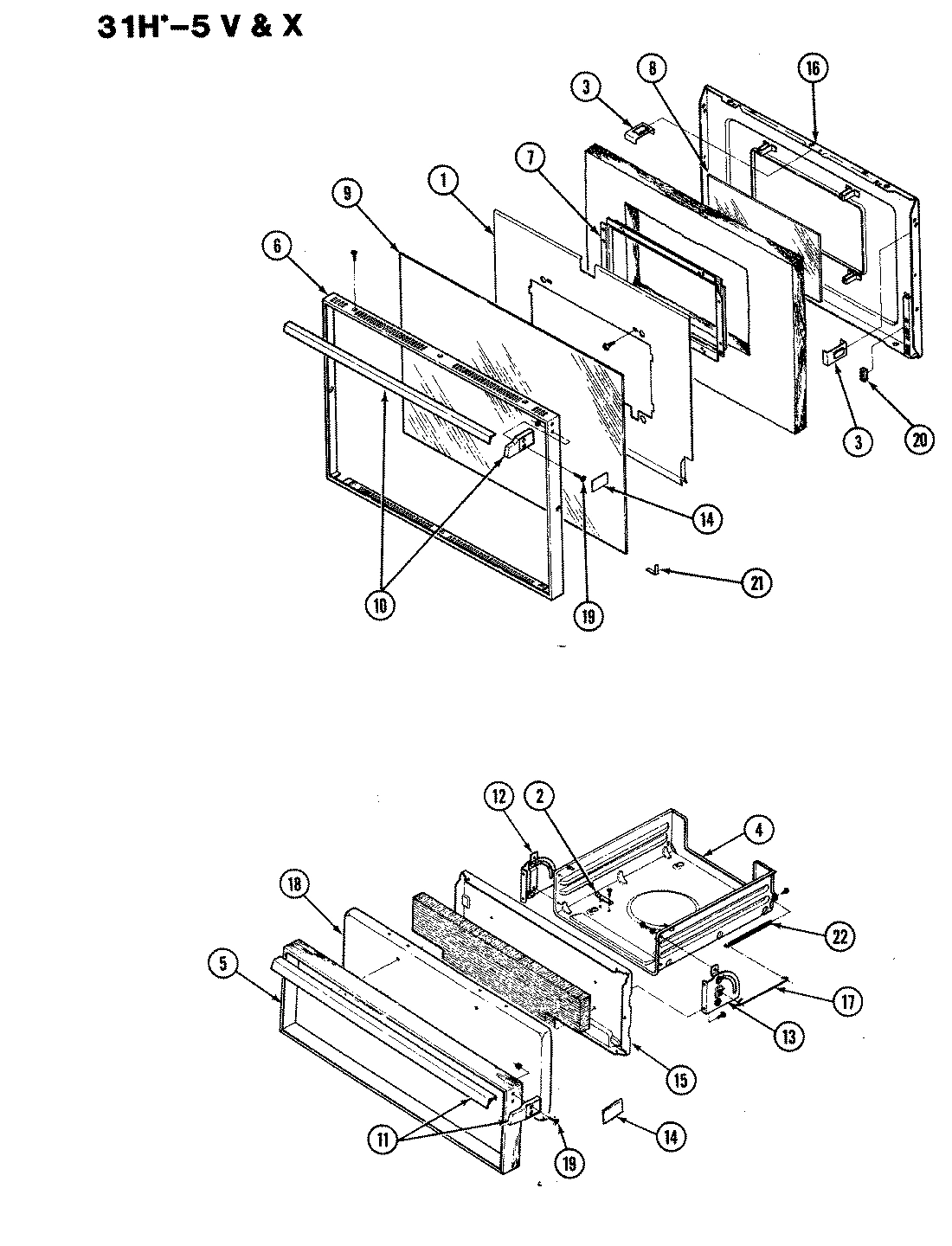

04 - DOOR

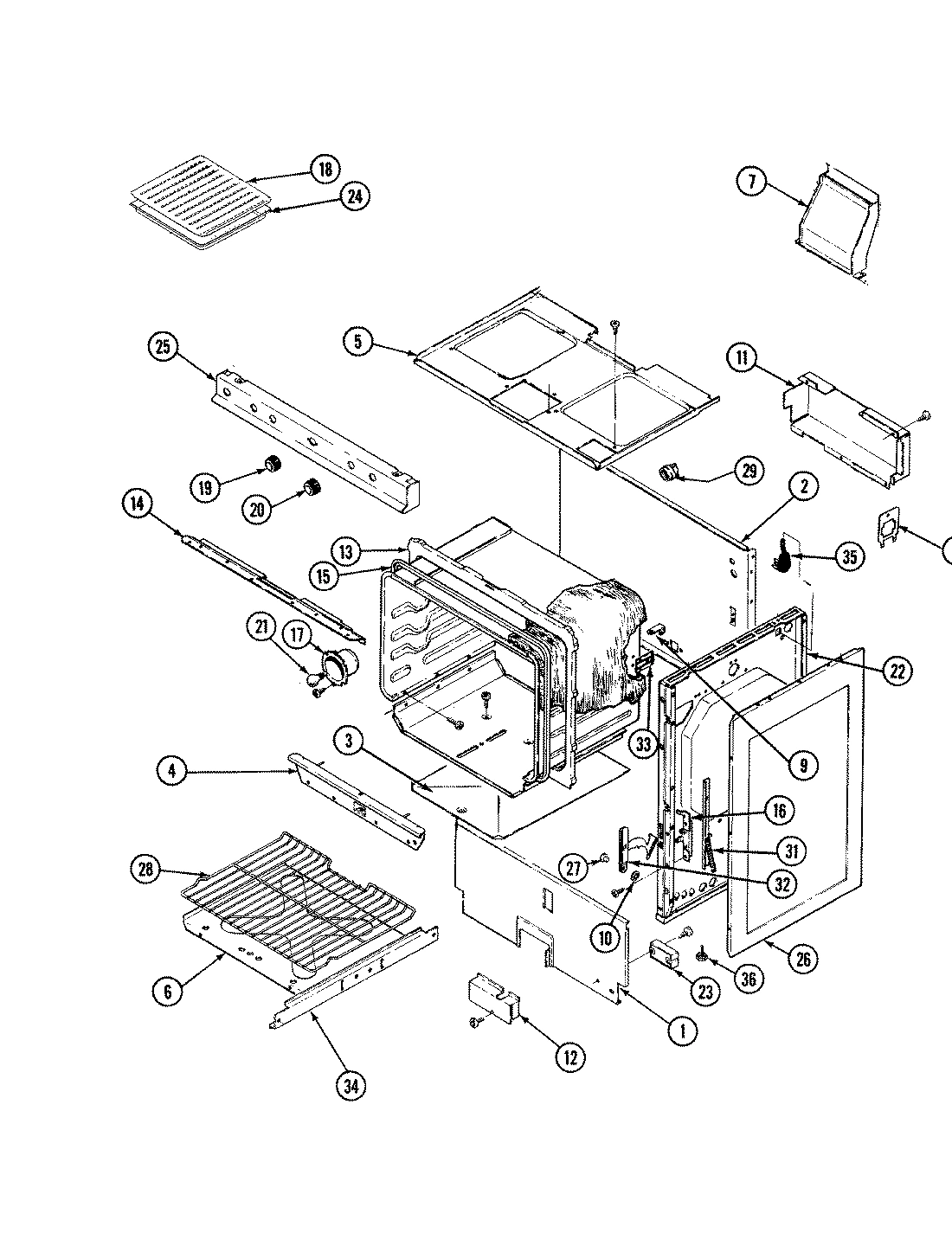

01 - BODY

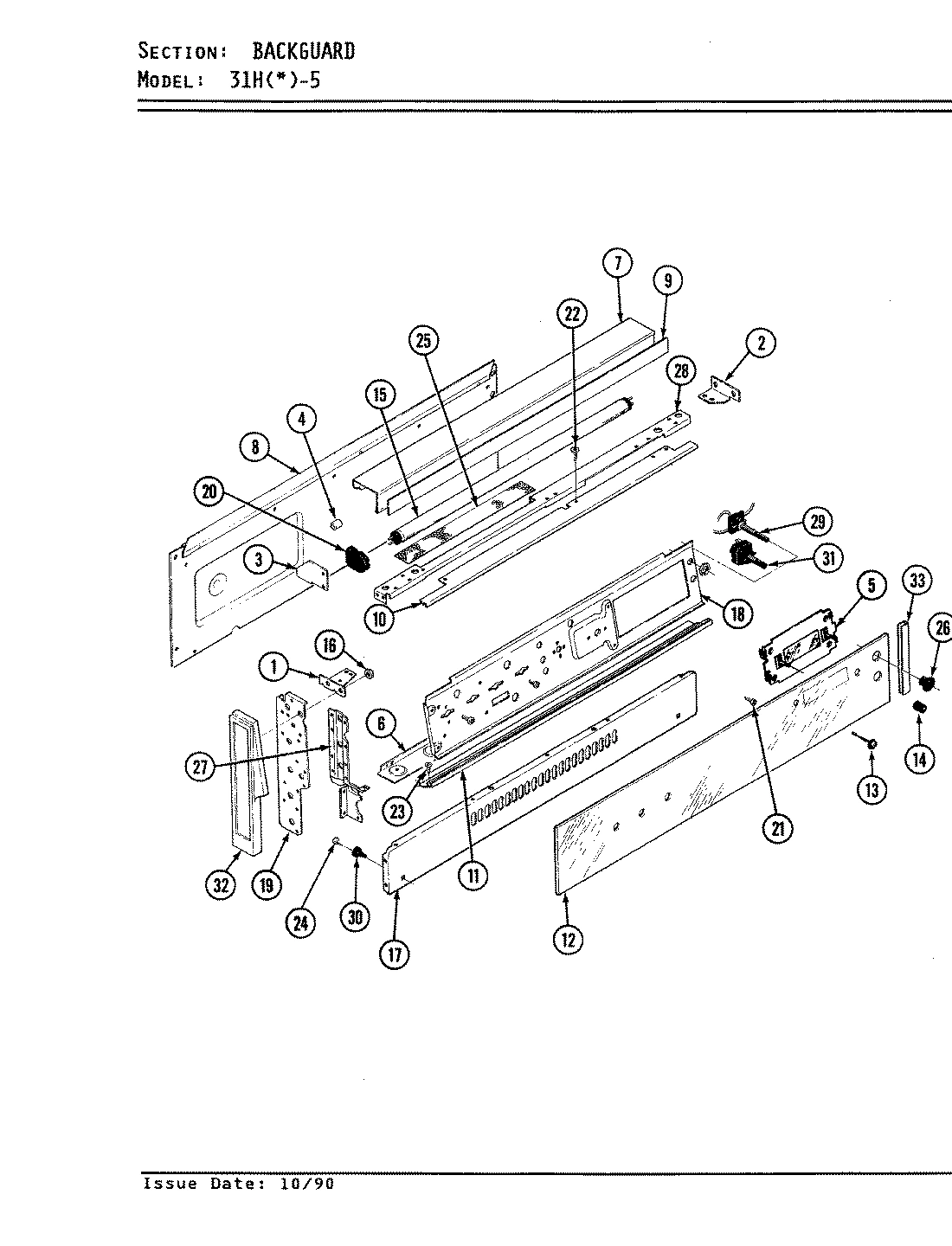

02 - CONTROL PANEL
Common parts from model Whirlpool 31HA-5KX GAS RANGE
1
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P14160 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F09745 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
2
WASHER, NYLON WPL 7109P01060 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
4
BURNER, TOP WPL 7505P18760 Contact Us For Availability
4
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
BAFFLE, OVEN TOP WPL 3601F05945 Contact Us For Availability
4
BLOCK, DISCONNECT WPL 7401P01360 Contact Us For Availability
4
BUSHING, LAMP COVER WPL 8007P00460 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
5
CAP, BURNER WPL 7504P00560 Contact Us For Availability
5
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
5
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
BRACKET, CLOCK MNTG WPL 3801F10845 Contact Us For Availability
5
CLOCK WPL 7602P08860 Contact Us For Availability
5
CLOCK WPL 7602P09760 Contact Us For Availability
6
CLIP WPL 7112P07260 Contact Us For Availability
6
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
6
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
6
BOTTOM, BROILER WPL 4011F14680 Contact Us For Availability
6
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
7
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
7
GRATE WPL 7518P00460 Contact Us For Availability
7
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
COVER, LAMP WPL 7724P01060 Contact Us For Availability
7
COVER, BKGD LAMP WPL 7724P01760 Contact Us For Availability
8
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
8
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
8
SCREW WPL 7101P06160 Contact Us For Availability
8
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F10080 Contact Us For Availability
9
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
9
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
9
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
9
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
9
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
9
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
9
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
9
TRIM WPL 7728P05360 Contact Us For Availability
10
NUT, WING WPL 7103P03060 Contact Us For Availability
10
ORIFICE, SEALED BURNER-LP WPL 7509P03360 Contact Us For Availability
10
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
10
CLIP WPL 7112P02960 Contact Us For Availability
10
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
10
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
11
COVER, MODULE WPL 4005F16780 Contact Us For Availability
11
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P08660 Contact Us For Availability
11
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
11
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
11
COVER WPL 4005F08880 Contact Us For Availability
11
EXTRUSION WPL 7706P09760 Contact Us For Availability
12
RING, BLACK WPL 2014F00100 Contact Us For Availability
12
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
12
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
12
GLASS, BACKGUARD WPL 7910P08460 Contact Us For Availability
13
SCREW WPL 7101P25660 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
13
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
14
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
14
MIXER, AIR WPL 3411F00635 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
SLEEVE WPL 7214P00360 Contact Us For Availability
14
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
14
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
14
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
15
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
LINING, BROILER WPL 2404F02123 Contact Us For Availability
15
GASKET, OVEN WPL 7201P00160 Contact Us For Availability
15
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
16
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
16
THERMOSTAT WPL 7404P06360 Contact Us For Availability
16
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
16
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
16
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
16
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
17
TOP, MAIN ALMOND WPL 2001F06384 Contact Us For Availability
17
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
17
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
17
LINK, BROILER WPL 7807P00160 Contact Us For Availability
17
HOUSING WPL 4001F01611 Contact Us For Availability
17
PANEL, LOWER BKGD. (BLK) WPL 2620W05323 Contact Us For Availability
18
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
18
PANEL, BROILER DRWR WPL 2403F01470 Contact Us For Availability
18
INSERT WPL 3413F00211 Contact Us For Availability
18
PLATE, SWITCH MOUNTING WPL 3605F14480 Contact Us For Availability
19
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
19
SCREW WPL 7101P12360 Contact Us For Availability
19
KNOB, THERM WPL 7711P18560 Contact Us For Availability
19
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
19
PLATE WPL 3605F00880 Contact Us For Availability
20
TUBE, MANIFOLD WPL 7506P09260 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
20
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
21
TUBE, MANIFOLD FEED WPL 7506P09060 Contact Us For Availability
21
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
BULB, OVEN WPL 7407P02660 Contact Us For Availability
21
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
22
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
22
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
22
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
22
SCREW WPL 7101P05860 Contact Us For Availability
23
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
23
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
23
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
23
SCREW WPL 7101P07460 Contact Us For Availability
24
REGULATOR, PRESSURE WPL 7510P02660 Contact Us For Availability
24
PAN, BROIL WPL 3401F00411 Contact Us For Availability
24
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
25
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
25
WIRE, IGNITER FRONT WPL 5110P82460 Contact Us For Availability
25
WIRE, IGNITER REAR WPL 5110P82560 Contact Us For Availability
25
PANEL, MANIFOLD (BLK) WPL 7712A05860 Contact Us For Availability
25
SHIELD, OV LAMP RECPT WPL 3604F07980 Contact Us For Availability
26
CONVERSION KIT TO LP WPL 5415A01460 Contact Us For Availability
26
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
26
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
26
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
26
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
27
PIN, HINGE WPL 7113P00260 Contact Us For Availability
27
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
27
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
28
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
SUPPORT, LAMP WPL 3807F21580 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
29
SWITCH, PUSH (BLK) WPL 7403P17960 Contact Us For Availability
29
KNOB, LIGHT SWITCH WPL 7711P00860 Contact Us For Availability
30
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
30
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
31
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
31
SPRING WPL 7803P00260 Contact Us For Availability
31
BLOCK, MAIN TERMINAL WPL 7401P02060 Contact Us For Availability
31
SWITCH, OVEN LAMP WPL 7403P10460 Contact Us For Availability
32
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
32
TRIM, END CAP (LT) WPL 7726P02960 Contact Us For Availability
32
TRIM, BKGD END (RT) WPL 7726P03060 Contact Us For Availability
33
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
33
TRIM, GLASS WPL 7720P06160 Contact Us For Availability
34
TRACK WPL 3404A00151 Contact Us For Availability
34
TRACK, BROILER DWR WPL 3404A01345 Contact Us For Availability
34
TRACK, BROILER DWR WPL 3404A01445 Contact Us For Availability
35
CORD, POWER WPL 7402P02460 Contact Us For Availability
36
MANUAL, USE & CARE WPL 8112P00860 Contact Us For Availability
37
MANUAL, USE & CARE WPL 8112P03360 Contact Us For Availability
× ![]()
Login and Registration Form
