Model Whirlpool 31HA-10XS-ON GAS RANGE – Common Parts & Diagrams

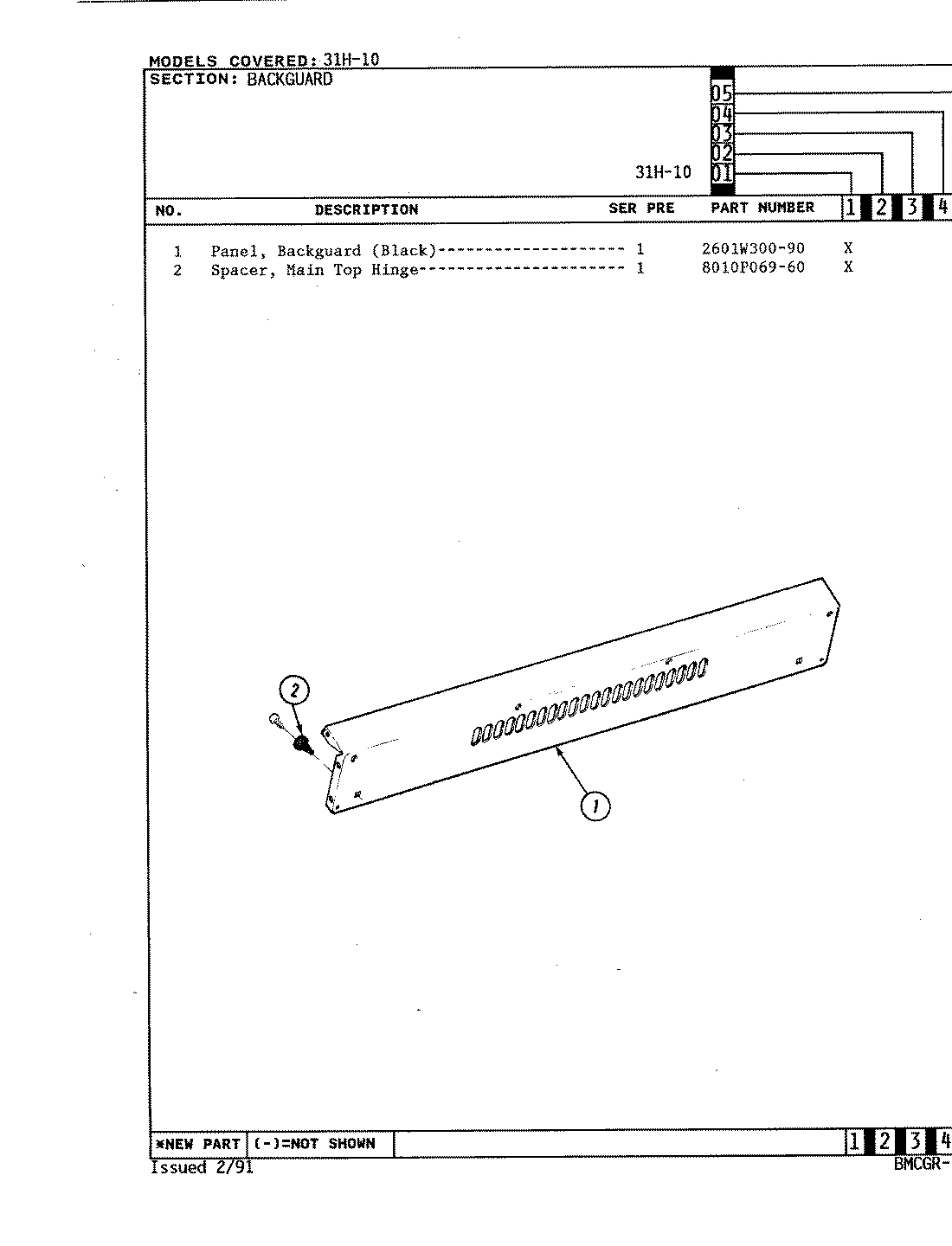

01 - BACKGUARD
04 - OVEN CONTROL SYSTEM
03 - DOOR PARTS

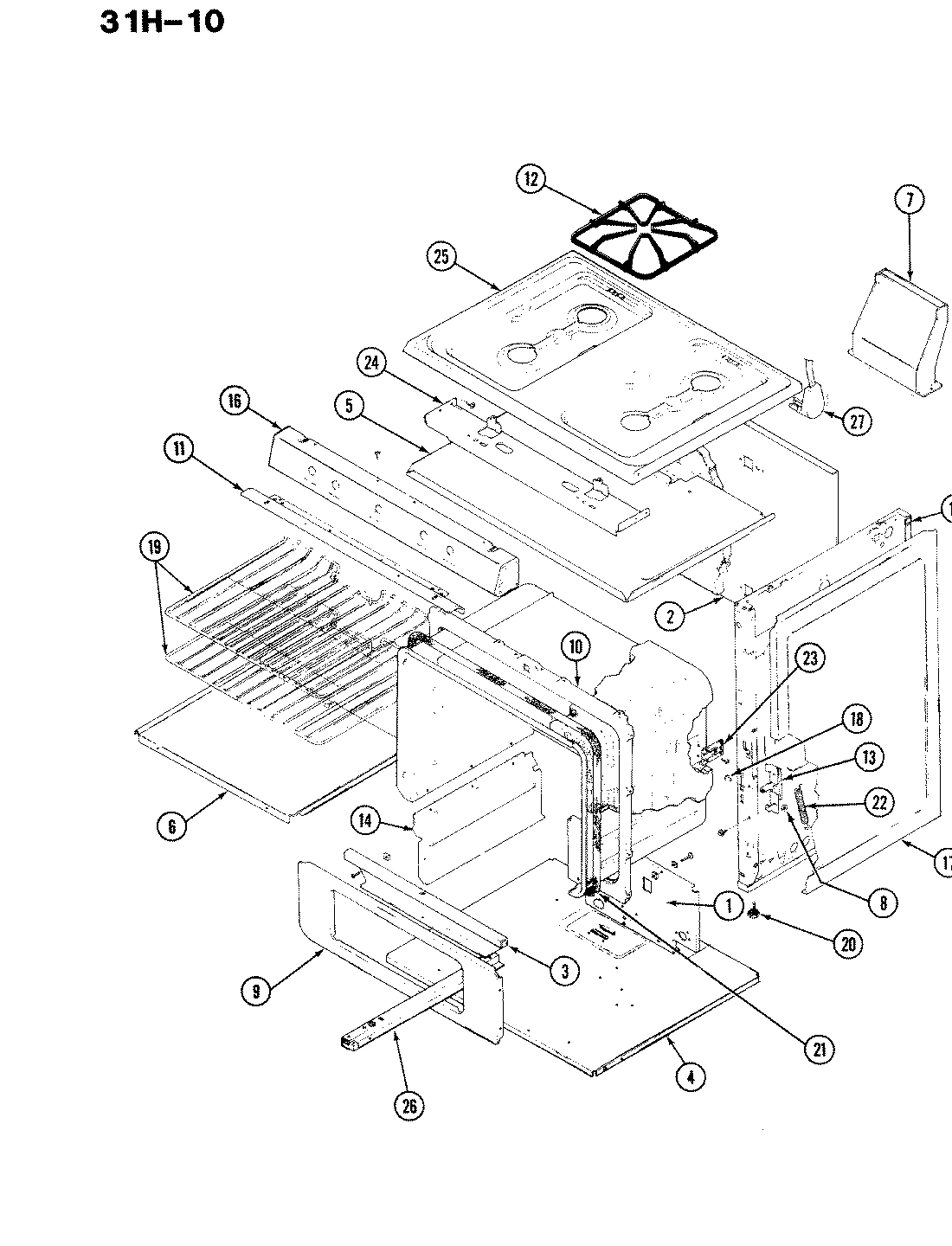

02 - BODY PARTS
Common parts from model Whirlpool 31HA-10XS-ON GAS RANGE
1
PANEL BKG BLACK WPL 2601W30090 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
SCREW WPL 7101P07660 Contact Us For Availability
2
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BURNER-TOP FRONT WPL 7505P17060 Contact Us For Availability
3
BURNER, TOP REAR WPL 7505P17160 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
7
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
MIXER, AIR WPL 3411F00134 Contact Us For Availability
7
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
7
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
7
BRACKET WPL 3801F02045 Contact Us For Availability
7
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
7
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
7
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
SCREW WPL 7101P12360 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
8
COVER WPL 4005F00545 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
PILOT ASSY. WPL 1566267 Contact Us For Availability
9
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
9
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
9
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
BURNER, PILOT WPL 7505P08160 Contact Us For Availability
10
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
10
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
10
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
11
PIPE, MANIFOLD WPL 7513P02860 Contact Us For Availability
11
MANIFOLD PIPE WPL 7513P10260 Contact Us For Availability
11
PIPE MANIFOLD WPL 7513P13160 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
11
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
12
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
12
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
GRATE WPL 2003W00100 Contact Us For Availability
13
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
13
MIXER, AIR WPL 3411F00635 Contact Us For Availability
13
SHIELD, THEMOSTAT WPL 3604F03051 Contact Us For Availability
13
SHIELD WIRE WPL 3604F04251 Contact Us For Availability
13
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
13
SCREW WPL 7101P29660 Contact Us For Availability
13
SLEEVE WPL 7214P00360 Contact Us For Availability
13
LINING, BRO SIDE WPL 2404F01623 Contact Us For Availability
13
SCREW WPL 7101P05860 Contact Us For Availability
13
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
13
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
13
SCREW WPL 7101P11260 Contact Us For Availability
13
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
13
KNOB, THERMOSTAT WPL 7711P13760 Contact Us For Availability
14
SUPPORT WPL 3807F12034 Contact Us For Availability
14
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
14
SCREW WPL 7101P02560 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
14
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
15
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
15
PAN, BROIL WPL 3401F00423 Contact Us For Availability
15
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
15
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
15
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
15
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
16
PANEL, MANIFOLD BLACK WPL 2616F02490 Contact Us For Availability
16
SCREW WPL 7101P05760 Contact Us For Availability
17
THERMOSTAT OVEN WPL 7515P01560 Contact Us For Availability
17
THERMOSTAT WPL 7515P02660 Contact Us For Availability
17
THERMOSTAT WPL 7515P03260 Contact Us For Availability
17
PANEL, DRAWER (ALM) WPL 2416F02574 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
17
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
TUBING 3/8 X 59 WPL 3414F05044 Contact Us For Availability
18
TUBING, 3/16`` X 54``----NA WPL 3414F06244 Contact Us For Availability
18
TUBING, OVEN (3/8``) WPL 3414F09944 Contact Us For Availability
18
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
VALVE, OVEN WPL 7501P06160 Contact Us For Availability
19
VALVE, OVEN WPL 7501P10160 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
RACK, OVEN WPL 7801P03060 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
20
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
21
VALVE WPL 7502P22260 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
21
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
21
SEAL WPL 7212P00160 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
22
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
22
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
23
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
25
TOP, MAIN WPL 2001F03584 Contact Us For Availability
26
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
26
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
26
SCREW WPL 7101P11560 Contact Us For Availability
27
CORD, POWER WPL 7402P01460 Contact Us For Availability
28
MANUAL, USE & CARE WPL 16000038 Contact Us For Availability
× ![]()
