Model Whirlpool 31GG-3KX GAS RANGE – Common Parts & Diagrams

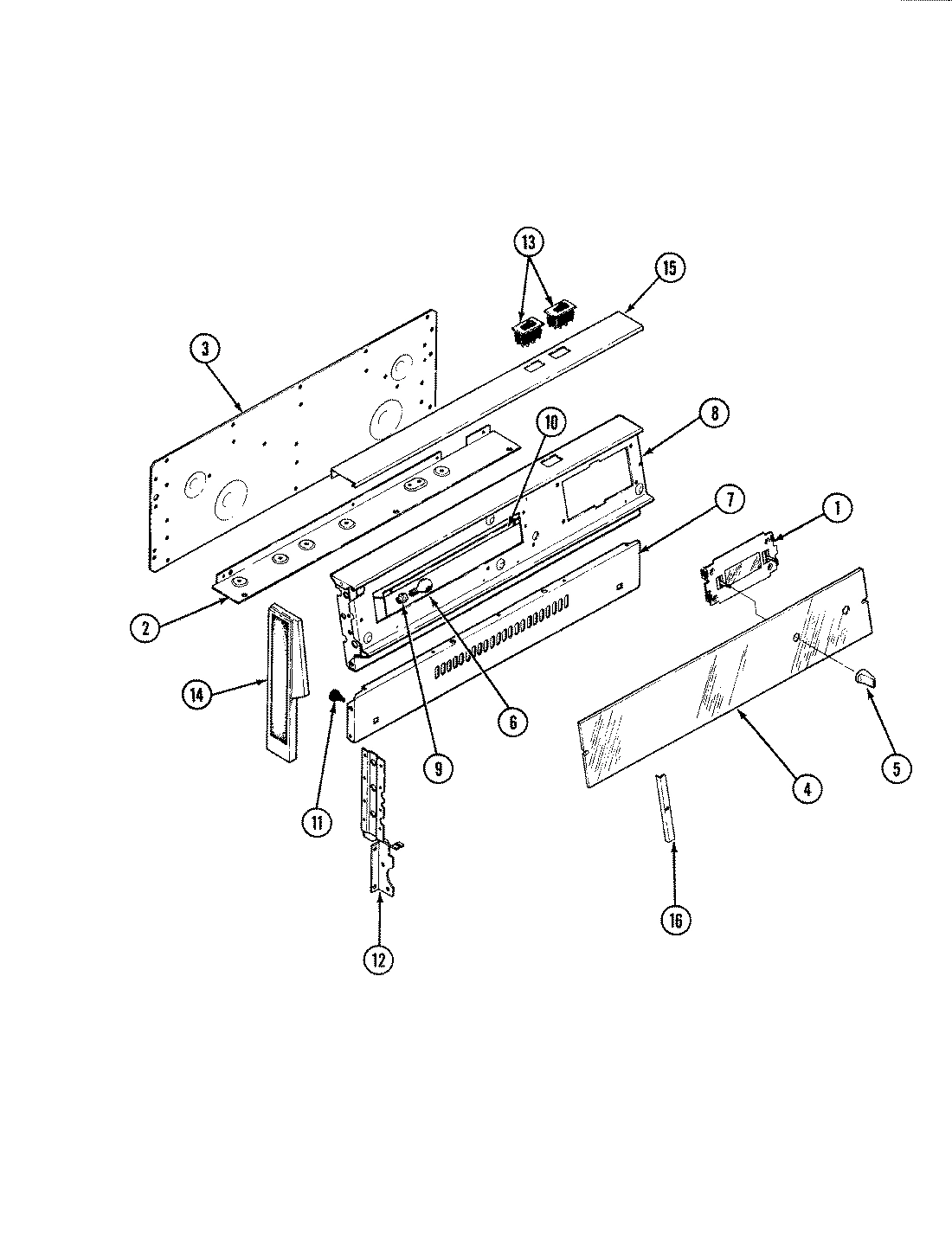

02 - CONTROL PANEL (31GB-3KX, 31GG-3KX)
04 - GAS CONTROLS (31GB-3KX, 31GG-3KX)
01 - BODY (31GB-3KX, 31GG-3KX)
03 - DOOR (31GB-3KX, 31GG-3KX)
Common parts from model Whirlpool 31GG-3KX GAS RANGE
1
CLOCK WPL 7602P05760 Contact Us For Availability
1
CLOCK WPL 7602P09760 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, MAIN WPL 4002F09480 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
2
TRIM, MANIFOLD PANEL WPL 7712P03460 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
3
BURNER, TOP WPL 3412A00419 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
DRAWER, BROILER WPL 3407W00911 Contact Us For Availability
3
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7902P18360 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F14680 Contact Us For Availability
4
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
LAMP, BACKGUARD WPL 7407P03160 Contact Us For Availability
6
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
7
MIXER, AIR WPL 3411F00134 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
BRACKET WPL 3801F02145 Contact Us For Availability
7
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
7
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
7
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
SCREW WPL 7101P06160 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
COVER WPL 4005F08880 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
9
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
9
PIPE, MANIFOLD WPL 7513P10160 Contact Us For Availability
9
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
10
REFLECTOR LAMP WPL 3602F00371 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
10
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
11
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
11
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
11
MIXER, AIR WPL 3411F00635 Contact Us For Availability
11
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
11
SCREW WPL 7101P29660 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F01920 Contact Us For Availability
11
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
11
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
12
SUPPORT WPL 0862417 Contact Us For Availability
12
SUPPORT WPL 0862418 Contact Us For Availability
12
SEAL WPL 7212P00160 Contact Us For Availability
12
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
13
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
13
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
13
SWITCH, LIGHTER BURNER WPL 7403P24660 Contact Us For Availability
13
SWITCH WPL 7403P25860 Contact Us For Availability
13
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
13
SWITCH, IGNITER WPL 7403P28560 Contact Us For Availability
13
GRATE WPL 2003W00100 Contact Us For Availability
13
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
13
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
13
LINING, BROILER WPL 2404F02123 Contact Us For Availability
14
TRIM, BKGD. (LT) WPL 7726P00860 Contact Us For Availability
14
TRIM, BKGD. WPL 7726P01960 Contact Us For Availability
14
THERMOSTAT WPL 7404P06360 Contact Us For Availability
14
THERMOSTAT WPL 7515P00860 Contact Us For Availability
14
INSERT WPL 3413F00211 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
14
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
14
KNOB, THERM WPL 7711P18560 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
14
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
14
KNOB, VALVE WPL 7733P05360 Contact Us For Availability
14
KNOB WPL 7733P05960 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
15
TRIM, BKGD WPL 7715P01760 Contact Us For Availability
15
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
15
BULB, OVEN WPL 7407P02660 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
16
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
16
LINING, SIDE BROILER COMP. WPL 4009F04445 Contact Us For Availability
17
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
17
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
17
PAN, BROIL WPL 3401F00411 Contact Us For Availability
17
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
17
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
17
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
17
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
18
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
18
TRIM ASSY, MANIFOLD WPL 7712A02960 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
19
VALVE WPL 7502P03160 Contact Us For Availability
19
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
19
VALVE WPL 7502P22460 Contact Us For Availability
19
SEAL WPL 1726252 Contact Us For Availability
19
SCREW, OVEN DOOR WPL 7101E083 Contact Us For Availability
19
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
PIN, HINGE WPL 7113P00260 Contact Us For Availability
21
RACK, OVEN WPL 7801P03060 Contact Us For Availability
21
SPRING WPL 7803P00260 Contact Us For Availability
21
SPRING WPL 7803P01460 Contact Us For Availability
22
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
22
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
23
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
24
HOUSING WPL 4001F01611 Contact Us For Availability
24
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
25
PROP, MAIN TOP WPL 3807F22634 Contact Us For Availability
26
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
27
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
29
TRACK WPL 3404A00151 Contact Us For Availability
29
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
29
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
30
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
