Model Whirlpool 31FN-10K GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

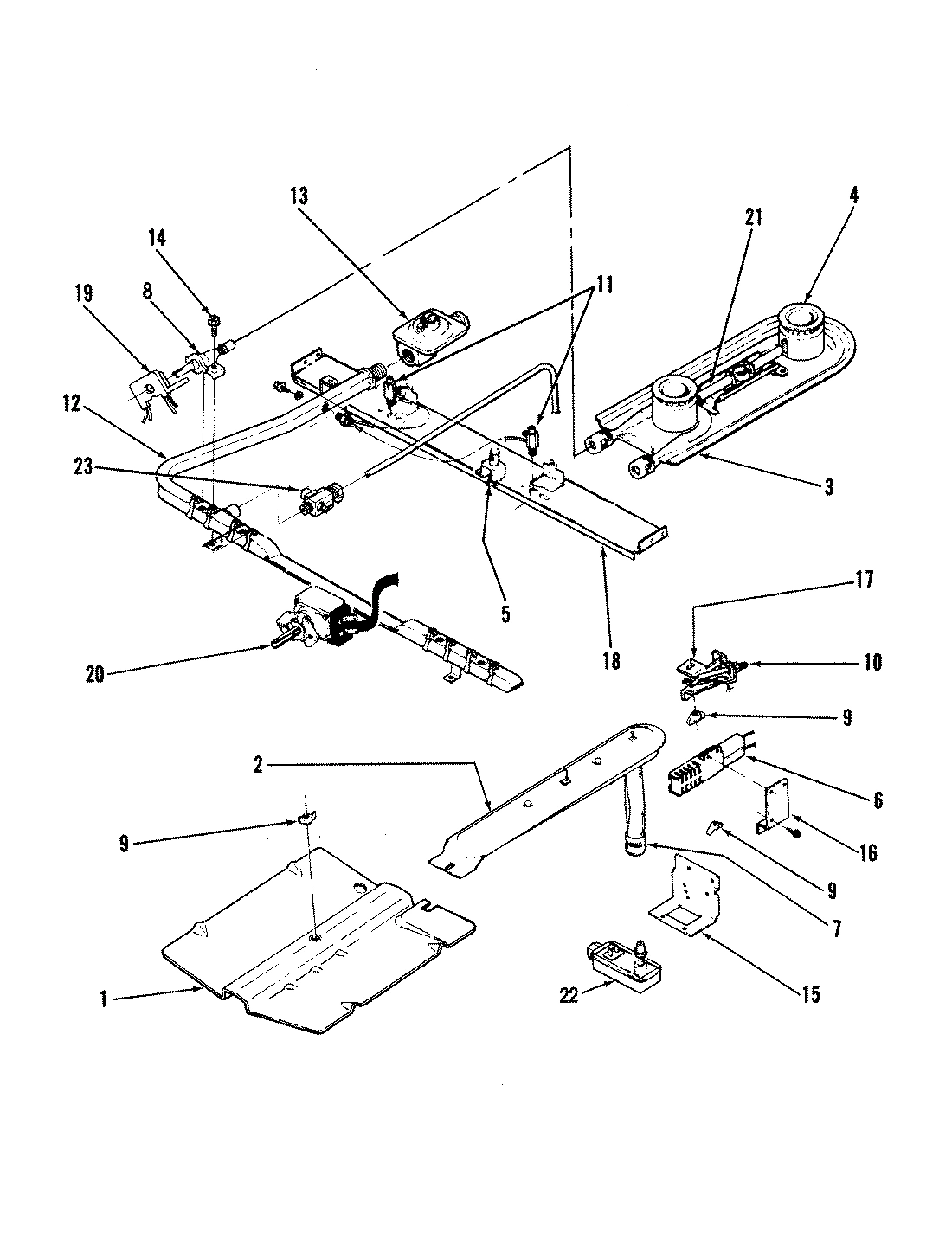

04 - OVEN CONTROL SYSTEM

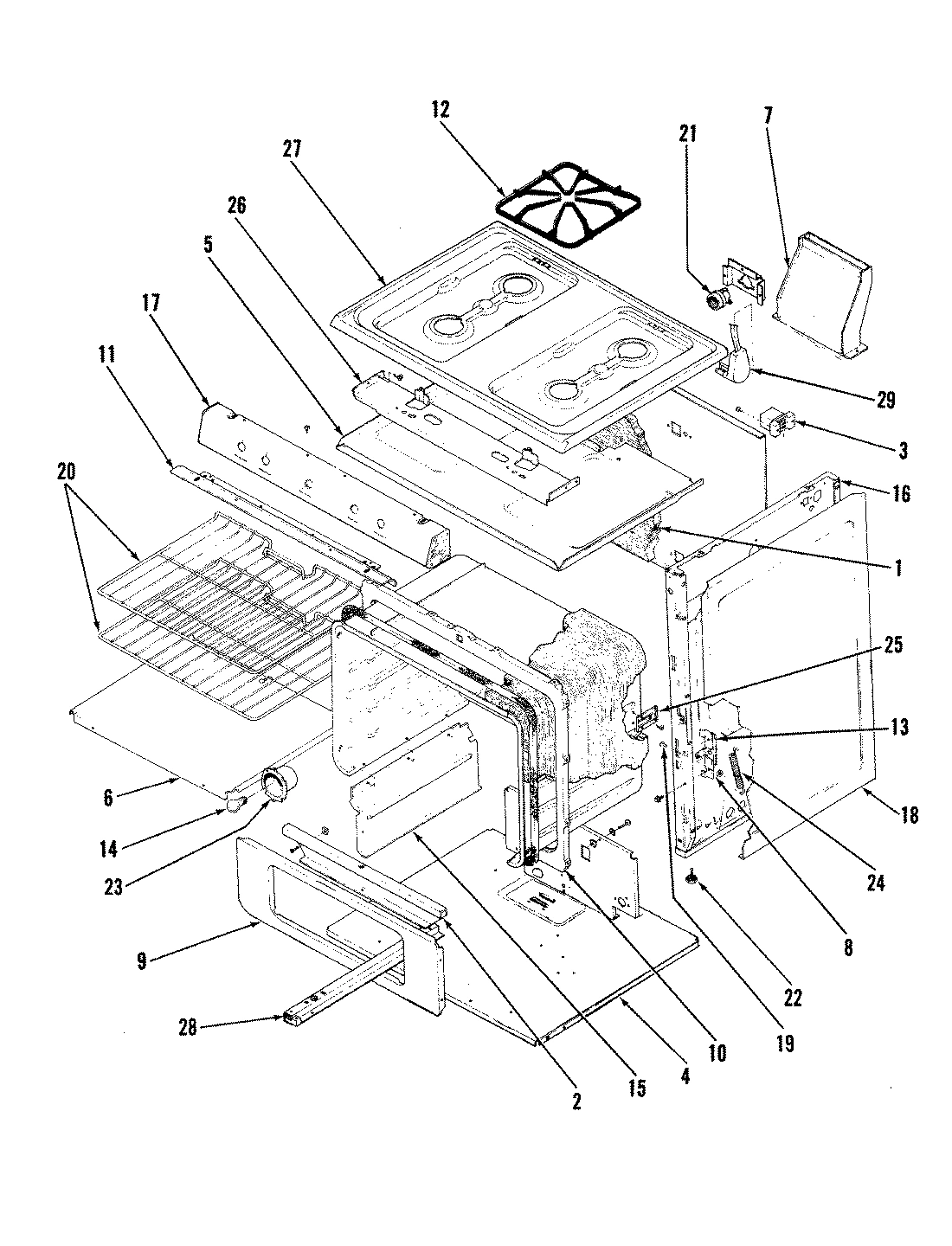

01 - BODY

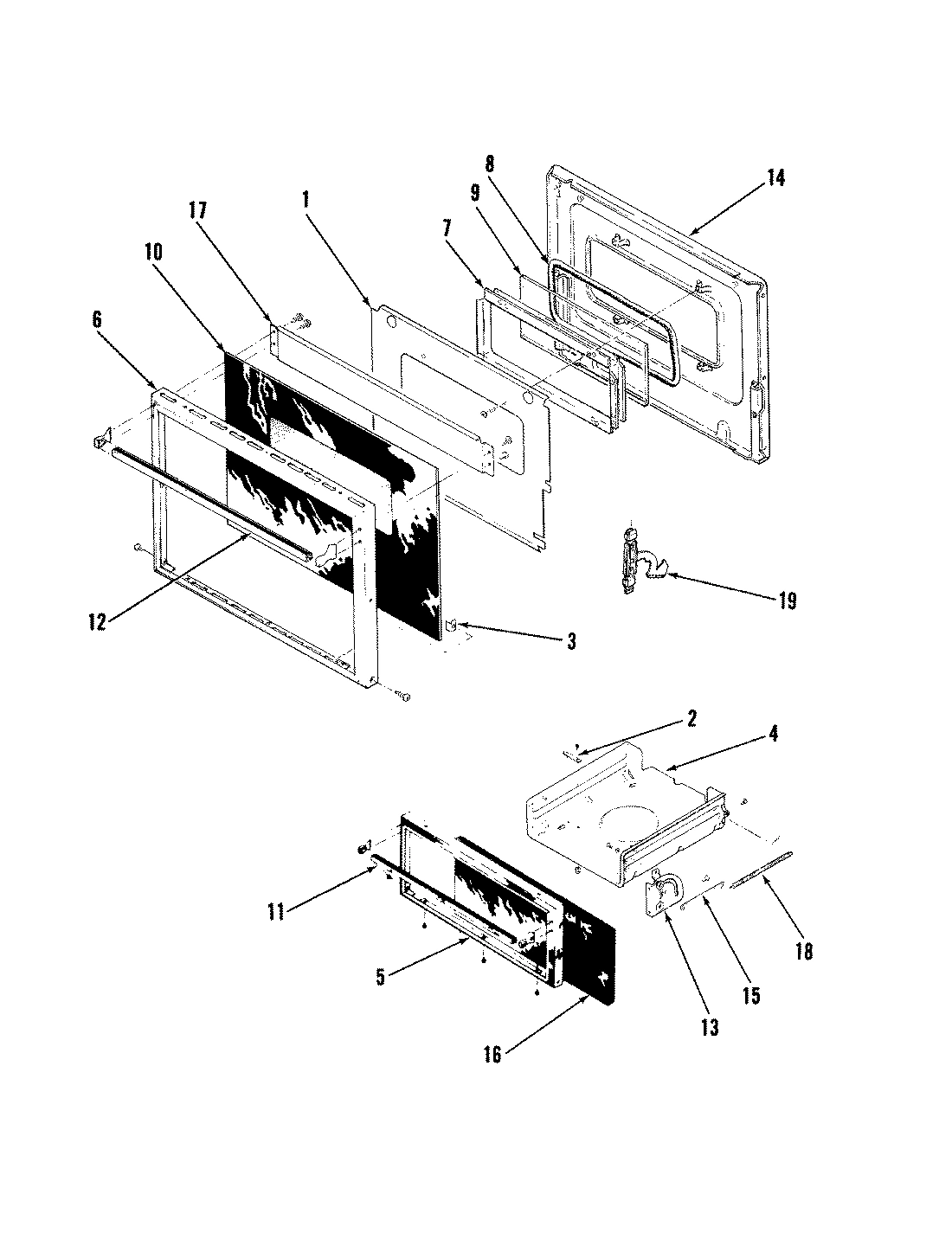

03 - DOOR PARTS
Common parts from model Whirlpool 31FN-10K GAS RANGE
1
BAFFLE, FLUE WPL 3601F06451 Contact Us For Availability
1
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BACK, MAIN WPL 4002F06820 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BAFFLE WPL 0153329 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
TRIM, BACKGUARD WPL 7703P14460 Contact Us For Availability
2
BURNER ASSY., OVEN WPL 0298234 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
3
PANEL, BKGD LWR BLK WPL 2620W01700 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300253 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
4
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
4
DRAWER ASSY. WPL 0384226 Contact Us For Availability
5
SUPPORT WPL 3807F16880 Contact Us For Availability
5
SUPPORT WPL 3807F17080 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
TRIM WPL 7726P00460 Contact Us For Availability
6
TRIM WPL 7726P01560 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
6
KNOB, THERMOSTAT WPL 7711P31260 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
7
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
7
MIXER, AIR WPL 3411F00134 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
BRACKET WPL 3801F02045 Contact Us For Availability
7
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
7
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
7
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
7
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
CLAMP WPL Y0315206 Contact Us For Availability
8
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
8
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
WING NUT WPL 1555254 Contact Us For Availability
9
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
9
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
10
FRONT, FRAME OVEN WPL 2201F03223 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F01920 Contact Us For Availability
11
SEAL WPL 7212P00160 Contact Us For Availability
12
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
12
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
12
GRATE WPL 2003W00100 Contact Us For Availability
12
HANDLE, DOOR WPL 1355298 Contact Us For Availability
12
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
13
INSERT WPL 3413F00211 Contact Us For Availability
13
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
13
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
13
LINING, BRO SIDE WPL 2404F01623 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 2416A02834 Contact Us For Availability
13
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
14
SCREW VALVE WPL 1986319 Contact Us For Availability
14
BULB, OVEN WPL 7407P02660 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
15
SUPPORT WPL 3807F12034 Contact Us For Availability
15
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
SUPPORT WPL 3807F11845 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING, INNER SIDE WPL 4009W02820 Contact Us For Availability
16
PANEL,BROILER DOOR WPL 0684314N Contact Us For Availability
16
PANEL, OVEN DR-N WPL 2401F04171 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
PANEL, MANIFOLD SN W WPL 2616F02471 Contact Us For Availability
17
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
18
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
18
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
18
SPRING WPL 7803P01360 Contact Us For Availability
18
SPRING WPL 7803P01460 Contact Us For Availability
19
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
19
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
20
THERMOSTAT WPL 7515P00860 Contact Us For Availability
20
RACK WPL 7801P00460 Contact Us For Availability
21
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
21
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
22
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
23
COVER WPL 4005F08880 Contact Us For Availability
25
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
26
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
27
TOP, MAIN WPL 2001F03591 Contact Us For Availability
28
TRACK WPL 3404A00151 Contact Us For Availability
28
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
28
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
29
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
