Model Whirlpool 3187XUW GAS RANGE – Common Parts & Diagrams
04 - GAS CONTROLS (ELECTRONIC)

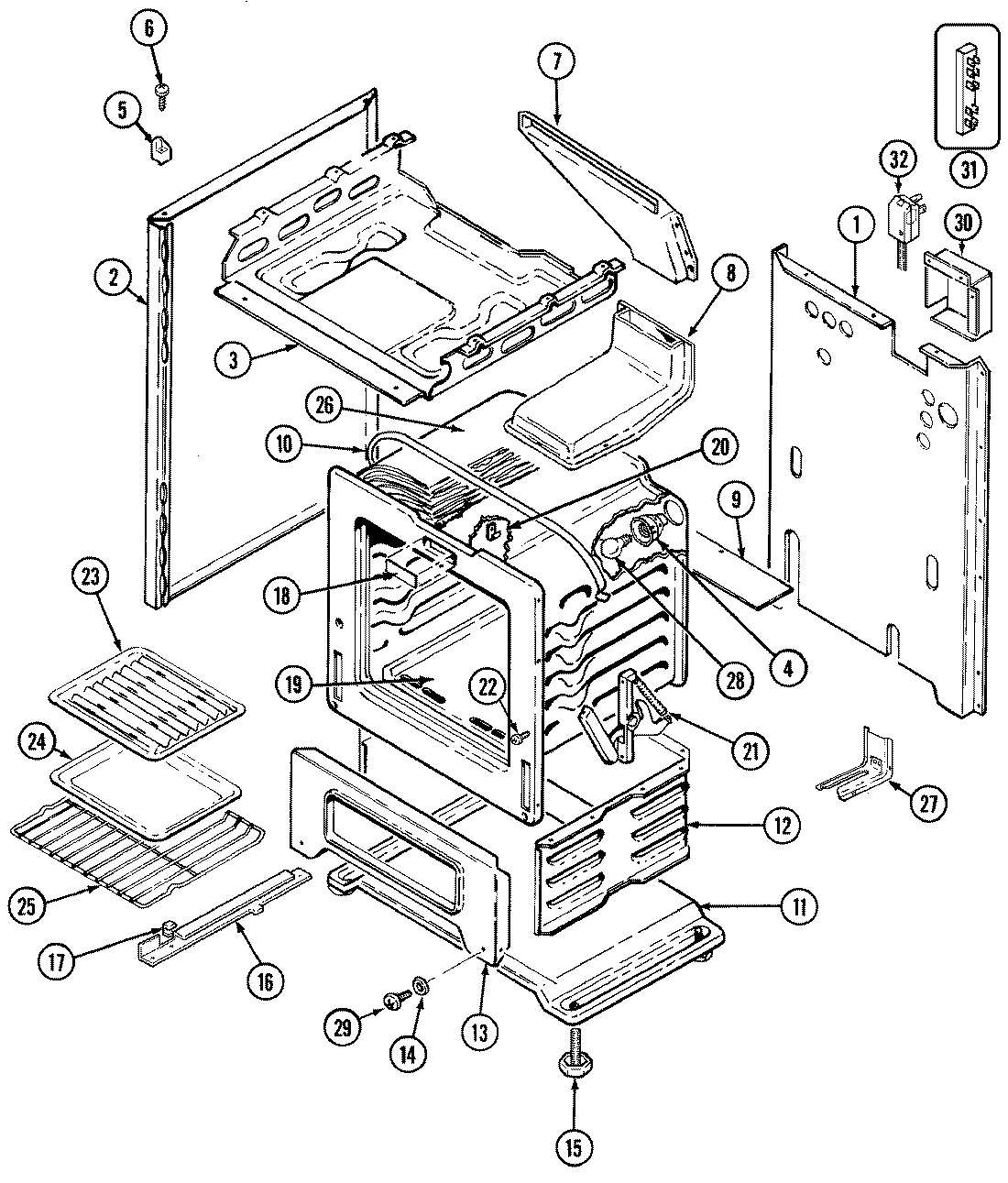

01 - BODY/OVEN

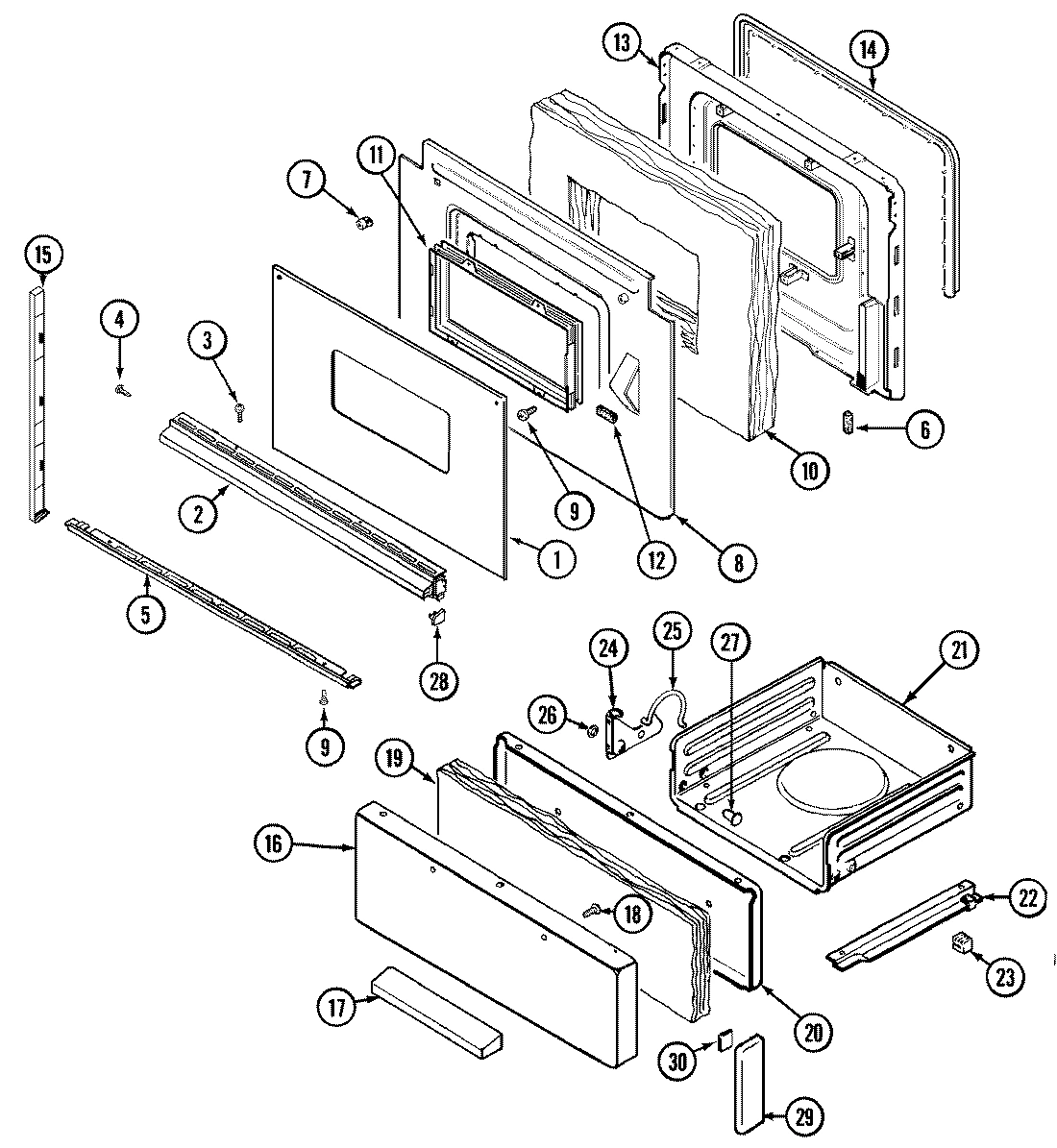

03 - DOOR/DRAWER

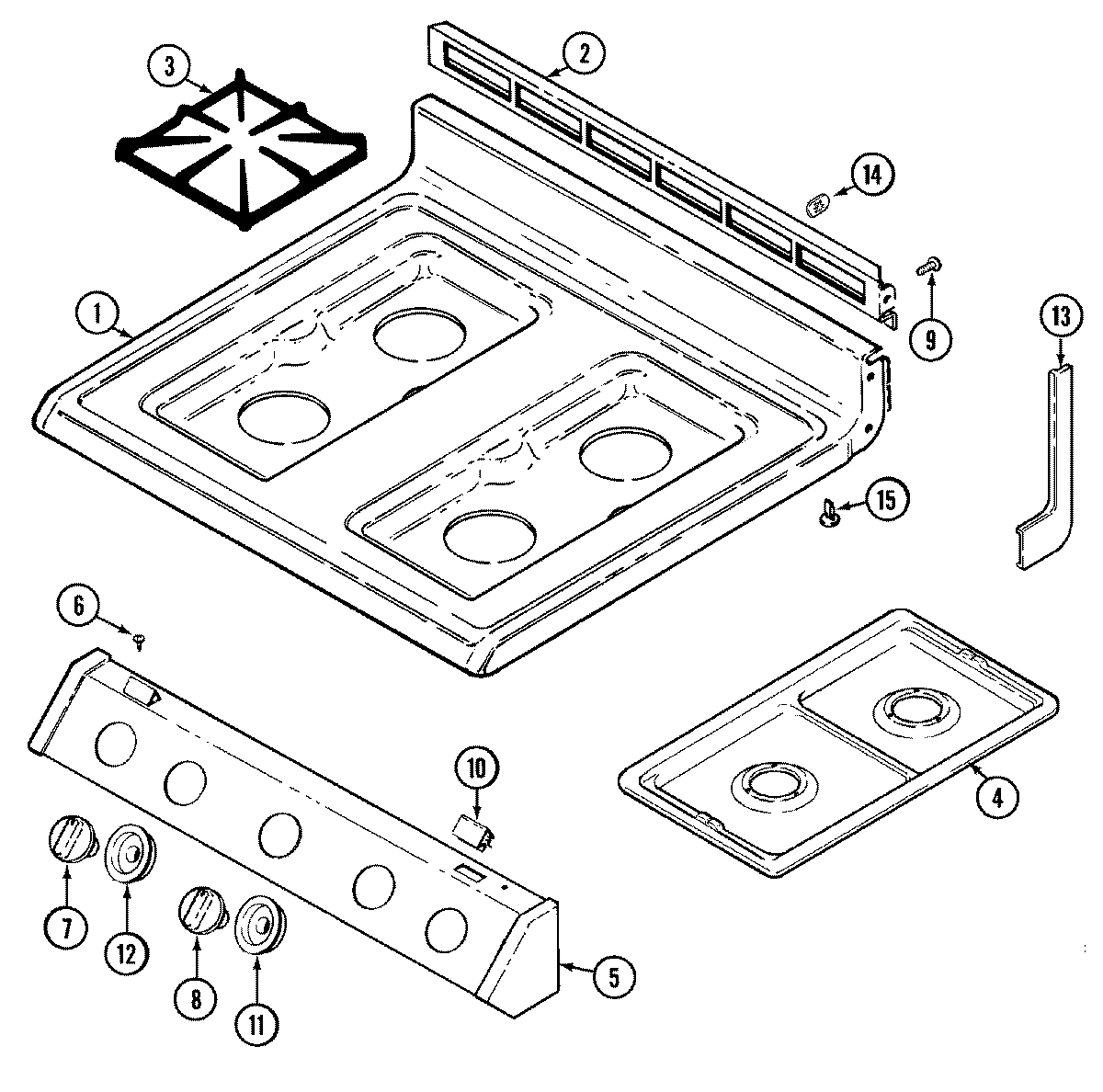

05 - TOP ASSEMBLY

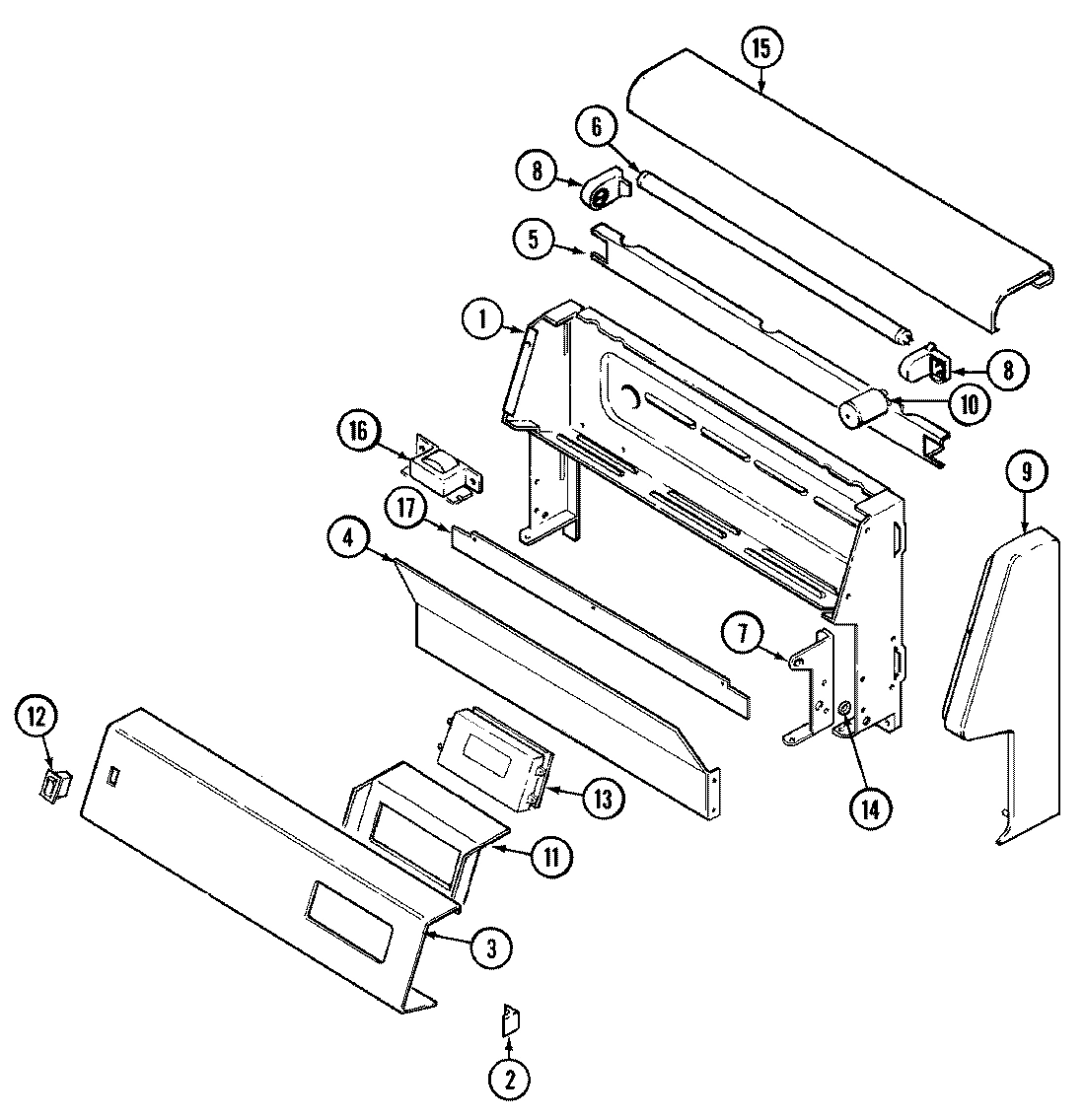

02 - CONTROL PANEL
Common parts from model Whirlpool 3187XUW GAS RANGE
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 7902P35860 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08281 Contact Us For Availability
1
HOUSING, BACKGUARD WPL 4001F08851 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
2
HANDLE, DOOR (WHT) WPL 7701P10460 Contact Us For Availability
2
HANDLE, DOOR (ALM) WPL 7701P11260 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
3
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
3
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
SCREW (ALM) WPL 7101P30760 Contact Us For Availability
3
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 7703P56760 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
5
COVER, VALVE WPL 4005F33451 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
TRIM, DOOR (BTM-WHT) WPL 7744P06660 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
5
TRIM, DOOR (BTM-ALM) WPL 7744P08360 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13160 Contact Us For Availability
5
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
7
EXTENSION, FLUE ASSY WPL 4022W00351 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
7
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
7
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
8
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
8
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
9
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SCREW WPL 7118P01960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
STARTER WPL 7415P00160 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
11
BEZEL, VALVE KNOB (BLK) WPL 7740P03360 Contact Us For Availability
11
BRACKET WPL 3801F33045 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
BEZEL, THERMOSTAT KNOB (BLK) WPL 7740P01960 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
13
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
13
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
13
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
13
LINING ASSY WPL 2402W19319 Contact Us For Availability
13
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
13
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
13
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
13
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
14
NUT, SPEED WPL 7103P12960 Contact Us For Availability
15
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
15
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
15
END CAP, OVEN DOOR (ALM) WPL 7744P08560 Contact Us For Availability
15
GLIDE WPL 8016P01360 Contact Us For Availability
15
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
16
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
16
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 2403F02870 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
16
BALLAST WPL 7412P00760 Contact Us For Availability
17
PALNUT WPL 7103P11960 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
17
HANDLE, DRAWER (BLK) WPL 2411F00370 Contact Us For Availability
17
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
17
HANDLE, DRAWER (ALM) WPL 2411F00374 Contact Us For Availability
17
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
18
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
19
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
19
INSULATION WPL 4804F02560 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
20
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
20
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
SCREW WPL 7101P31560 Contact Us For Availability
21
HINGE WPL 7106P05560 Contact Us For Availability
21
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
22
SCREW WPL 7101P29660 Contact Us For Availability
22
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
22
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
22
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
23
KIT, ORIFICE/TUBE ASSY. WPL 12001074 Contact Us For Availability
23
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
23
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
24
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
24
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
24
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
24
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
24
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
25
RACK, OVEN WPL 7801P03660 Contact Us For Availability
25
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
25
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
NUT, GRIP WPL 7103P02260 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
28
BULB, OVEN WPL 7407P09560 Contact Us For Availability
28
END CAP (RT) WPL 7744P07560 Contact Us For Availability
28
END CAP (LT) WPL 7744P07660 Contact Us For Availability
29
SCREW WPL 7101P30060 Contact Us For Availability
29
BEZEL, KNOB (ALM) WPL 7740P07260 Contact Us For Availability
29
END CAP WPL 7744P07360 Contact Us For Availability
29
END CAP WPL 7744P08460 Contact Us For Availability
30
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
30
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
31
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
32
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
