Model Whirlpool 3167XTA GAS RANGE – Common Parts & Diagrams

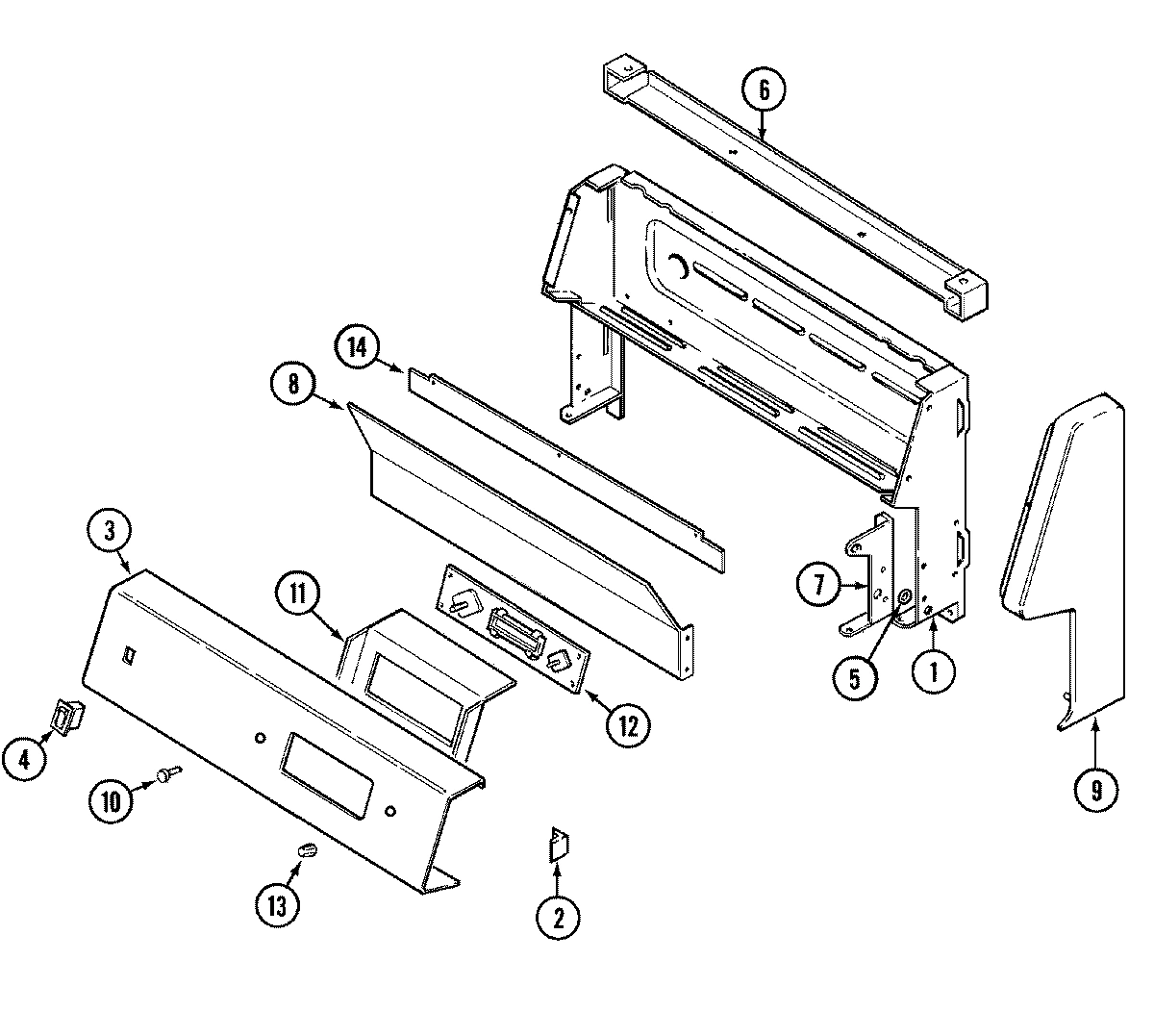

02 - CONTROL PANEL

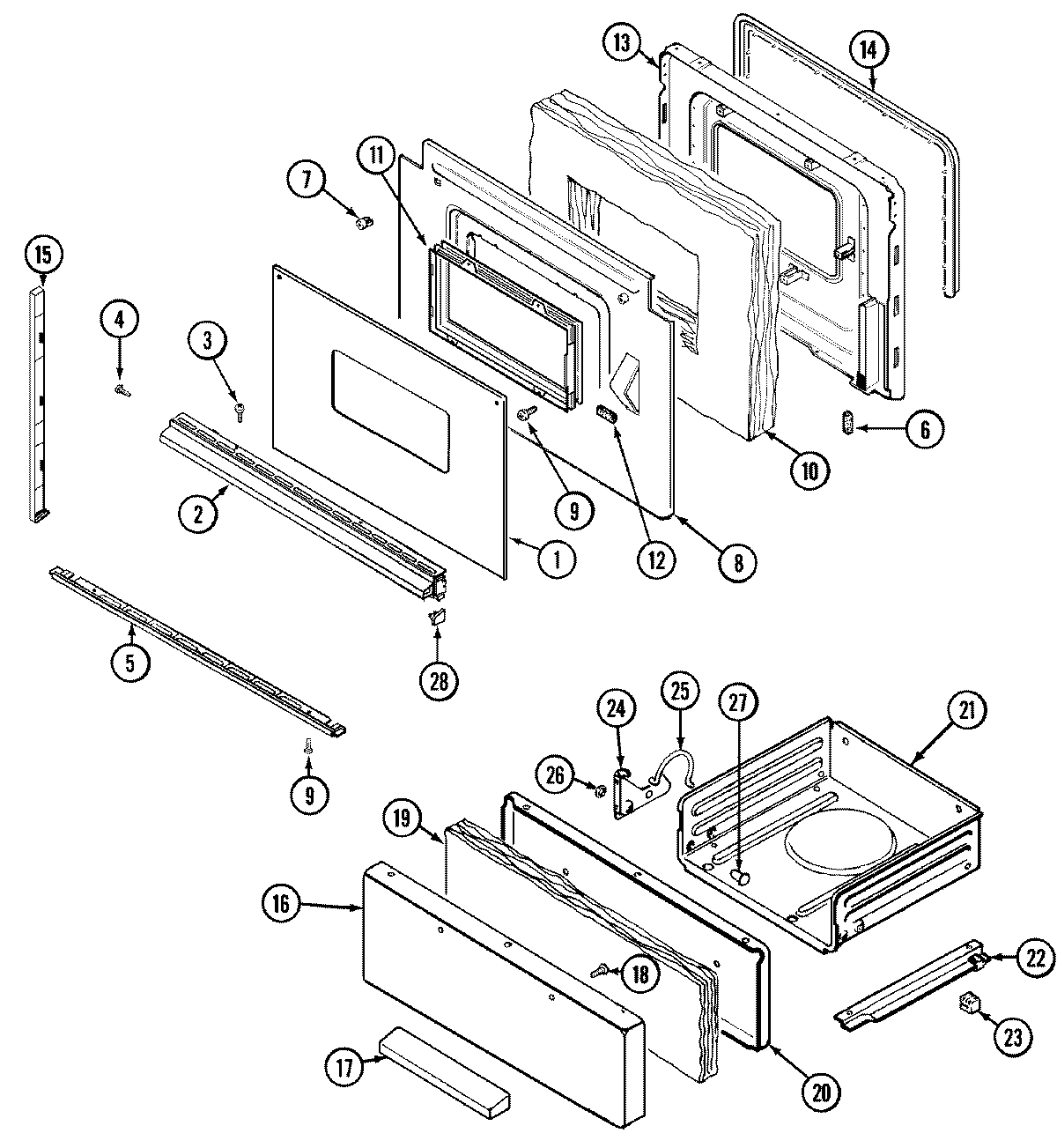

04 - DOOR/DRAWER (SERIES 01)

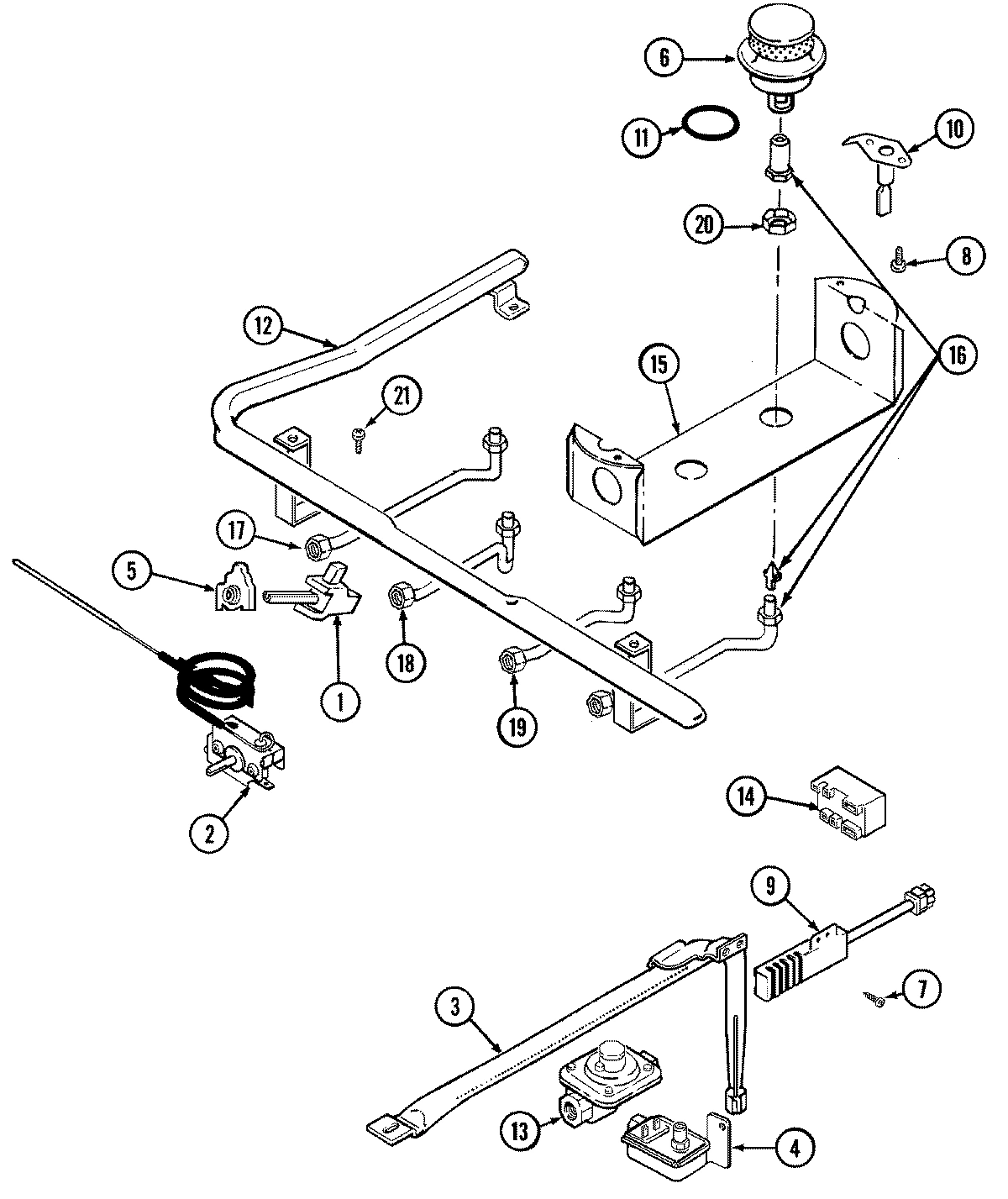

05 - GAS CONTROL

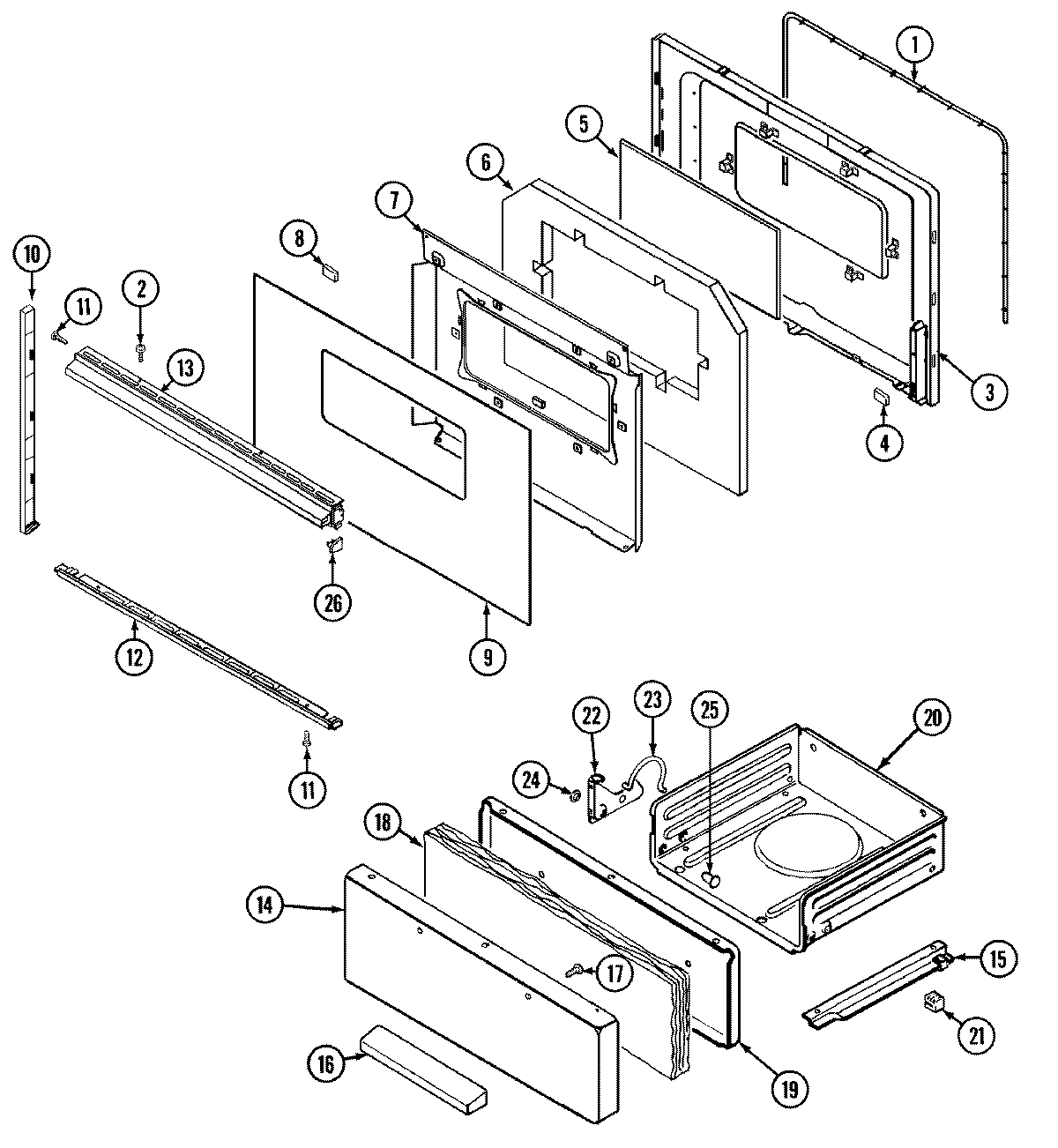

03 - DOOR/DRAWER (SER. PRE. 12)

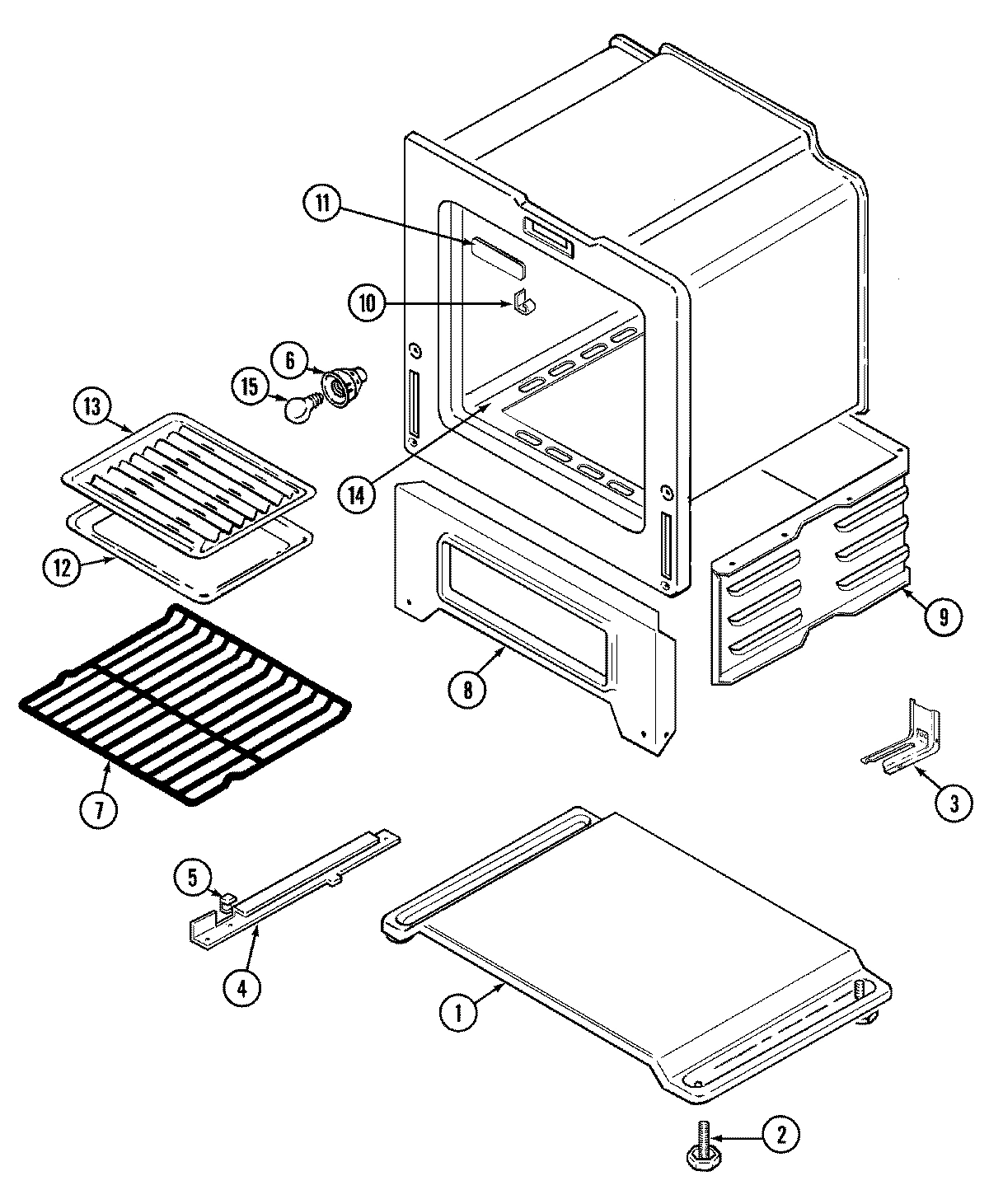

06 - OVEN/BASE

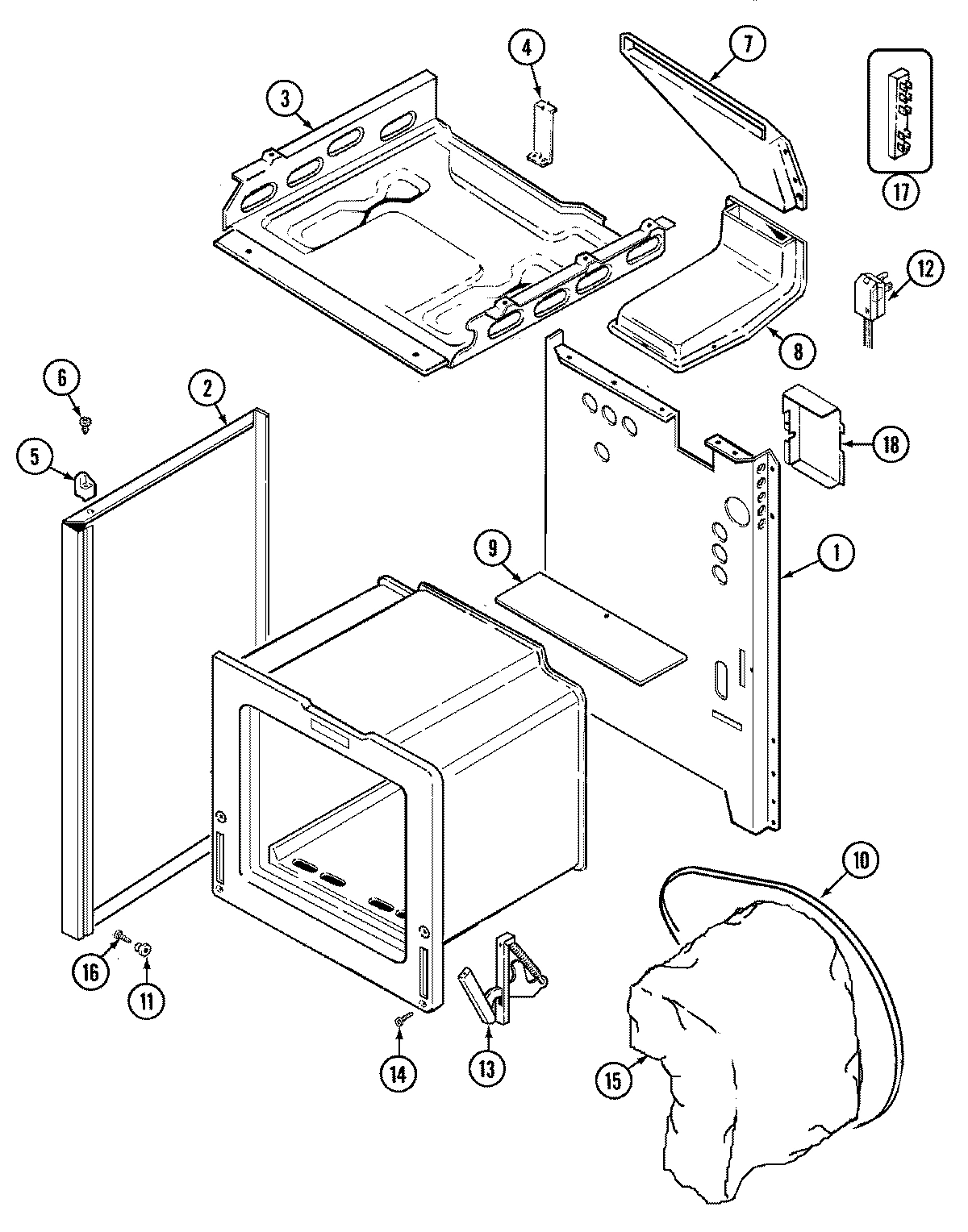

01 - BODY
Common parts from model Whirlpool 3167XTA GAS RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
NUT WPL 7103P12560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
3
PANEL, CONTROL WPL 4851S08459 Contact Us For Availability
3
PANEL, ASSY (BLK) WPL 4851S08659 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
LINING, DOOR WPL 2402W21319 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
4
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P13760 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
5
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
6
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
7
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
10
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
BRACKET, CLOCK WPL 3801F23645 Contact Us For Availability
11
SUPPORT WPL 8004P03160 Contact Us For Availability
11
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
CLOCK WPL 7602P09560 Contact Us For Availability
12
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
12
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
13
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
LINING ASSY WPL 2402W19319 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P06360 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
14
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
14
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
14
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
14
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
14
PANEL, BROILER DRW (ALM) WPL 2403F02864 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
15
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
15
BULB, OVEN WPL 7407P09560 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
16
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
16
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
16
SCREW WPL 7101P30060 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
18
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
18
INSULATION WPL 4804F02560 Contact Us For Availability
18
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
18
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
19
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
19
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
20
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
20
PALNUT WPL 7103P11960 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
21
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
21
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
21
SCREW WPL 7101P29660 Contact Us For Availability
21
GLIDE WPL 8016P01560 Contact Us For Availability
22
SCREW WPL 7101P06160 Contact Us For Availability
22
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
22
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
23
GLIDE WPL 8016P01360 Contact Us For Availability
23
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
23
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
24
NUT, GRIP WPL 7103P02260 Contact Us For Availability
25
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
26
END CAP (RT) WPL 7744P07560 Contact Us For Availability
26
END CAP (LT) WPL 7744P07660 Contact Us For Availability
× ![]()
