Model Whirlpool 3126SRA GAS RANGE – Common Parts & Diagrams
01 - BODY/OVEN

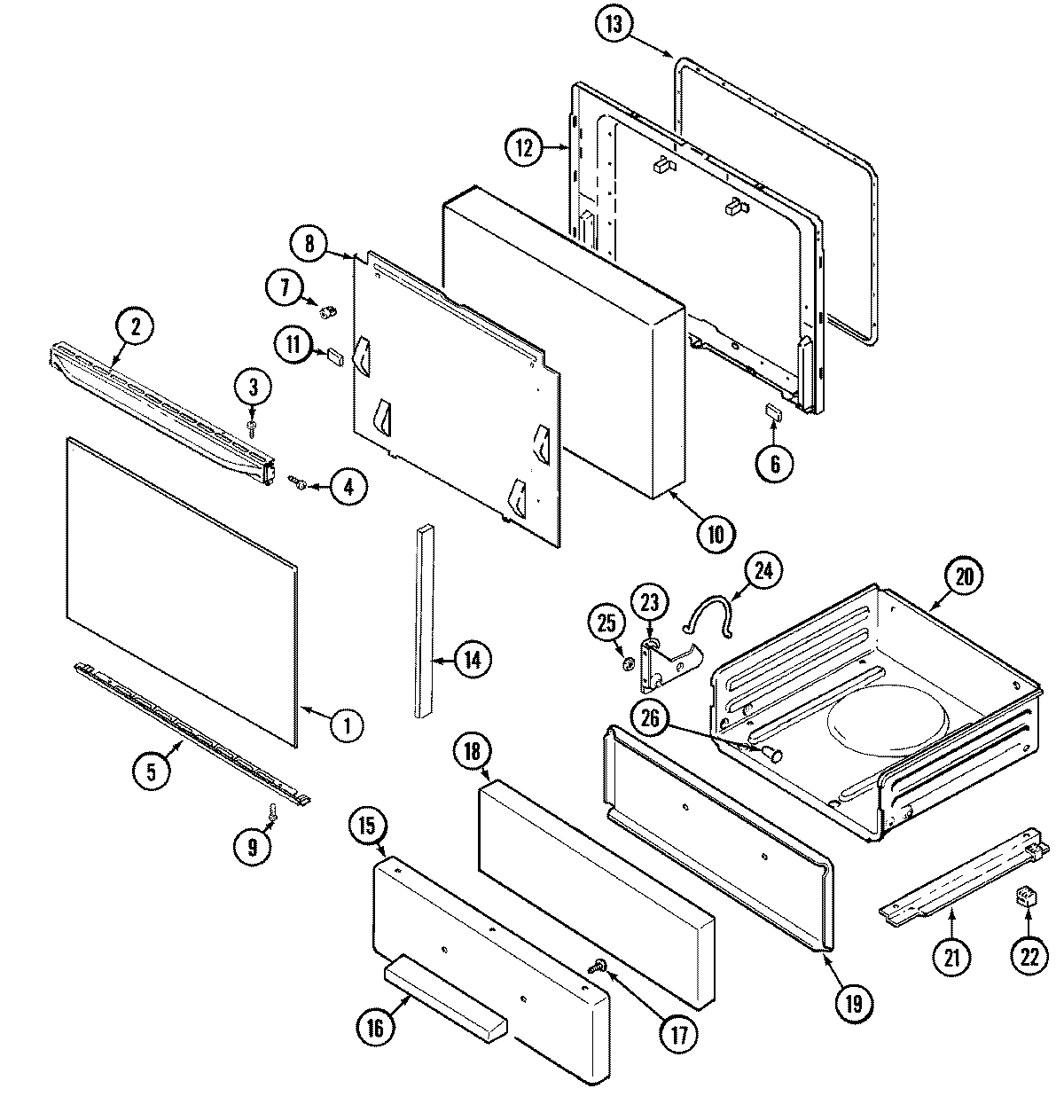

03 - DOOR/DRAWER

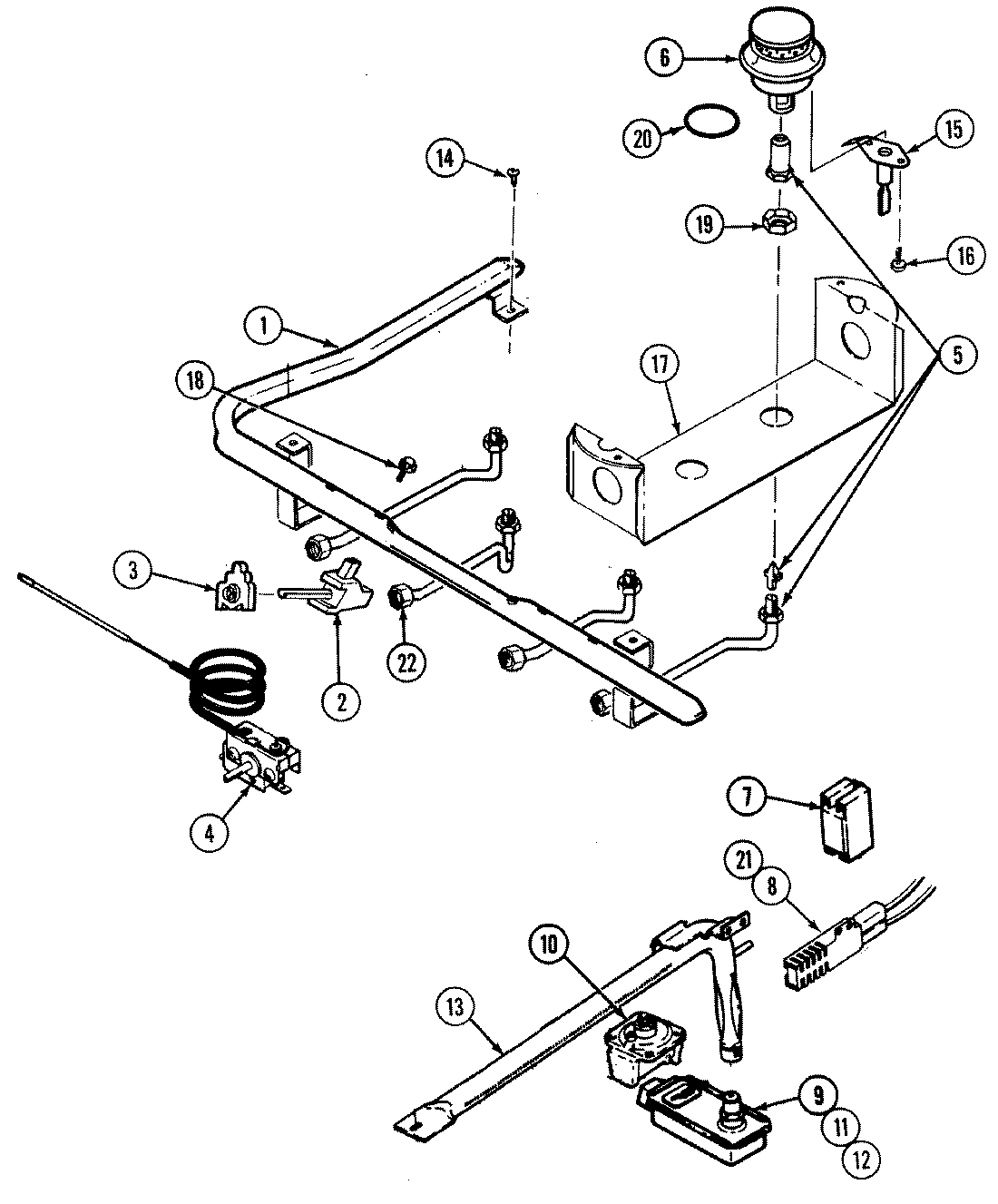

04 - GAS CONTROLS

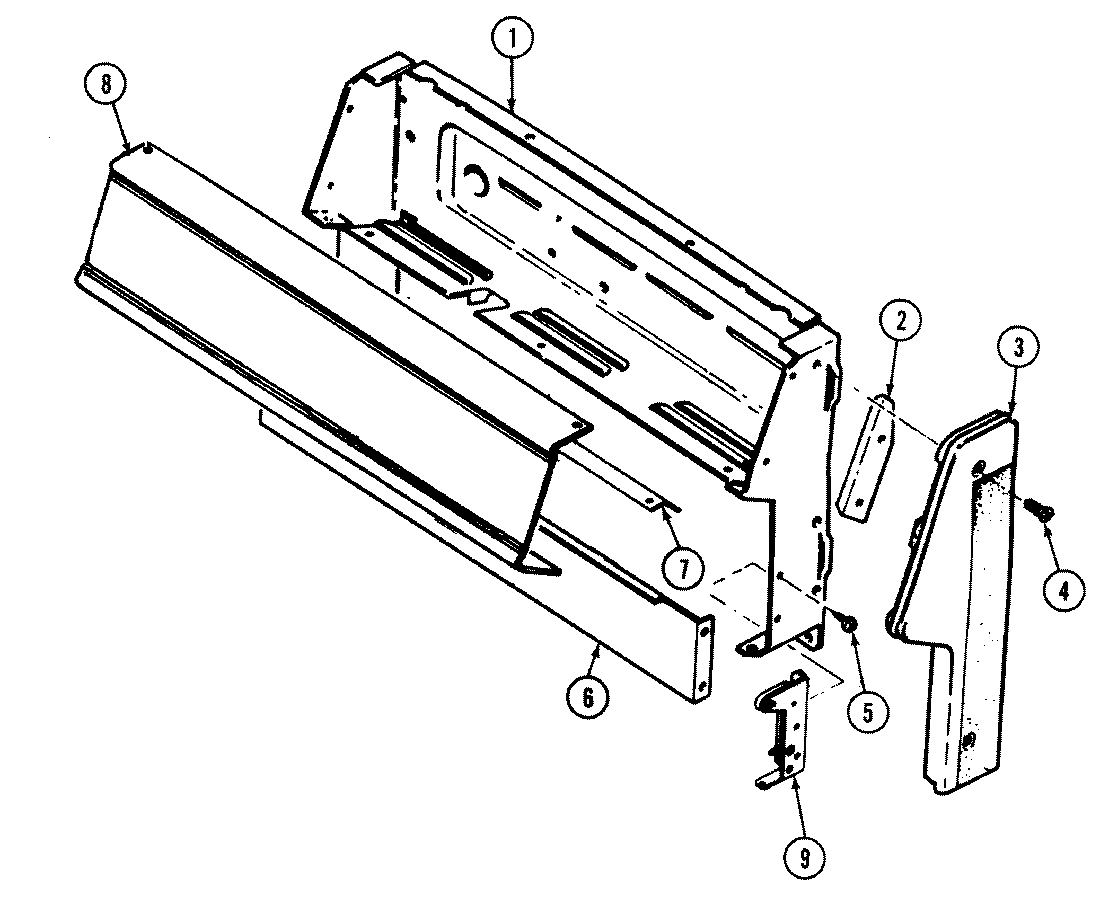

02 - CONTROL PANEL
Common parts from model Whirlpool 3126SRA GAS RANGE
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P21960 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
3
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
3
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
COVER, VALVE WPL 4005F33451 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SCREW WPL 7101P31760 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
5
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
SEALED BURNER ASSY. WPL 3412D01709 Contact Us For Availability
6
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02160 Contact Us For Availability
7
SHIELD WPL 8036P00160 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
8
PANEL, CONTROL ASSY WPL 4851S02559 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
9
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
9
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
9
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
LINING, DOOR WPL 2402W18719 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
13
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
13
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
16
SCREW WPL 7101P31560 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
SUPPORT, ORIFICE FITTING WPL 3807F45145 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
INSULATION WPL 4804F02560 Contact Us For Availability
18
SCREW WPL 7101P29660 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
19
PALNUT WPL 7103P11960 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
20
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
20
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
21
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
21
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
22
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
22
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
22
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
22
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
22
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
23
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
23
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
24
RACK, OVEN WPL 7801P03660 Contact Us For Availability
24
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
24
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
25
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
25
NUT, GRIP WPL 7103P02260 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
27
SCREW WPL 7101P30060 Contact Us For Availability
28
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
28
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
28
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
