Model Whirlpool 31211XAS GAS RANGE – Common Parts & Diagrams

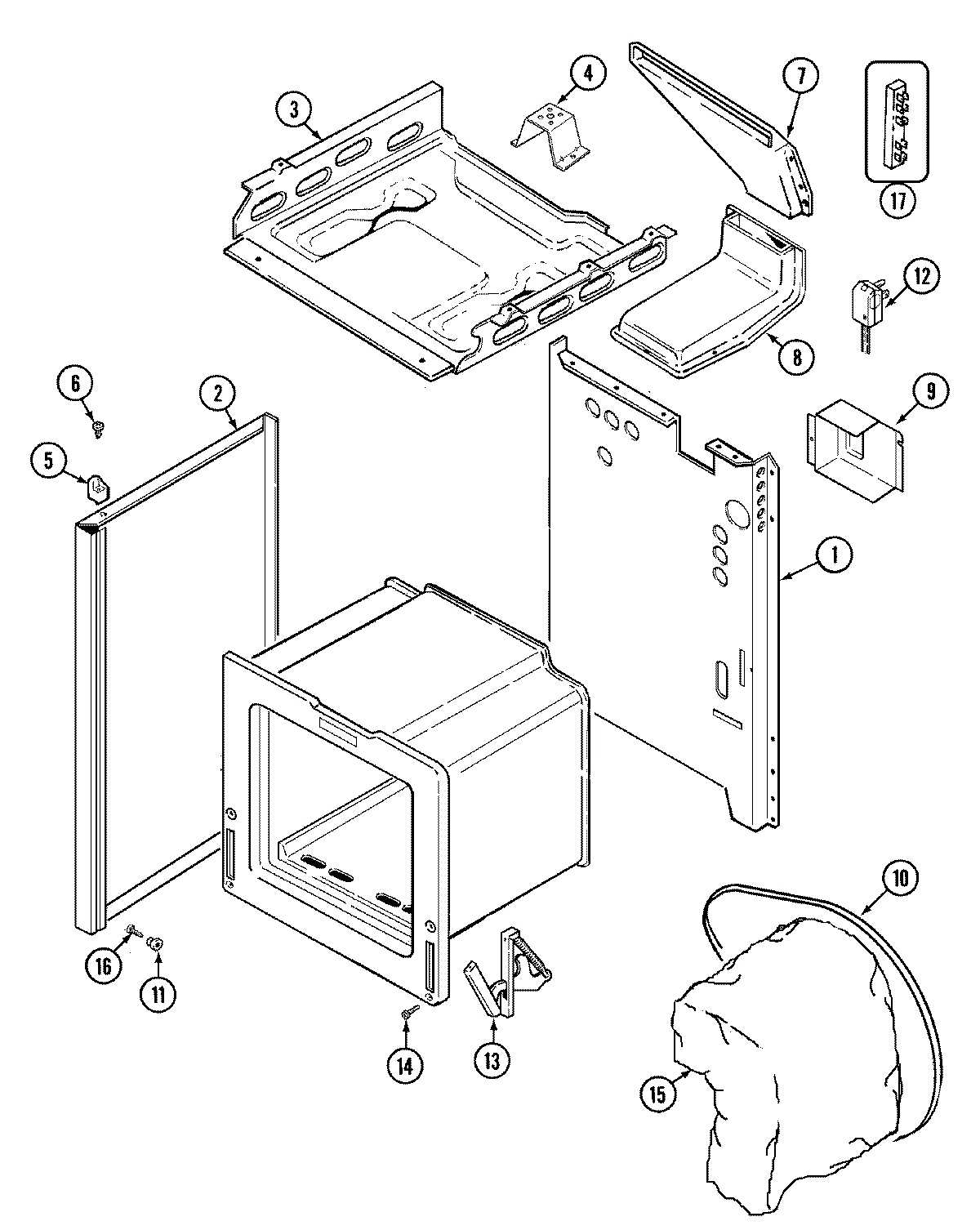

01 - BODY

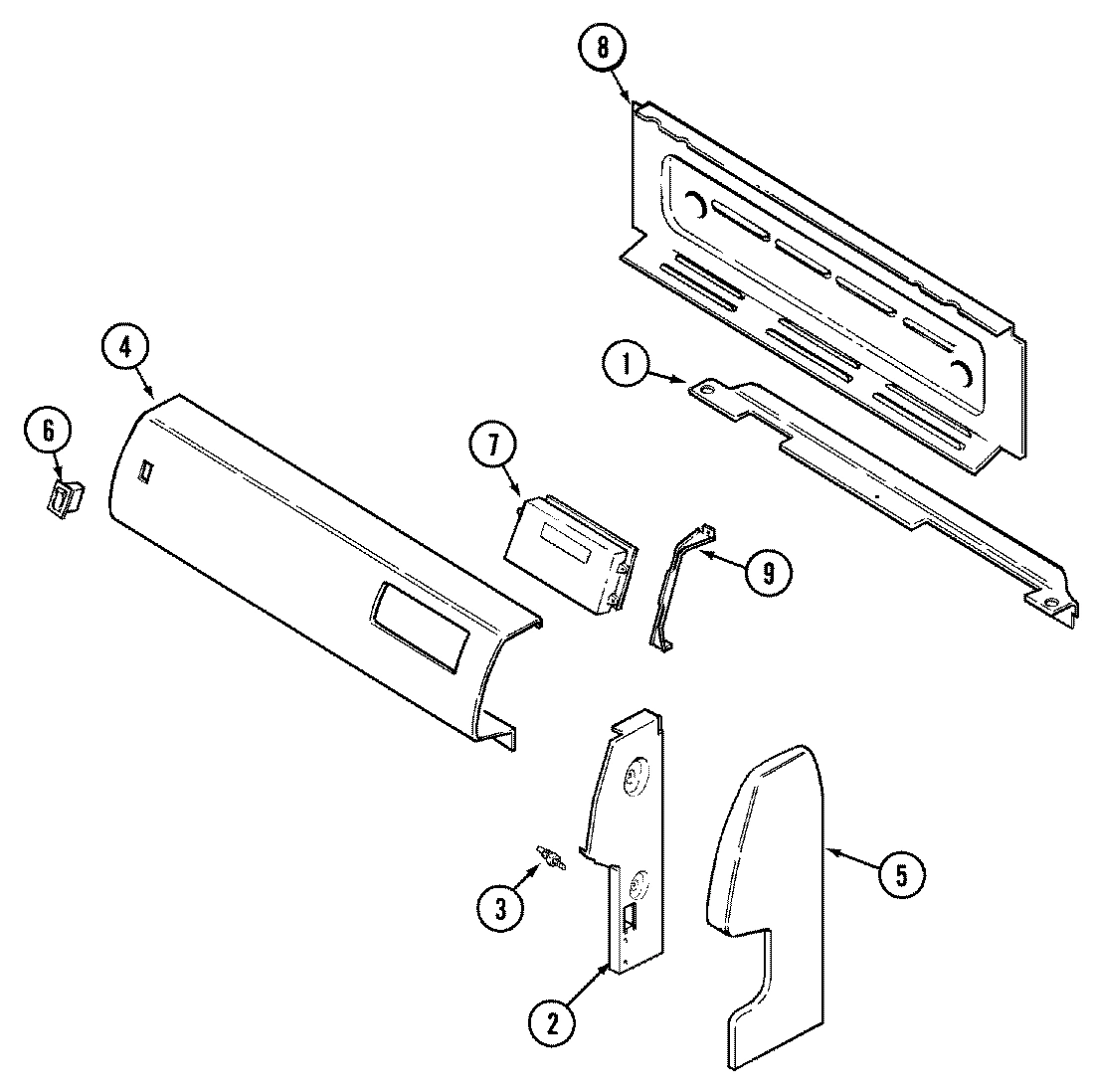

02 - CONTROL PANEL

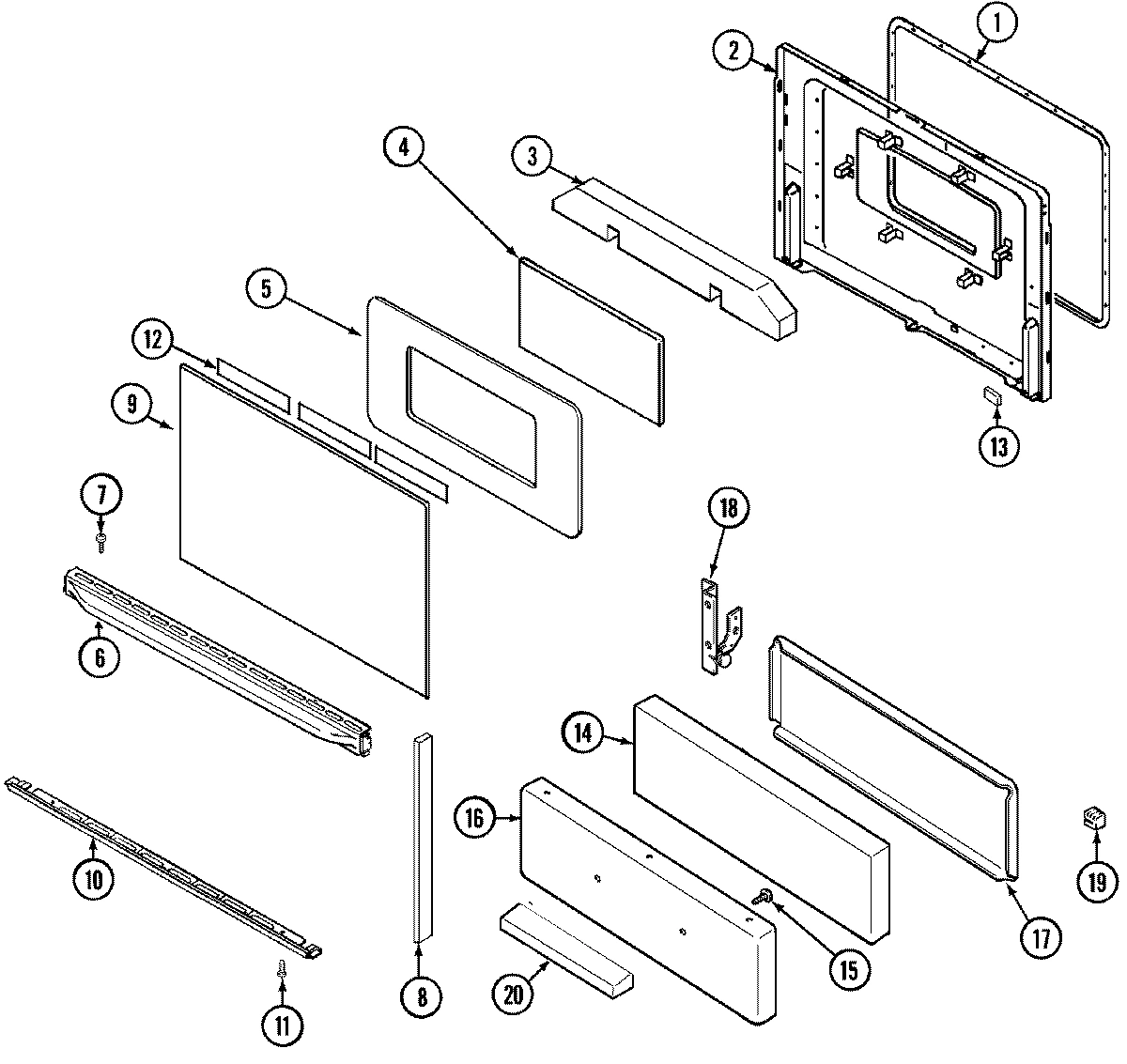

03 - DOOR/DRAWER

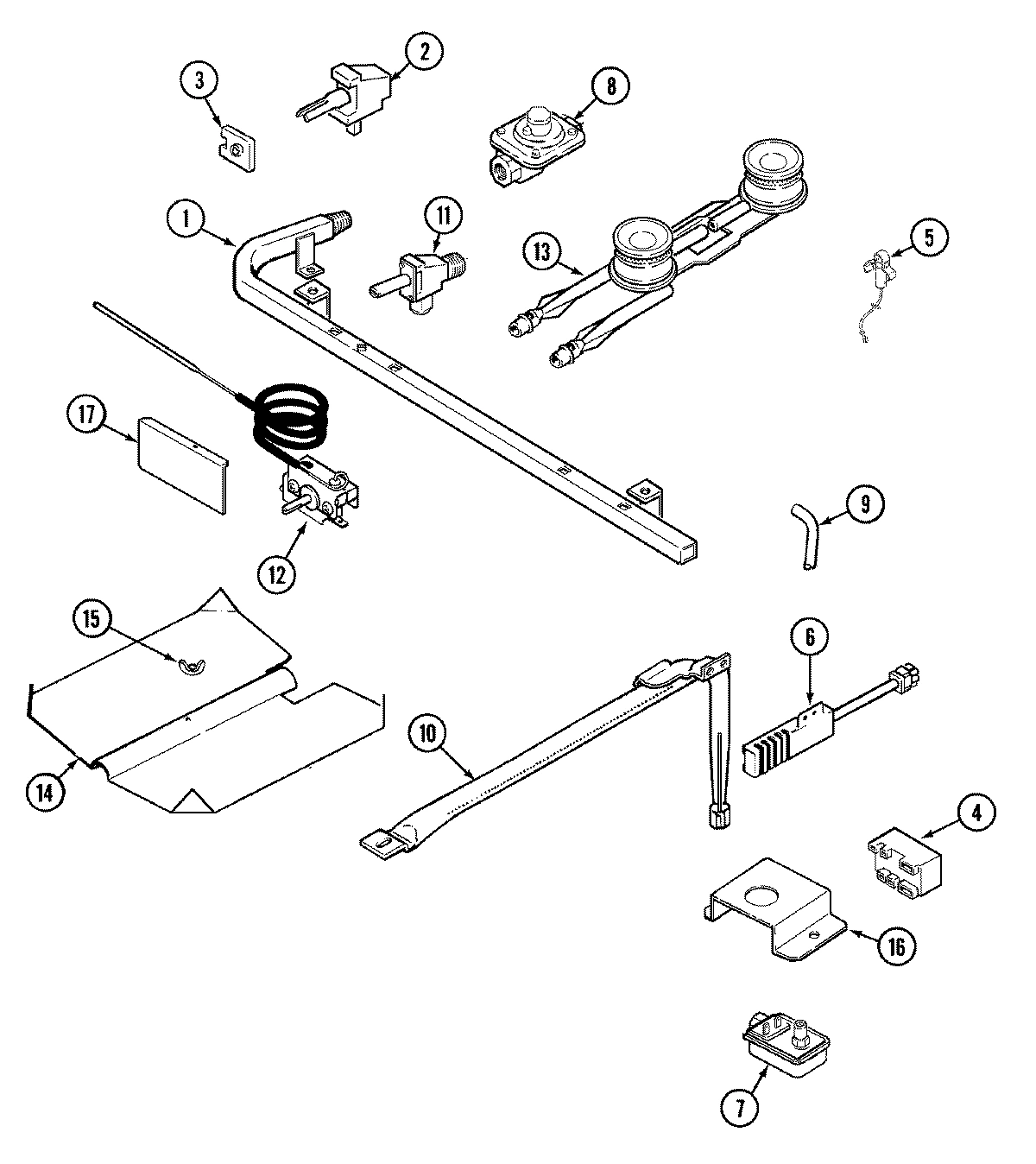

04 - GAS CONTROLS

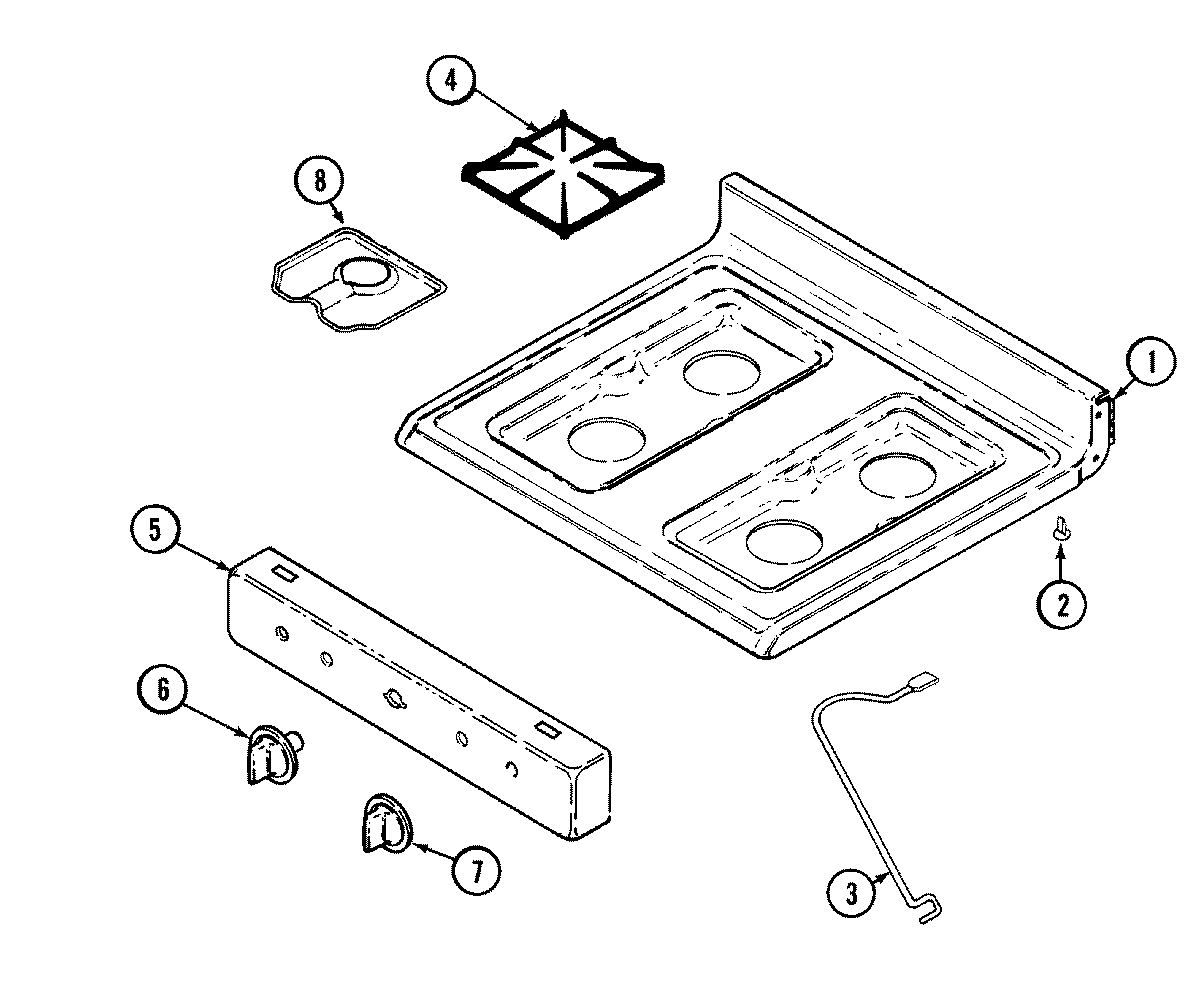

06 - TOP ASSEMBLY

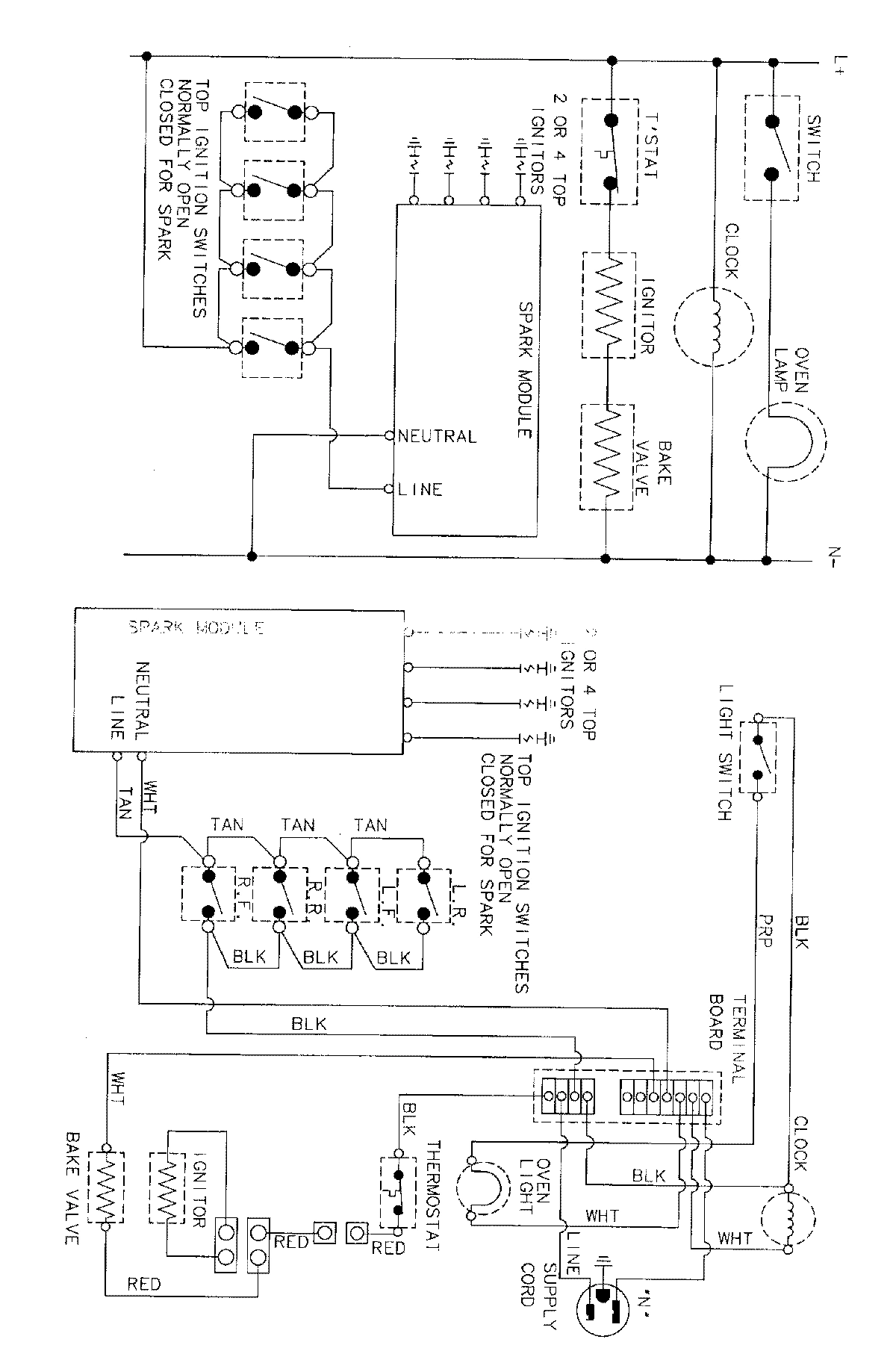

07 - WIRING INFORMATION

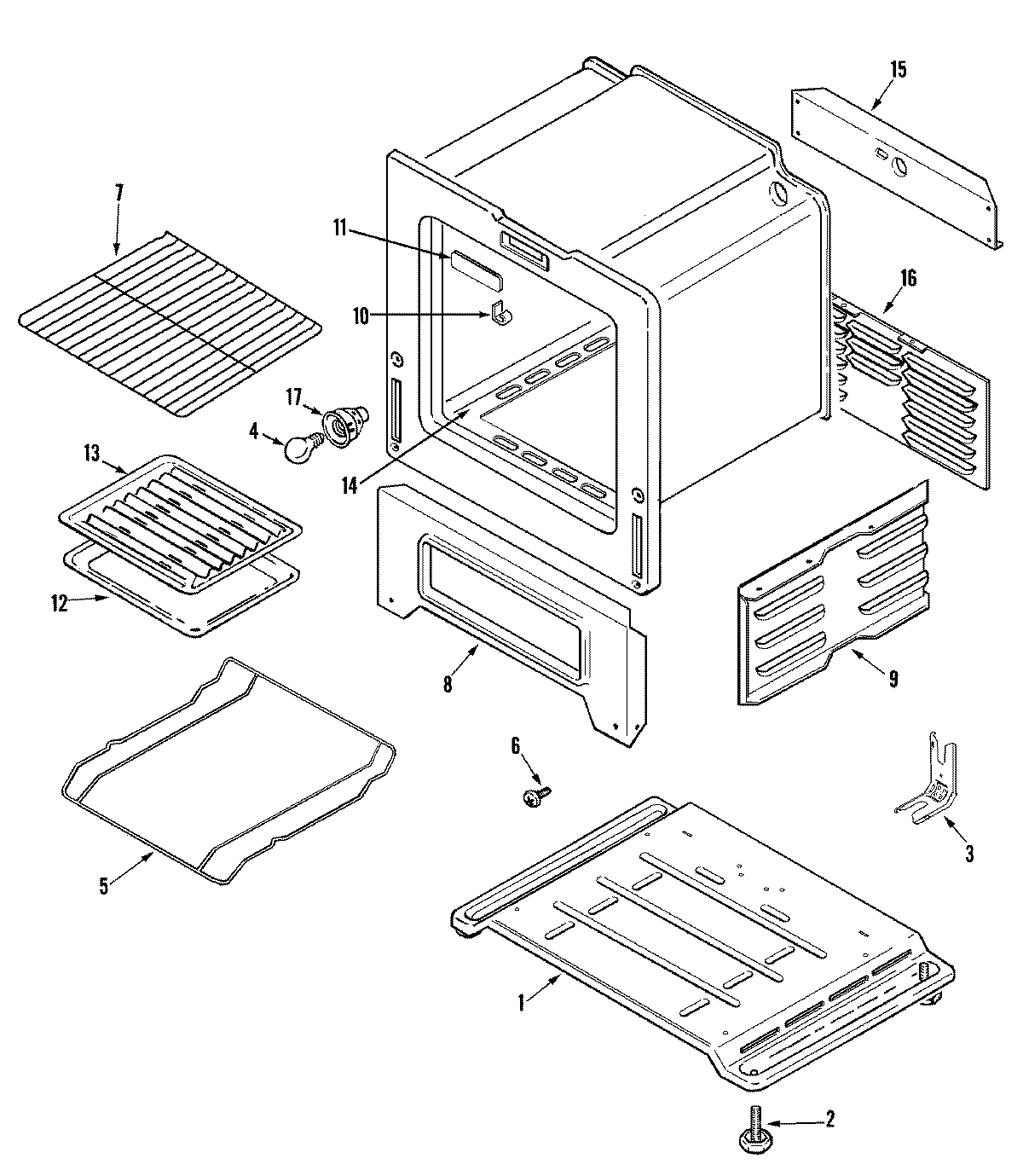

05 - OVEN/BASE
Common parts from model Whirlpool 31211XAS GAS RANGE
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002382 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74003913 Contact Us For Availability
1
TOP, MAIN (STLS) WPL 74002550 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74001907 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
LINING, DOOR WPL 74002460 Contact Us For Availability
2
LINING, DOOR WPL 74003248 Contact Us For Availability
2
GLIDE WPL 8016P01560 Contact Us For Availability
2
VALVE, BURNER WPL 74002383 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
3
SUPPORT, TOP WPL 74001170 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002365 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74002498 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74002610 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
4
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
END CAP, PANEL (LT-BLK) WPL 74002406 Contact Us For Availability
5
END CAP, PANEL (RT-BLK) WPL 74002407 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
SCREW WPL 7101P20960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 74002385 Contact Us For Availability
5
TOP IGNITER W/WIRES (LT) WPL 74002386 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002411 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
6
SCREW WPL 7101P32860 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
7
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
7
VALVE, OVEN WPL 74002387 Contact Us For Availability
7
VALVE, OVEN WPL 74005329 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
HOUSING, CONTROL PANEL WPL 74002450 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74002368 Contact Us For Availability
9
BRACKET, CLOCK WPL 74002449 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
TUBING (3/8``) WPL 74002388 Contact Us For Availability
9
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
HARNESS, CONTROL PANEL WPL 74002477 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
10
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
11
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
13
BURNER, TOP WPL 74002392 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
14
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
15
NUT, WING WPL 7103P03060 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
PANEL, DRAWER (BLK) WPL 74002551 Contact Us For Availability
16
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
LINING, DRAWER WPL 74002397 Contact Us For Availability
17
SHIELD, THERMOSTAT WPL 74002391 Contact Us For Availability
17
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
17
RECEPTACLE, BULB WPL 7408P03760 Contact Us For Availability
18
HINGE, DRAWER WPL 74002398 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE CONVERSION KIT WPL W10124350 Contact Us For Availability
20
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
