Model Whirlpool 3120SPW GAS RANGE – Common Parts & Diagrams

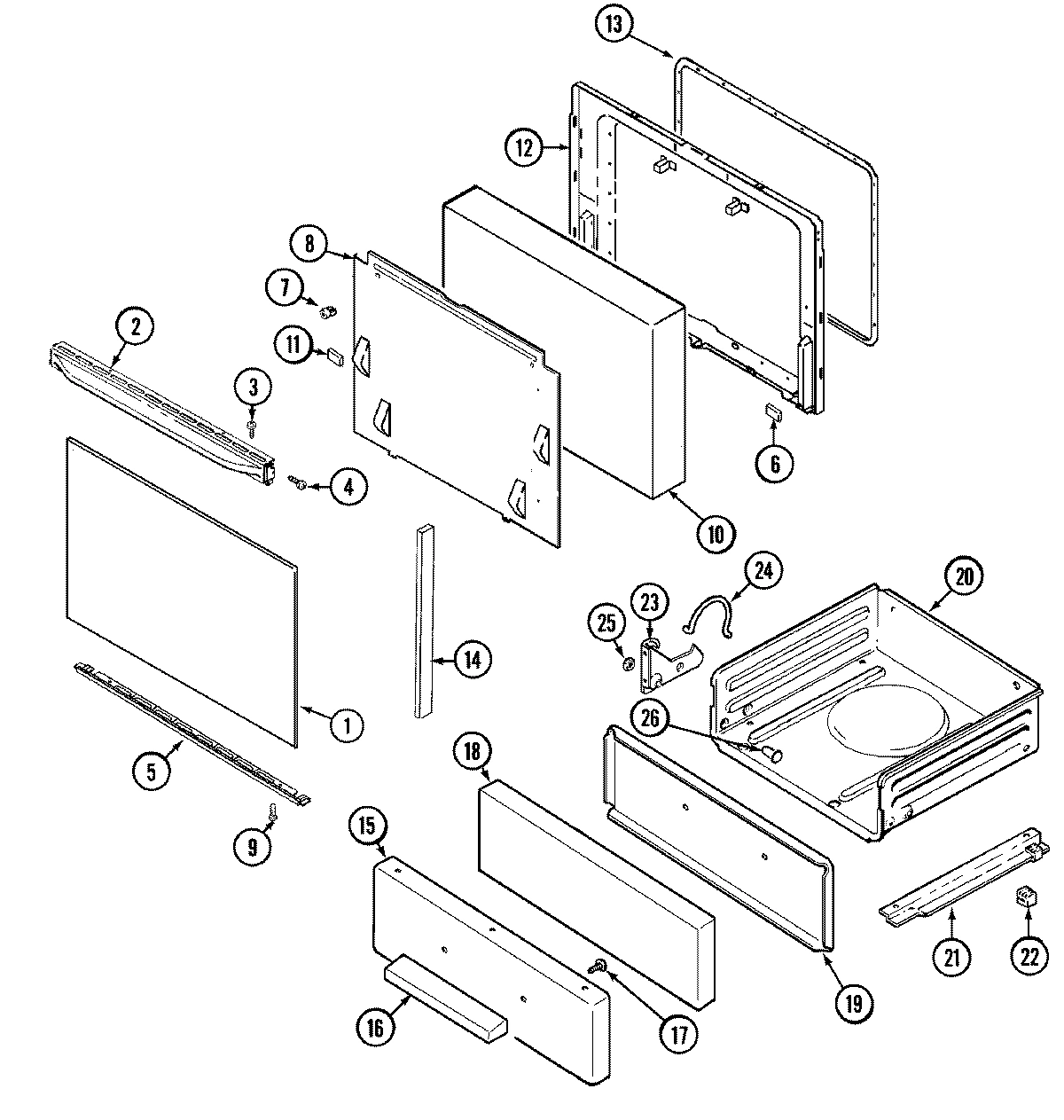

02 - DOOR/DRAWER

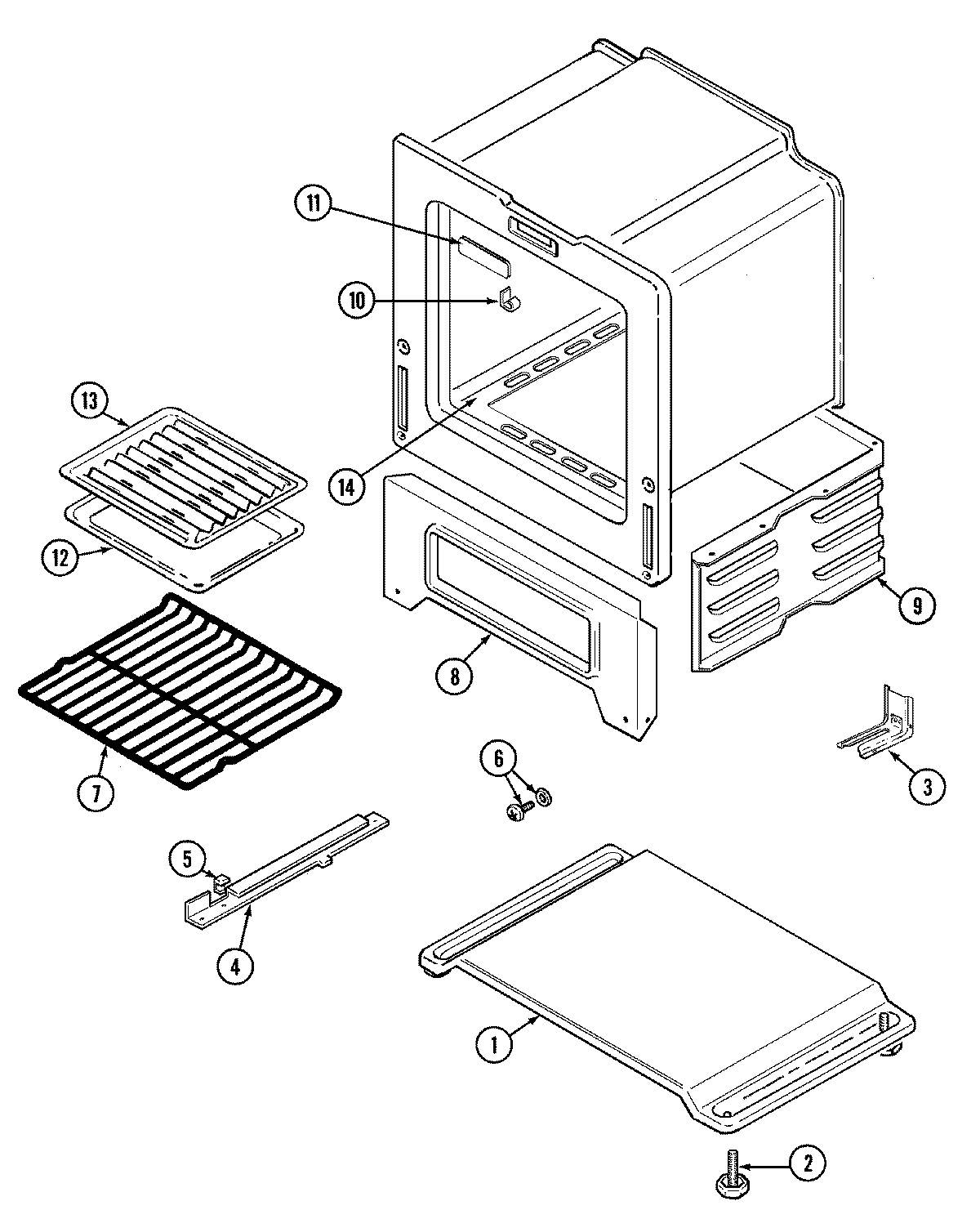

04 - OVEN/BASE

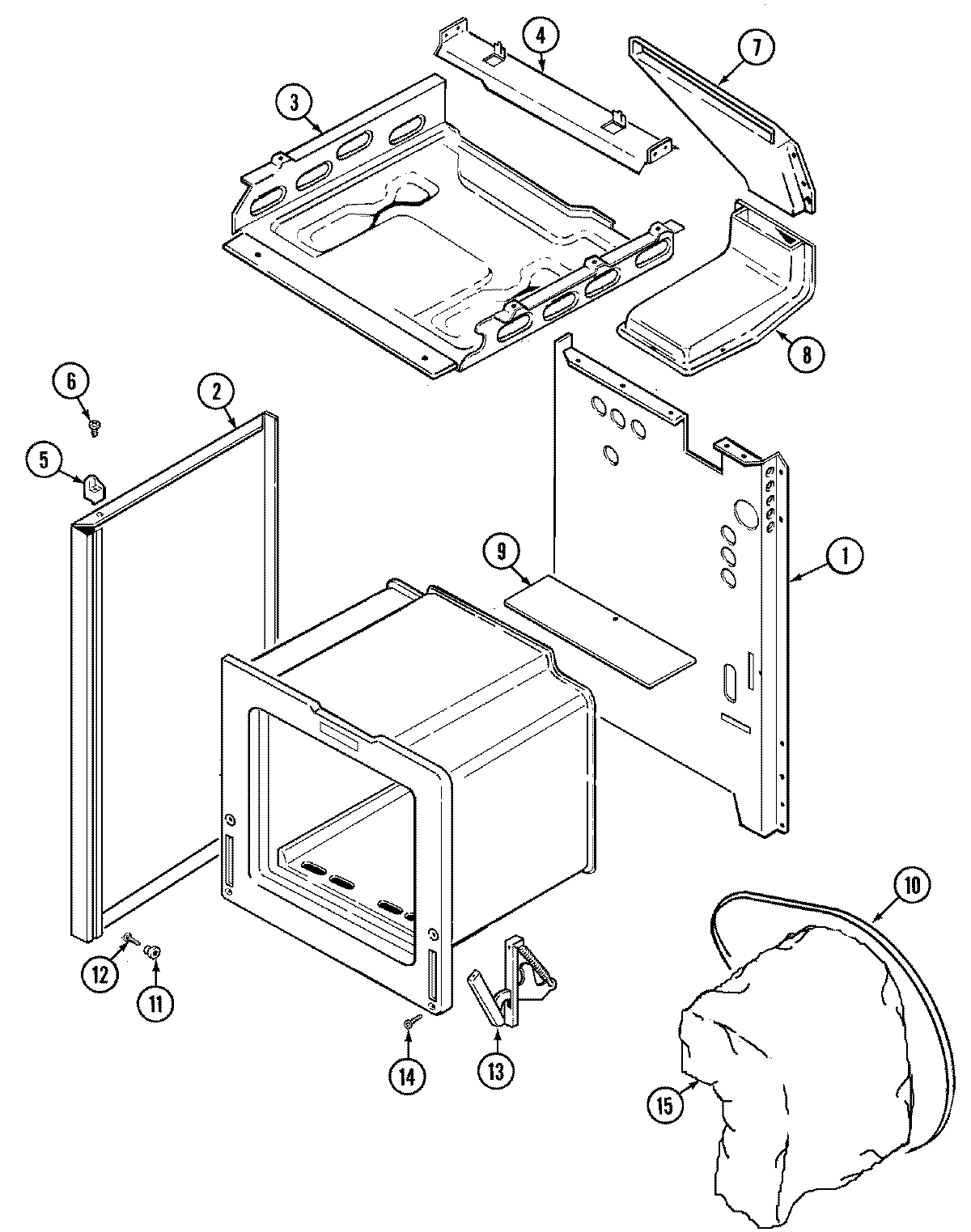

01 - BODY

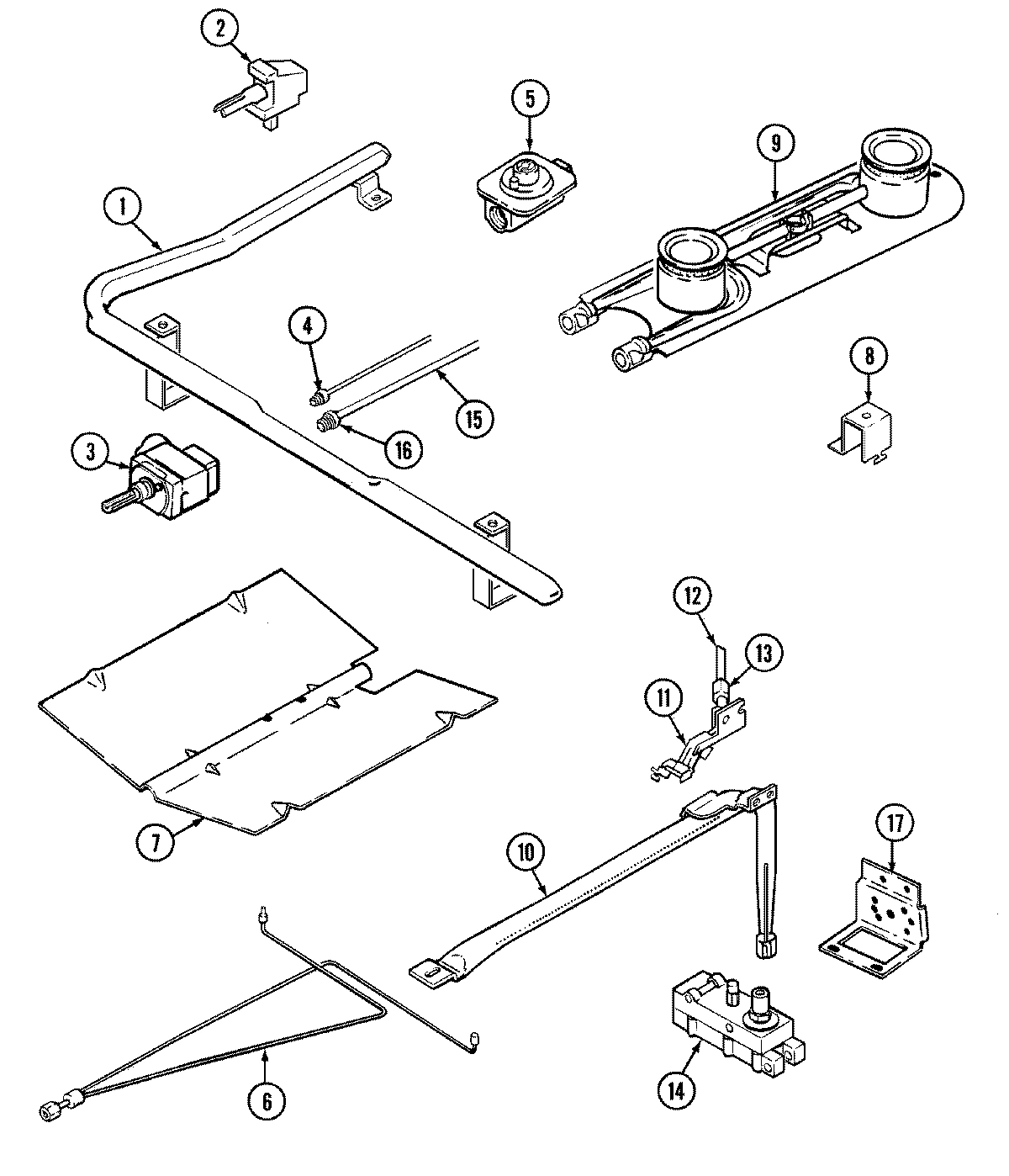

03 - GAS CONTROLS

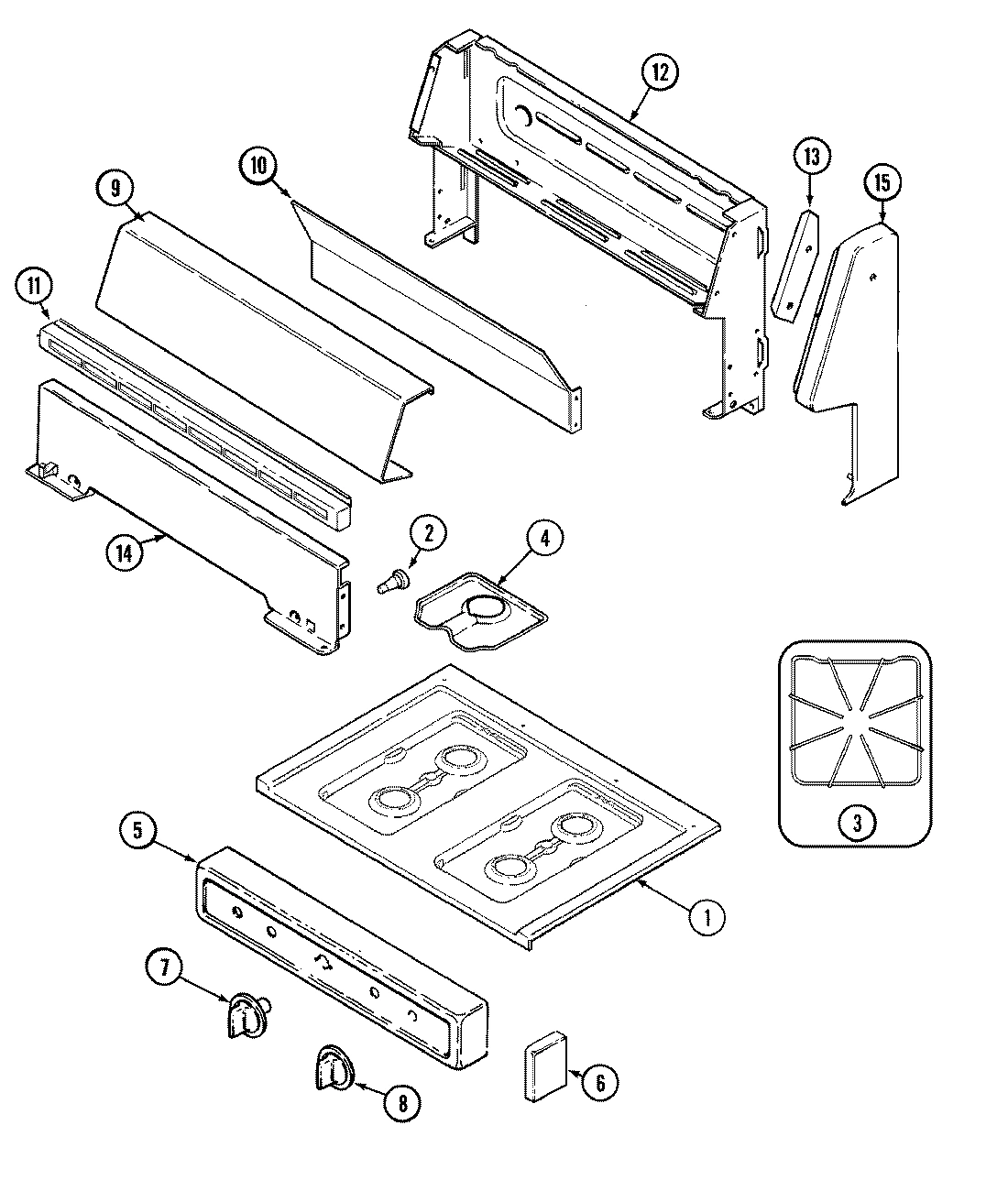

05 - TOP ASSEMBLY
Common parts from model Whirlpool 3120SPW GAS RANGE
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
BASE WPL 4003F02480 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
PIPE MANIFOLD WPL 7513P13260 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F09881 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 7515P03260 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
5
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 2616F09509 Contact Us For Availability
5
SCREW----NA WPL 7101P31160 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
6
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
6
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
6
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
7
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
KNOB, THERMOSTAT WPL 7731P05260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
BURNER, TOP WPL 3412A00419 Contact Us For Availability
9
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
9
PANEL, CONTROL ASSY WPL 4851S02559 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
10
SHIELD, FLUE WPL 3604F17009 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
TRIM, VENT WPL 3608F04309 Contact Us For Availability
12
LINING, DOOR WPL 2402W18719 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
SCREW WPL 7101P30060 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
12
HOUSING, BACKGUARD WPL 4001F08451 Contact Us For Availability
13
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
13
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
RETAINER WPL 3804F01050 Contact Us For Availability
14
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
14
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
14
VALVE, OVEN WPL 7501P11160 Contact Us For Availability
14
BACKSPLASH (WHT) WPL 2612F03781 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
15
TUBING 3/8`` WPL 3414F09444 Contact Us For Availability
15
SCREW WPL 7101P03260 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P06960 Contact Us For Availability
15
TRIM, END CAP WPL 7726P07060 Contact Us For Availability
16
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
16
MANUAL, USE & CARE WPL 8113P01160 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
BRACKET, SAFETY VALVE WPL 3801F23845 Contact Us For Availability
18
INSULATION WPL 4804F02560 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
20
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
21
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
21
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
22
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
22
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
23
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
23
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
24
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
24
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
25
NUT, GRIP WPL 7103P02260 Contact Us For Availability
26
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
× ![]()
