Model Whirlpool 31203PAA GAS RANGE – Common Parts & Diagrams
01 - BODY

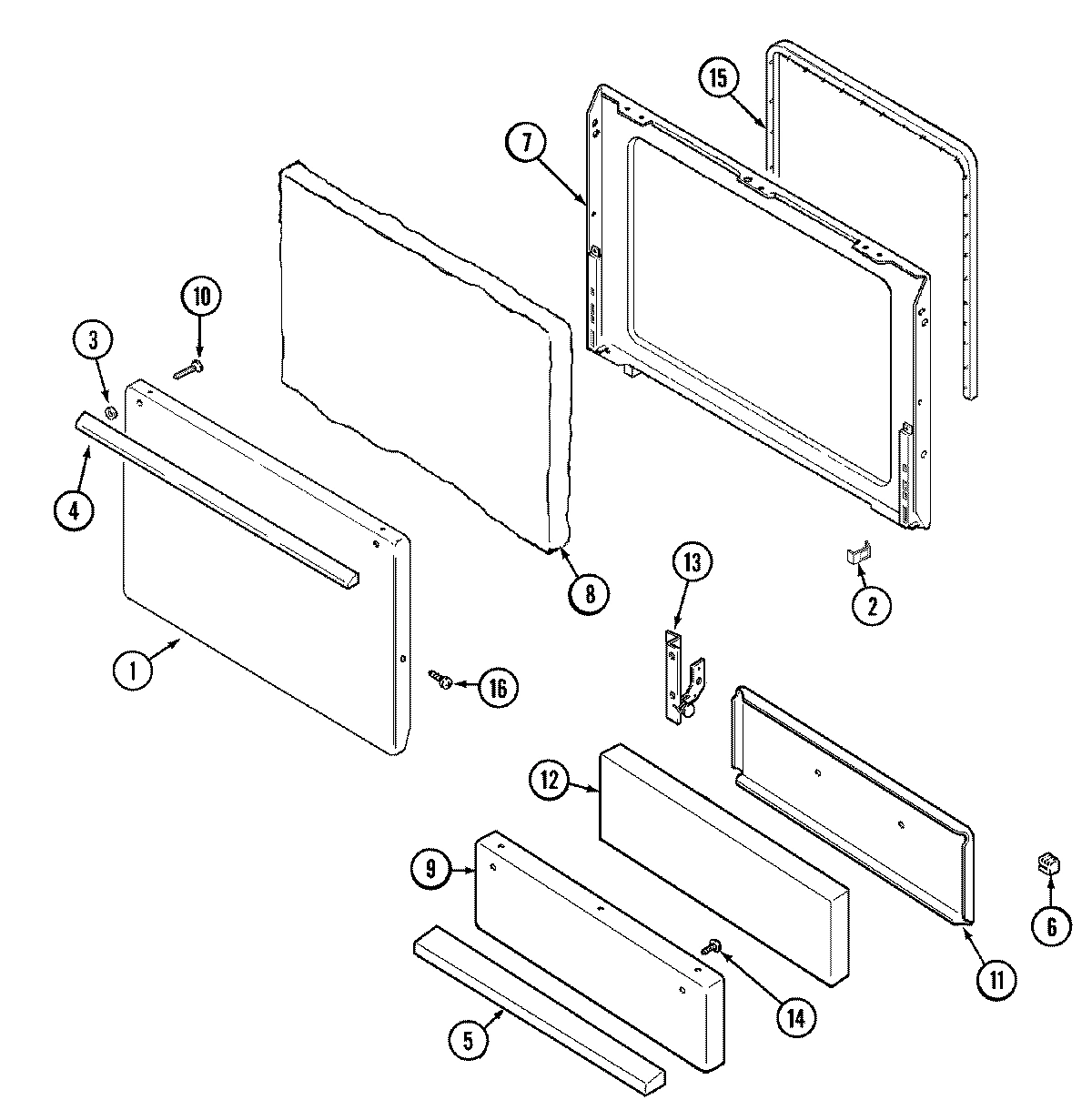

03 - DOOR/DRAWER (31203PAx)

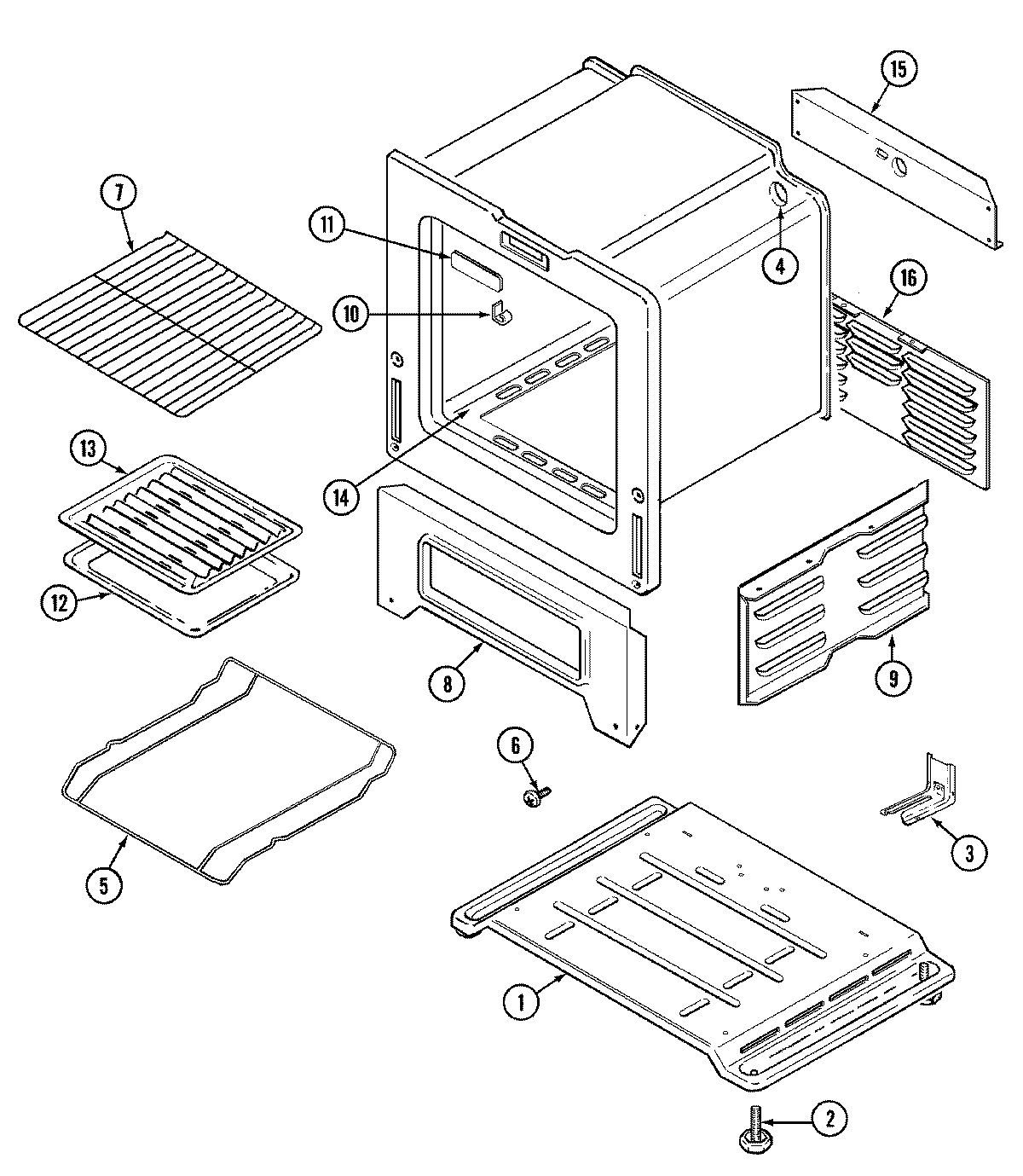

05 - OVEN/BASE
06 - WIRING INFORMATION

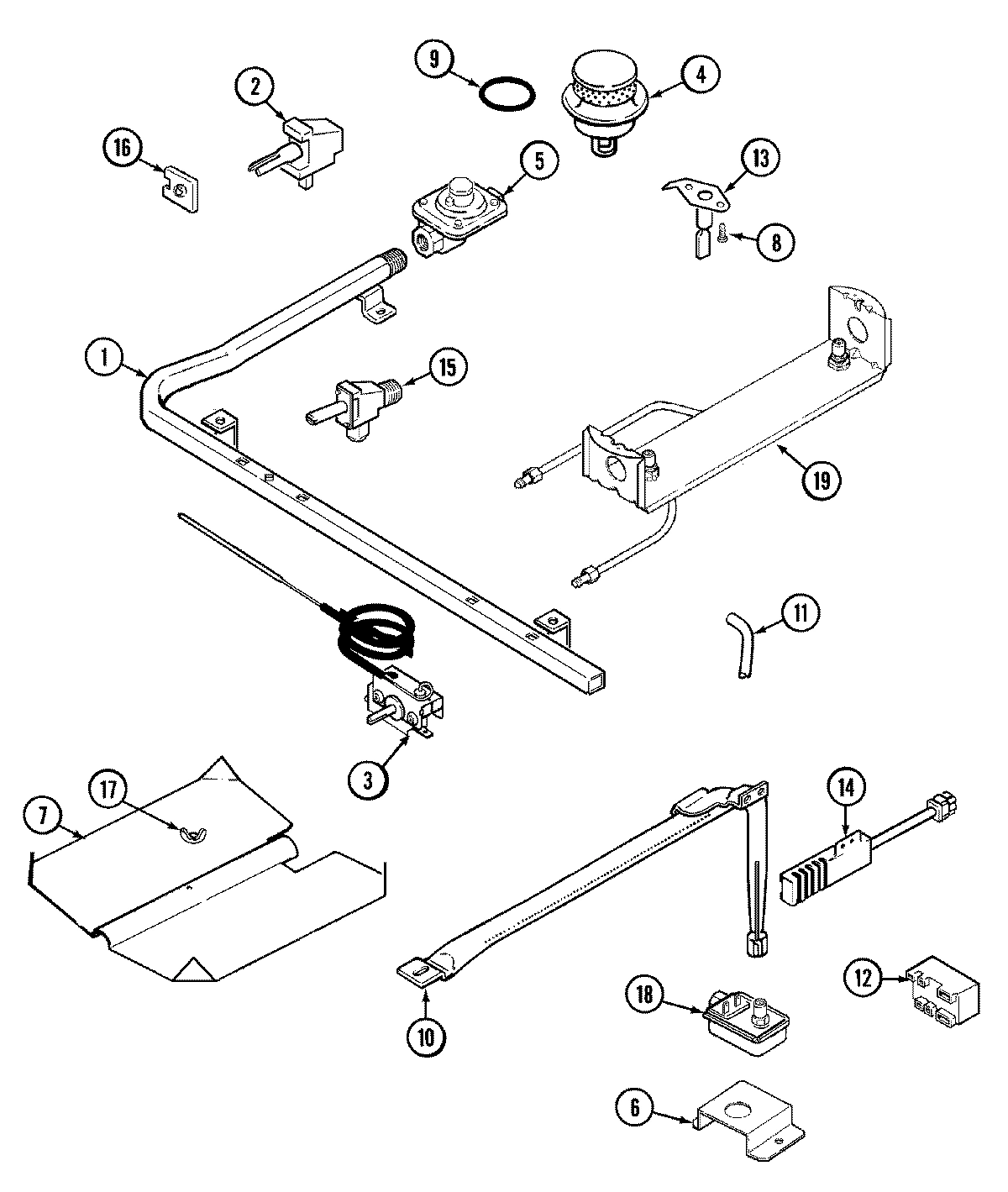

04 - GAS CONTROLS

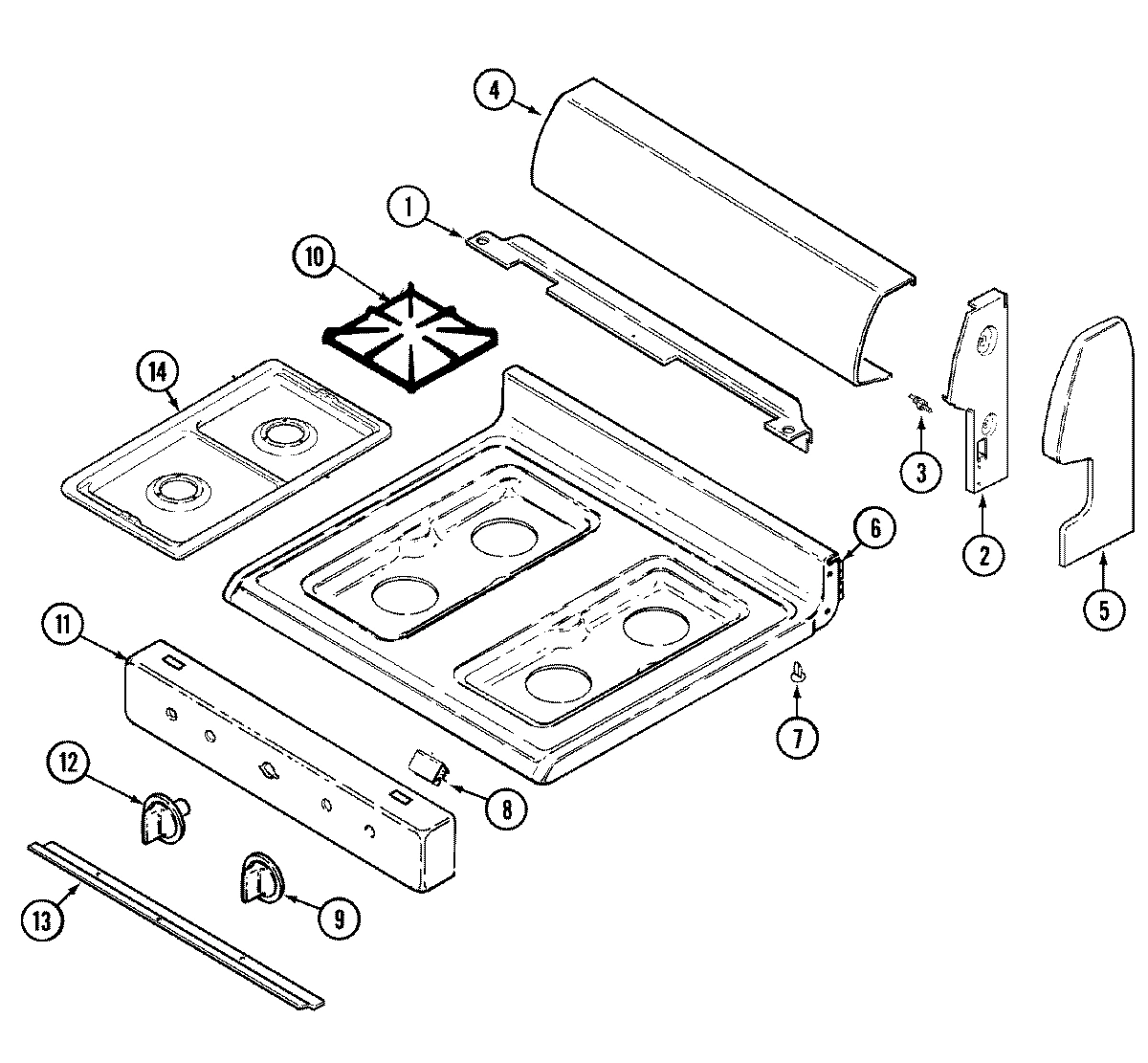

02 - CONTROL PANEL/TOP ASSEMBLY
Common parts from model Whirlpool 31203PAA GAS RANGE
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09674 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002454 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
1
CLIP, SPACER WPL 74002409 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
VALVE, BURNER WPL 74002455 Contact Us For Availability
2
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002452 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002453 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
4
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 74004760 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HANDLE, DRAWER (ALM) WPL 2411F00374 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
5
END CAP, PANEL (RT-ALM) WPL 74002500 Contact Us For Availability
5
END CAP, PANEL (LT-ALM) WPL 74002501 Contact Us For Availability
5
SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
6
TOP, MAIN (ALM) WPL 74002441 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
GLIDE WPL 8016P01560 Contact Us For Availability
7
LINING, DOOR WPL 74003240 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
9
COVER, ACCESS WPL 74004591 Contact Us For Availability
9
PANEL, DRAWER (ALM) WPL 74002316 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
9
KNOB, VALVE (ALM) WPL 74002549 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
GRATE (TAUPE) WPL 74003514 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
LINING, DRAWER WPL 74002397 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
11
PANEL, MANIFOLD (ALM) WPL 74002503 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
KNOB, THERMOSTAT (ALM) WPL 74002559 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
14
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
15
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
16
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
17
HARNESS, WIRE (SPARK) WPL 74007014 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
18
VALVE, OVEN WPL 74005329 Contact Us For Availability
19
ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
