Model Whirlpool 3116PRA GAS RANGE – Common Parts & Diagrams
01 - BODY

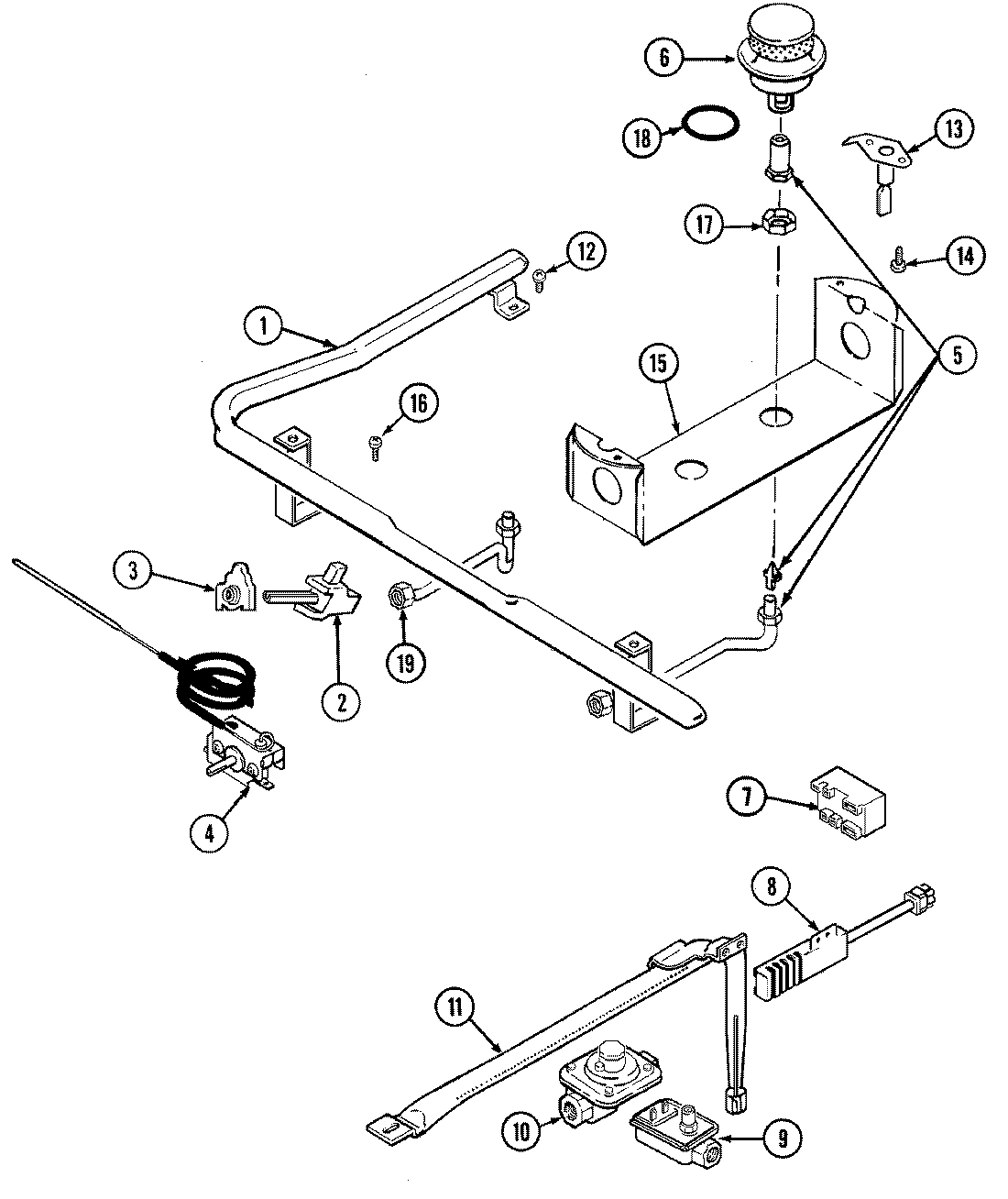

03 - GAS CONTROLS

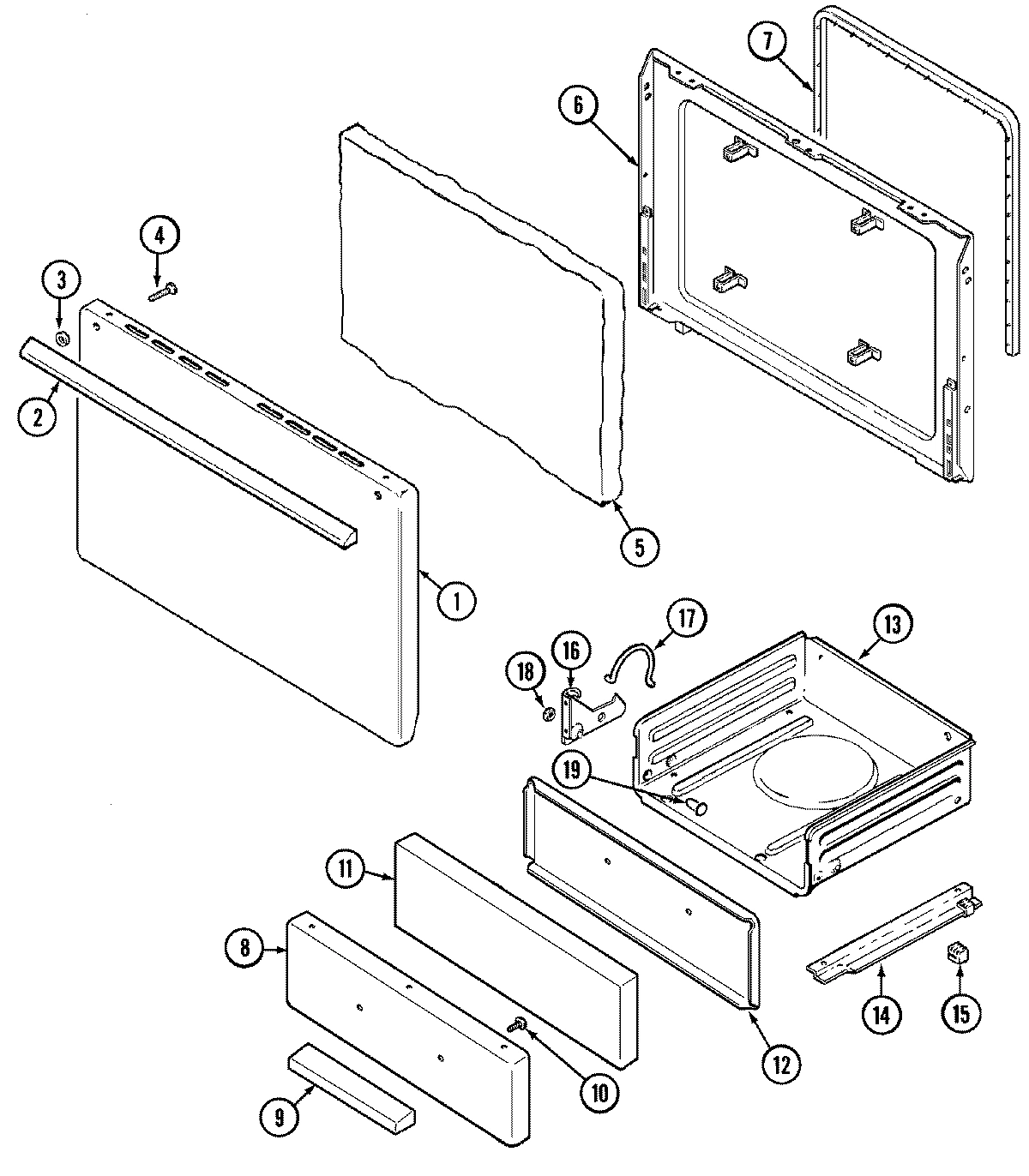

02 - DOOR/DRAWER

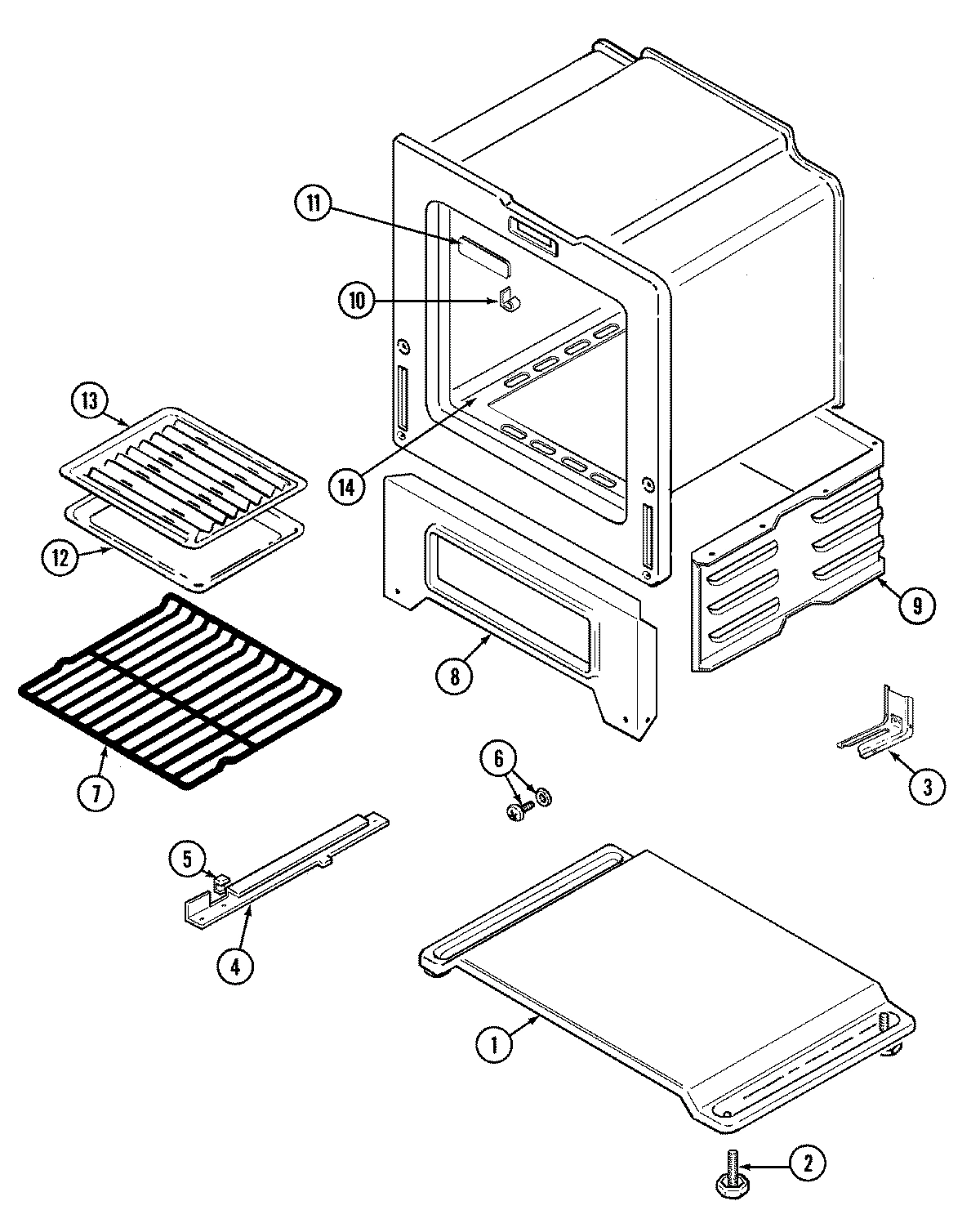

04 - OVEN/BASE

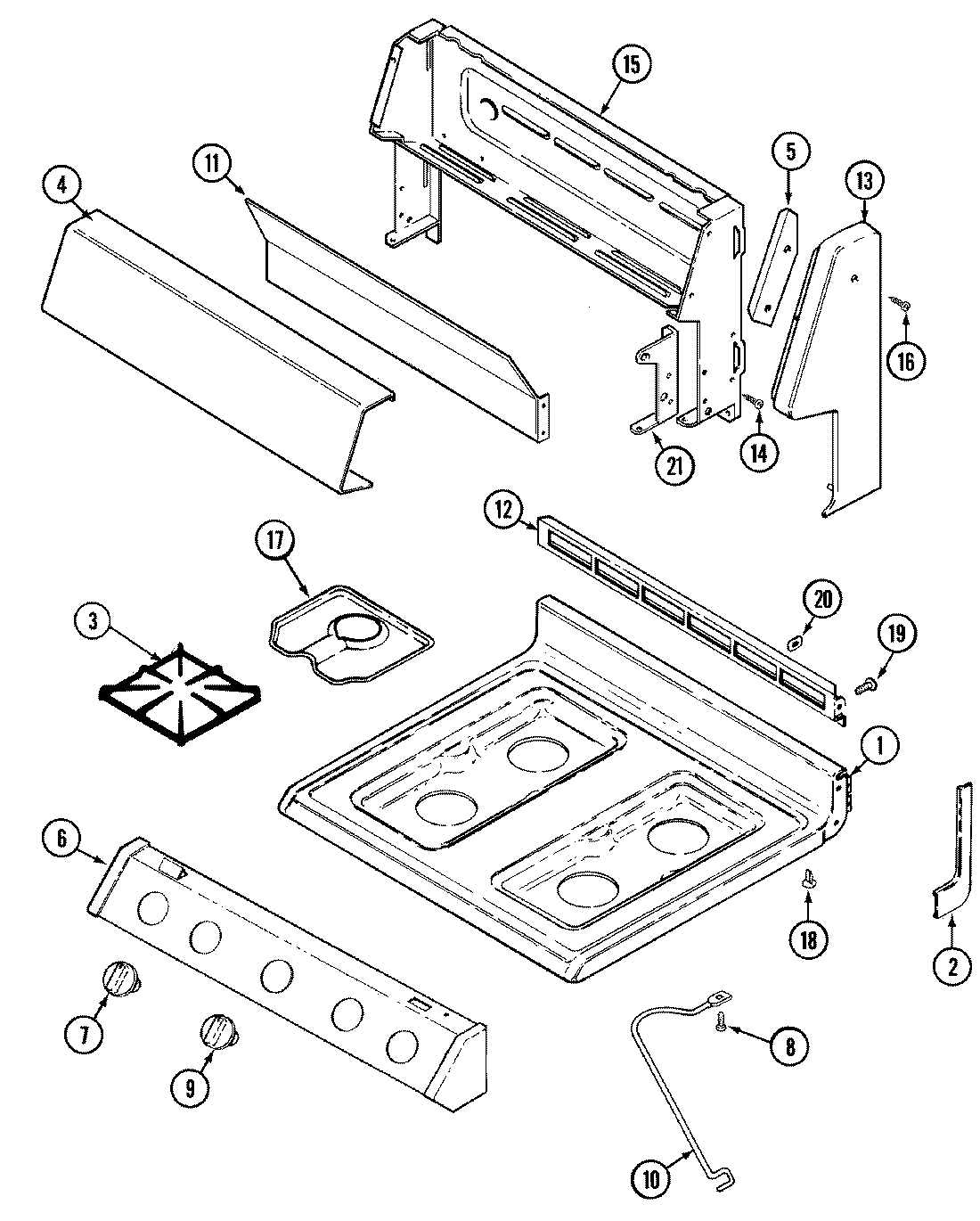

05 - TOP
Common parts from model Whirlpool 3116PRA GAS RANGE
1
BACK, MAIN WPL 4002F19980 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09674 Contact Us For Availability
1
BASE WPL 4003F02480 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08284 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P21960 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
2
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
COVER, VALVE WPL 4005F33451 Contact Us For Availability
4
THERMOSTAT WPL 7404P08760 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 2601F40584 Contact Us For Availability
4
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
5
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
SEALED BURNER ASSY. WPL 3412D01709 Contact Us For Availability
6
LINING, DOOR WPL 2402W18719 Contact Us For Availability
6
PANEL, MANIFOLD (BLK) WPL 7712P13460 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
7
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
7
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
KNOB, THERMOSTAT (BLK) WPL 7731P07160 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
8
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
8
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
9
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
KNOB, VALVE (BLK) WPL 7733P02760 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
PIPE, NIPPLE WPL 7507P12360 Contact Us For Availability
10
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
10
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
11
INSULATION WPL 4804F02560 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
12
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
13
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
13
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
13
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
14
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
SCREW WPL 7101P31560 Contact Us For Availability
14
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
14
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
14
RETAINER WPL 3804F01050 Contact Us For Availability
14
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
14
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
15
SUPPORT, TOP BURNER WPL 3807F44445 Contact Us For Availability
15
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
15
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
15
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
SCREW WPL 7101P29660 Contact Us For Availability
16
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
16
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
16
SCREW WPL 7101P03260 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
PALNUT WPL 7103P11960 Contact Us For Availability
17
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
17
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
17
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
18
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
18
NUT, GRIP WPL 7103P02260 Contact Us For Availability
18
GLIDE WPL 8016P01360 Contact Us For Availability
19
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
19
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
19
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
20
CORD, POWER WPL 7402P04360 Contact Us For Availability
20
NUT, SPEED WPL 7103P12960 Contact Us For Availability
21
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
21
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
21
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
21
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
21
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
× ![]()
