Model Whirlpool 3110PRV-K GAS RANGE – Common Parts & Diagrams

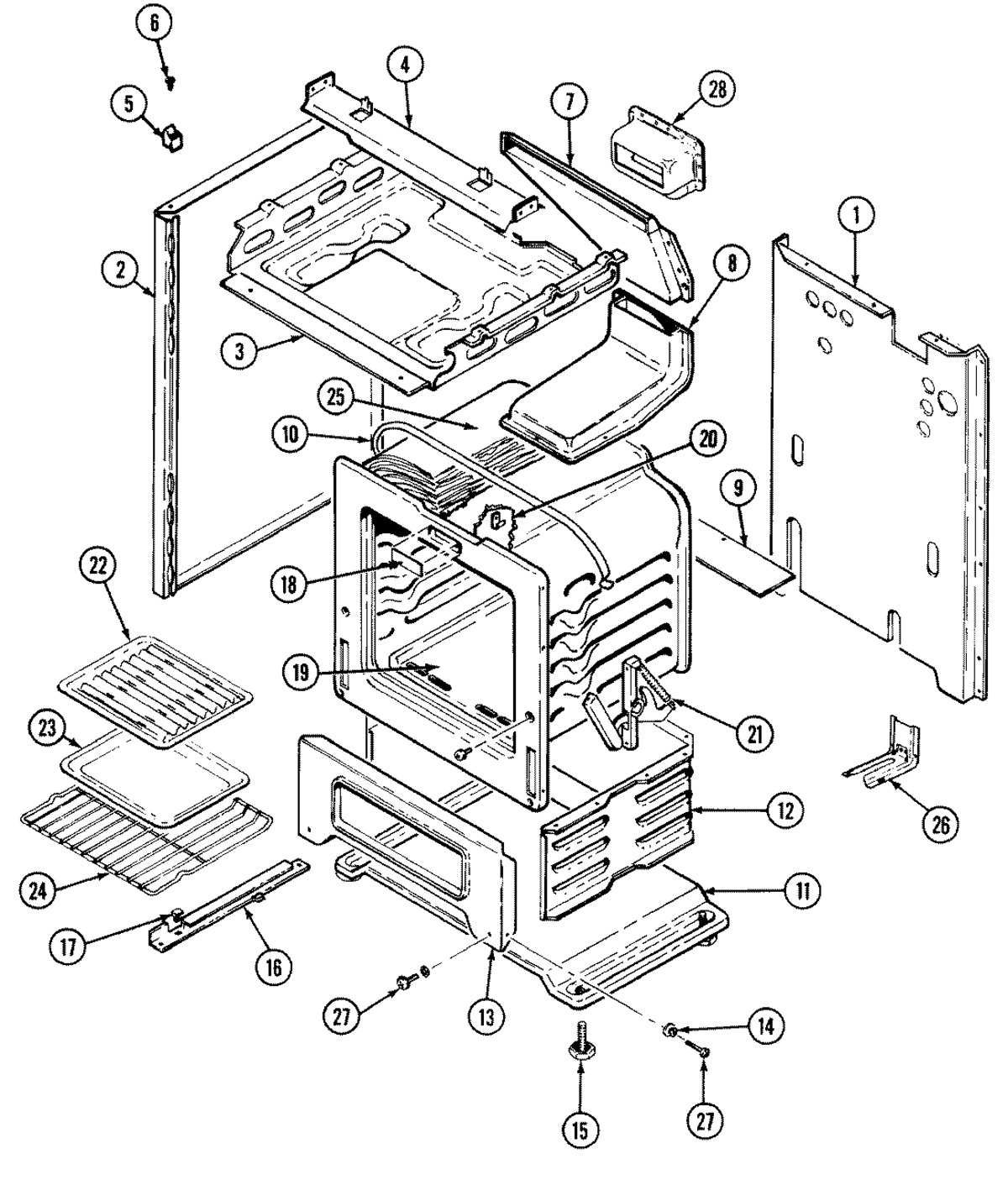

01 - BODY/OVEN

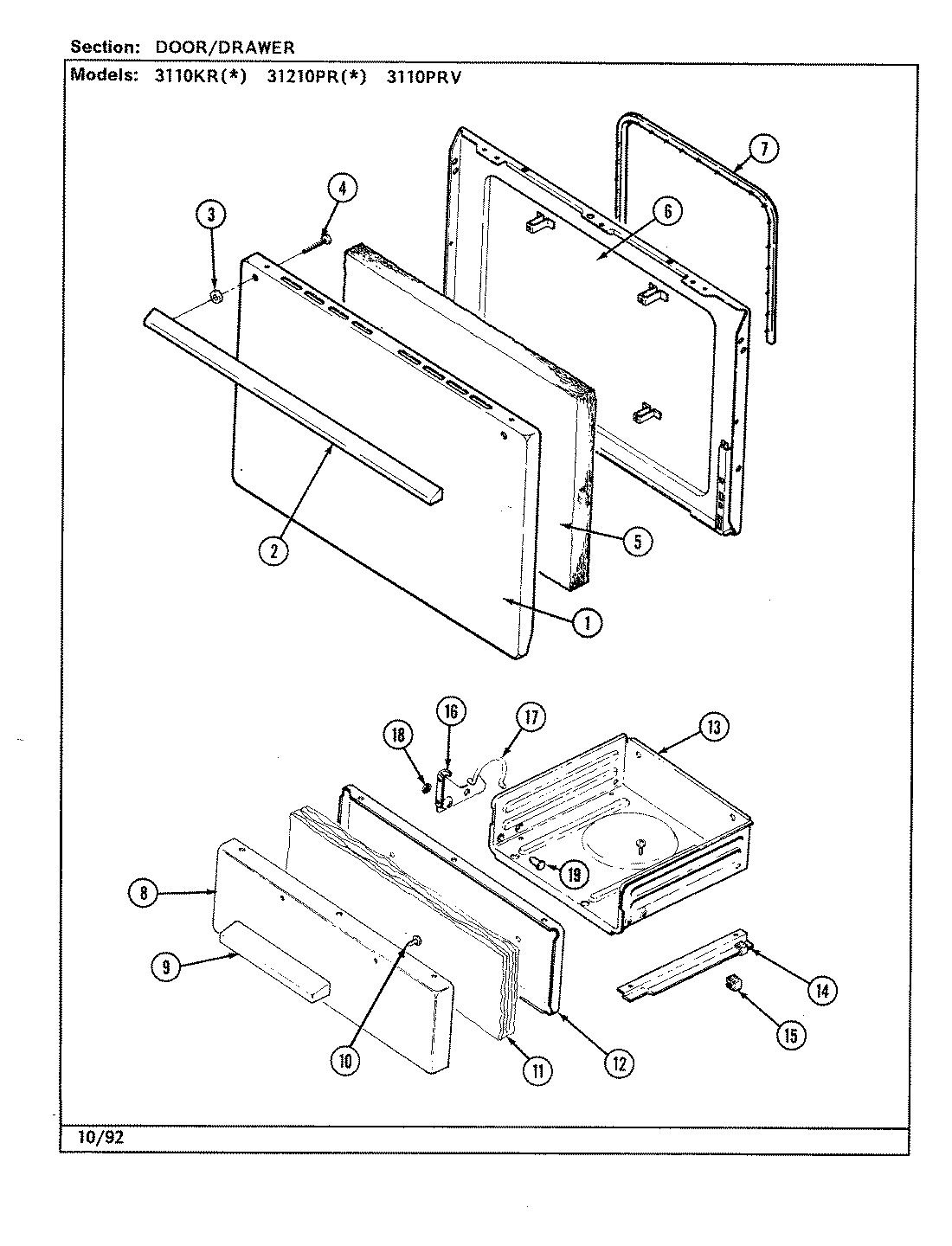

02 - DOOR/DRAWER

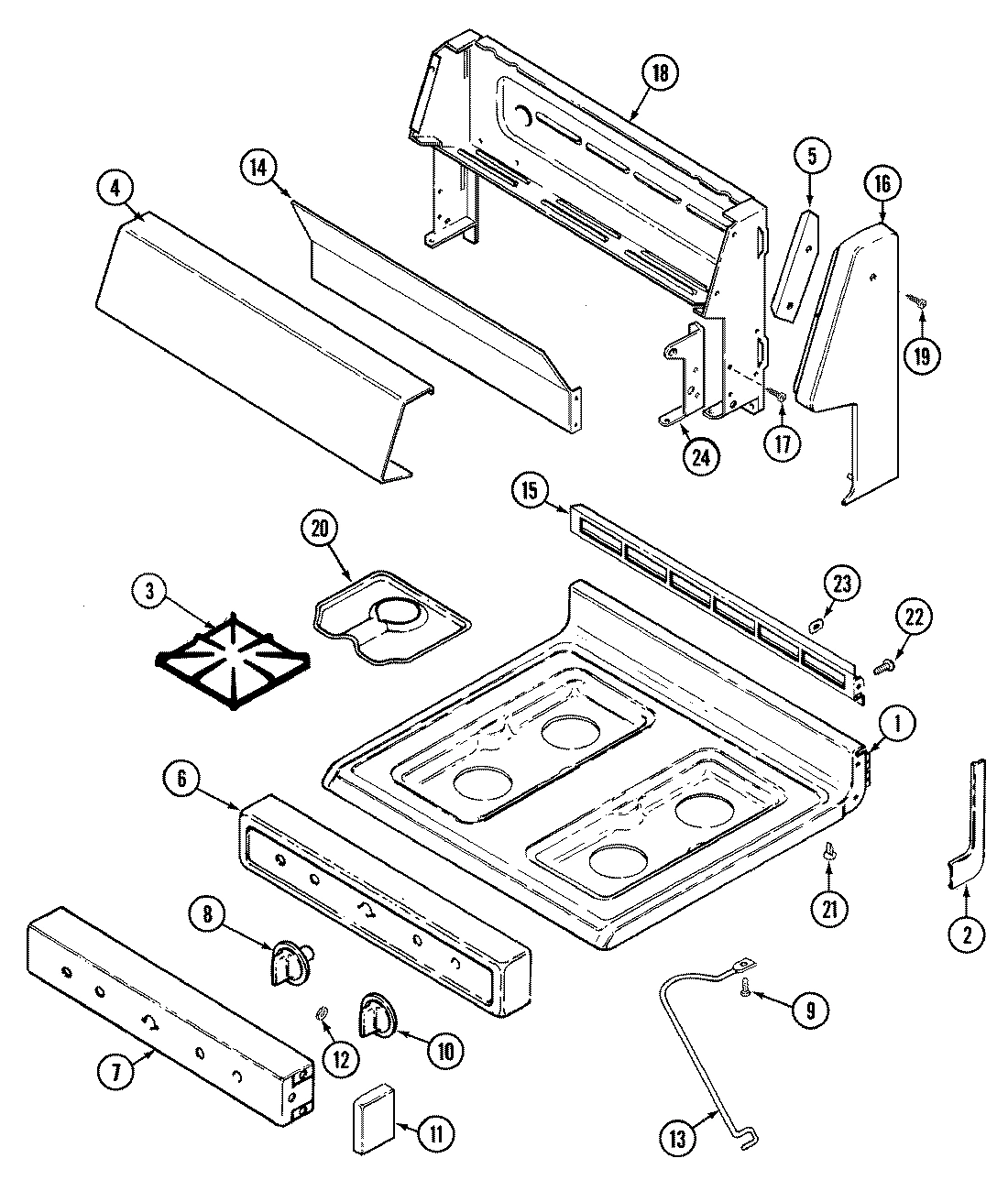

04 - TOP ASSEMBLY/CONTROL PANEL

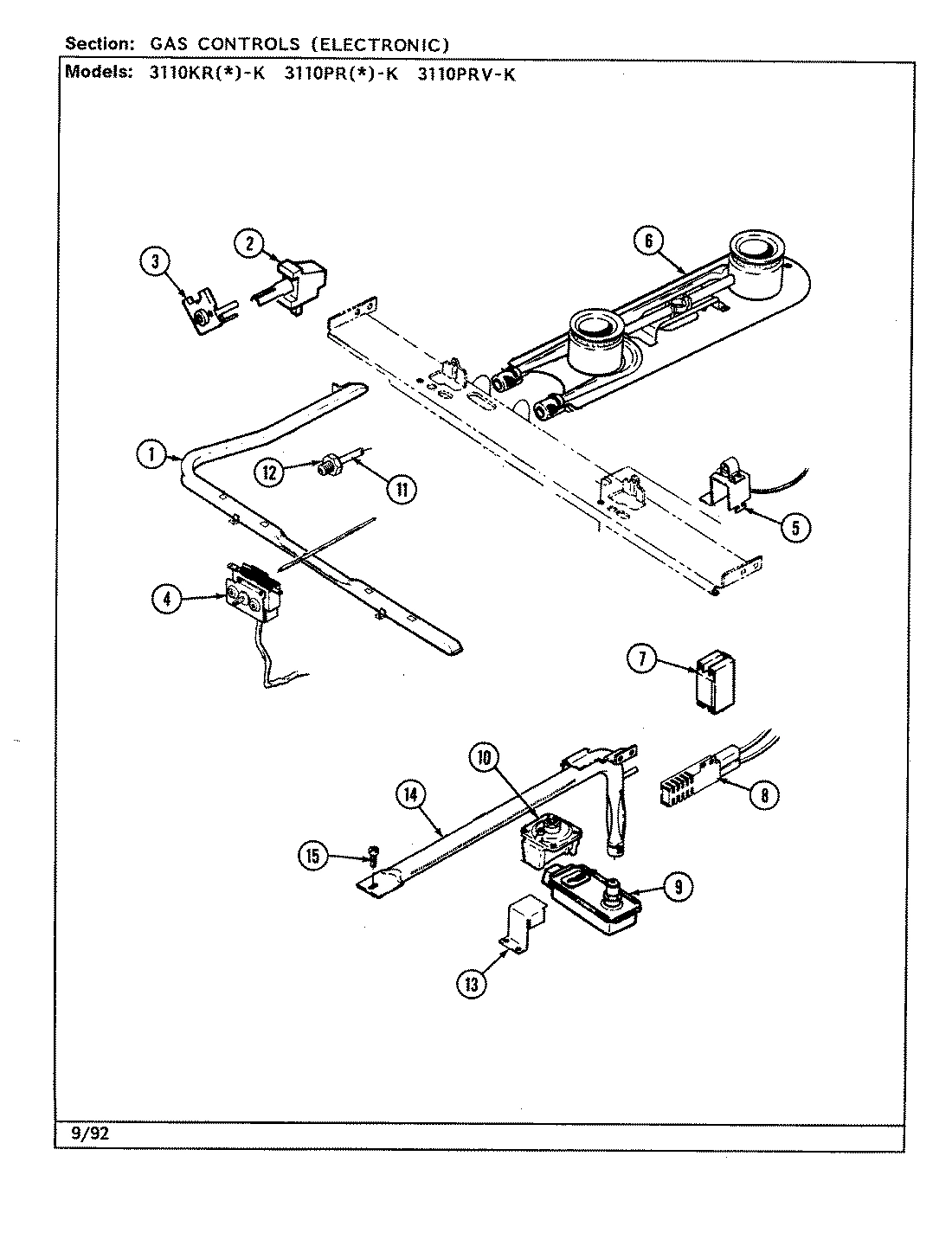

03 - GAS CONTROLS (ELECTRONIC)
Common parts from model Whirlpool 3110PRV-K GAS RANGE
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08181 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P10560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
2
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 2601F40581 Contact Us For Availability
4
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
4
THERMOSTAT WPL 7515P03260 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
LINING, DOOR WPL 2402W18719 Contact Us For Availability
6
PANEL, MANIFOLD (WHT) WPL 2616F08581 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
7
SCREW----NA WPL 7101P31160 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
8
KNOB, THERMOSTAT (WHT) WPL 7731P08760 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
10
KNOB, VALVE (WHT) WPL 7733P09060 Contact Us For Availability
10
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
11
BASE WPL 4003F02480 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
INSULATION WPL 4804F02560 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
13
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
13
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
13
COVER, VALVE WPL 4005F33451 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
14
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
14
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
14
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
15
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
15
TRIM, VENT (DARK GRAY) WPL 3608F04226 Contact Us For Availability
15
HARNESS, SUPPLY WPL 5185D24960 Contact Us For Availability
15
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
16
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
16
END CAP (RT-WHT) WPL 7726P08960 Contact Us For Availability
16
END CAP (LT-WHT) WPL 7726P09060 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
17
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
17
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
18
NUT, GRIP WPL 7103P02260 Contact Us For Availability
18
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
OVEN BOTTOM ASSY. WPL 5504A00116 Contact Us For Availability
19
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
19
SCREW WPL 7101P03260 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
20
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
21
GLIDE WPL 8016P01360 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
23
NUT, SPEED WPL 7103P12960 Contact Us For Availability
24
RACK, OVEN WPL 7801P03660 Contact Us For Availability
24
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
24
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
25
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P30060 Contact Us For Availability
× ![]()
