Model Whirlpool 3110PRA GAS RANGE – Common Parts & Diagrams
01 - BODY/OVEN

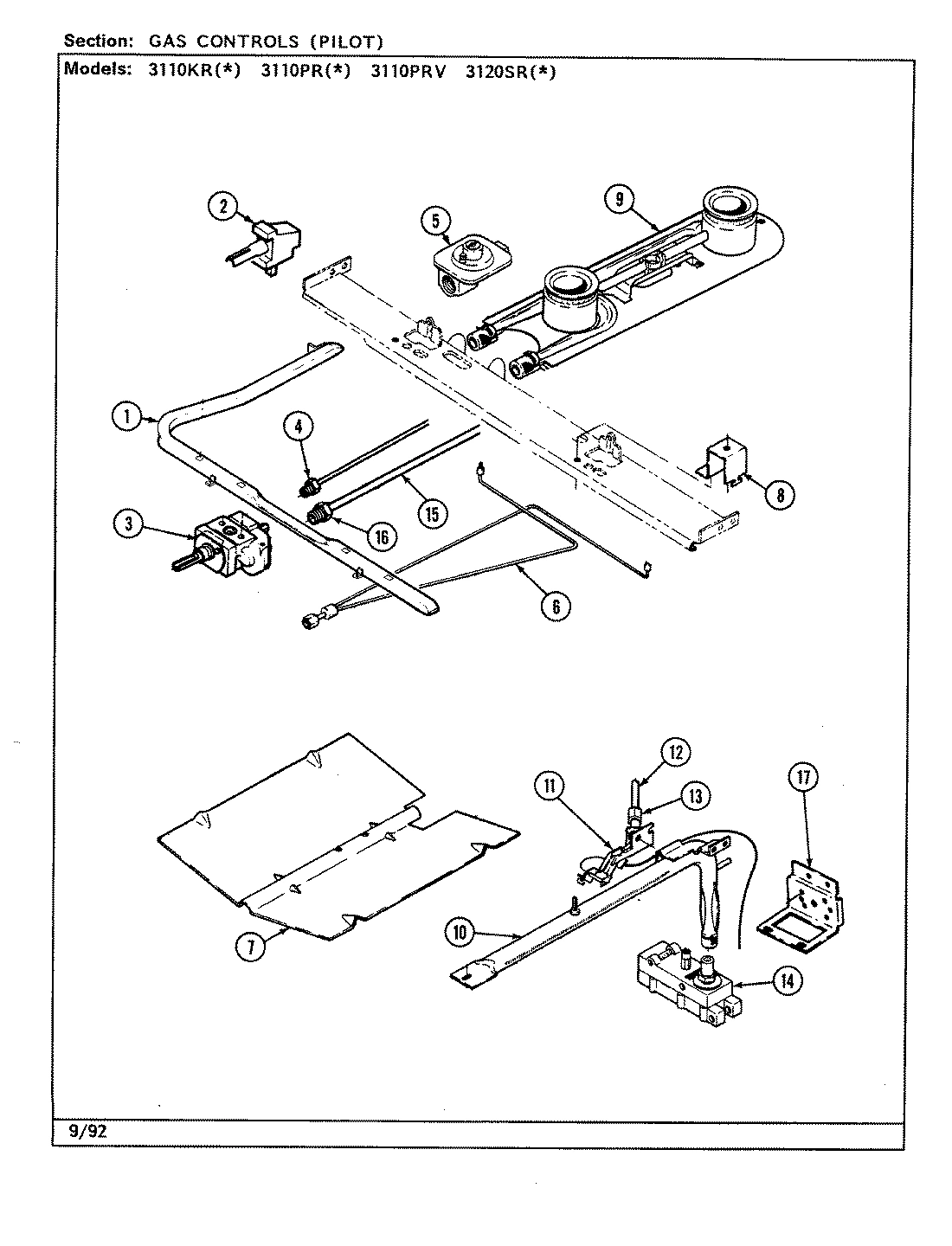

03 - GAS CONTROLS (PILOT)

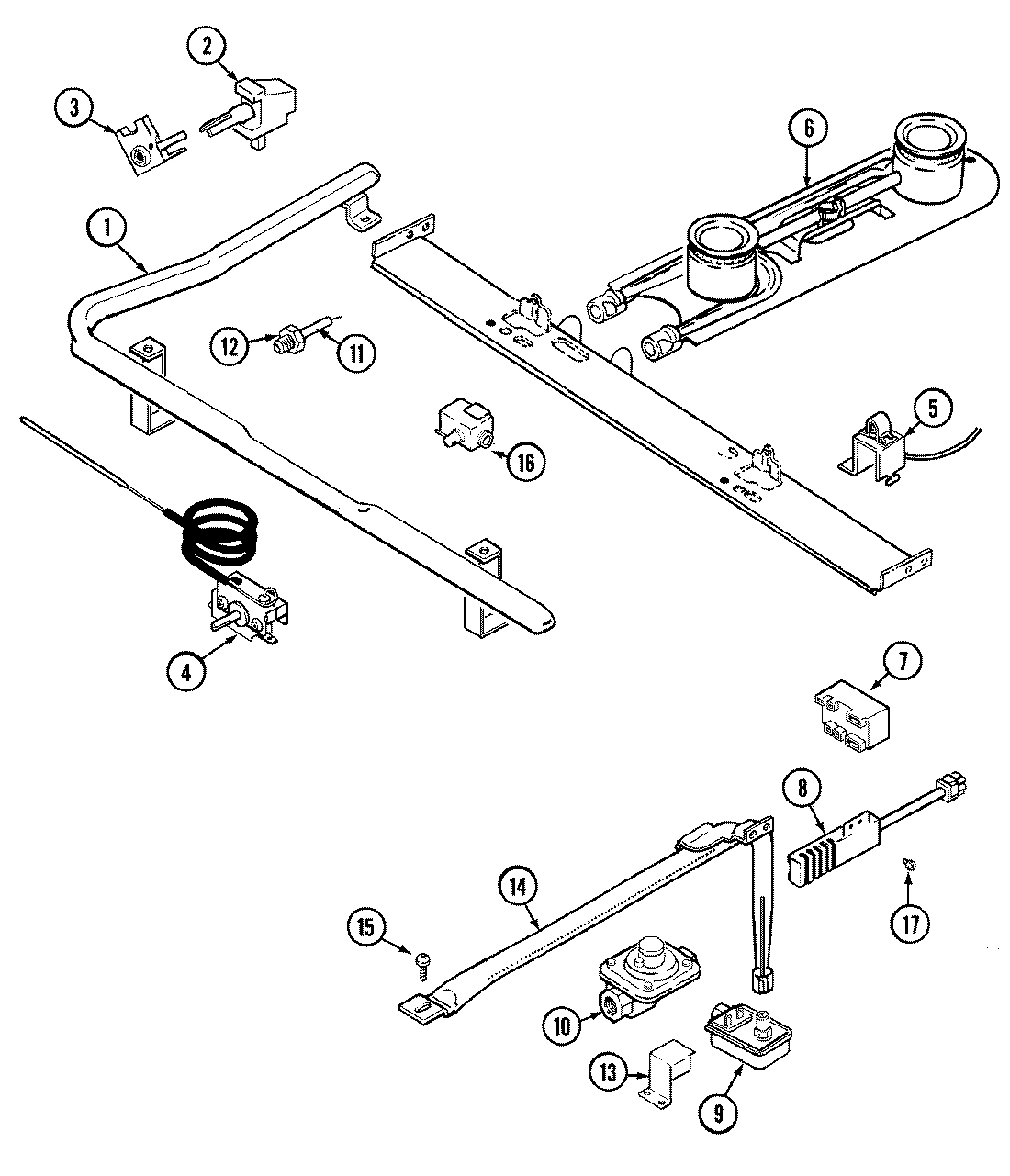

02 - GAS CONTROLS (ELECTRONIC)
Common parts from model Whirlpool 3110PRA GAS RANGE
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
PIPE MANIFOLD WPL 7513P13260 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P10560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P24960 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 7515P03460 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
4
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7515P03260 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
BURNER, PILOT (LP) WPL 7505P19460 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
BOTTOM, OVEN WPL 5504M00119 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
11
BASE WPL 4003F02480 Contact Us For Availability
11
BASE, MAIN WPL 4003W02880 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
COVER, VALVE WPL 4005F33451 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
14
VALVE, OVEN WPL 7501P12760 Contact Us For Availability
15
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
TUBING 3/8`` WPL 3414F09444 Contact Us For Availability
15
HARNESS, SUPPLY WPL 5185D24960 Contact Us For Availability
15
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
16
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
16
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
17
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
17
BRACKET, SAFETY VALVE WPL 3801F23845 Contact Us For Availability
17
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
19
RETAINER WPL 3804F01050 Contact Us For Availability
19
OVEN BOTTOM ASSY. WPL 5504A00116 Contact Us For Availability
20
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
22
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
23
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
24
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
RACK, OVEN WPL 7801P03660 Contact Us For Availability
25
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P30060 Contact Us For Availability
× ![]()
