Model Whirlpool 3110KPW GAS RANGE – Common Parts & Diagrams
01 - BODY (3110KPx,3110KPx-K)

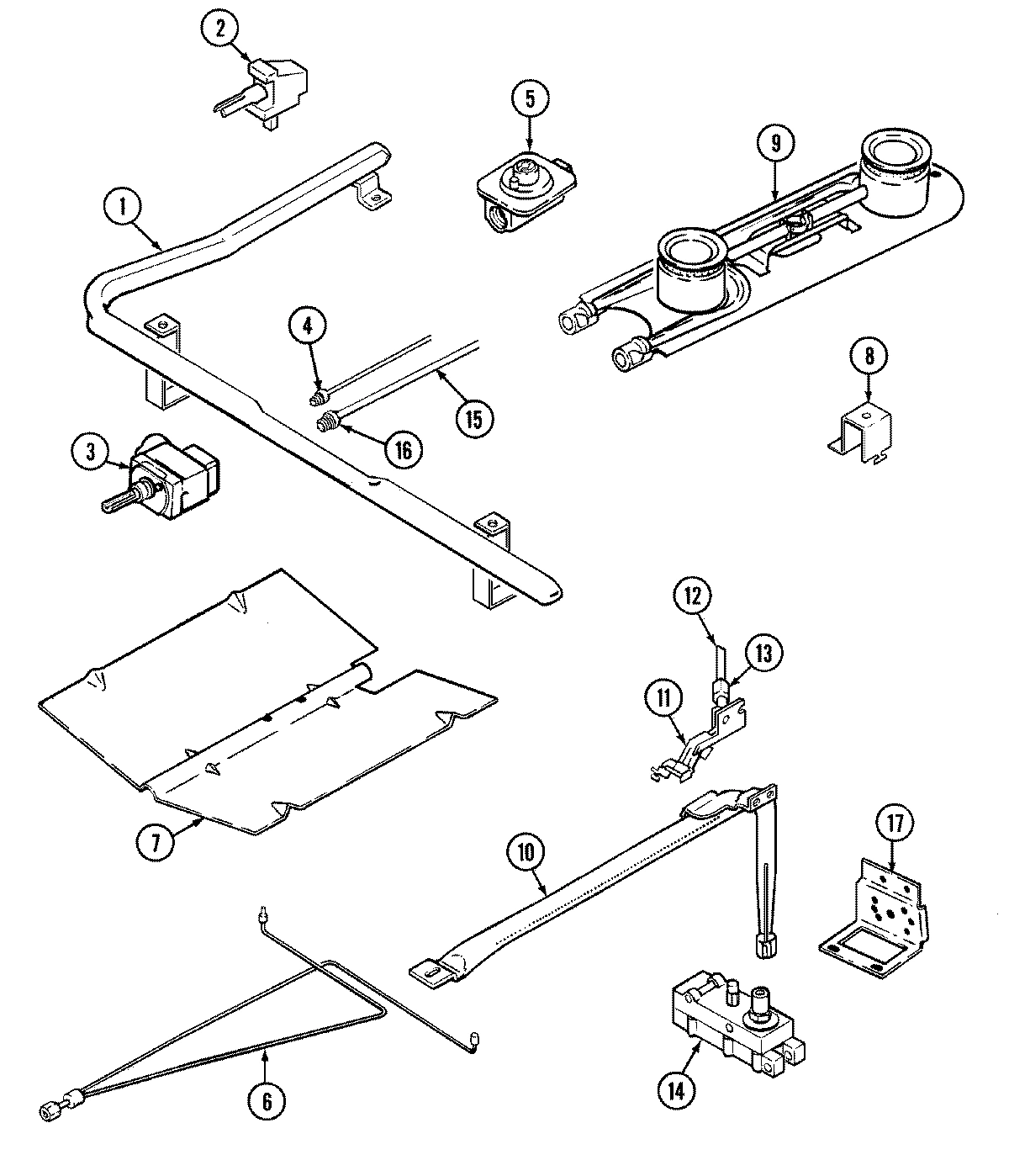

03 - GAS CONTROLS (3110PPx,3110KPx)

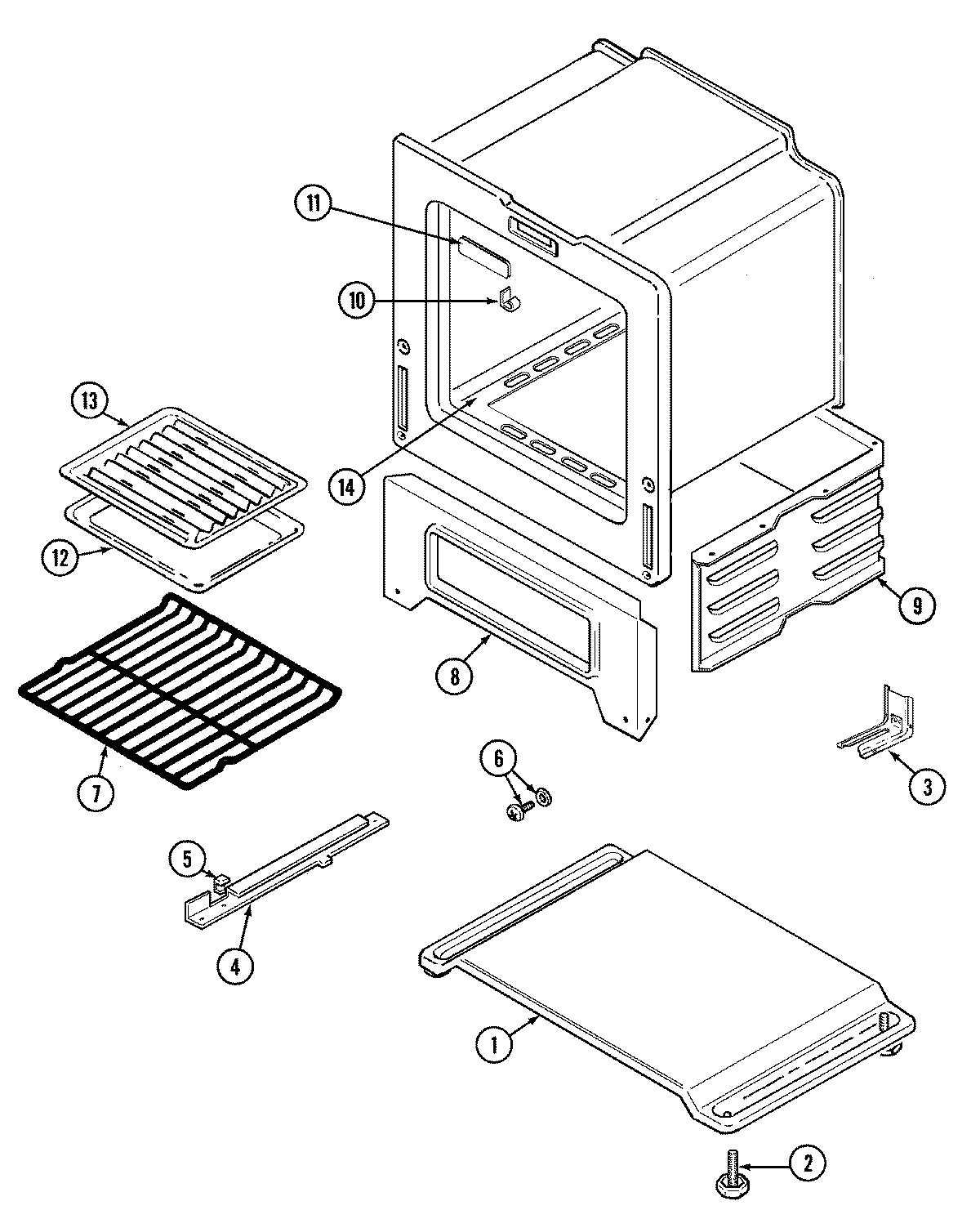

04 - OVEN/BASE (3110KPx,3110KPx-K)

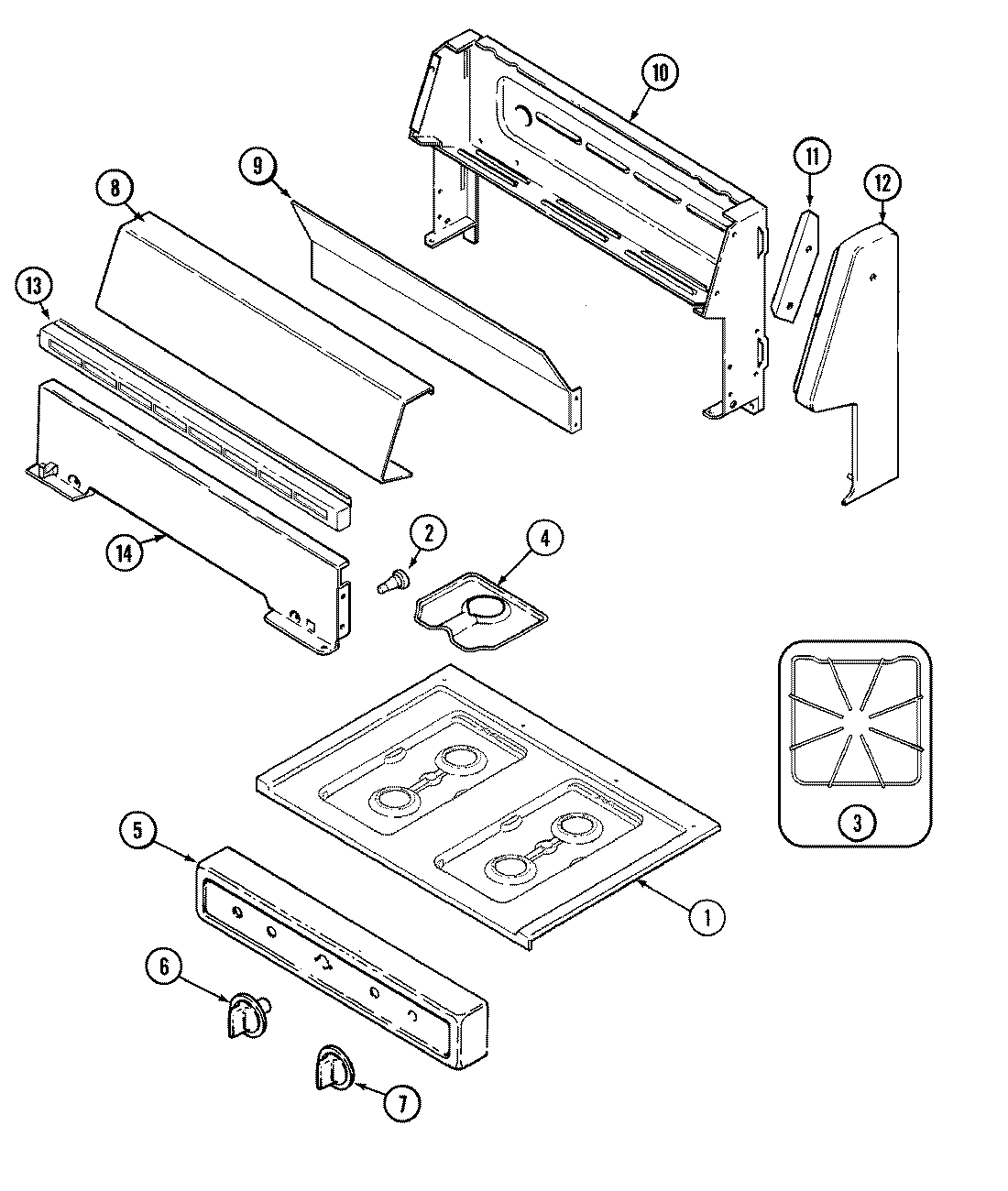

05 - TOP ASSEMBLY (3110KPx,3110KPx-K)

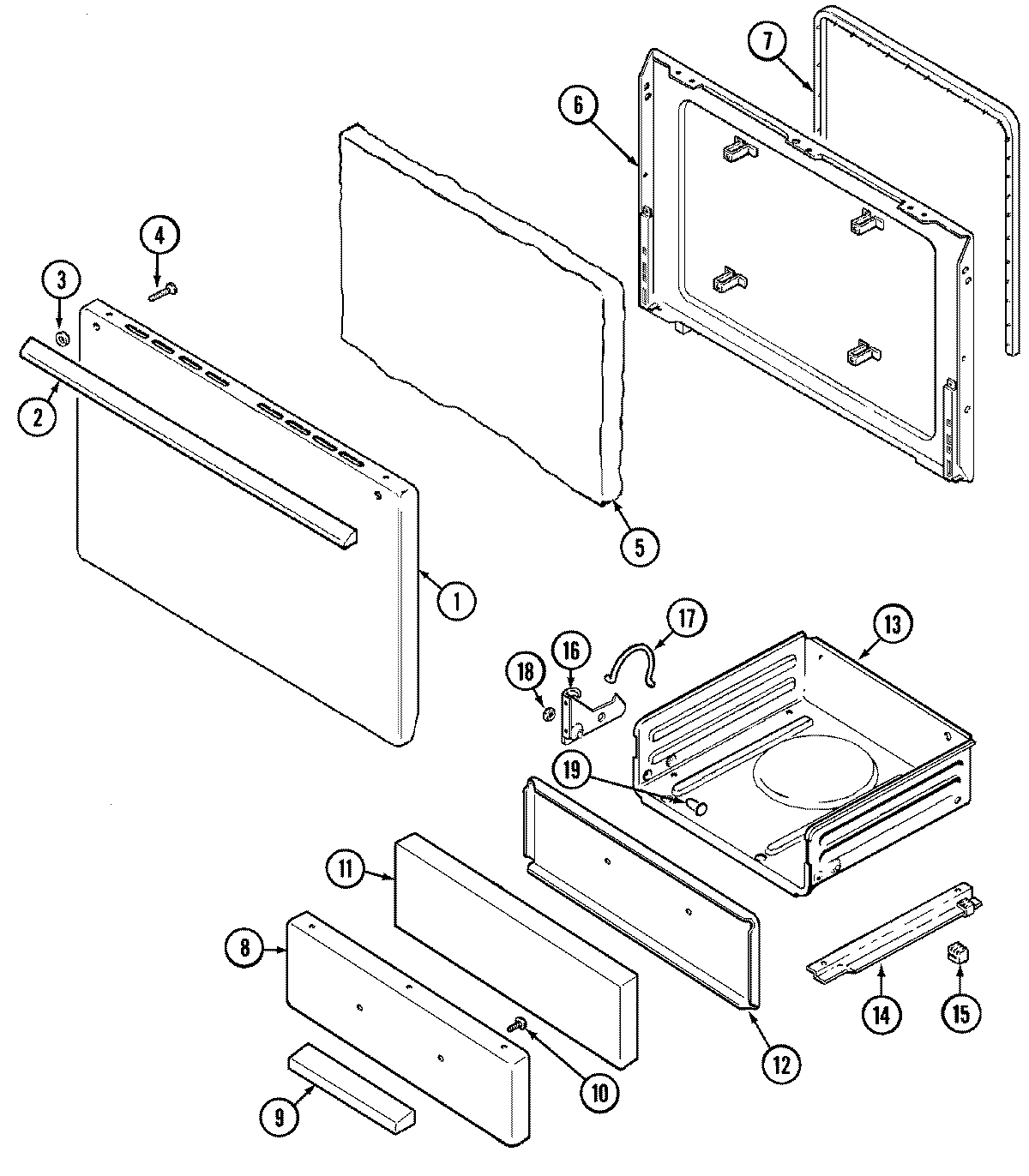

02 - DOOR/DRAWER (3110KPx,3110KPx-K)
Common parts from model Whirlpool 3110KPW GAS RANGE
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
PIPE MANIFOLD WPL 7513P13260 Contact Us For Availability
1
BASE WPL 4003F02480 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F09881 Contact Us For Availability
1
PANEL, DOOR (BLK) WPL 2401F09670 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
HANDLE, DRAWER (BLK) WPL 2411F00370 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 7515P03260 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 2616F08509 Contact Us For Availability
5
SCREW----NA WPL 7101P31160 Contact Us For Availability
5
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
6
BURNER, PILOT (NATURAL) WPL 7505P19360 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
6
KNOB, THERMOSTAT (BLK) WPL 7731P07960 Contact Us For Availability
6
LINING, DOOR WPL 2402W18719 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 7733P06260 Contact Us For Availability
7
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
8
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
8
PANEL, CONTROL (WHT) WPL 2601F40581 Contact Us For Availability
8
BRACKET, BACKGUARD WPL 3801F29651 Contact Us For Availability
8
PANEL, DRAWER (WHT) WPL 2403F02871 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
BURNER, TOP WPL 3412A00419 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
SHIELD, FLUE WPL 3604F17009 Contact Us For Availability
9
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
HOUSING, BACKGUARD WPL 4001F08451 Contact Us For Availability
10
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
11
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
11
INSULATION WPL 4804F02560 Contact Us For Availability
12
SCREW WPL 7101P30060 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
SCREW WPL 7101P03260 Contact Us For Availability
12
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
12
END CAP (RT-BLK) WPL 7726P06960 Contact Us For Availability
12
TRIM, END CAP WPL 7726P07060 Contact Us For Availability
12
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
13
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
TRIM, VENT WPL 3608F04309 Contact Us For Availability
13
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
14
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
14
VALVE, OVEN WPL 7501P11160 Contact Us For Availability
14
RETAINER WPL 3804F01050 Contact Us For Availability
14
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
14
BACKSPLASH (WHT) WPL 2612F03781 Contact Us For Availability
14
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
14
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
15
TUBING 3/8`` WPL 3414F09444 Contact Us For Availability
15
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8113P01160 Contact Us For Availability
15
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
15
GLIDE, DRAWER REAR WPL 8016P01260 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
16
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
16
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
17
BRACKET, SAFETY VALVE WPL 3801F23845 Contact Us For Availability
17
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
17
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
18
NUT, GRIP WPL 7103P02260 Contact Us For Availability
19
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
× ![]()
