Model Whirlpool 31100PAW GAS RANGE – Common Parts & Diagrams

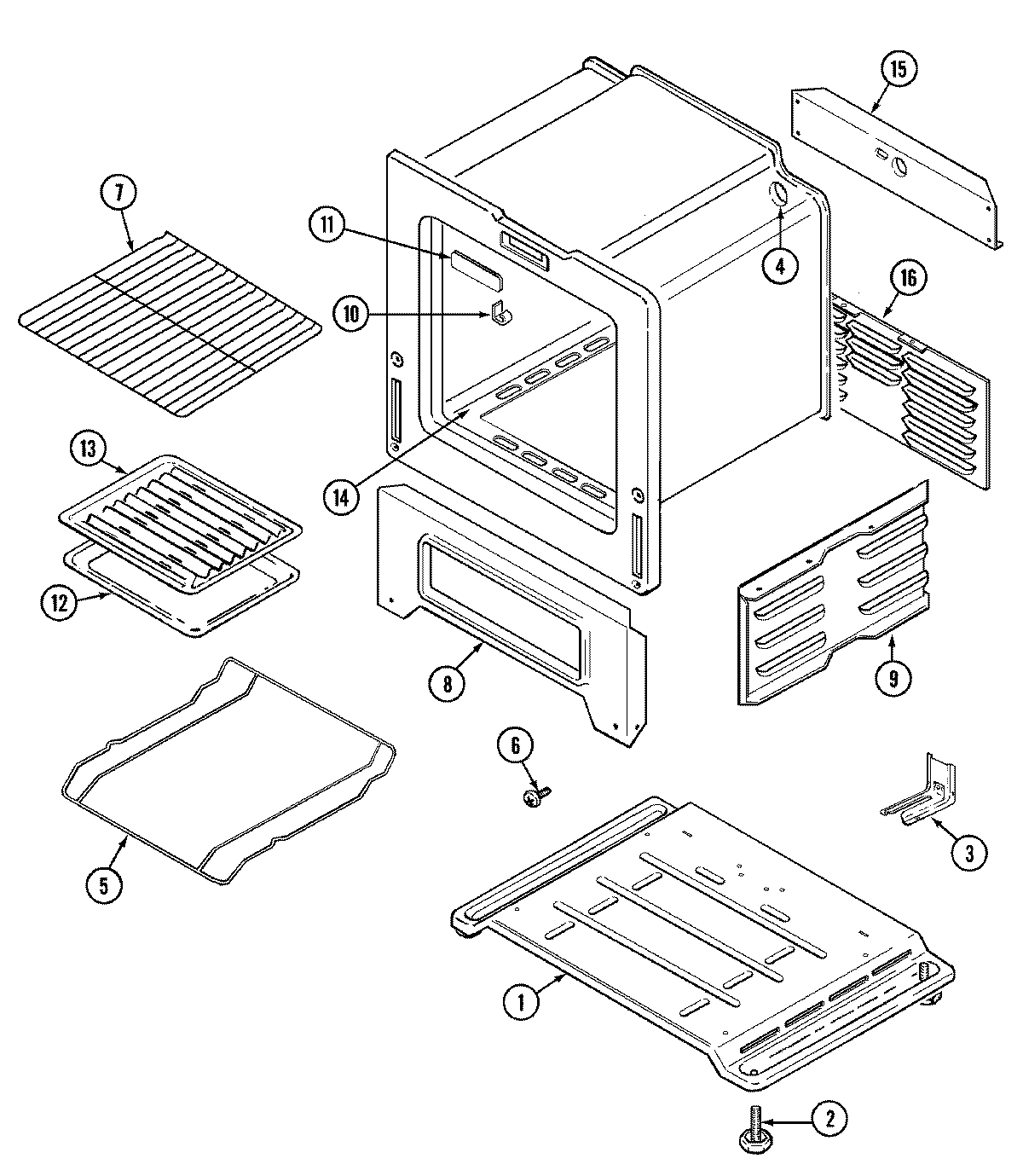

05 - OVEN/BASE

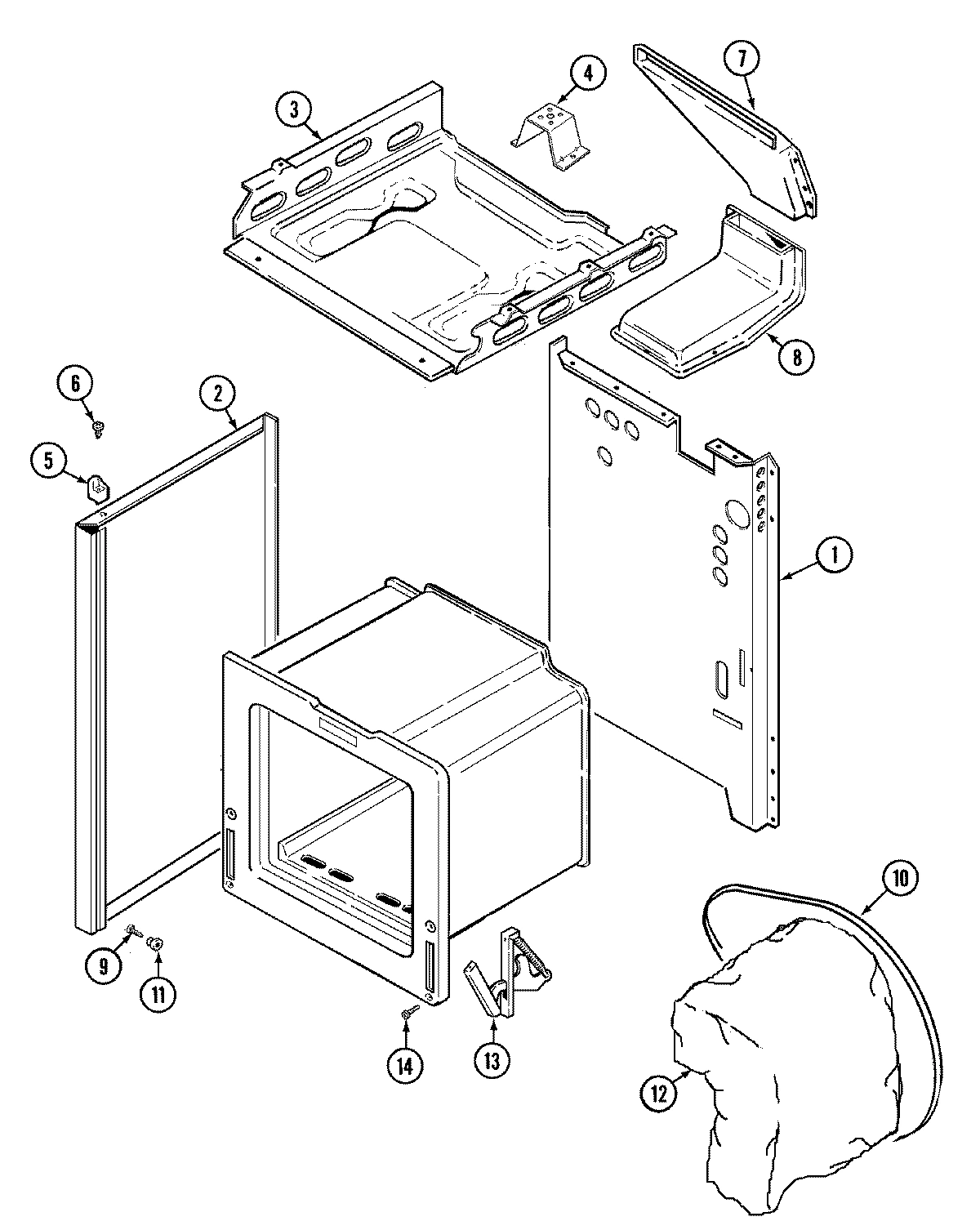

01 - BODY

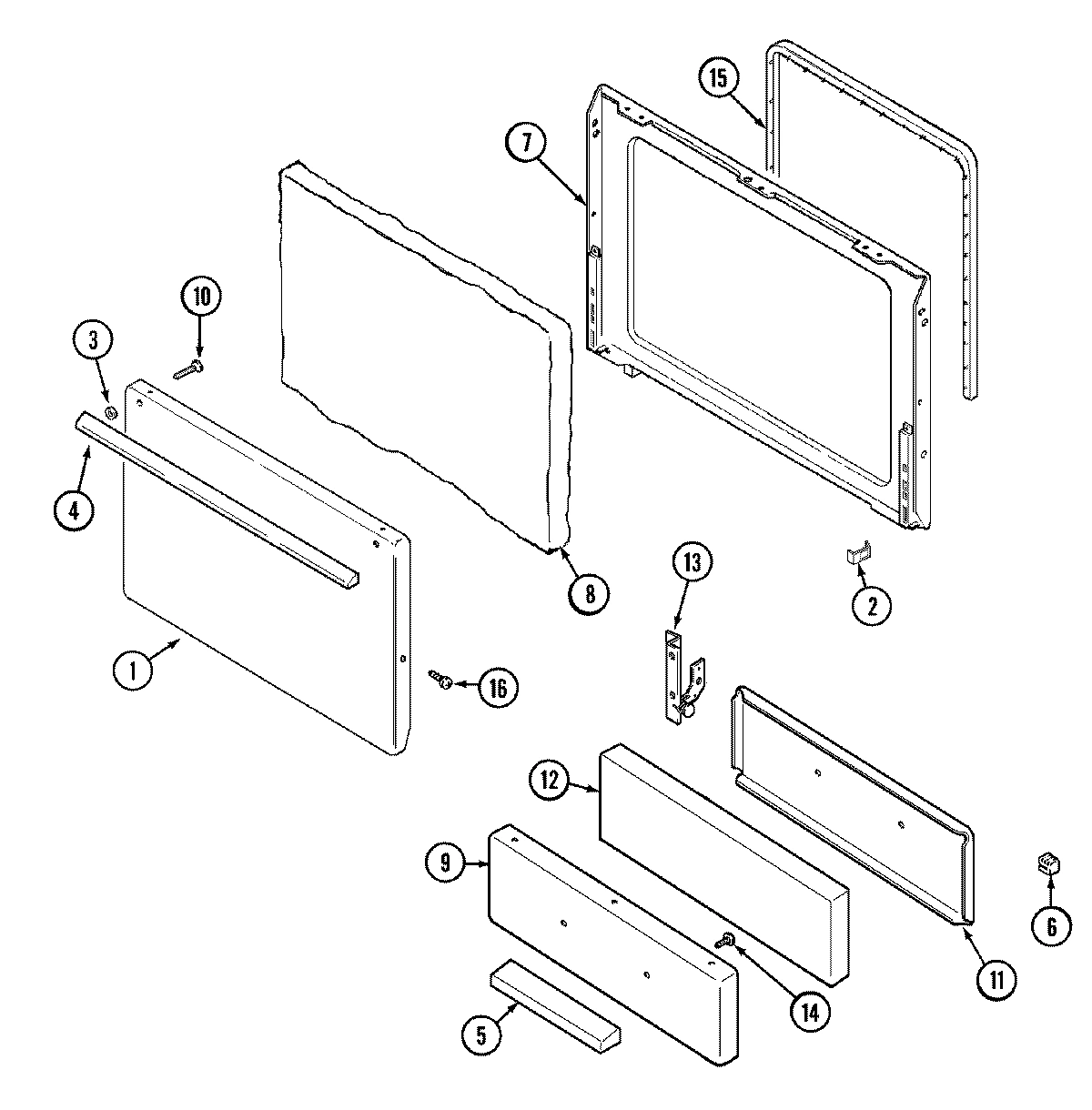

03 - DOOR/DRAWER (31100PAx)

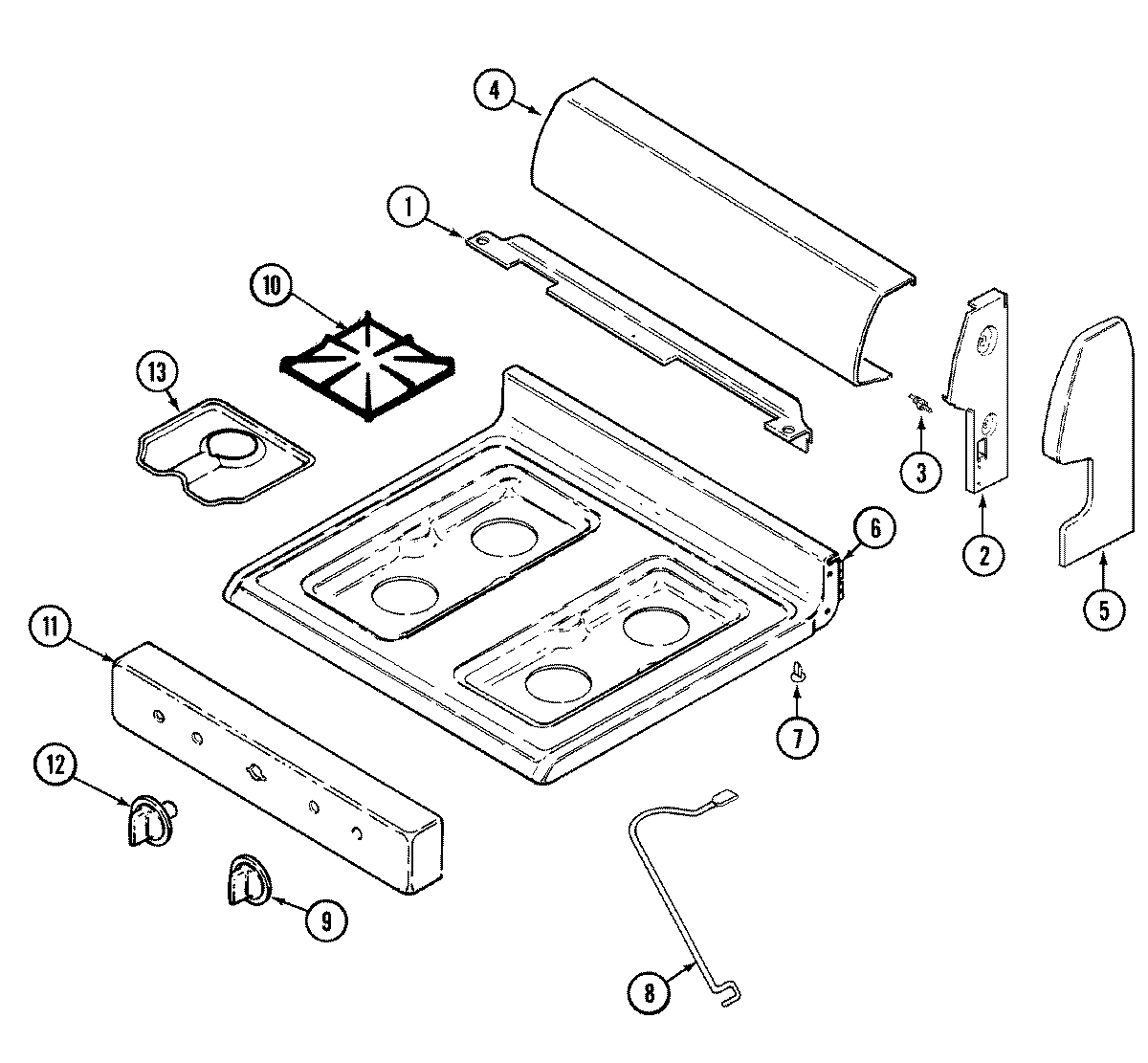

02 - CONTROL PANEL/TOP ASSEMBLY

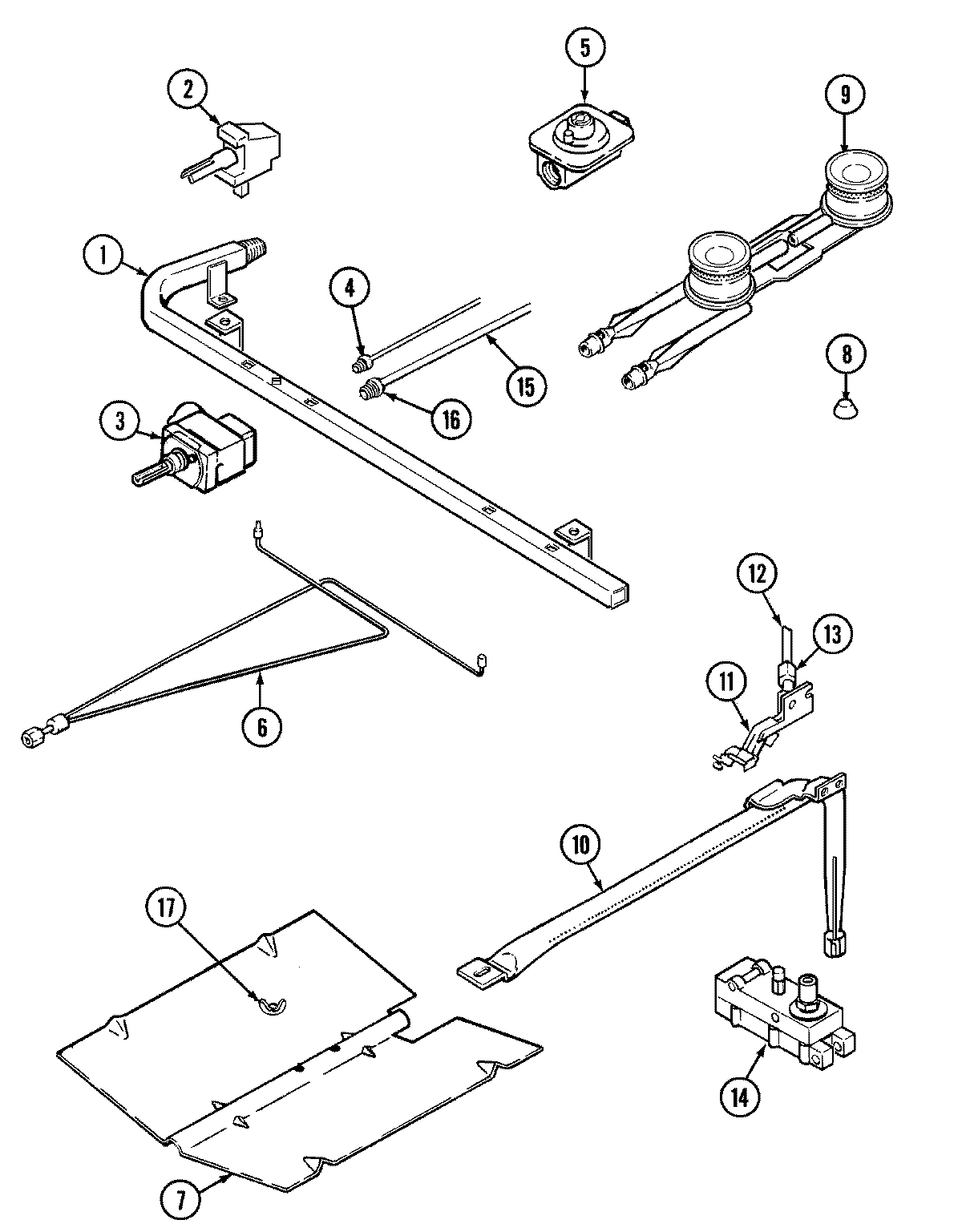

04 - GAS CONTROLS
Common parts from model Whirlpool 31100PAW GAS RANGE
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
BACK, MAIN WPL 74006548 Contact Us For Availability
1
GROMMET WPL 8008P01060 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74002282 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
1
CLIP, SPACER WPL 74002409 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002424 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74010235 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
KIT, VALVE (MUELLER) WPL 12002286 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, BURNER WPL 74002383 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 74002425 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002427 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74010150 Contact Us For Availability
4
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 74002405 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
5
END CAP, PANEL (LT-BLK) WPL 74002406 Contact Us For Availability
5
END CAP, PANEL (RT-BLK) WPL 74002407 Contact Us For Availability
5
SCREW WPL 74002408 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
TOP, MAIN (WHT) WPL 74002410 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P12860 Contact Us For Availability
6
PILOT, BURNER WPL 74002426 Contact Us For Availability
6
TUBING, OVEN PILOT (W/NUT) WPL 74009922 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
GLIDE WPL 8016P01560 Contact Us For Availability
7
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
7
LINING, DOOR WPL 74002396 Contact Us For Availability
7
LINING, DOOR WPL 74003240 Contact Us For Availability
7
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
8
SUPPORT, TOP WPL 74001170 Contact Us For Availability
8
CONE, BURNER PILOT WPL 74002435 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
9
PANEL, DRAWER (WHT) WPL 74001729 Contact Us For Availability
9
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
9
BURNER, TOP WPL 74002392 Contact Us For Availability
9
BURNER, TOP (REAR) WPL 74010148 Contact Us For Availability
9
BURNER, TOP (FRT) WPL 74010149 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
LINING, DRAWER WPL 74002397 Contact Us For Availability
11
LINING, DRAWER WPL 74007553 Contact Us For Availability
11
PANEL, MANIFOLD (BLK) WPL 74002411 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
12
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
12
INSULATION WPL 4804F02560 Contact Us For Availability
12
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
13
HINGE, DRAWER WPL 74007560 Contact Us For Availability
13
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
13
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
13
MANUAL, USE & CARE WPL 8113P43460 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
14
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
14
BRACKET, BURNER SUPPLY WPL 74010136 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
14
VALVE, OVEN WPL 74002428 Contact Us For Availability
14
HOLDER, ORIFICE WPL 74010135 Contact Us For Availability
14
NUT, HEX WPL 74010137 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
15
KIT, TUBING W/LOXIT (3/8``) WPL 12001100 Contact Us For Availability
15
TUBING, OVEN VALVE (3/8``) WPL 74001062 Contact Us For Availability
15
TUBING, BAKE BURNER SUPPLY WPL 74010133 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
KIT, NATURAL TO LP WPL 74009923 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
× ![]()
