Model Whirlpool 3100PPA-K GAS RANGE – Common Parts & Diagrams

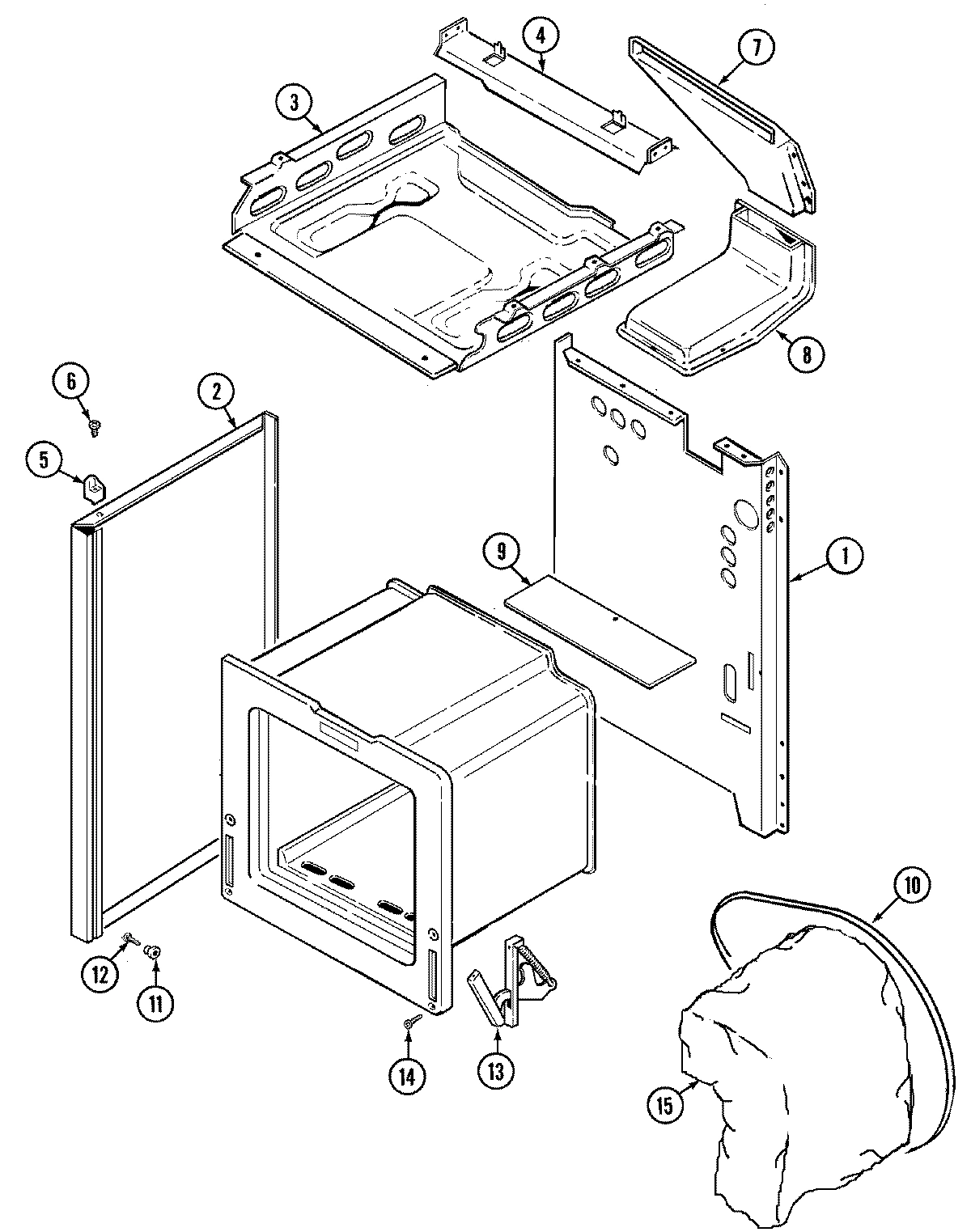

01 - BODY (3100PPx,3100PPx-K)

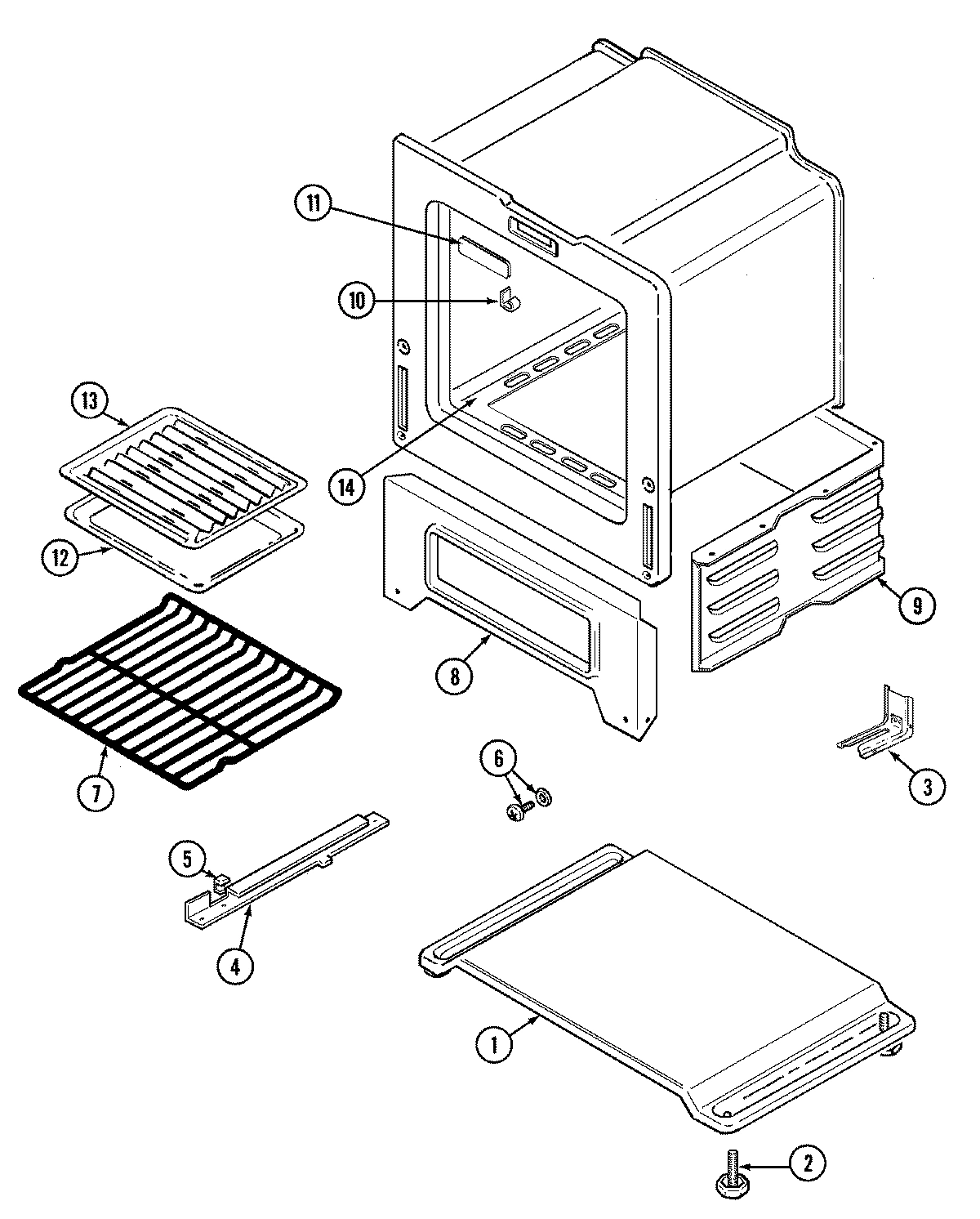

03 - OVEN/BASE (3100PPx,3100PPx-K)

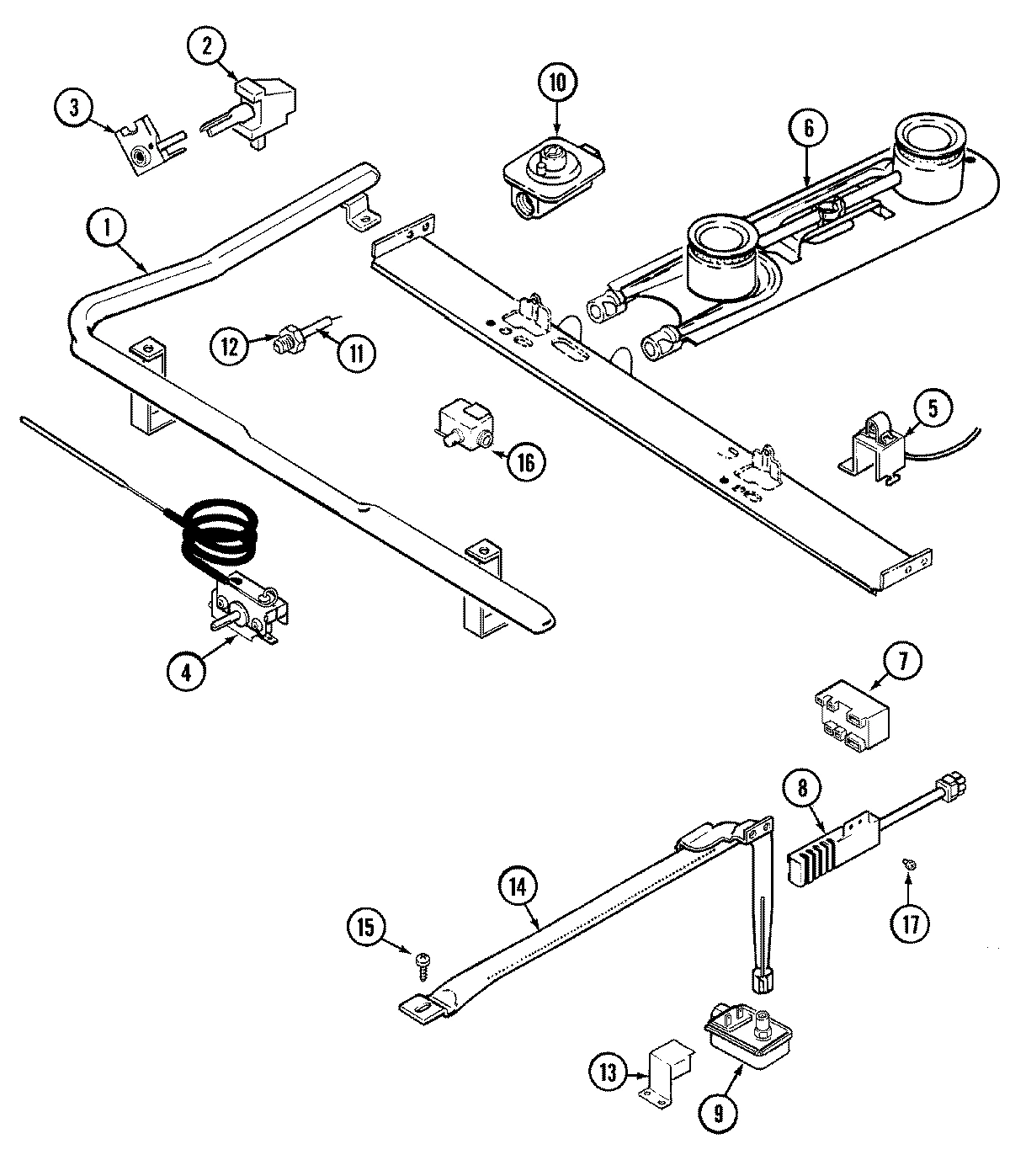

02 - GAS CONTROLS (3100PPx-K,3100SPx-K)
Common parts from model Whirlpool 3100PPA-K GAS RANGE
1
BACK, MAIN WPL 4002F13880 Contact Us For Availability
1
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
1
BASE WPL 4003F02480 Contact Us For Availability
1
BASE, MAIN WPL 4003W02880 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P10560 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
3
BOX, BURNER WPL 4011F20980 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
4
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
4
THERMOSTAT WPL 7404P08460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
7
EXTENSION, FLUE ASSY WPL 4022W00351 Contact Us For Availability
7
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
EXTENSION, OVEN FRONT WPL 2201F07319 Contact Us For Availability
8
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
SIDES, BROILER WPL 4016F03945 Contact Us For Availability
9
VALVE, OVEN WPL 7501P09960 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
REGULATOR, PRESSURE W/FITTING WPL 7510P05060 Contact Us For Availability
10
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
11
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
SCREW WPL 7101P30060 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
COVER, VALVE WPL 4005F33451 Contact Us For Availability
14
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
14
RETAINER WPL 3804F01050 Contact Us For Availability
14
BOTTOM, OVEN WPL 5504A00119 Contact Us For Availability
14
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
15
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
15
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
16
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
17
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
18
HARNESS, SUPPLY WPL 5185D24960 Contact Us For Availability
18
CORD, POWER WPL 7402P04360 Contact Us For Availability
× ![]()
