Model Whirlpool 31003PAWD GAS RANGE – Common Parts & Diagrams

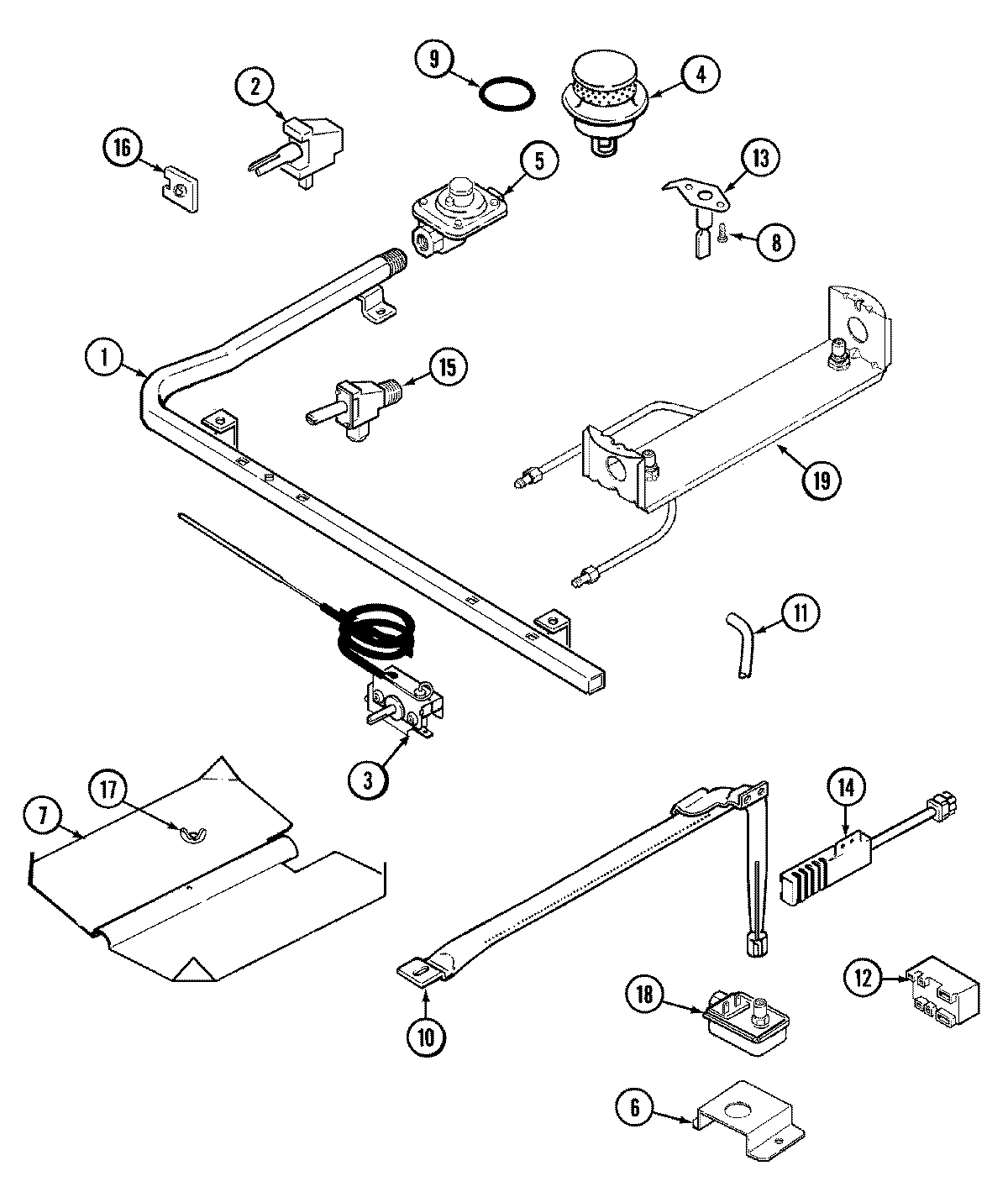

03 - GAS CONTROLS

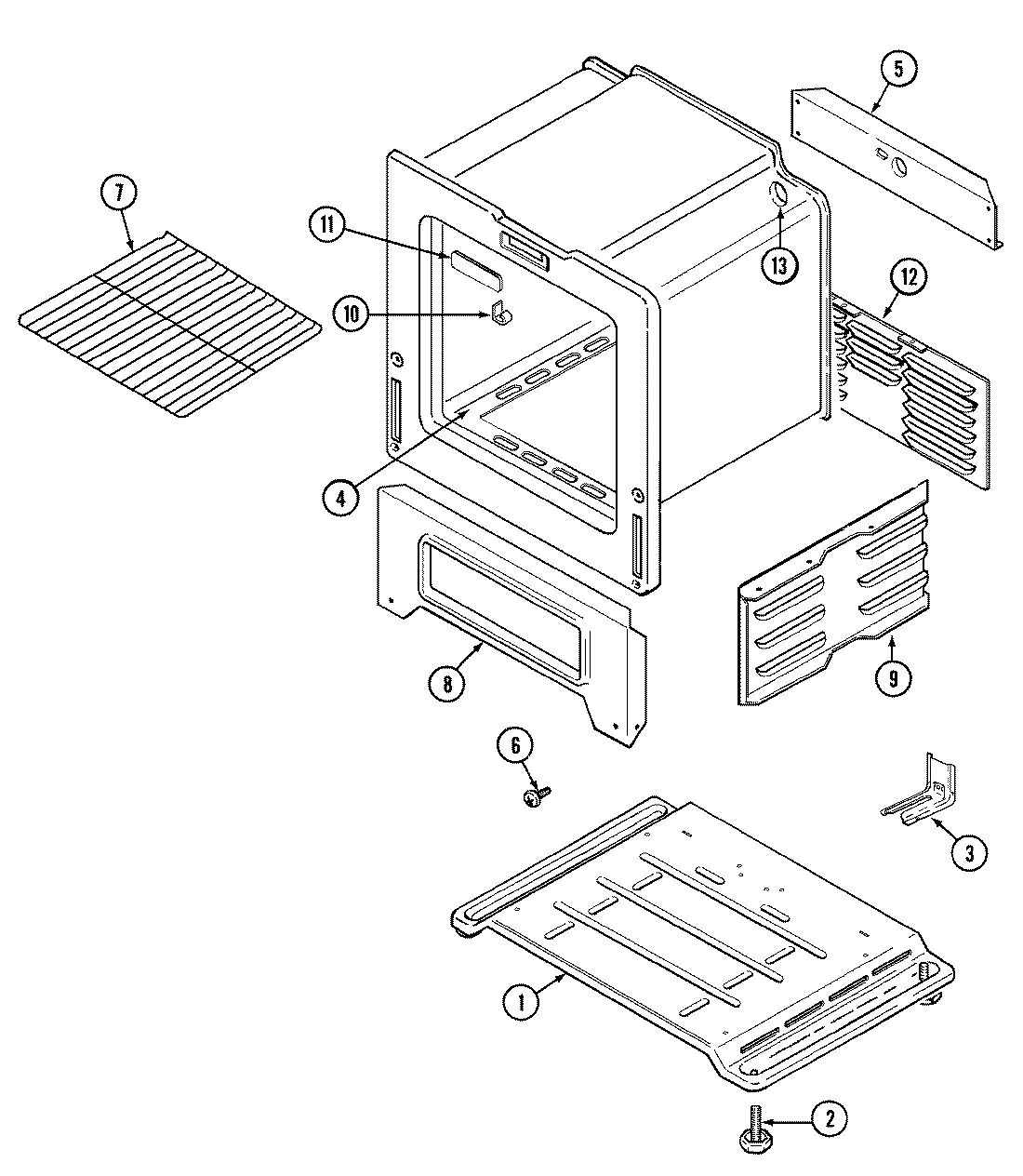

04 - OVEN/BASE

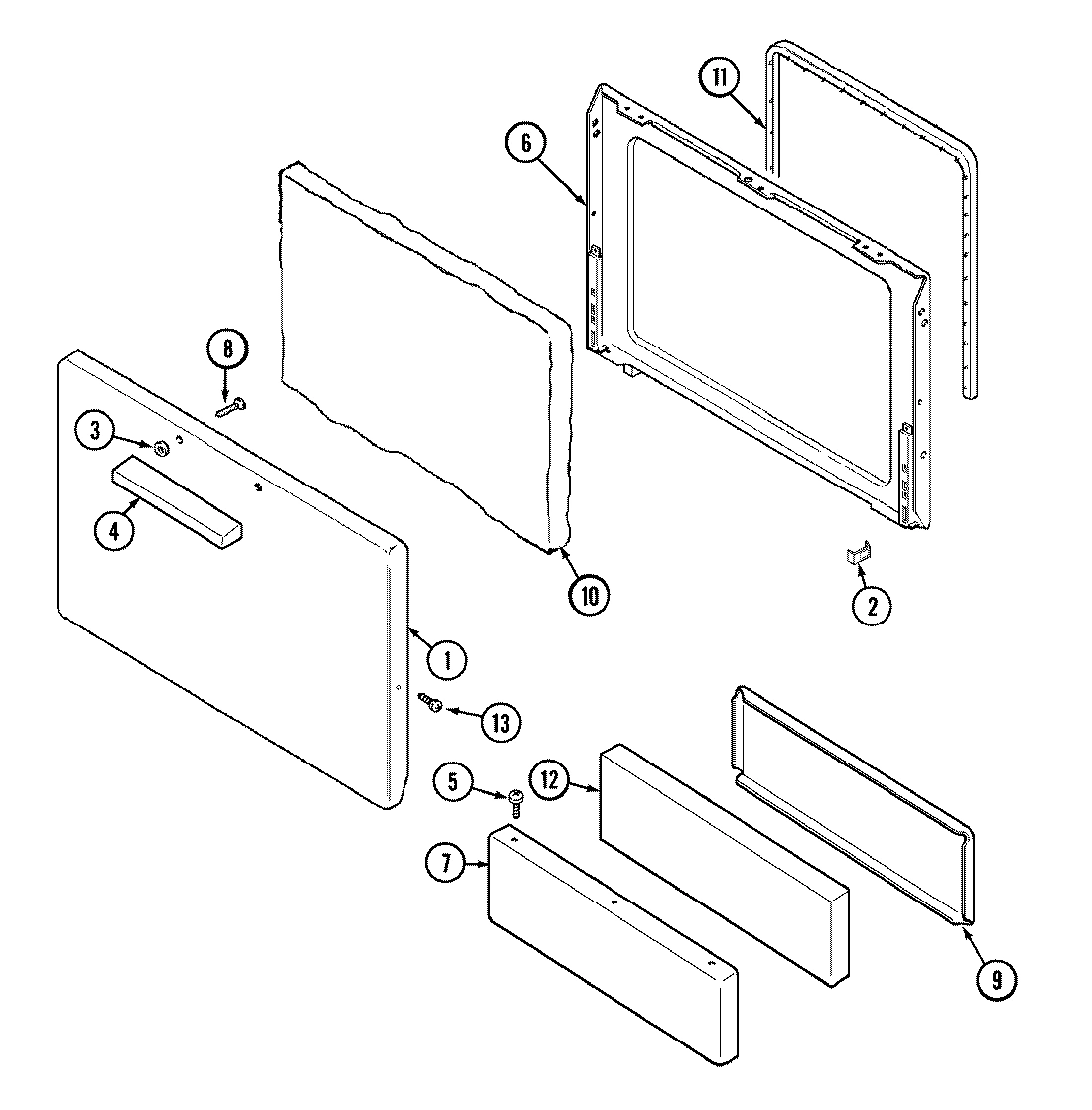

02 - DOOR

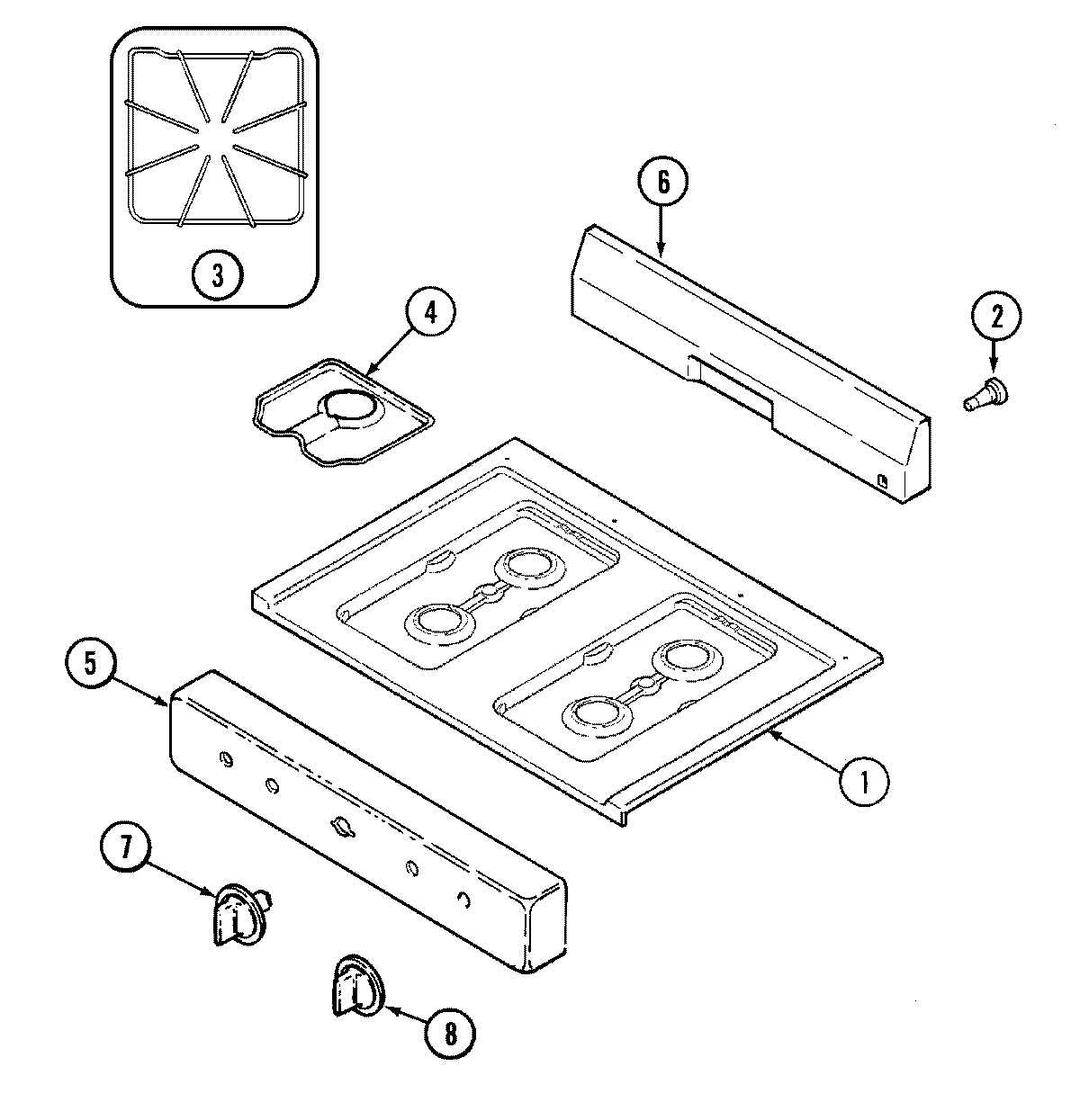

05 - TOP ASSEMBLY

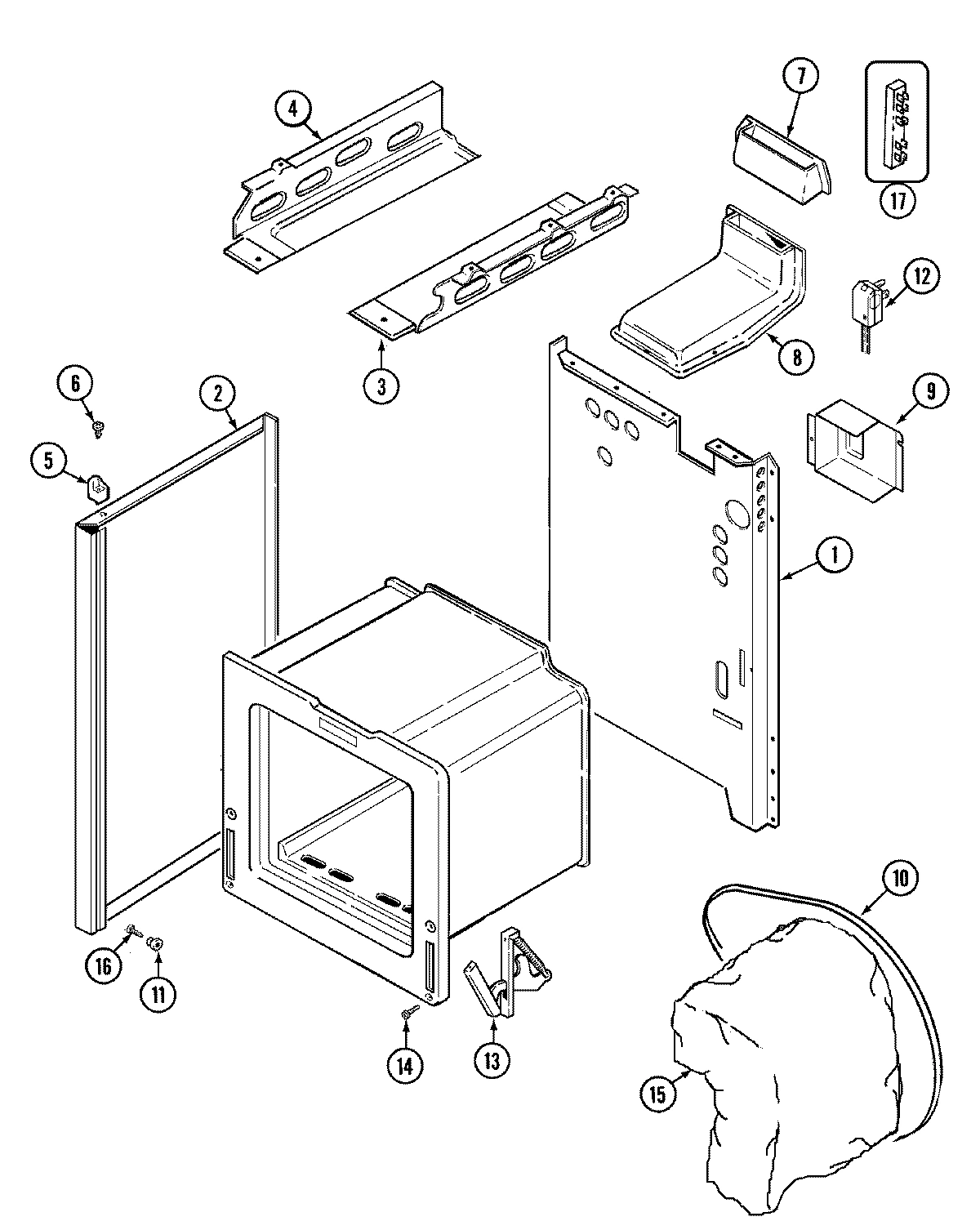

01 - BODY

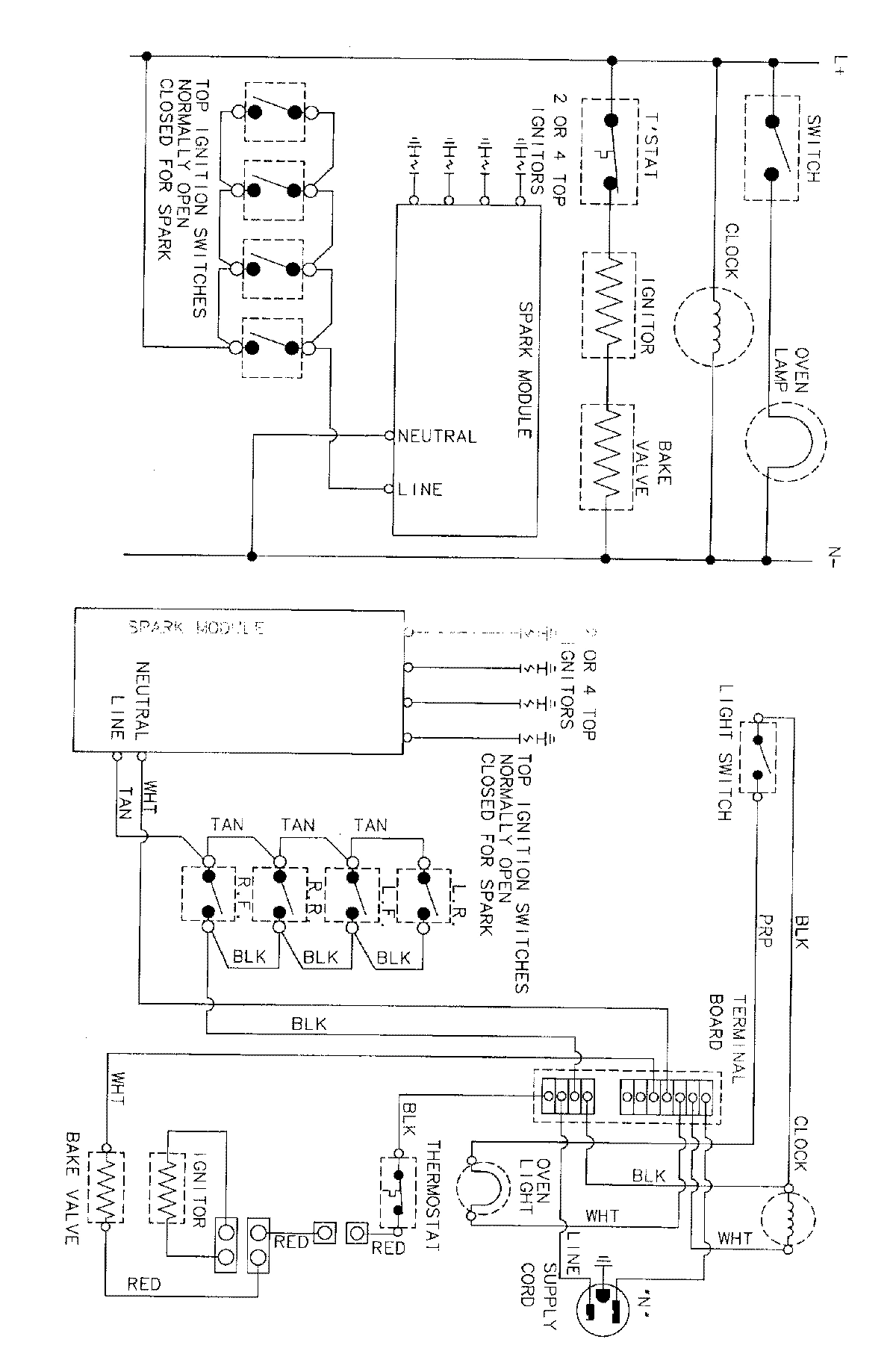

06 - WIRING INFORMATION
Common parts from model Whirlpool 31003PAWD GAS RANGE
1
PIPE, MANIFOLD WPL 74002454 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74002395 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74003137 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F11781 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
2
VALVE, BURNER WPL 74002455 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
3
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002452 Contact Us For Availability
4
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
4
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
4
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
4
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002453 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
5
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
5
SCREW----NA WPL 7101P31160 Contact Us For Availability
5
PANEL, CONTROL (BLK) WPL 74002351 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
6
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
6
LINING, DOOR WPL 74002396 Contact Us For Availability
6
PANEL, BACKGUARD (BLK) WPL 74002354 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
7
PANEL, LOWER (WHT) WPL 74002489 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002366 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
LINING, DRAWER WPL 74002397 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74002368 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
INSULATION WPL 4804F02560 Contact Us For Availability
10
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
10
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
12
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
12
BACK, BROILER WPL 74002379 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
13
COVER, HOLE WPL 74002380 Contact Us For Availability
13
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
19
ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability
20
WIRES, MODULE/SWITCHES WPL 74002362 Contact Us For Availability
20
WIRES, SWITCH (BLK/TN) WPL 74002363 Contact Us For Availability
20
WIRES, IGNITER (4-OR) WPL 74002457 Contact Us For Availability
21
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001767 Contact Us For Availability
× ![]()
