Model Whirlpool 31000PAWD GAS RANGE – Common Parts & Diagrams
02 - DOOR

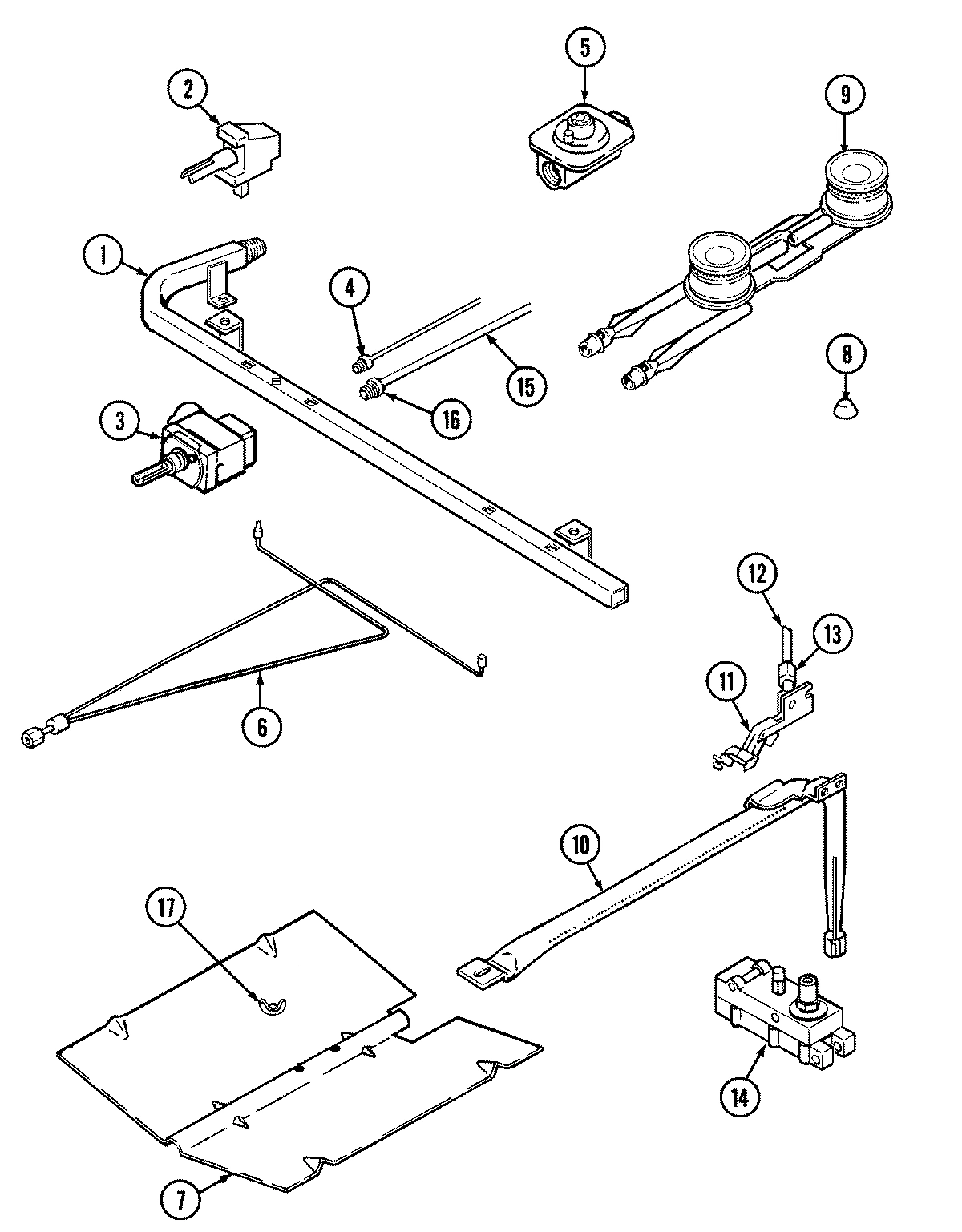

03 - GAS CONTROLS

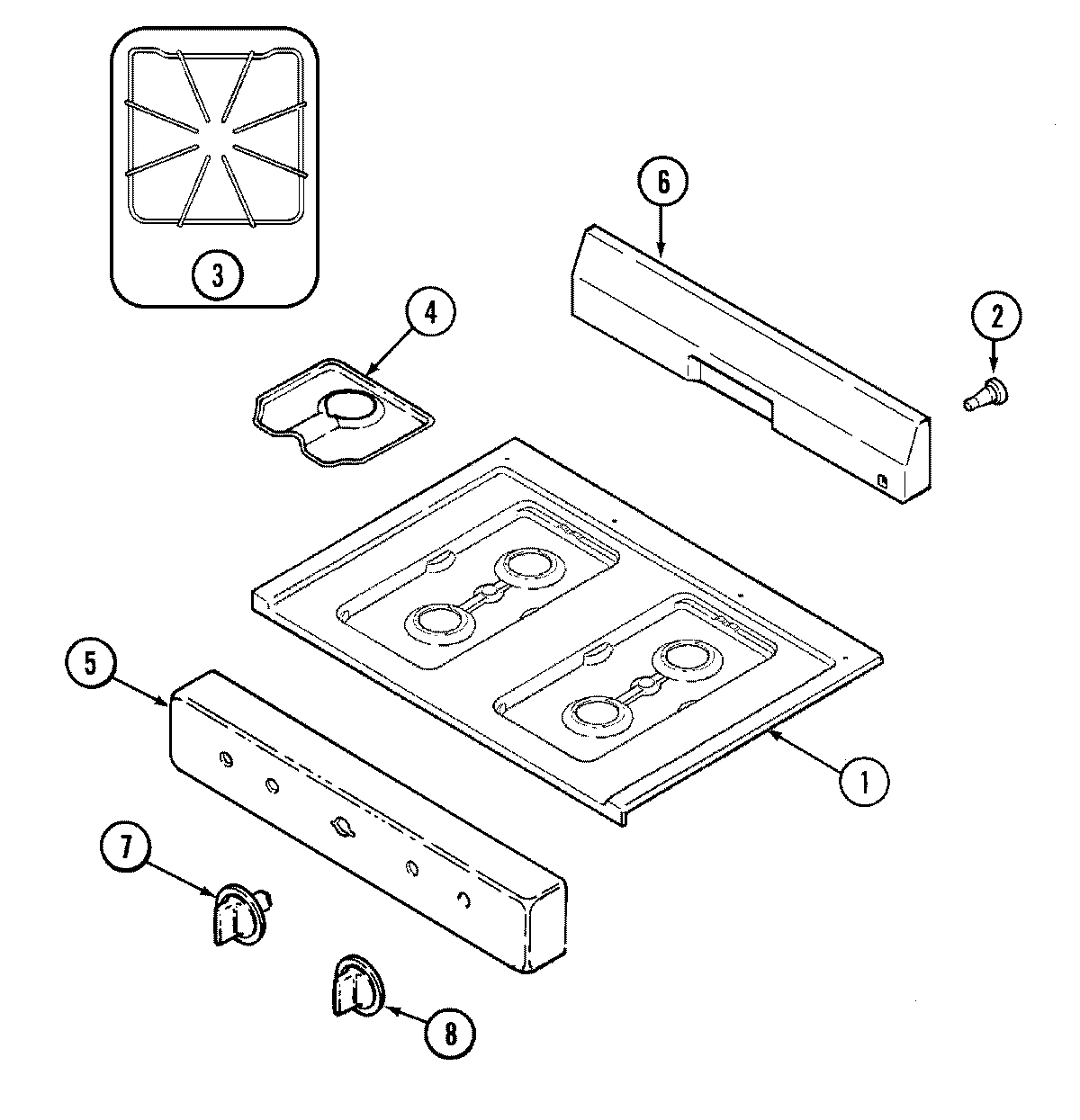

05 - TOP ASSEMBLY

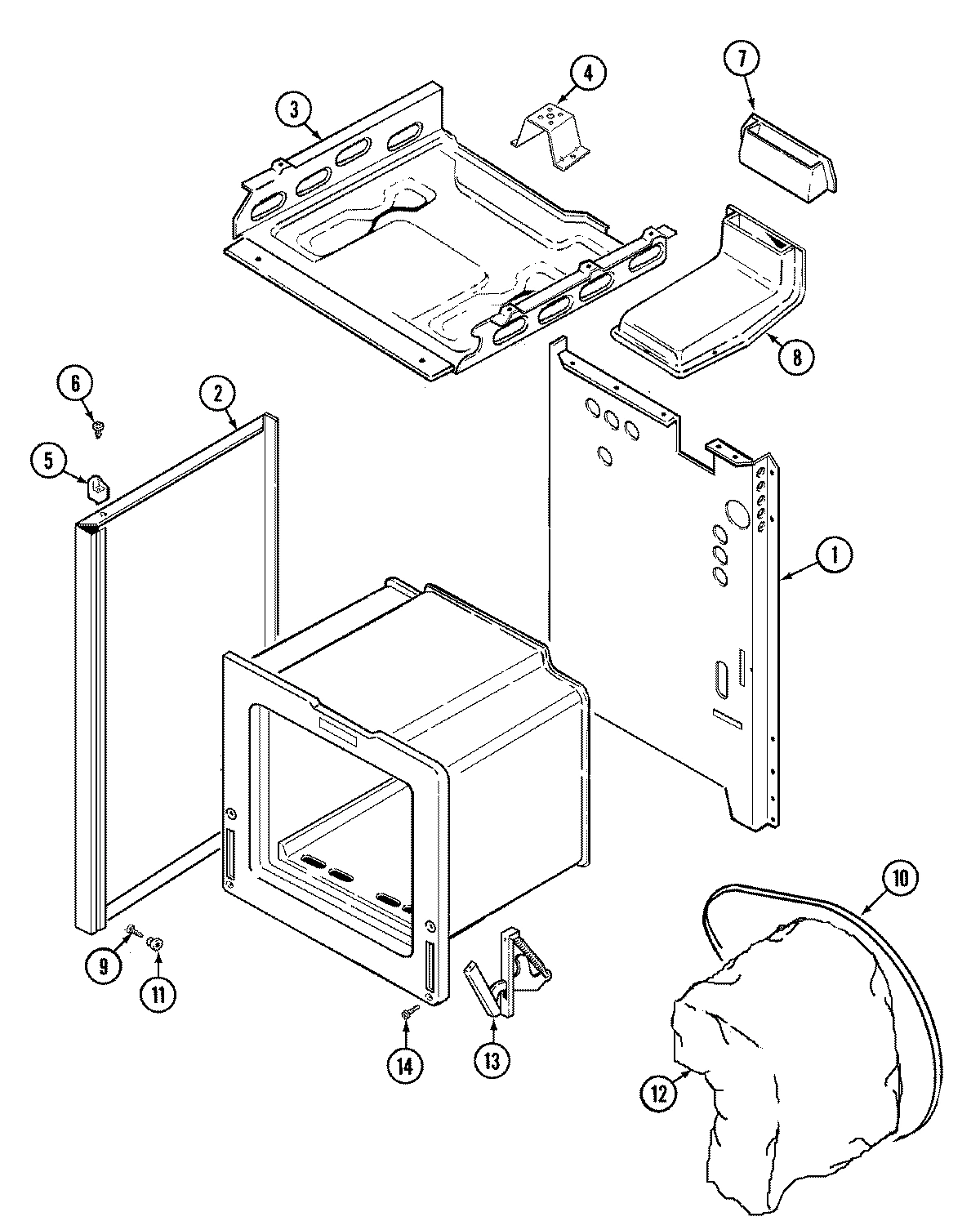

01 - BODY

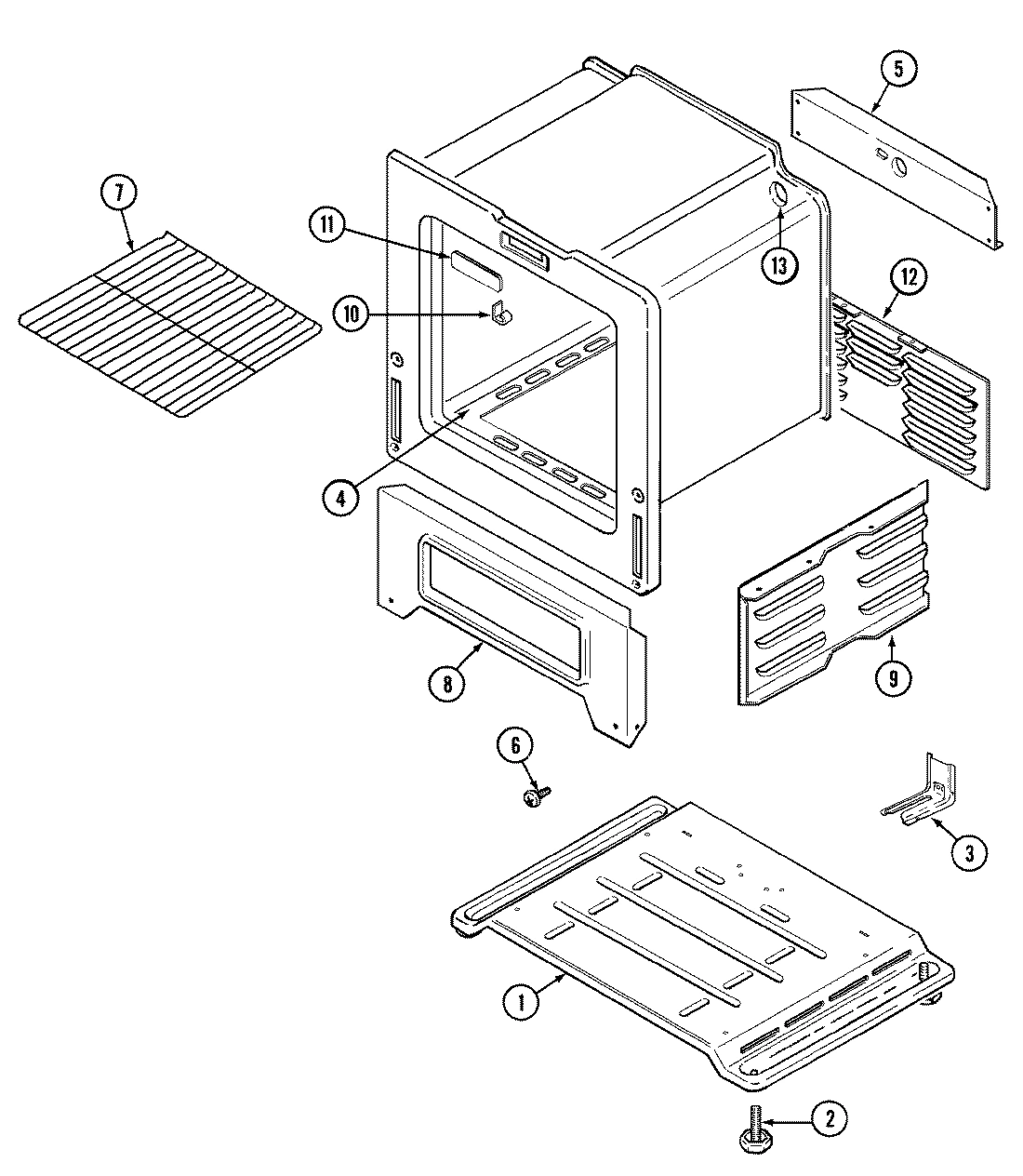

04 - OVEN/BASE
Common parts from model Whirlpool 31000PAWD GAS RANGE
1
PANEL, DOOR (WHT) WPL 74002395 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 74003137 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002424 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F09881 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
VALVE, BURNER WPL 74002383 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 74002425 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002427 Contact Us For Availability
4
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
4
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
5
SCREW----NA WPL 7101P31160 Contact Us For Availability
5
PANEL, CONTROL (BLK) WPL 74002351 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
6
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
6
LINING, DOOR WPL 74002396 Contact Us For Availability
6
LINING, DOOR WPL 74003240 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P12860 Contact Us For Availability
6
PILOT, BURNER WPL 74002426 Contact Us For Availability
6
PANEL, BACKGUARD (BLK) WPL 74002354 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
7
PANEL, LOWER (WHT) WPL 74002489 Contact Us For Availability
7
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
7
KNOB, THERMOSTAT (BLK) WPL 74002423 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002366 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
CONE, BURNER PILOT WPL 74002435 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
8
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
9
LINING, LOWER PANEL WPL 74002491 Contact Us For Availability
9
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
9
BURNER, TOP WPL 74002392 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
10
INSULATION WPL 4804F02560 Contact Us For Availability
10
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
11
SCREW WPL 7101P11260 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
12
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
12
BACK, BROILER WPL 74002379 Contact Us For Availability
13
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
COVER, HOLE WPL 74002380 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
14
VALVE, OVEN WPL 74002428 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
KIT, TUBING W/LOXIT (3/8``) WPL 12001100 Contact Us For Availability
15
TUBING, OVEN VALVE (3/8``) WPL 74001062 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
× ![]()
