Model Electrolux 30-3350-23-04 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

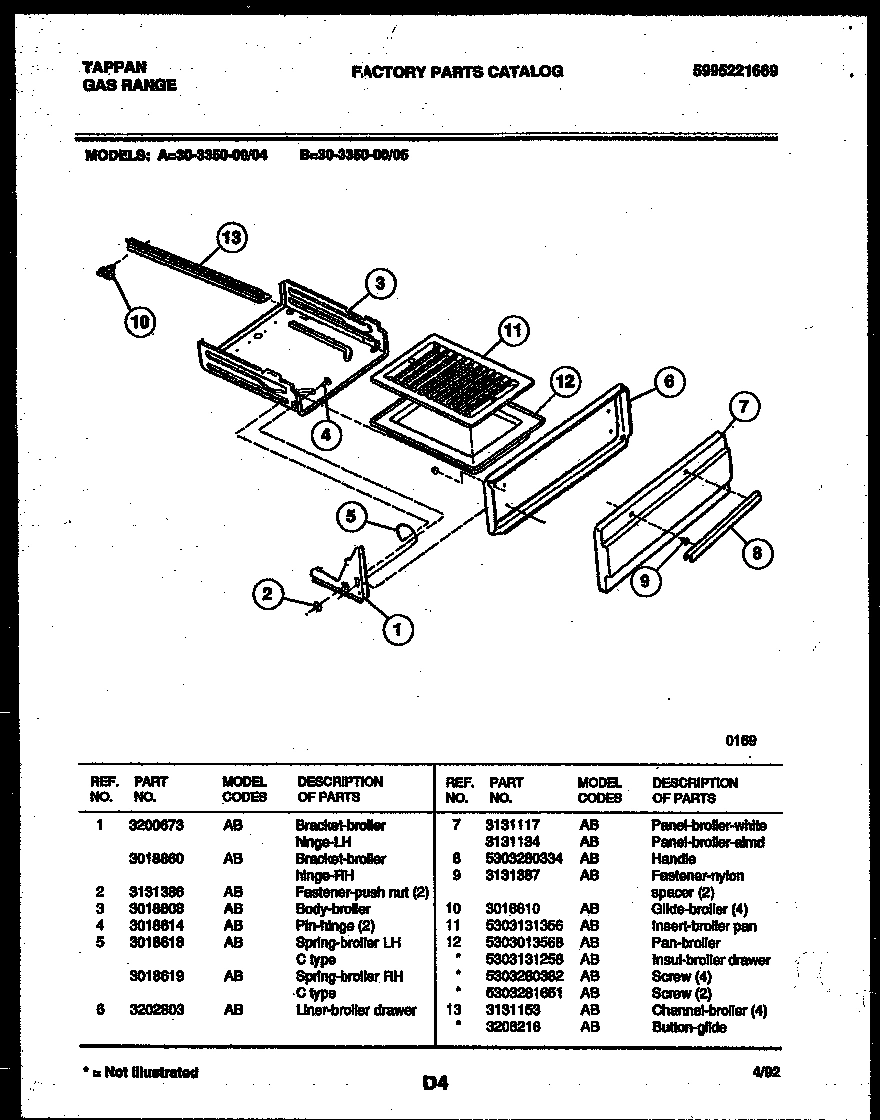

04 - BROILER DRAWER PARTS

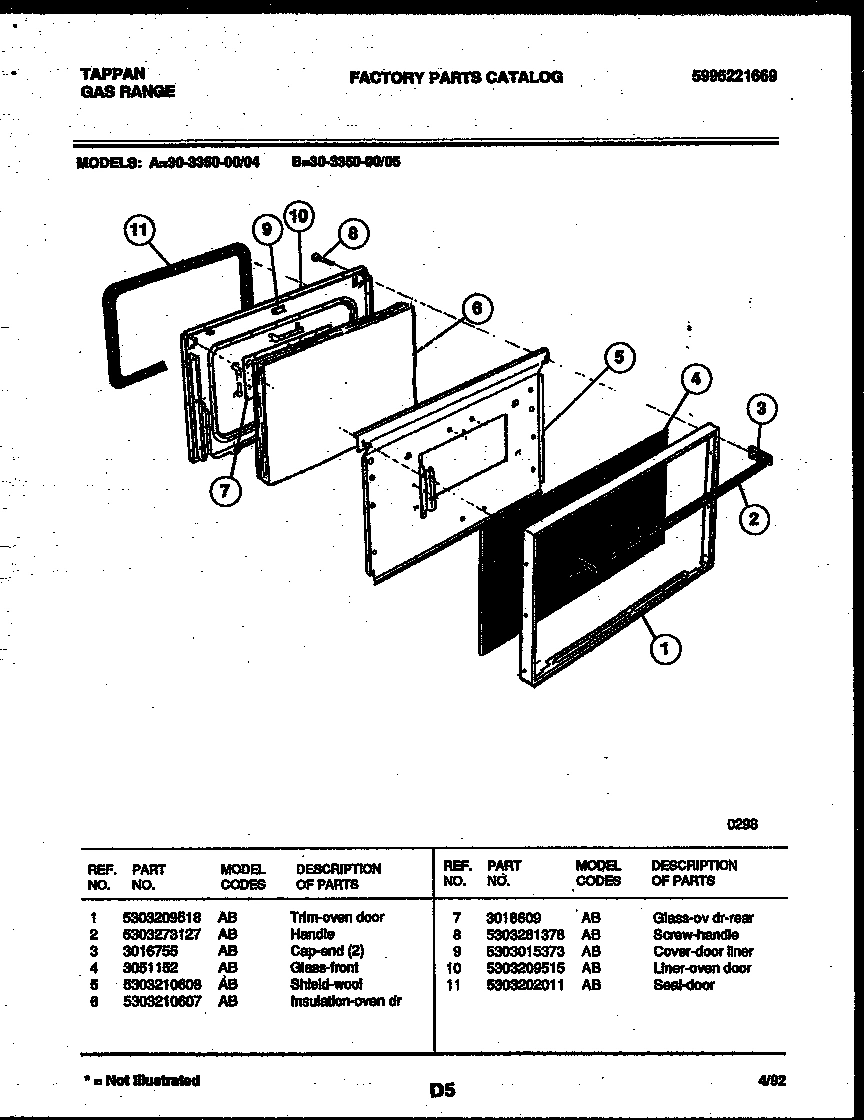

05 - DOOR PARTS

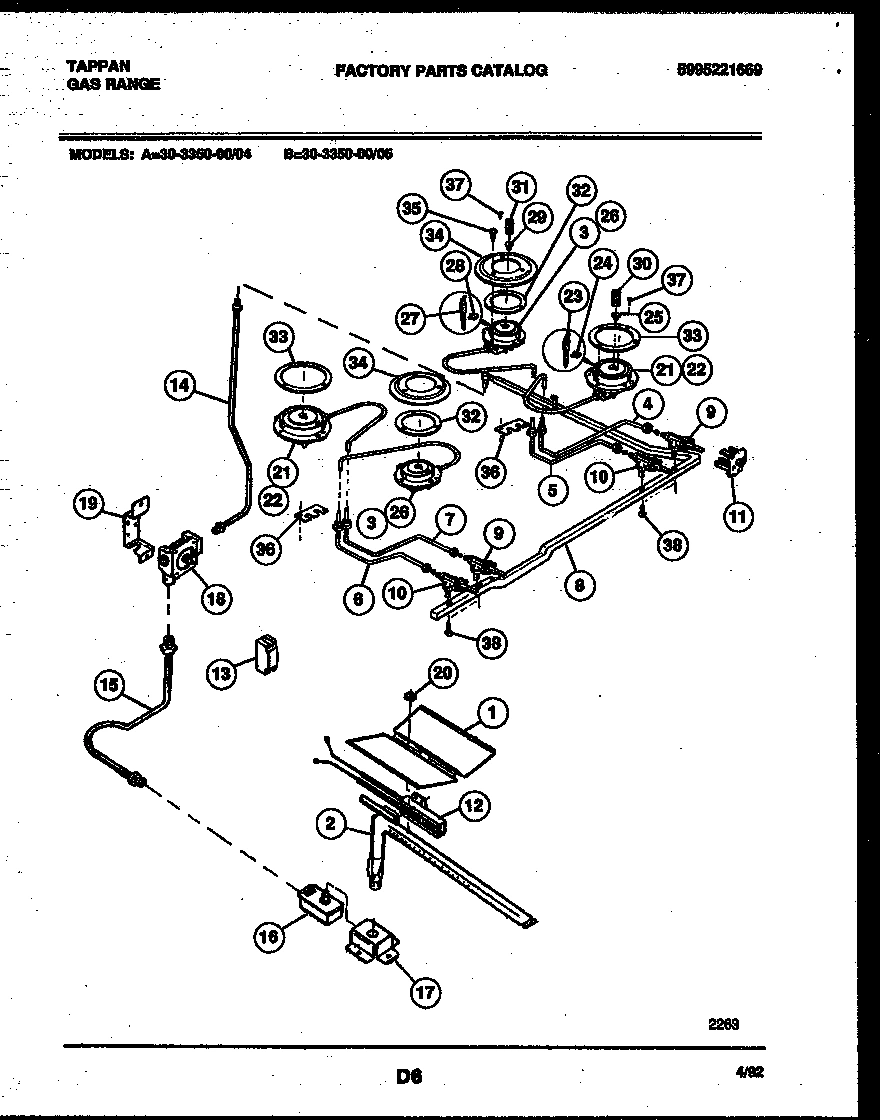

06 - BURNER PARTS

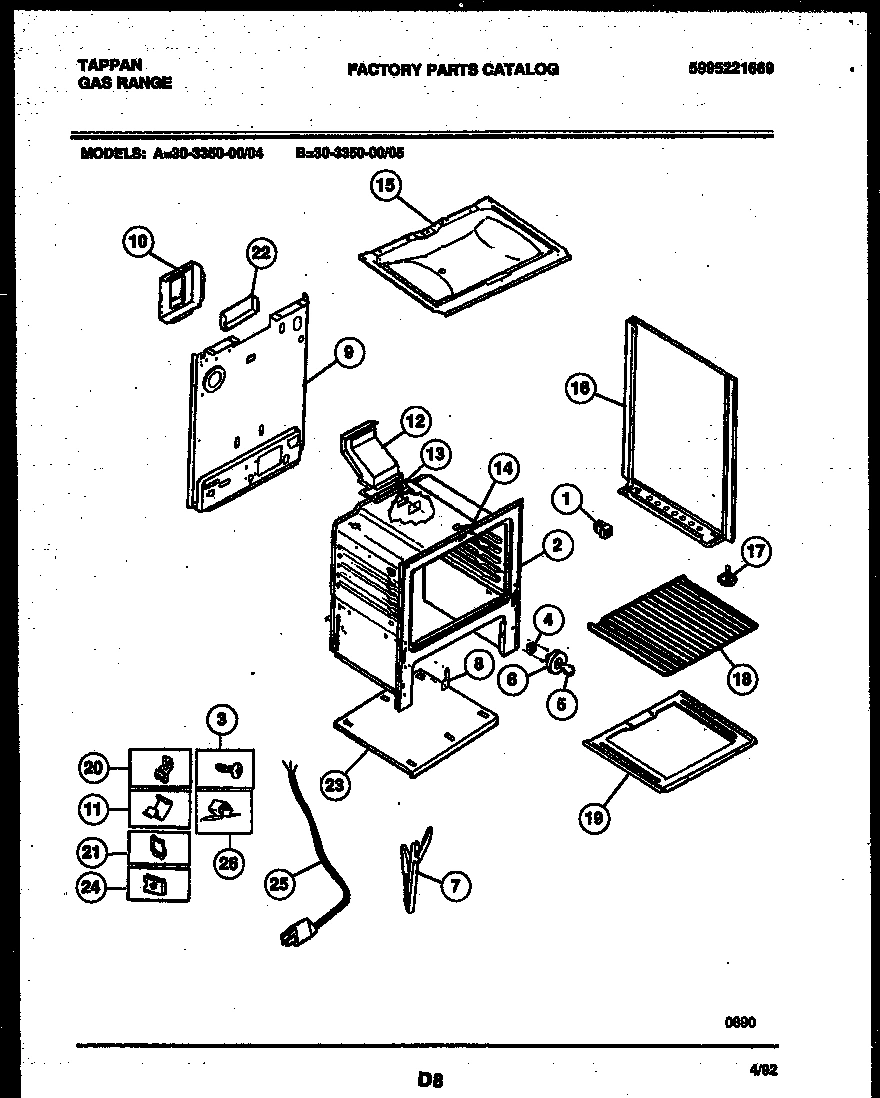

07 - BODY PARTS

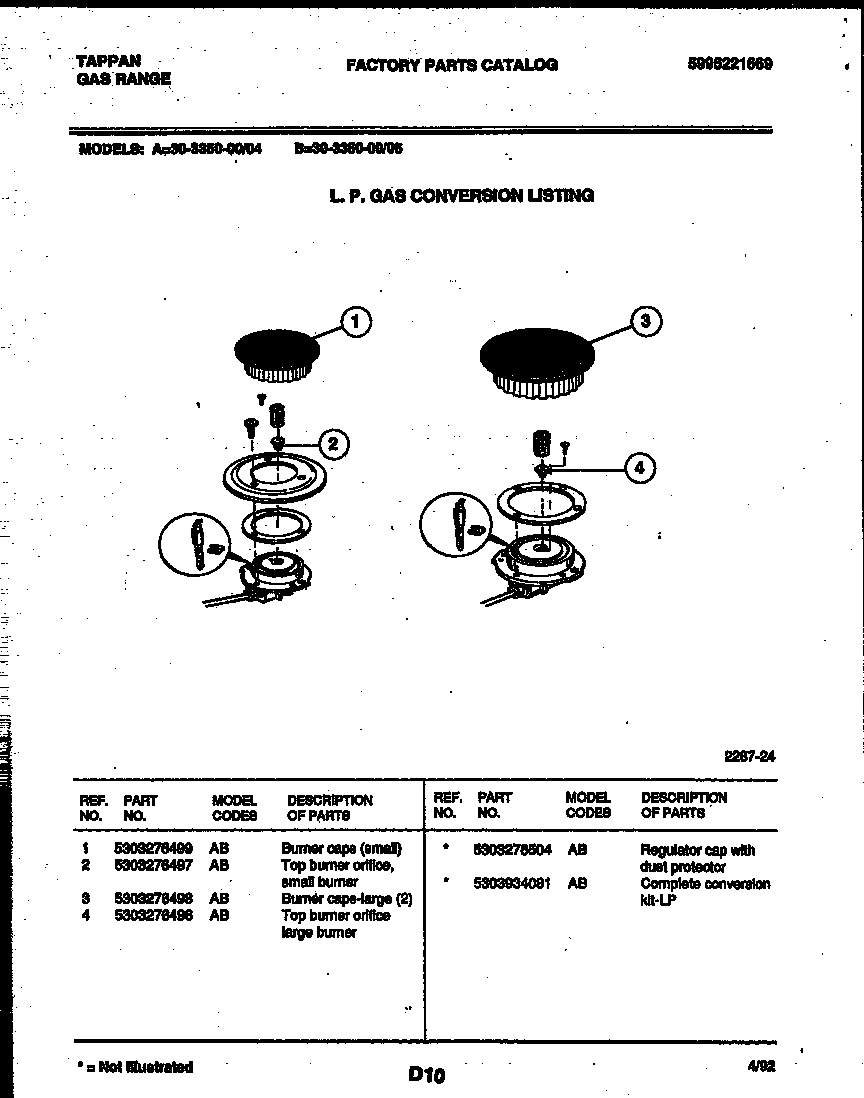

08 - BURNER PARTS
Common parts from model Electrolux 30-3350-23-04 RANGE
*68681
WCI 3206216 WCI 3206216 Contact Us For Availability
*68687
BRKT, OVEN BURNER SUPT WCI 3018603 Contact Us For Availability
*68690
INSULATION-OVEN WRAP WCI 3017142 Contact Us For Availability
*68690
WCI 08067961 WCI 08067961 Contact Us For Availability
*68690
WCI 3131244 WCI 3131244 Contact Us For Availability
*68690
INSULATION-BACK WCI 3203541 Contact Us For Availability
*68691
WCI 3018607 WCI 3018607 Contact Us For Availability
*68691
WCI 19100200027 WCI 19100200027 Contact Us For Availability
*68691
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
*68691
WCI 5303276504 WCI 5303276504 Contact Us For Availability
*68691
WCI 5303934081 WCI 5303934081 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303272305 WCI 5303272305 Contact Us For Availability
1
WCI 3018860 WCI 3018860 Contact Us For Availability
1
WCI 3200673 WCI 3200673 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
1
BAFFLE-OVEN WCI 3203265 Contact Us For Availability
1
WCI 5303276499 WCI 5303276499 Contact Us For Availability
2
WCI 3131439 WCI 3131439 Contact Us For Availability
2
WCI 3131386 WCI 3131386 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
2
WCI 5303276497 WCI 5303276497 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 5303269484 WCI 5303269484 Contact Us For Availability
3
WCI 5303276498 WCI 5303276498 Contact Us For Availability
4
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3051152 WCI 3051152 Contact Us For Availability
4
BURNER TUBE-RF WCI 5303269492 Contact Us For Availability
4
WCI 5303276496 WCI 5303276496 Contact Us For Availability
5
WCI 5303273109 WCI 5303273109 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3018619 WCI 3018619 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5
BURNER TUBE-RR WCI 5303269494 Contact Us For Availability
6
KNOB-TOP VALVE, (4) WCI 5303209616 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
6
WCI 5303271606 WCI 5303271606 Contact Us For Availability
7
WCI 316007001 WCI 316007001 Contact Us For Availability
7
CAP-BURNER-(2) MED SEE LP PAGE WCI 5303209011 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
GLASS-OV DR (REAR) WCI 3018609 Contact Us For Availability
8
WCI 5303281378 WCI 5303281378 Contact Us For Availability
8
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
8
WCI 5303269538 WCI 5303269538 Contact Us For Availability
8
WCI 5303269539 WCI 5303269539 Contact Us For Availability
8
HANDLE WCI 5303280334 Contact Us For Availability
8
WCI 5303271375 WCI 5303271375 Contact Us For Availability
9
FASTENER-NYLON SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
WCI 5303280396 WCI 5303280396 Contact Us For Availability
9
WCI 3203082 WCI 3203082 Contact Us For Availability
10
GLIDE, BROILER (4) WCI 3018610 No Longer Available
10
WCI 5303269536 WCI 5303269536 Contact Us For Availability
10
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
WCI 5303280397 WCI 5303280397 Contact Us For Availability
10
WCI 3131660 WCI 3131660 Contact Us For Availability
11
SCREW (3) BURNER TO COOKTOP WCI 5303269629 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
SWITCH-IGNITER (4) WCI 5303280314 Contact Us For Availability
11
CLIP-WIRE WCI 3011813 Contact Us For Availability
11A
GUSSET-MTG (RH) (NON-ILLUSTRATED) WCI 5303271891 Contact Us For Availability
11B
GUSSET-MTG (LH) (NON-ILLUSTRATED) WCI 5303271892 Contact Us For Availability
12
WCI 5303272304 WCI 5303272304 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
FLUE-BOX WCI 3131904 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
WCI 3205115 WCI 3205115 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
14
TUBING REG TO MANIFOLD PIPE W/FITTING WCI 5303208495 Contact Us For Availability
14
WCI 5303015372 WCI 5303015372 Contact Us For Availability
15
WCI 5303269487 WCI 5303269487 Contact Us For Availability
16
WCI 5303269543 WCI 5303269543 Contact Us For Availability
16
WCI 5303269545 WCI 5303269545 Contact Us For Availability
17
WCI 5303203397 WCI 5303203397 Contact Us For Availability
17
WCI 3131438 WCI 3131438 Contact Us For Availability
17A
WCI 08010570 WCI 08010570 Contact Us For Availability
19
WCI 5303212540 WCI 5303212540 Contact Us For Availability
20
WCI 08010556 WCI 08010556 Contact Us For Availability
21
WCI 5303269483 WCI 5303269483 Contact Us For Availability
22
WCI 5303210884 WCI 5303210884 Contact Us For Availability
22
WCI 5303280614 WCI 5303280614 Contact Us For Availability
23
WCI 5303269523 WCI 5303269523 Contact Us For Availability
23
WCI 5303270160 WCI 5303270160 Contact Us For Availability
25
WCI 5303269524 WCI 5303269524 Contact Us For Availability
26
BURNER TOP MED (2) WCI 5303210085 Contact Us For Availability
27
WCI 5303269525 WCI 5303269525 Contact Us For Availability
28
IGNITER CLIP (2) WCI 5303210089 Contact Us For Availability
29
WCI 5303269527 WCI 5303269527 Contact Us For Availability
30
WCI 5303269503 WCI 5303269503 Contact Us For Availability
31
WCI 5303269504 WCI 5303269504 Contact Us For Availability
32
SEAL BURNER (2)-SMALL WCI 5303209022 Contact Us For Availability
33
SEAL BURNER (2) LARGE WCI 5303209023 Contact Us For Availability
34
WCI 5303269485 WCI 5303269485 Contact Us For Availability
36
WCI 5303269491 WCI 5303269491 Contact Us For Availability
37
WCI 5303269844 WCI 5303269844 Contact Us For Availability
× ![]()
