Model Electrolux 30-2528-23-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

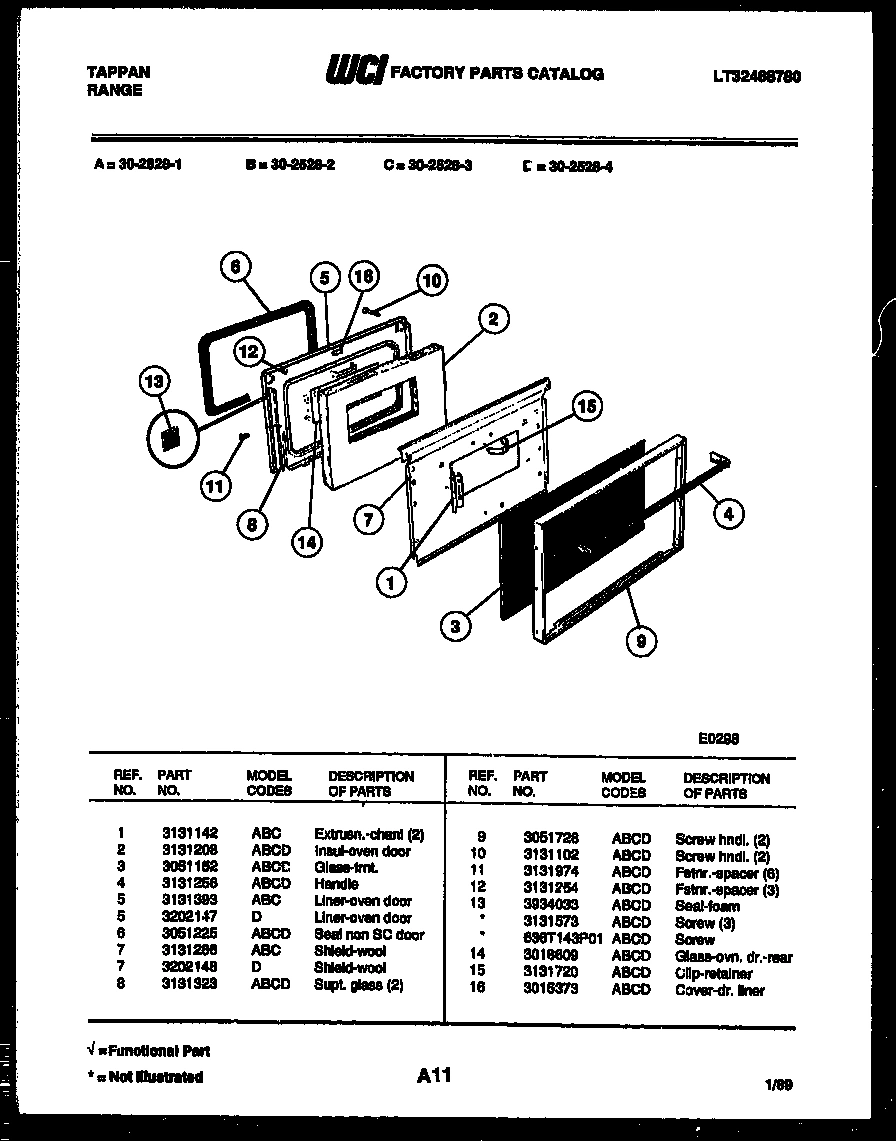

04 - DOOR PARTS

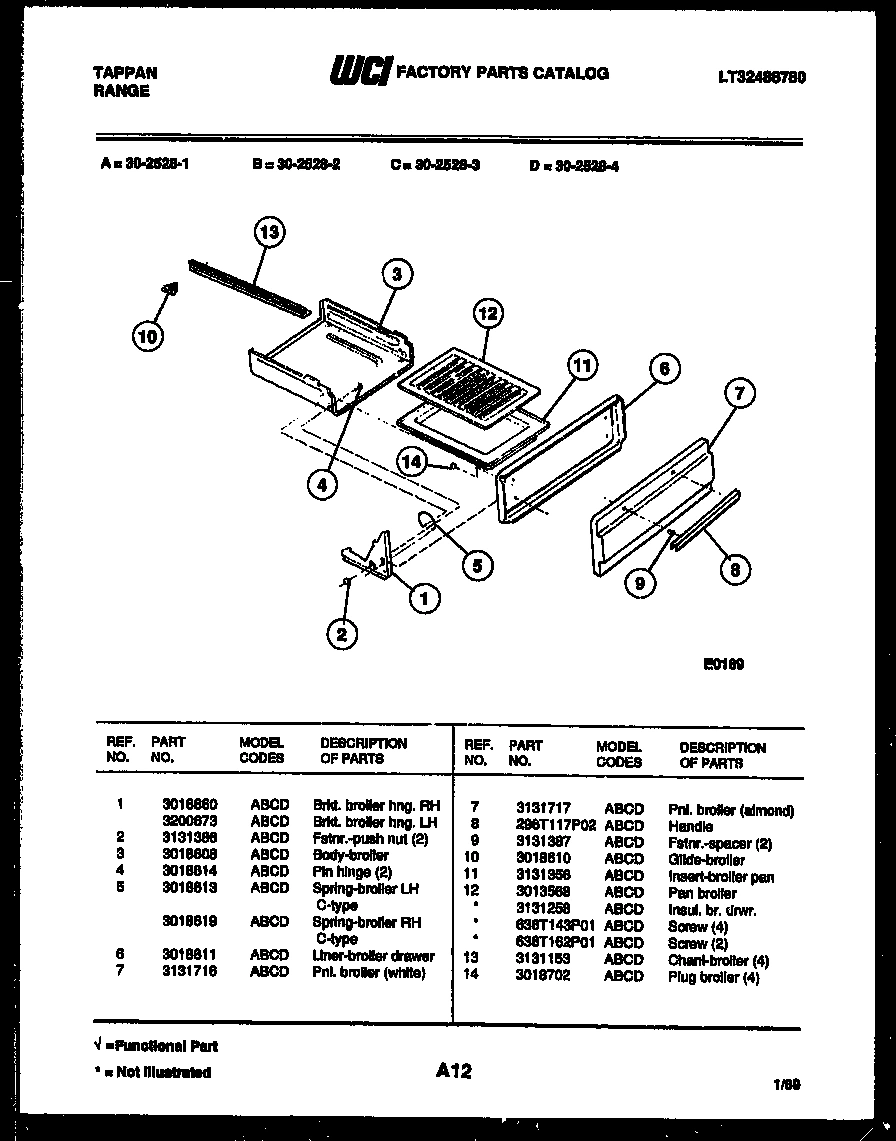

05 - BROILER DRAWER PARTS

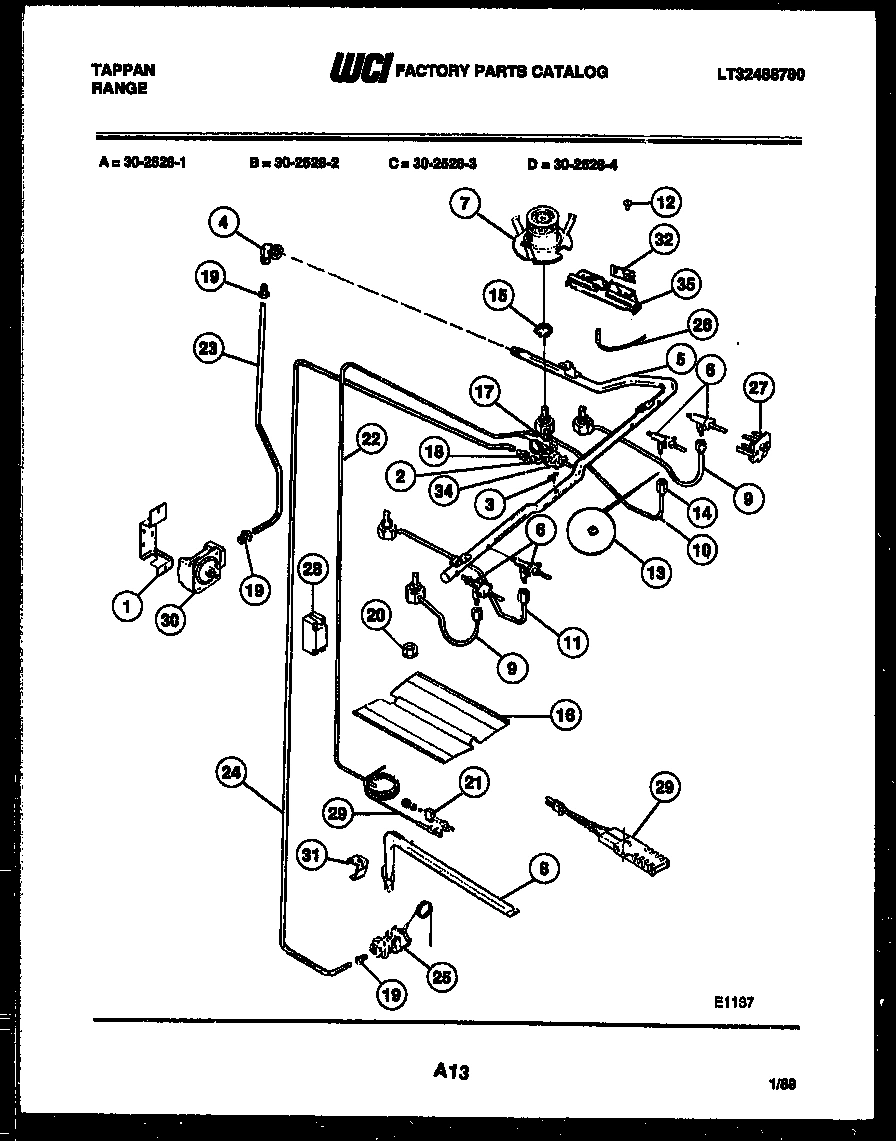

06 - BURNER, MANIFOLD AND GAS CONTROL
07 - BODY PARTS
Common parts from model Electrolux 30-2528-23-02 RANGE
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
PANEL-MANIFOLD WCI 3015393 Contact Us For Availability
1
EXTRUSN-CHANL (2) WCI 3131142 Contact Us For Availability
1
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
1
WCI 3131183 WCI 3131183 Contact Us For Availability
1A
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
2
KNOB TOP VALVE WCI 3131910 Contact Us For Availability
2
WCI 3131208 WCI 3131208 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 722T073P01 WCI 722T073P01 Contact Us For Availability
3
WCI 3131703 WCI 3131703 Contact Us For Availability
3
GLASS-FRNT WCI 3051152 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
ADAPTER-THERMOSTAT WCI 3018601 Contact Us For Availability
4
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
4
WCI 3131256 WCI 3131256 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 215T013P01 WCI 215T013P01 Contact Us For Availability
5
BRKT. MAIN TOP HINGE (LH) WCI 3011558 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
ELBOW WCI 439T055P07 Contact Us For Availability
5
CHANL-DR HNG (2) WCI 3131569 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
TRIM-SPLASHER WCI 3131955 Contact Us For Availability
6
BRKT. MAIN TOP HINGE (RH) WCI 3011559 Contact Us For Availability
6
LINER-BROILER DRAWER WCI 3018611 Contact Us For Availability
6
VALVE-3 POS. WCI 3017542 Contact Us For Availability
7
WCI 3131241 WCI 3131241 Contact Us For Availability
7
GRATE SQUARE WCI 3018432 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
7
PNL BROILER (ALMOND) WCI 3131717 Contact Us For Availability
7
BURNER TOP ASSY. WCI 3011567 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
8
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
8
PAN BURNER WCI 3131299 Contact Us For Availability
8
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
WCI 3131571 WCI 3131571 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8A
RETAINER, WIRE (NON-ILLUSTRATED) WCI 612T124P01 Contact Us For Availability
9
BEZEL - SWITCH (2) WCI 3011507 Contact Us For Availability
9
WCI 3051354 WCI 3051354 Contact Us For Availability
9
SCREW HNDL. (2) WCI 3051728 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
9
WCI 3011813 WCI 3011813 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 No Longer Available
10
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
10
WCI 3051355 WCI 3051355 Contact Us For Availability
10
WCI 3131102 WCI 3131102 Contact Us For Availability
10
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
11
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
11
WCI 3934050 WCI 3934050 Contact Us For Availability
11
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
12
SW. OVEN LIGHT WCI 3018620 Contact Us For Availability
12
FSTNR.-SPACER (3) WCI 3131254 Contact Us For Availability
12
WCI 3013568 WCI 3013568 Contact Us For Availability
12
WCI 3051420 WCI 3051420 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12A
INSUL. BR DRWR (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
CAP-LH WCI 3018604 Contact Us For Availability
13
WCI 3934033 WCI 3934033 Contact Us For Availability
13
CHANL-BROILER (4) WCI 3131153 Contact Us For Availability
13
FERRULE WCI 3012358 Contact Us For Availability
13
WCI 3011597 WCI 3011597 Contact Us For Availability
13A
SCREW (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14
CAP-RH WCI 3018605 Contact Us For Availability
14
GLASS-OVN. DR.-REAR WCI 3018609 Contact Us For Availability
14
WCI 3018702 WCI 3018702 Contact Us For Availability
14
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
14
B/S PNL. (ALMOND) RH WCI 3200790 Contact Us For Availability
14A
SHIELD B/G (NON-ILLUSTRATED) WCI 655T444P02 Contact Us For Availability
14A
B/S PNL. (ALMOND) LH WCI 3200793 Contact Us For Availability
15
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
15
WCI 3131720 WCI 3131720 Contact Us For Availability
15
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
15
WCI 08010569 WCI 08010569 Contact Us For Availability
16
RETAINER-CLOCK LENS WCI 612T123F01 Contact Us For Availability
16
COVER DR LINER WCI 3015373 Contact Us For Availability
16
WCI 3131327 WCI 3131327 Contact Us For Availability
17
WCI 277T219P03 WCI 277T219P03 Contact Us For Availability
17
WCI 3131404 WCI 3131404 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
17B
WCI 3131246 WCI 3131246 Contact Us For Availability
18
WCI 3131403 WCI 3131403 Contact Us For Availability
18A
WCI 3017327 WCI 3017327 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
20
WCI 3131348 WCI 3131348 Contact Us For Availability
21
PILOT-OVEN WCI 3018613 Contact Us For Availability
21
COVER FRNT MAIN WCI 3015372 Contact Us For Availability
21C
WCI 3018615 WCI 3018615 Contact Us For Availability
22
TUBE-OVEN PILOT 3/16 WCI 3018623 Contact Us For Availability
22
WCI 3131180 WCI 3131180 Contact Us For Availability
22A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23
TUBE - ALUM 3/8 WCI 3014477 Contact Us For Availability
24
COVER - IGNITER WCI 3018607 Contact Us For Availability
24
WCI 3018624 WCI 3018624 Contact Us For Availability
25
WCI 3131405 WCI 3131405 Contact Us For Availability
25
WCI 3015371 WCI 3015371 Contact Us For Availability
26
WCI 3012879 WCI 3012879 Contact Us For Availability
27
WCI 695T225P02 WCI 695T225P02 Contact Us For Availability
29
IGNITER-OVEN WCI 3934047 Contact Us For Availability
30
WCI 3018606 WCI 3018606 Contact Us For Availability
31
BRKT, OVEN BURNER SUPT WCI 3018603 Contact Us For Availability
32
WCI 3018617 WCI 3018617 Contact Us For Availability
34
WCI 695T220P01 WCI 695T220P01 Contact Us For Availability
35
CHANNEL FLUSH TUBE WCI 136T355W03 Contact Us For Availability
× ![]()
