Model LG 29UB65-P – Common Parts & Diagrams

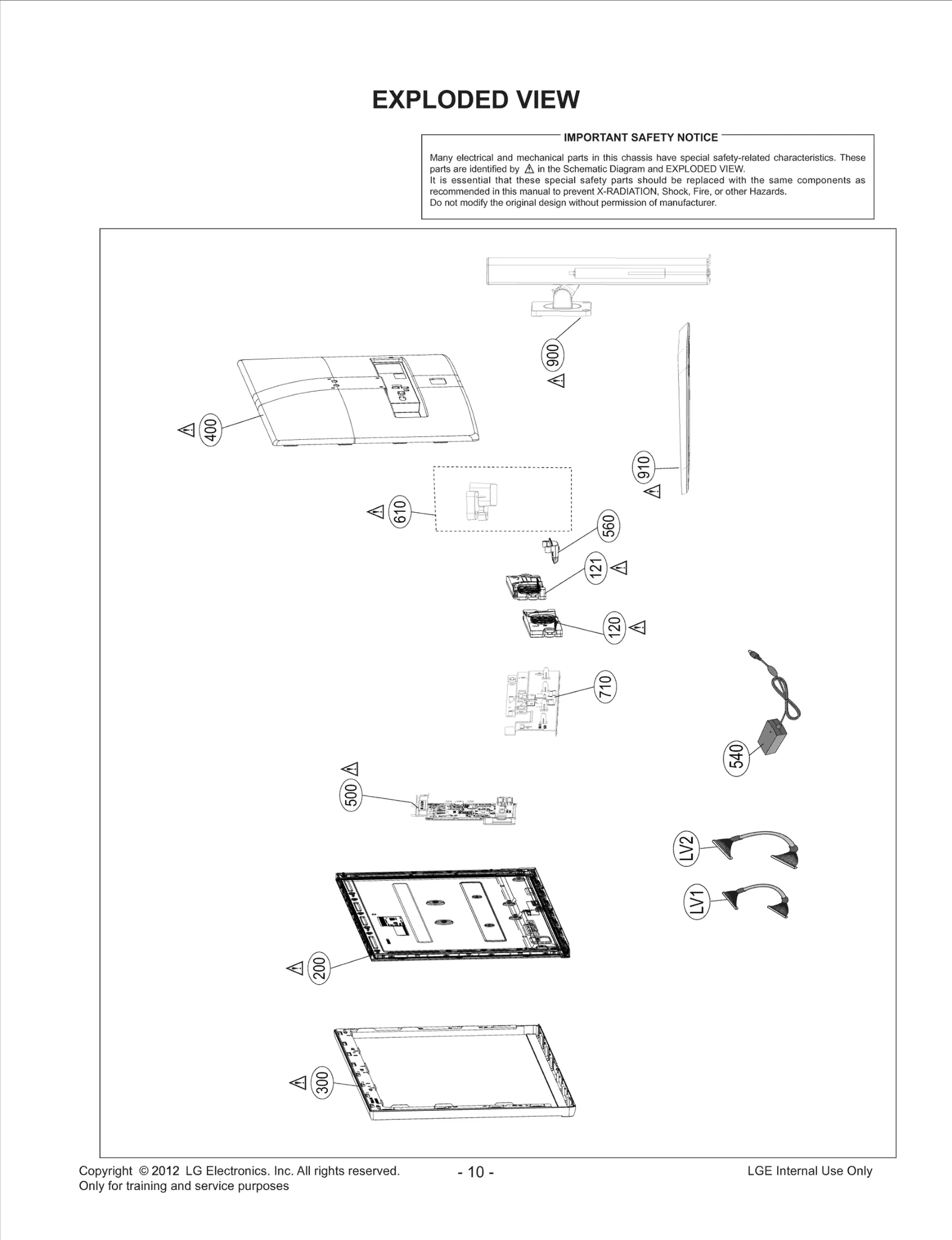

Diagram 0
Diagram 1
Common parts from model LG 29UB65-P
121
Speaker Assembly LGE EAB63049401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62348401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62648102 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62648101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74208101 Contact Us For Availability
330
PCB Assembly,Control LGE EBR78426901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86852802 Contact Us For Availability
500
DMS Chassis Assembly LGE EBT62998801 Contact Us For Availability
540
Adapters LGE EAY62933001 Contact Us For Availability
540
Adapters LGE EAY63189102 Contact Us For Availability
560
Cover LGE MCK67813405 Contact Us For Availability
610
Cover LGE MCK67986101 Contact Us For Availability
710
Plate,Metal LGE MGJ63723102 Contact Us For Availability
900
Base Assembly LGE AAN74250712 Contact Us For Availability
A1
Manual Assembly LGE AFN76232921 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD00926103 Contact Us For Availability
A9
Card LGE MBM64196511 Contact Us For Availability
A11
S/W Package LGE SAB35480899 Contact Us For Availability
C11
Harness,Single LGE EAD61729412 Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C573
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C622
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C640
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C644
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
IC101
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
S/W,System Program LGE SAA36868718 Contact Us For Availability
LV1
Cable,FFC LGE EAD62571603 Contact Us For Availability
LV2
Cable,FFC LGE EAD62571703 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P202
Connector,Wafer LGE 6630V93270K Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R472
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R546
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R582
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R632
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
× ![]()
