Model LG 27UL500-W – Common Parts & Diagrams

Common parts from model LG 27UL500-W

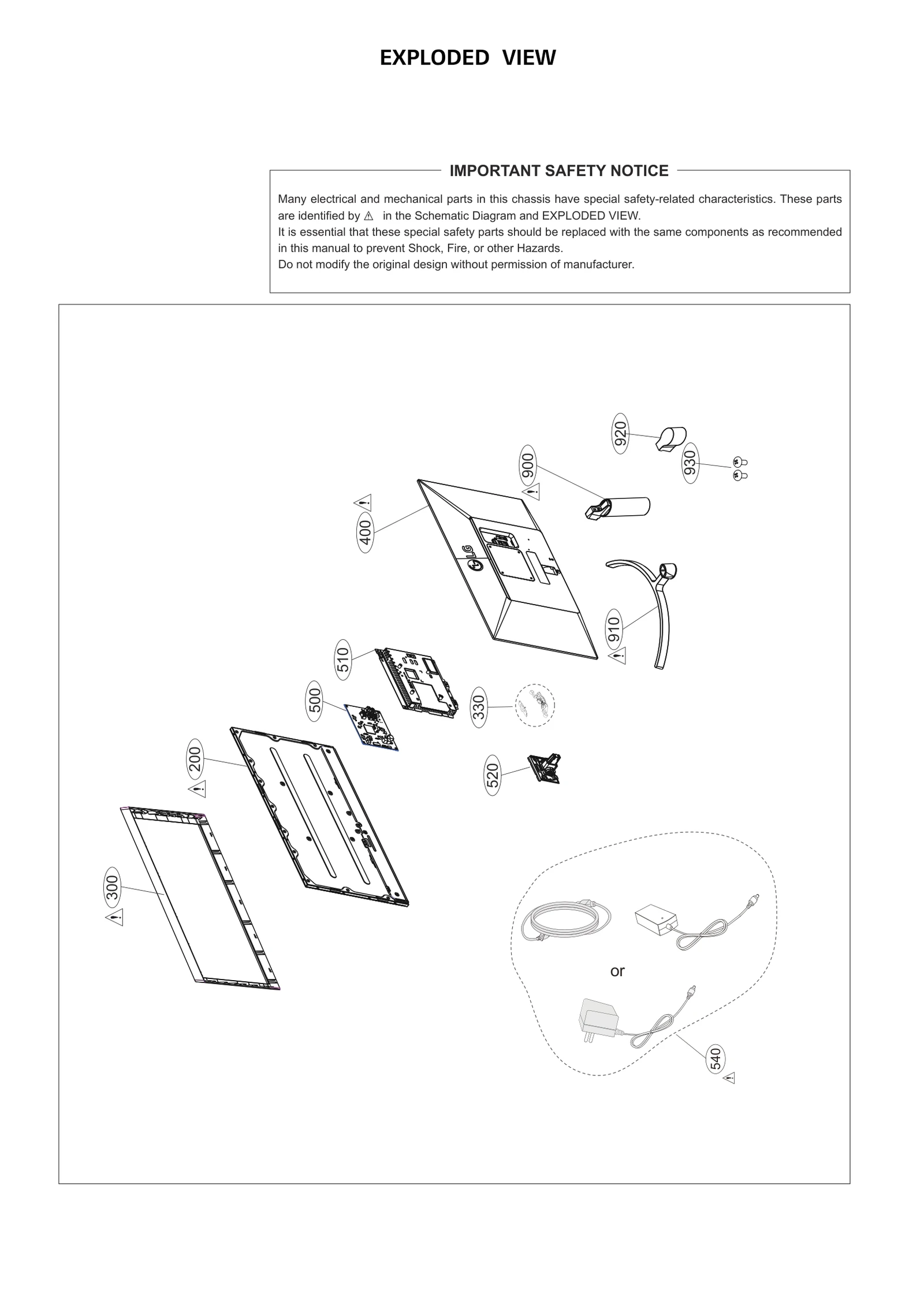

Diagram 0

Print

• This Diagram
• All Diagrams

200

LCD,Module-TFT LGE EAJ65029401 Contact Us For Availability

View on Model

300

Cabinet Assembly LGE ABJ76267202 Contact Us For Availability

View on Model

330

PCB Assembly,Sub LGE EBR87543201 Contact Us For Availability

View on Model

400

Cover Assembly,Rear Backorder LGE ACQ90871602 View Details $60.21

View on Model

500

Main Board,BPR Total Assembly LGE EBU65184001 Contact Us For Availability

View on Model

510

Frame Assembly LGE ADV76706308 Contact Us For Availability

View on Model

520

Frame Assembly Backorder LGE ADV76687503 View Details $36.97

View on Model

540

Adapters LGE EAY62850505 Contact Us For Availability

View on Model

900

Base Assembly LGE AAN76409701 Contact Us For Availability

View on Model

910

Base Assembly Backorder LGE AAN76449101 View Details $80.76

View on Model

920

Package Assembly LGE AGF77182281 Contact Us For Availability

View on Model

930

Package Assembly LGE AGF76702601 Contact Us For Availability

View on Model

A1

Manual Assembly LGE AFN78812021 Contact Us For Availability

View on Model

A3

EAD62425602 LG Power Cord Backorder LGE EAD62425602 View Details $17.46

View on Model

A4

Card LGE MBM65976561 Contact Us For Availability

View on Model

A7

Card LGE 3840TWL061C Contact Us For Availability

View on Model

A8

Cable,Assembly Backorder LGE EAD63954402 View Details $23.71

View on Model

A9

Card LGE 3840TRL039A Contact Us For Availability

View on Model

A10

Cable,Assembly Backorder LGE EAD63749403 View Details $73.96

View on Model

BU500

Buzzer,Piezo LGE 6908VB0001A Contact Us For Availability

View on Model

C10

Harness,Single Backorder LGE EAD63807104 View Details $15.07

View on Model

C10

Harness,Single Backorder LGE EAD64926004 View Details $11.69

View on Model

LV1

Cable,FFC Backorder LGE EAD63825218 View Details $28.29

View on Model

×
