Model LG 27UD68-W – Common Parts & Diagrams

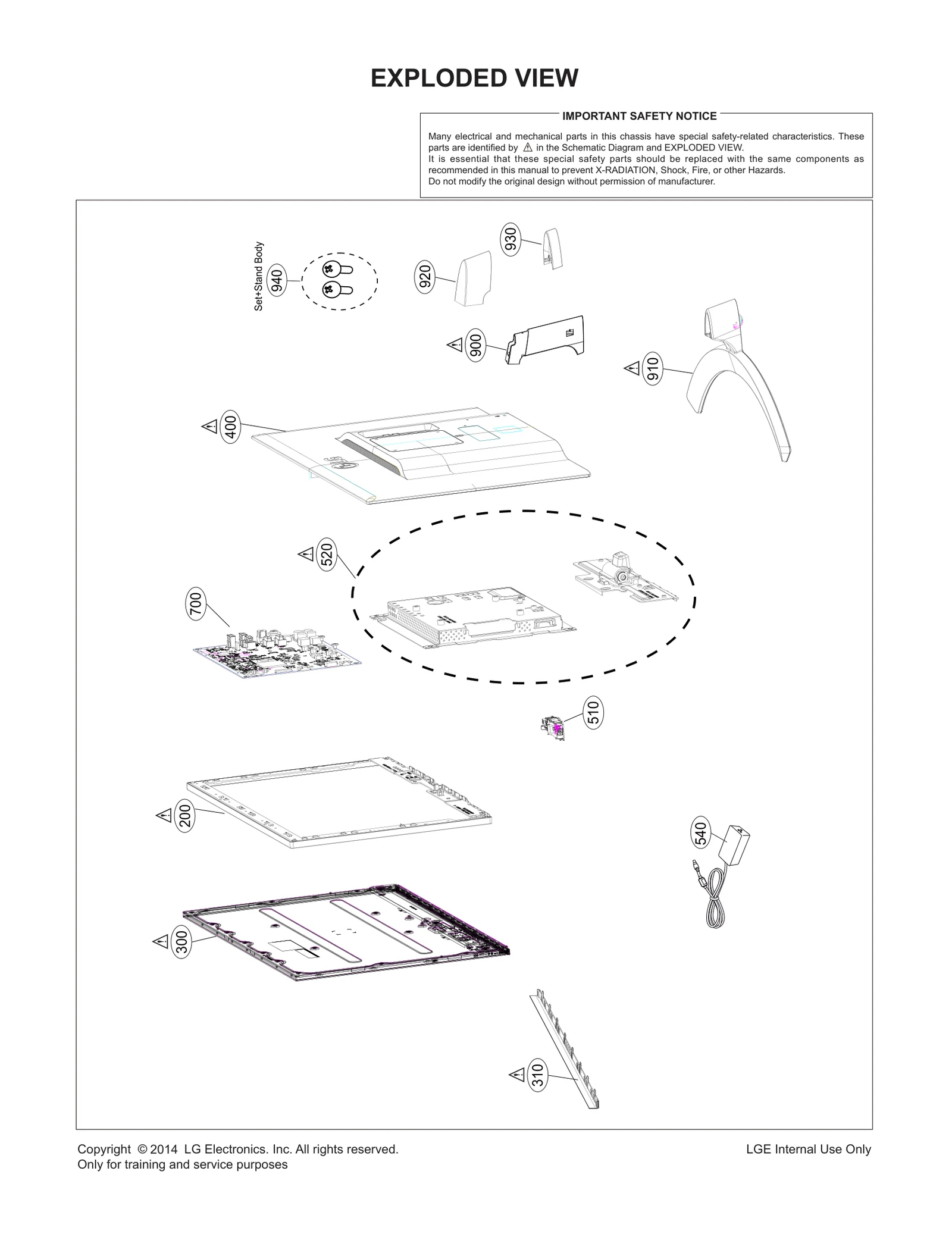

Diagram 0
Diagram 1
Common parts from model LG 27UD68-W
200
LCD,Module-TFT LGE EAJ64428301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ64428302 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75207301 Contact Us For Availability
310
Cover Assembly LGE ACQ88533701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88533802 Contact Us For Availability
520
Frame Assembly LGE ADV75846112 Contact Us For Availability
540
Adapters LGE EAY62850505 Contact Us For Availability
700
BPR Total Assembly LGE EBU63573502 Contact Us For Availability
900
Base Assembly LGE AAN75689001 Contact Us For Availability
920
Package Assembly LGE AGF78360404 Contact Us For Availability
930
Package Assembly LGE AGF77182227 Contact Us For Availability
A1
Manual Assembly LGE AFN77419921 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE MBM65381004 Contact Us For Availability
A10
Cable,Assembly LGE EAD63127604 Contact Us For Availability
A11
Card LGE MBM65637107 Contact Us For Availability
C10
Harness,Single LGE EAD63807101 Contact Us For Availability
C10
Harness,Single LGE EAD62186008 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C279
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C330
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63825202 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R147
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R424
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
X200
Crystal LGE EAW50506402 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
× ![]()
