Model LG 27GN750-B – Common Parts & Diagrams

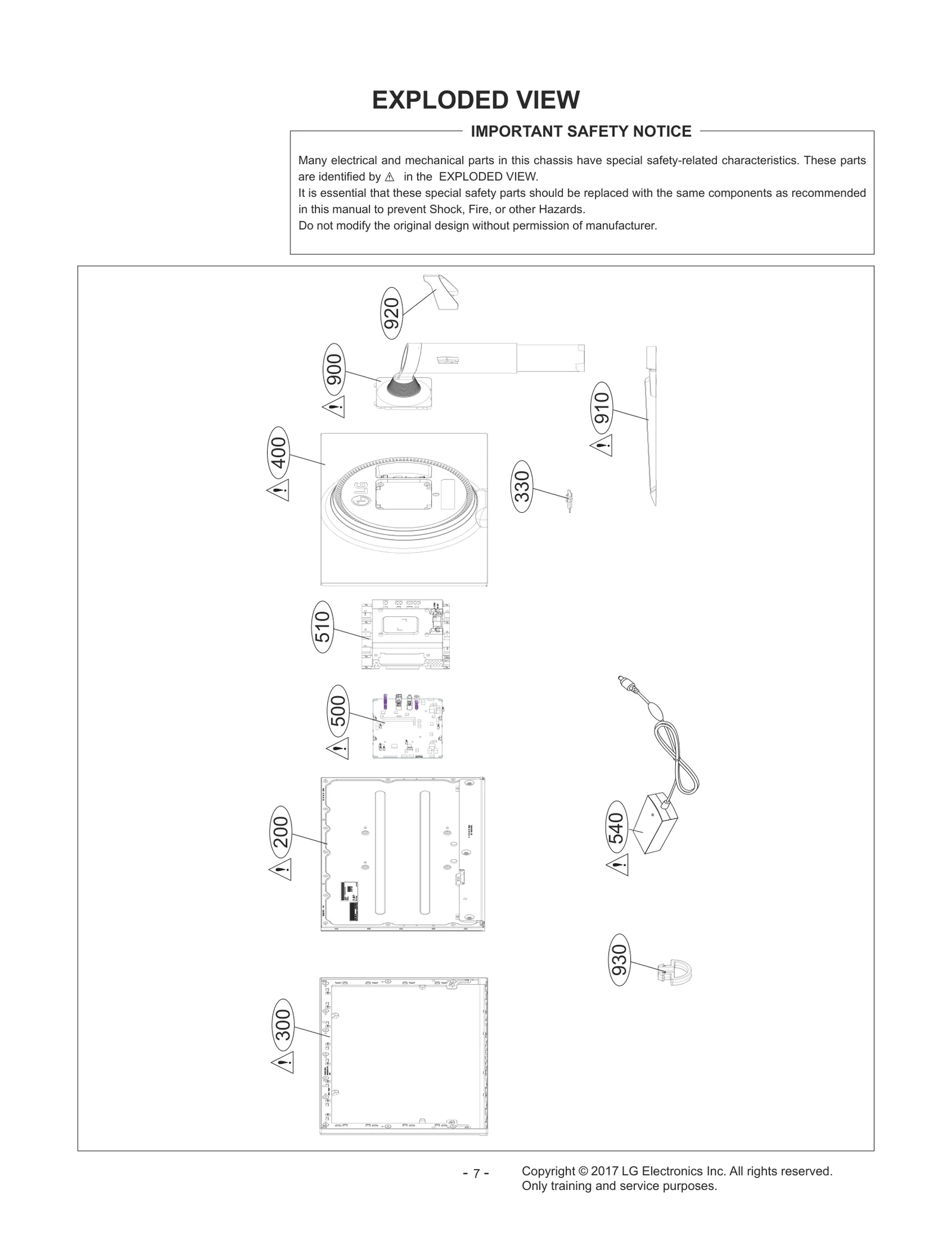

Diagram 0
Diagram 1
Common parts from model LG 27GN750-B
200
LCD,Module-TFT LGE EAJ65434601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65652101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76387101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91116502 Contact Us For Availability
510
Frame Assembly LGE ADV77465704 Contact Us For Availability
540
Adapters LGE EAY65689001 Contact Us For Availability
A1
Manual Assembly LGE AFN79176421 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE MBM67239242 Contact Us For Availability
A13
Cable,Assembly LGE EAD61273120 Contact Us For Availability
A13
Cable,Assembly LGE EAD65573101 Contact Us For Availability
C326
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C457
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C463
Capacitor,Ceramic,Chip LGE 0CK475DF40A Contact Us For Availability
C465
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C477
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C493
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C712
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63825228 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R246
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R757
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
× ![]()
