Model Whirlpool 2775ELD ELECTRIC WALL OVEN – Common Parts & Diagrams

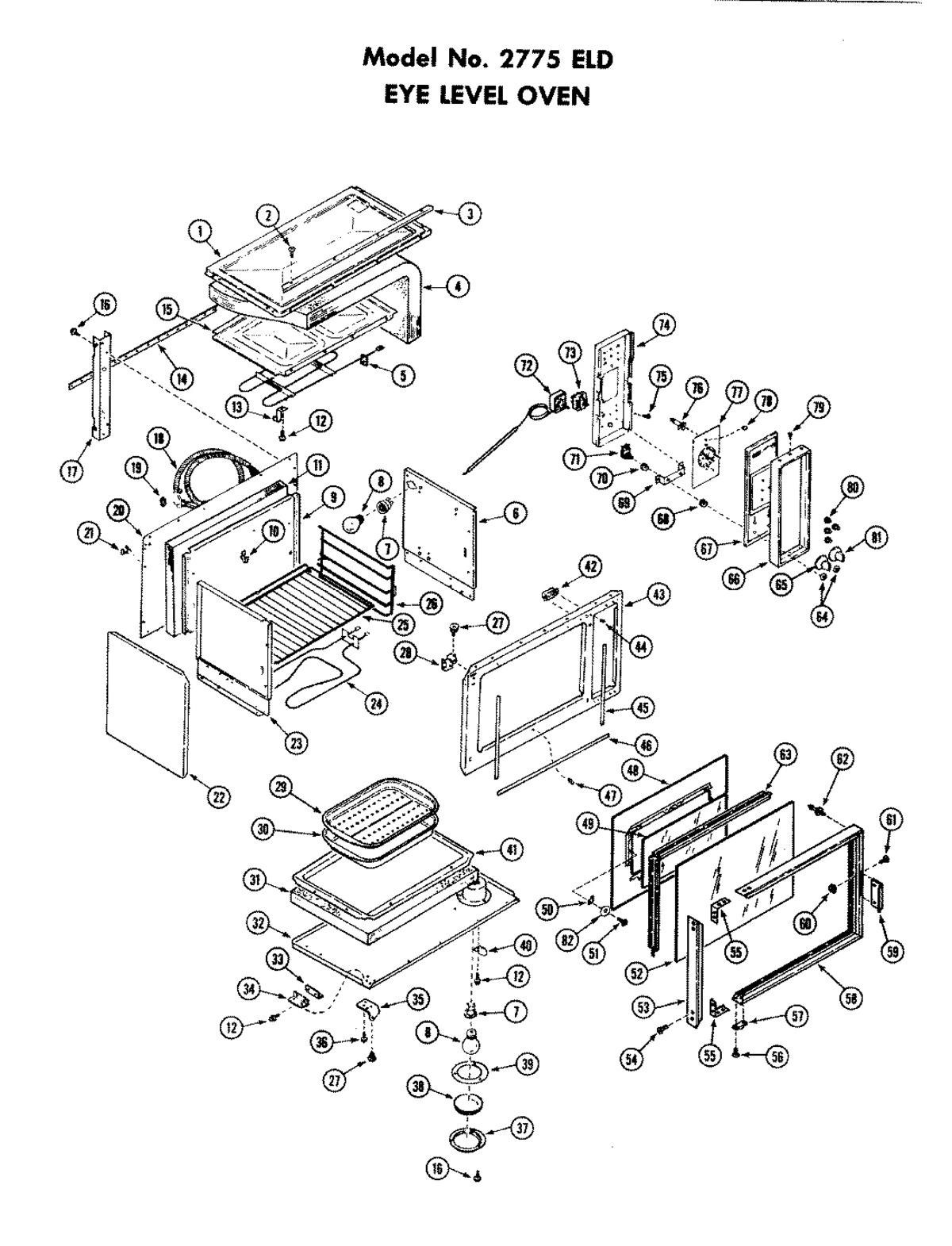

01 - EYE LEVEL OVEN
Common parts from model Whirlpool 2775ELD ELECTRIC WALL OVEN
1
OVEN CABINET TOP WPL 770431 Contact Us For Availability
2
WALL BRACKET WPL 770115 Contact Us For Availability
3
TOP FRONT TRIM WPL 770116 Contact Us For Availability
4
INSULATION WPL 770117 Contact Us For Availability
5
ELEMENT, BROIL WPL 770118 Contact Us For Availability
5
ELEMENT WPL 770194 Contact Us For Availability
6
RIGHT OVEN SIDE WPL 770119 Contact Us For Availability
7
LAMP HOLDER WPL 770120 Contact Us For Availability
9
OVEN BACK WPL 770122 Contact Us For Availability
11
INSULATION WPL 770124 Contact Us For Availability
13
BROILER ELEMENT SUPPORT WPL 770126 Contact Us For Availability
14
HANGER PLATE WPL 770015 Contact Us For Availability
15
OVEN TOP WPL 770127 Contact Us For Availability
17
REAR CABINET BRACKET WPL 770433 Contact Us For Availability
18
HARNESS ASSEMBLY WPL 770434 Contact Us For Availability
19
CONDUIT NUT WPL 770131 Contact Us For Availability
20
WIRE COVER WPL 770132 Contact Us For Availability
21
RETAINING CLIP WPL 770418 Contact Us For Availability
22
BODY SIDES WPL 770432 Contact Us For Availability
23
LEFT OVEN SIDE WPL 770135 Contact Us For Availability
24
BAKE ELEMENT WPL 770136 Contact Us For Availability
25
OVEN RACK WPL 770137 Contact Us For Availability
26
RIGHT OVEN RACK GUIDE WPL 770138 Contact Us For Availability
26
LEFT OVEN RACK GUIDE WPL 770139 Contact Us For Availability
27
HINGE PIN WPL 770140 Contact Us For Availability
28
UPPER DOOR HINGE WPL 770141 Contact Us For Availability
30
BROILER PAN WPL 770421 Contact Us For Availability
31
BOTTOM INSULATION WPL 770144 Contact Us For Availability
32
CABINET BOTTOM WPL 770145 Contact Us For Availability
33
DOOR HINGE GUSSETT-(RIGHT) WPL 770146 Contact Us For Availability
34
DOOR HINGE GUSSETT (LEFT) WPL 770147 Contact Us For Availability
35
LOWER DOOR HINGE WPL 770148 Contact Us For Availability
36
SCREW WPL 770149 Contact Us For Availability
37
LENS RETAINER WPL 770150 Contact Us For Availability
38
LIGHT LENS WPL 770151 Contact Us For Availability
39
LENS GASKET WPL 770152 Contact Us For Availability
40
DOOR SUPPORT WPL 770153 Contact Us For Availability
41
OVEN BOTTOM WPL 770154 Contact Us For Availability
42
DOOR CATCH WPL 770155 Contact Us For Availability
43
FRONT FRAME WPL 770156 Contact Us For Availability
44
SCREW WPL 770157 Contact Us For Availability
45
DOOR SEAL SIDE WPL 770158 Contact Us For Availability
46
DOOR SEAL BOTTOM WPL 770159 Contact Us For Availability
47
SEAL CLIP WPL 770160 Contact Us For Availability
48
OVEN DOOR LINING WPL 770428 Contact Us For Availability
49
INNER DOOR GLASS WPL 770430 Contact Us For Availability
50
GLASS RETAINER BRACKET WPL 770429 Contact Us For Availability
51
SCREW WPL 770424 Contact Us For Availability
52
OUTER DOOR GLASS WPL 770435 Contact Us For Availability
53
DOOR FRAME END WPL 770164 Contact Us For Availability
54
SCREW WPL 770163 Contact Us For Availability
55
DOOR FRAME BRACKET WPL 770167 Contact Us For Availability
56
SCREW WPL 770165 Contact Us For Availability
57
STOP WPL 770166 Contact Us For Availability
58
DOOR FRAME WPL 770169 Contact Us For Availability
59
DOOR HANDLE WPL 770170 Contact Us For Availability
60
KEPS NUT WPL 770168 Contact Us For Availability
61
SCREW WPL 770171 Contact Us For Availability
62
DOOR STRIKE WPL 770427 Contact Us For Availability
63
DOOR GLASS SPACER WPL 770161 Contact Us For Availability
64
TRIM NUT WPL 770175 Contact Us For Availability
65
THERMOSTAT KNOB WPL 770176 Contact Us For Availability
66
CONTROL PANEL FRAME WPL 770177 Contact Us For Availability
67
CONTROL PANEL GLASS WPL 770178 Contact Us For Availability
68
LOCK NUT WPL 770179 Contact Us For Availability
69
SWITCH MOUNTING BRACKET WPL 770180 Contact Us For Availability
70
CHECK NUT WPL 770181 Contact Us For Availability
71
PUSH S WPL 770425 Contact Us For Availability
72
WPL 770183 WPL 770183 Contact Us For Availability
73
WPL 770426 WPL 770426 Contact Us For Availability
74
WPL 770185 WPL 770185 Contact Us For Availability
75
WPL 770186 WPL 770186 Contact Us For Availability
76
WPL 770187 WPL 770187 Contact Us For Availability
77
WPL 770188 WPL 770188 Contact Us For Availability
78
WPL 770419 WPL 770419 Contact Us For Availability
79
WPL 770420 WPL 770420 Contact Us For Availability
80
WPL 770191 WPL 770191 Contact Us For Availability
81
WPL 770192 WPL 770192 Contact Us For Availability
82
WPL 770436 WPL 770436 Contact Us For Availability
× ![]()
