Model Whirlpool 2555ENB ELECTRIC WALL OVEN – Common Parts & Diagrams

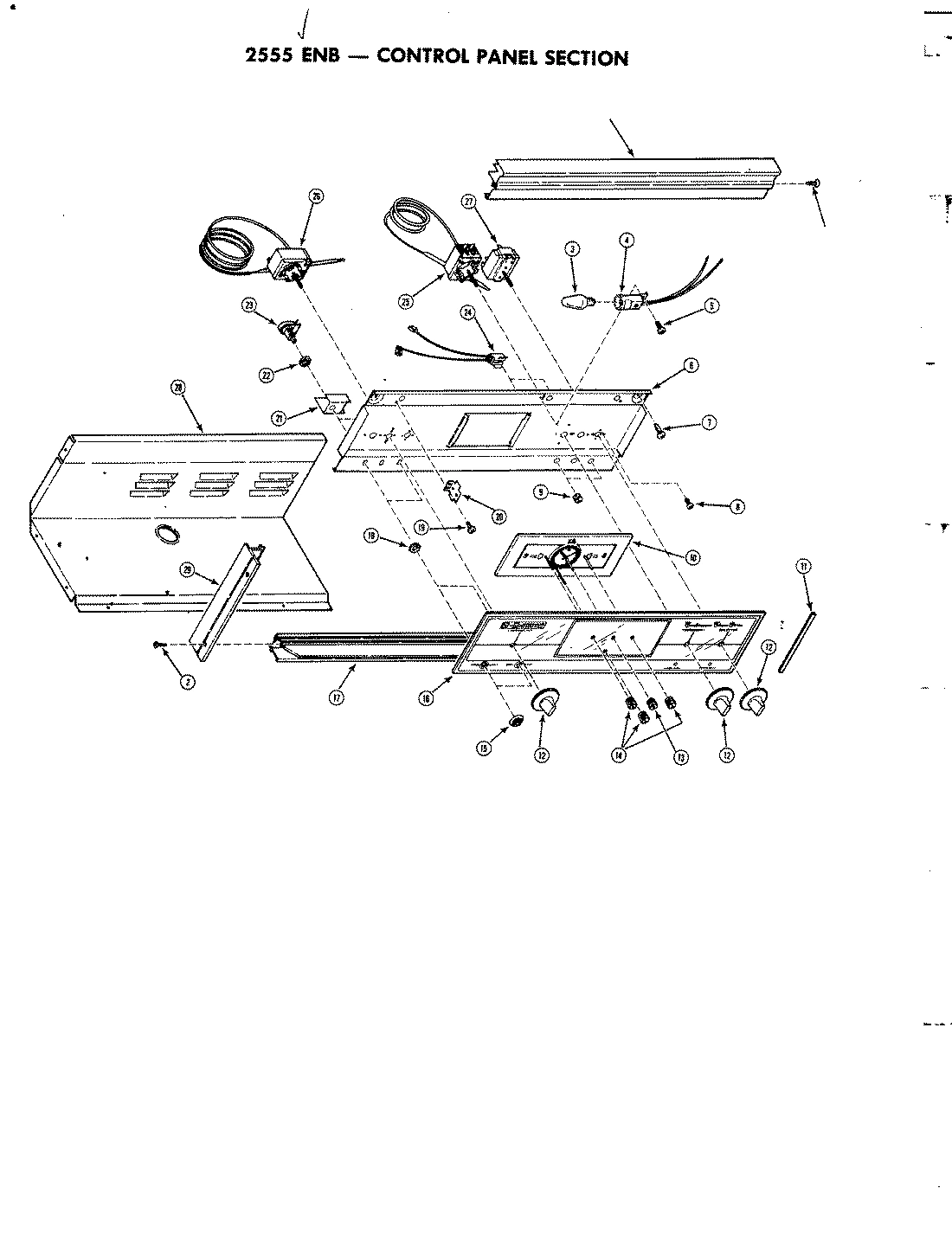

02 - CONTROL PANEL

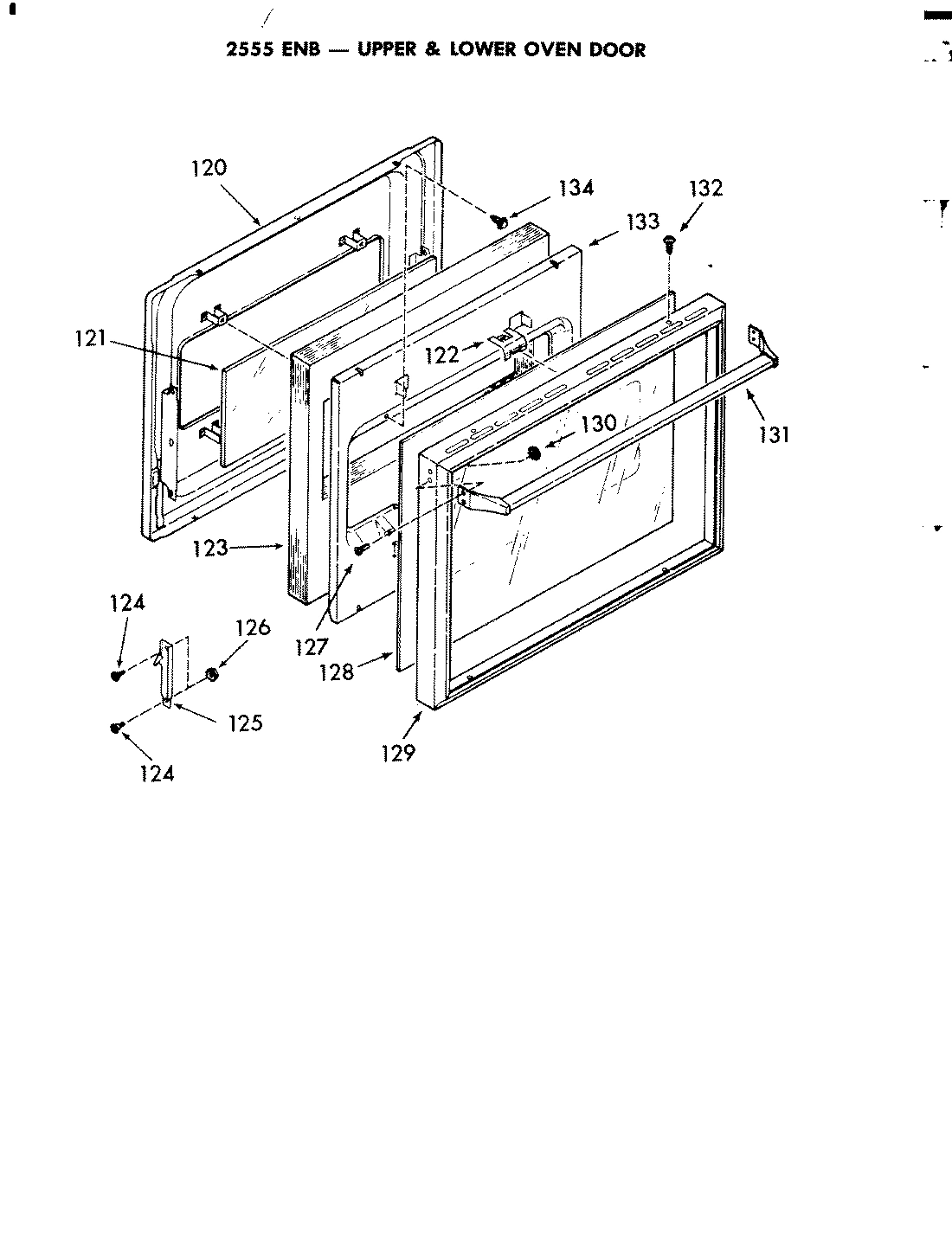

03 - OVEN DOOR (UPPER & LOWER)

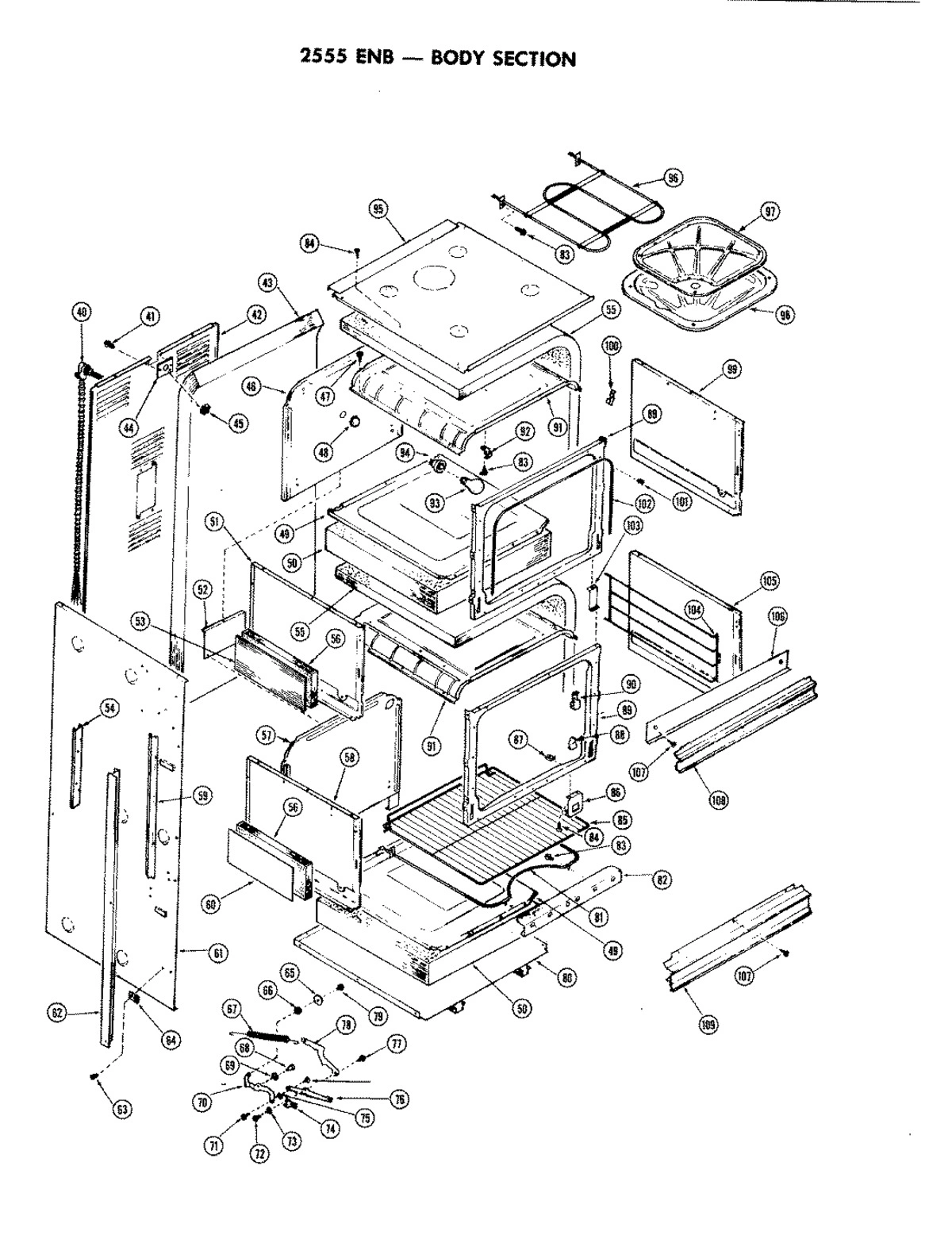

01 - BODY
Common parts from model Whirlpool 2555ENB ELECTRIC WALL OVEN
1
LAMP SHADE WPL 770317 Contact Us For Availability
2
SCREW WPL 771294 Contact Us For Availability
3
LAMP BULB WPL 770221 Contact Us For Availability
4
LAMP HOLDER WPL 770220 Contact Us For Availability
5
SCREW WPL 770212 Contact Us For Availability
6
CONTROL MOUNTING PANEL WPL 770313 Contact Us For Availability
8
SCREW WPL 770186 Contact Us For Availability
9
INDICATOR LENS WPL 770249 Contact Us For Availability
10
CLOCK WPL 770314 Contact Us For Availability
11
TRIM, CONTROL PANEL (END) WPL 770257 Contact Us For Availability
12
THERMOSTAT WPL 770315 Contact Us For Availability
12
SELECTOR SWITCH WPL 770316 Contact Us For Availability
12
LOWER THERMOSTAT WPL 770321 Contact Us For Availability
13
CLOCK KNOB WPL 770225 Contact Us For Availability
14
CLOCK KNOB WPL 770226 Contact Us For Availability
15
TRIM NUT WPL 770175 Contact Us For Availability
16
CONTROL PANEL GLASS WPL 770312 Contact Us For Availability
17
CON PAN FRAM WPL 771296 Contact Us For Availability
20
BRACKET WPL 770262 Contact Us For Availability
21
SWITCH SHIELD WPL 770295 Contact Us For Availability
22
LOCK NUT WPL 770179 Contact Us For Availability
23
PUSH SWITCH WPL 770425 Contact Us For Availability
24
INDICATOR LIGHT WPL 770256 Contact Us For Availability
25
THERMOSTAT WPL 770258 Contact Us For Availability
26
LOWER THERMOSTAT WPL 770279 Contact Us For Availability
27
SELECTOR SWITCH WPL 770259 Contact Us For Availability
28
BAFFLE WPL 770270 Contact Us For Availability
29
CONTROL PANEL TRIM (LEFT) WPL 771297 Contact Us For Availability
29
CONTROL PANEL TRIM (RIGHT) WPL 771298 Contact Us For Availability
40
CONDUIT HARN WPL 770309 Contact Us For Availability
41
SCREW WPL 770424 Contact Us For Availability
42
WIRE COVER WPL 770273 Contact Us For Availability
43
INSULATION BACK WPL 770265 Contact Us For Availability
44
HARNESS PLATE WPL 771286 Contact Us For Availability
45
CONDUIT NUT WPL 770131 Contact Us For Availability
46
UPPER OVEN BACK WPL 770293 Contact Us For Availability
48
PLUG BUTTON WPL 770219 Contact Us For Availability
49
OVEN BOTTOM WPL 770292 Contact Us For Availability
50
OVEN BOTTOM INSULATION WPL 770266 Contact Us For Availability
51
UPPER LEFT OVEN SIDE WPL 770290 Contact Us For Availability
52
BACK SUPPORT WPL 770269 Contact Us For Availability
53
CORREGATED ASBESTOS WPL 771285 Contact Us For Availability
54
CHANNEL TRIM WPL 770280 Contact Us For Availability
55
INSULATION OVEN TOP & SIDES WPL 770261 Contact Us For Availability
56
INSULATION WPL 771281 Contact Us For Availability
57
LOWER OVEN BACK WPL 770311 Contact Us For Availability
58
LOWER LEFT OVEN SIDE WPL 770282 Contact Us For Availability
59
RACEWAY WPL 770241 Contact Us For Availability
60
INSULATION WPL 771280 Contact Us For Availability
61
BODY SIDE (LEFT) WPL 771306 Contact Us For Availability
61
BODY SIDE (RIGHT) WPL 771307 Contact Us For Availability
62
FRONT FRAME TRIM (LEFT) WPL 771302 Contact Us For Availability
62
FRONT FRAME TRIM (RIGHT) WPL 771303 Contact Us For Availability
63
RIVET WPL 771283 Contact Us For Availability
64
TRIM SPACER WPL 771301 Contact Us For Availability
65
WASHER WPL 770206 Contact Us For Availability
66
LOCK WASHER WPL 770207 Contact Us For Availability
67
DOOR SPRING, LOWER OVEN WPL 770209 Contact Us For Availability
67
DOOR SPRING WPL 770275 Contact Us For Availability
68
SHOULDER RIVET WPL 770236 Contact Us For Availability
69
ROLLER WPL 770235 Contact Us For Availability
70
DOOR HINGE (LEFT) WPL 770288 Contact Us For Availability
70
DOOR HINGE (RIGHT) WPL 770289 Contact Us For Availability
71
HINGE RIVET SLEEVE WPL 770215 Contact Us For Availability
72
RIVET WPL 770216 Contact Us For Availability
73
WASHER WPL 770227 Contact Us For Availability
74
HINGE LATCH (RIGHT) WPL 770237 Contact Us For Availability
74
HINGE LATCH (LEFT) WPL 770238 Contact Us For Availability
75
WASHER WPL 770217 Contact Us For Availability
76
DOOR ARM (LEFT) WPL 770253 Contact Us For Availability
76
DOOR ARM (RIGHT) WPL 770254 Contact Us For Availability
77
SPRING LINK PIVOT SLEEVE WPL 770228 Contact Us For Availability
78
SPRING LINK WPL 770239 Contact Us For Availability
79
BOLT WPL 770283 Contact Us For Availability
80
MAIN BOTTOM WPL 770267 Contact Us For Availability
81
ELEMENT, BAKE WPL 771300 Contact Us For Availability
82
ELEMENT SHIELD WPL 771308 Contact Us For Availability
84
SCREW WPL 770306 Contact Us For Availability
85
OVEN RACK WPL 771282 Contact Us For Availability
86
FRONT SUPPORT BRACKET WPL 770260 Contact Us For Availability
87
SPEED NUT WPL 770245 Contact Us For Availability
88
HINGE SUPPORT WPL 770234 Contact Us For Availability
89
UPPER FRONT FRAME WPL 770298 Contact Us For Availability
90
DOOR SPRING BRACKET WPL 770229 Contact Us For Availability
91
UPPER OVEN TOP WPL 770294 Contact Us For Availability
92
BROILER ELEMENT SUPPORT WPL 770126 Contact Us For Availability
94
LAMP HOLDER WPL 770120 Contact Us For Availability
95
MAIN TOP WPL 770274 Contact Us For Availability
96
BROIL ELEMENT WPL 770250 Contact Us For Availability
97
BROILER PAN GRID WPL 770296 Contact Us For Availability
98
BROILER PAN WPL 770287 Contact Us For Availability
99
RIGHT UPPER OVEN SIDE WPL 770281 Contact Us For Availability
101
DOOR SEAL CLIP WPL 770211 Contact Us For Availability
102
DOOR SEAL WPL 770305 Contact Us For Availability
103
BRACKET, SUPPORT WPL 770475 Contact Us For Availability
104
RACK G WPL 770232 Contact Us For Availability
105
WPL 770291 WPL 770291 Contact Us For Availability
106
WPL 771305 WPL 771305 Contact Us For Availability
107
WPL 770242 WPL 770242 Contact Us For Availability
108
WPL 771309 WPL 771309 Contact Us For Availability
109
WPL 770310 WPL 770310 Contact Us For Availability
109
WPL 771304 WPL 771304 Contact Us For Availability
120
DOOR LINER WPL 771289 Contact Us For Availability
121
INNER OVEN DOOR GLASS WPL 770247 Contact Us For Availability
122
GLASS RETNR WPL 771292 Contact Us For Availability
123
INSULATION WPL 771295 Contact Us For Availability
124
SHOULDER BOLT WPL 770213 Contact Us For Availability
124
SHOULDER BOLT WPL 770214 Contact Us For Availability
125
HINGE ARM GUIDE WPL 770230 Contact Us For Availability
125
HINGE ARM GUIDE (LEFT) WPL 770231 Contact Us For Availability
127
SCREW WPL 770171 Contact Us For Availability
128
DOOR GLASS WPL 771293 Contact Us For Availability
129
DOOR FRAME WPL 771291 Contact Us For Availability
130
KEPS NUT WPL 770168 Contact Us For Availability
131
DOOR HANDLE WPL 771299 Contact Us For Availability
132
SCREW WPL 771287 Contact Us For Availability
133
INSULATION WPL 771290 Contact Us For Availability
× ![]()
