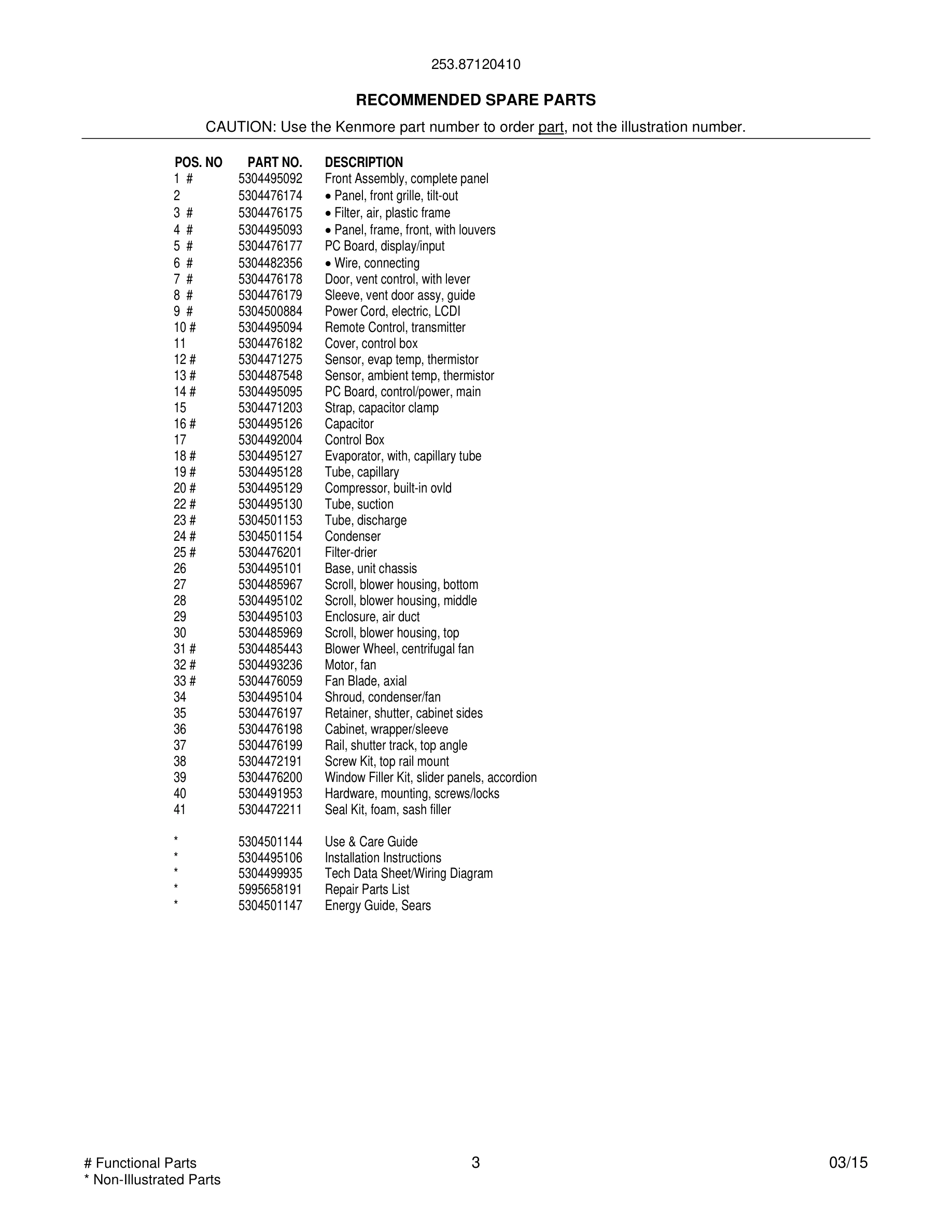

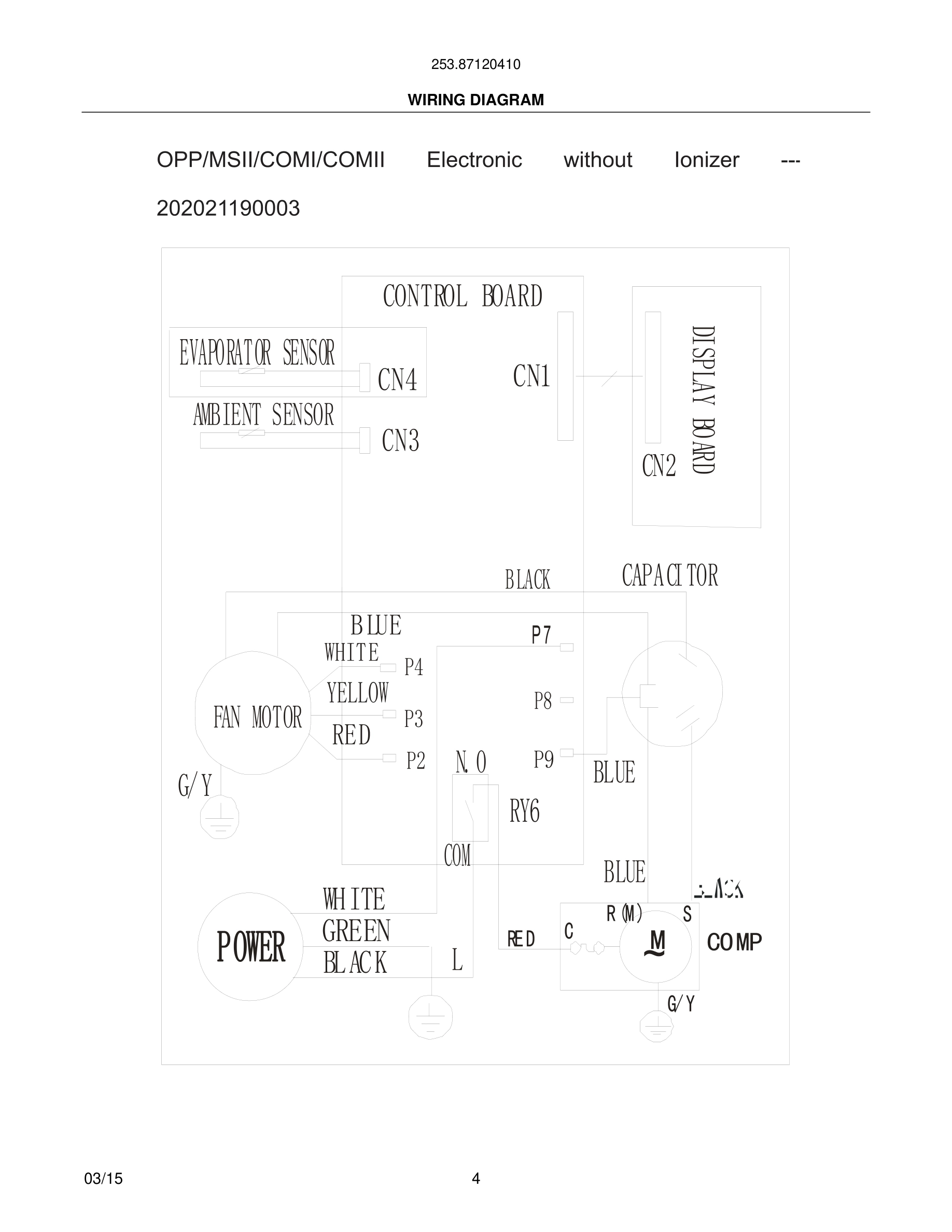

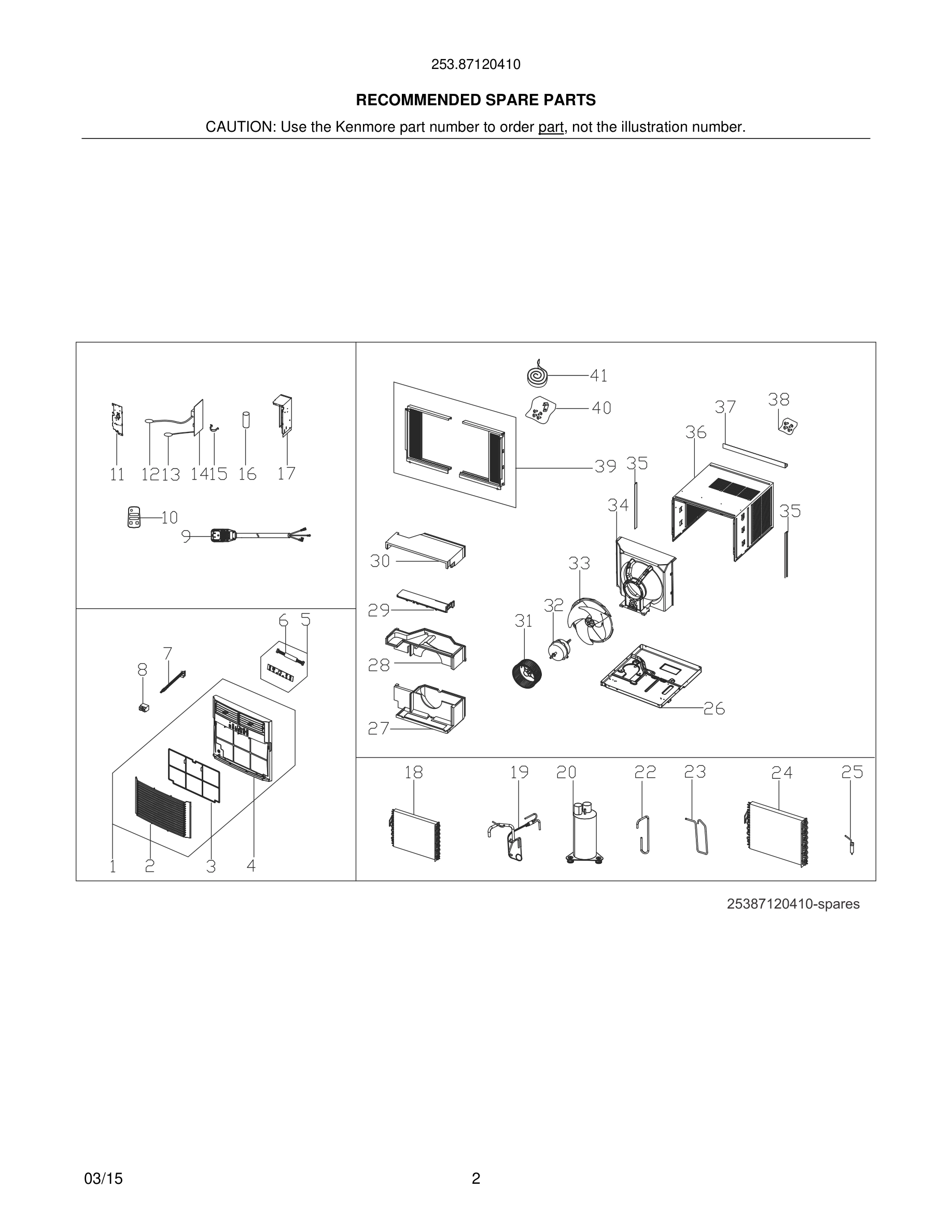

Model Kenmore 253.87120410 ROOM AIR CONDITIONER – Common Parts & Diagrams

3#
 Filter, air, plastic frame
 Filter, air, plastic frame WCI 5304476175 Contact Us For Availability
View on Model
15
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
17
Control Box
Control Box WCI 5304492004 Contact Us For Availability
View on Model
18#
Evaporator, with, capillary tube
Evaporator, with, capillary tube WCI 5304495127 Contact Us For Availability
View on Model
19#
Tube, capillary
Tube, capillary WCI 5304495128 Contact Us For Availability
View on Model
20#
Compressor, built-in ovld
Compressor, built-in ovld WCI 5304495129 Contact Us For Availability
View on Model
22#
Tube, suction
Tube, suction WCI 5304495130 Contact Us For Availability
View on Model
23#
Tube, discharge
Tube, discharge WCI 5304501153 Contact Us For Availability
View on Model
24#
Condenser
Condenser WCI 5304501154 Contact Us For Availability
View on Model
26
Base, unit chassis
Base, unit chassis WCI 5304495101 Contact Us For Availability
View on Model
27
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304485967 Contact Us For Availability
View on Model
28
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304495102 Contact Us For Availability
View on Model
29
Enclosure, air duct
Enclosure, air duct WCI 5304495103 Contact Us For Availability
View on Model
30
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304485969 Contact Us For Availability
View on Model
32#
Motor, fan
Motor, fan WCI 5304493236 Contact Us For Availability
View on Model
34
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304495104 Contact Us For Availability
View on Model
35
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476197 Contact Us For Availability
View on Model
36
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476198 Contact Us For Availability
View on Model
37
Rail, shutter track, top angle
Rail, shutter track, top angle WCI 5304476199 Contact Us For Availability
View on Model
38
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
41
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
