Model Electrolux 253.78186890 Air Conditioner (Kenmore 25378186890) – Common Parts & Diagrams
COMPRESSOR PARTS

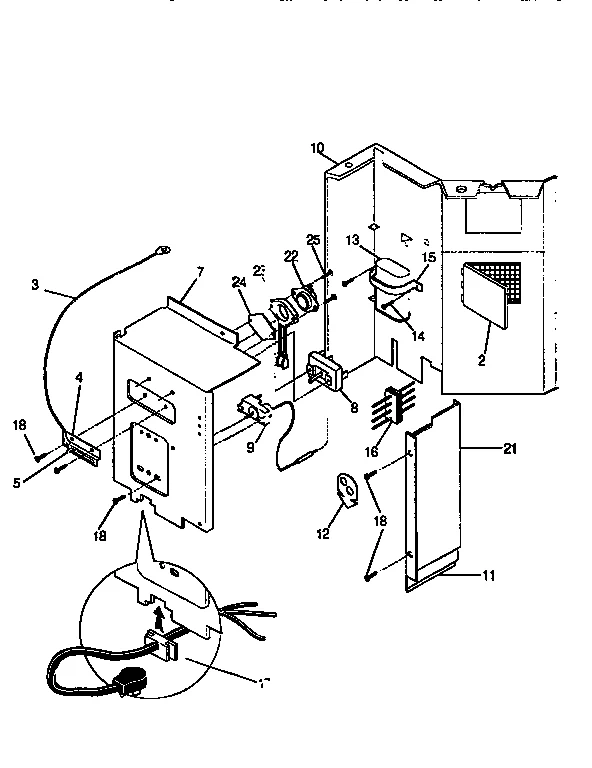

CONTROL PANEL PARTS

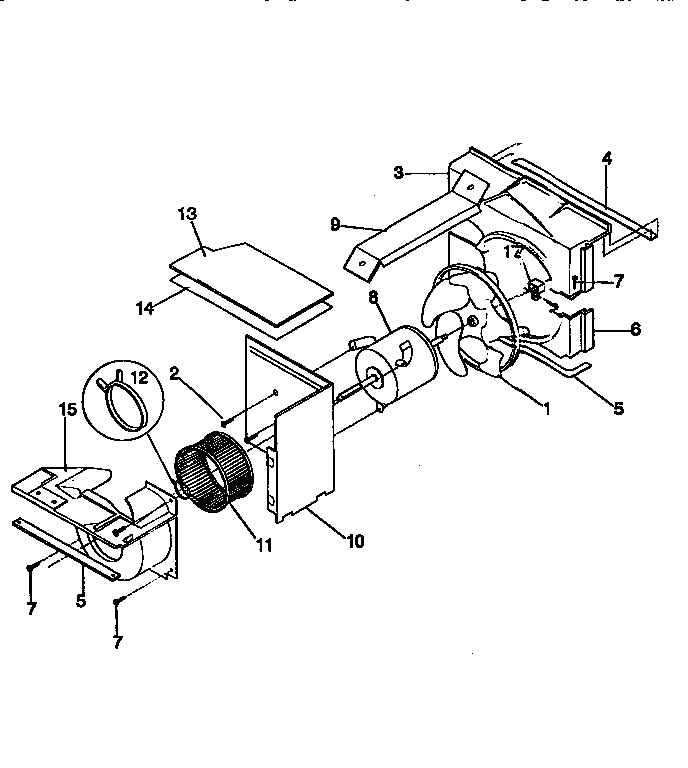

AIR HANDLING PARTS
All Parts

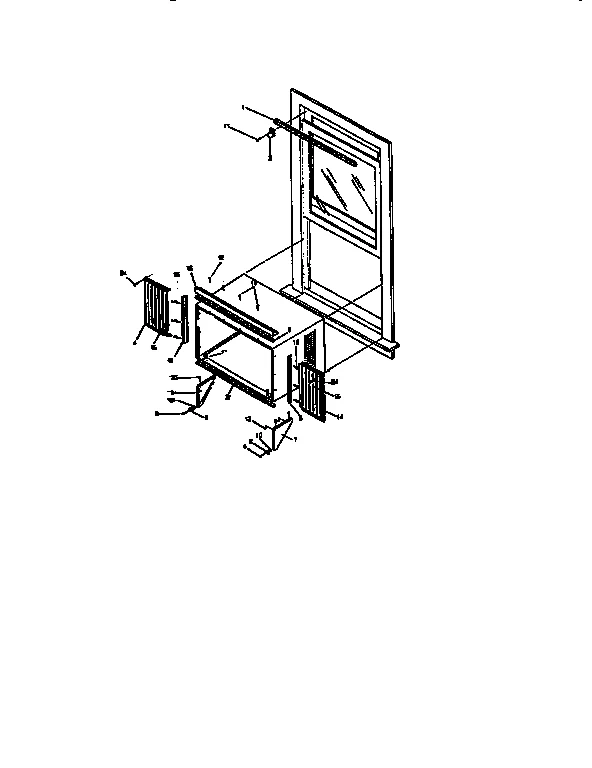

WINDOW MOUNTING KIT

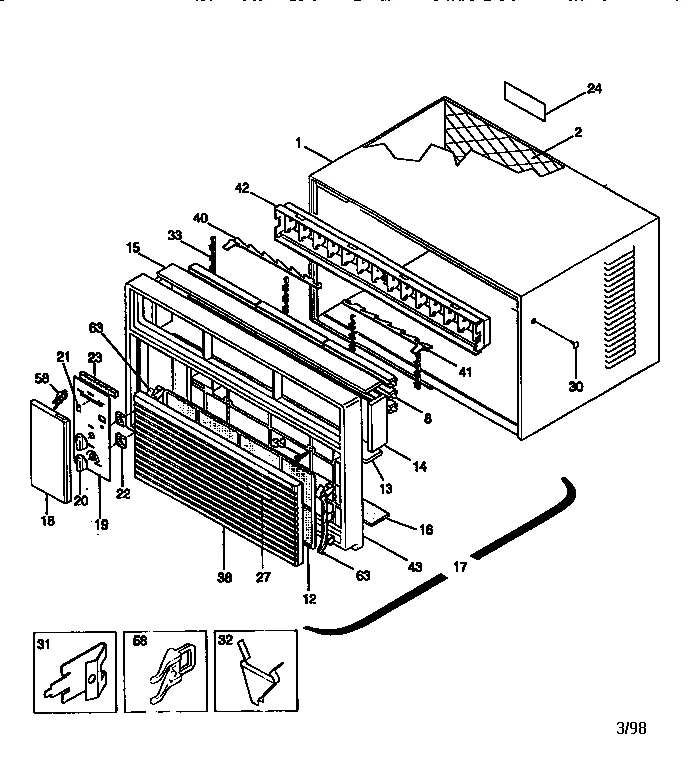

WRAPPER
Common parts from model Electrolux 253.78186890 Air Conditioner (Kenmore 25378186890)
1
Fan Blade WCI 5303311048 Contact Us For Availability
1
Window Seal WCI 5303002608 Contact Us For Availability
1
Wrapper WCI 5303303545 Contact Us For Availability
2
Room Air Conditioner Window Stop Bracket WCI 5303211056 Contact Us For Availability
2
Door WCI 5303295752 Contact Us For Availability
2
Panel WCI 5303210207 Contact Us For Availability
3
Room Air Conditioner Compressor Mount Retaine WCI 5308006948 Contact Us For Availability
3
Cable WCI 5303015298 Contact Us For Availability
3
Schroud WCI 5303015305 Contact Us For Availability
4
Retainer WCI 5303202999 Contact Us For Availability
4
Seal WCI 3016696 Contact Us For Availability
4
Lh Frame WCI 5303302304 Contact Us For Availability
5
Clamp WCI 5303002069 Contact Us For Availability
5
Arm WCI 5303015299 Contact Us For Availability
5
Seal WCI 5303015311 Contact Us For Availability
5
Seal WCI 3001980 Contact Us For Availability
6
Gasket WCI 5303002068 Contact Us For Availability
6
Schroud WCI 5303015304 Contact Us For Availability
6
Retainer WCI 5303301765 Contact Us For Availability
7
Universal/Multiflex (Frigidaire) Cover WCI 5303002067 Contact Us For Availability
7
Control Panel WCI 5303303592 Contact Us For Availability
7
Support- Rh WCI 5303301254 Contact Us For Availability
8
Room Air Conditioner Rotary Switch WCI 309322604 Contact Us For Availability
8
Motor WCI 5303015293 Contact Us For Availability
8
Bracket Window WCI 3001815 Contact Us For Availability
8
Louver WCI 5303309924 Contact Us For Availability
9
Room Air Conditioner Thermostat WCI 5303015319 Contact Us For Availability
9
Bracket WCI 5303015306 Contact Us For Availability
9
Screw WCI 3007756 Contact Us For Availability
10
Room Air Conditioner Compressor Start Relay K WCI 5303317601 Contact Us For Availability
10
Universal/Multiflex (Frigidaire) Partition WCI 5303295753 Contact Us For Availability
10
Partition WCI 5303295275 Contact Us For Availability
10
Nut WCI 3007759 Contact Us For Availability
11
Evaporator WCI 5303306711 Contact Us For Availability
11
Divider WCI 5303017807 Contact Us For Availability
11
Air Conditioner Blower Wheel WCI 5303016832 Contact Us For Availability
11
Support- Lh WCI 5303301255 Contact Us For Availability
12
Condenser WCI 5303306719 Contact Us For Availability
12
Clip-control Bulb WCI 5303017914 Contact Us For Availability
12
Room Air Conditioner Fan Blade Clamp WCI 5303012110 Contact Us For Availability
12
Filter WCI 5303309920 Contact Us For Availability
12A
Spacer WCI 3200761 Contact Us For Availability
13
Tray WCI 5303300045 Contact Us For Availability
13
Capacitor WCI 5303316594 Contact Us For Availability
13
Seal WCI 5303015313 Contact Us For Availability
13
Support Screw WCI 5303281649 Contact Us For Availability
13
Seal WCI 3018772 Contact Us For Availability
14
Base WCI 5303302822 Contact Us For Availability
14
Insulation WCI 3015314 Contact Us For Availability
14
Frame, Rh WCI 5303302305 Contact Us For Availability
14
Seal WCI 5303303148 Contact Us For Availability
15
Strap WCI 5303303077 Contact Us For Availability
15
Scroll WCI 5303302723 Contact Us For Availability
15
Accordion Closure WCI 5303302306 Contact Us For Availability
15
Gasket WCI 5303271831 Contact Us For Availability
16
Room Air Conditioner Capillary Line WCI 5303209547 Contact Us For Availability
16
Harness WCI 5303210178 Contact Us For Availability
16
Rail WCI 5303301777 Contact Us For Availability
16
Seal WCI 3017299 Contact Us For Availability
17
Westinghouse Room Air Conditioner Filter Drye WCI 5300265301 Contact Us For Availability
17
Plug WCI 5303302823 Contact Us For Availability
17
Screw WCI 3002803 Contact Us For Availability
17
Front W/out WCI 5304403276 Contact Us For Availability
18
Screw WCI 5303007754 Contact Us For Availability
18
Screw WCI 08012680 Contact Us For Availability
18
Door WCI 5303309922 Contact Us For Availability
19
Washer WCI 5303002664 Contact Us For Availability
19
Dial Plate WCI 309630501 Contact Us For Availability
20
Knob WCI 5304403257 Contact Us For Availability
21
Insulation-d WCI 5303303011 Contact Us For Availability
21
Bottom Seal WCI 5303212504 Contact Us For Availability
21
Knob WCI 5304403256 Contact Us For Availability
22
Thermostat WCI 3201806 Contact Us For Availability
22
Spacer WCI 5303001775 Contact Us For Availability
23
Heater WCI 5300521476 Contact Us For Availability
23
Seal WCI 5303001984 Contact Us For Availability
24
Spacer WCI 5303202308 Contact Us For Availability
24
Screw WCI 3002801 Contact Us For Availability
27
Nameplate WCI 309105302 Contact Us For Availability
30
Plug WCI 08016091 Contact Us For Availability
31
Spring WCI 3200447 Contact Us For Availability
32
Clip WCI 5303001844 Contact Us For Availability
33
Retainer-louver WCI 3017779 Contact Us For Availability
36
Strap Base WCI 5303303558 Contact Us For Availability
38
Front Panel WCI 5303309918 Contact Us For Availability
40
Grommet Drn WCI 5303301031 Contact Us For Availability
40
Louver Link WCI 309321803 Contact Us For Availability
41
Louver Link WCI 309321804 Contact Us For Availability
42
Louver WCI 5303002459 Contact Us For Availability
43
Front Frame WCI 5303309925 Contact Us For Availability
58
Door Hinge WCI 5303306190 Contact Us For Availability
63
Track WCI 5300345801 Contact Us For Availability
NI
Service Data Sheet WCI 309000081 Contact Us For Availability
NI
Owner's Manual WCI 309000811 Contact Us For Availability
NI
Instructions WCI 309000906 Contact Us For Availability
NI
Bracket WCI 5303016223 Contact Us For Availability
NI
Mtg Kit WCI 5303301888 Contact Us For Availability
NI
Parts List WCI 5995303509 Contact Us For Availability
× ![]()
