Model Kenmore 253.77120610 ROOM AIR CONDITIONER – Common Parts & Diagrams

Common parts from model Kenmore 253.77120610 ROOM AIR CONDITIONER

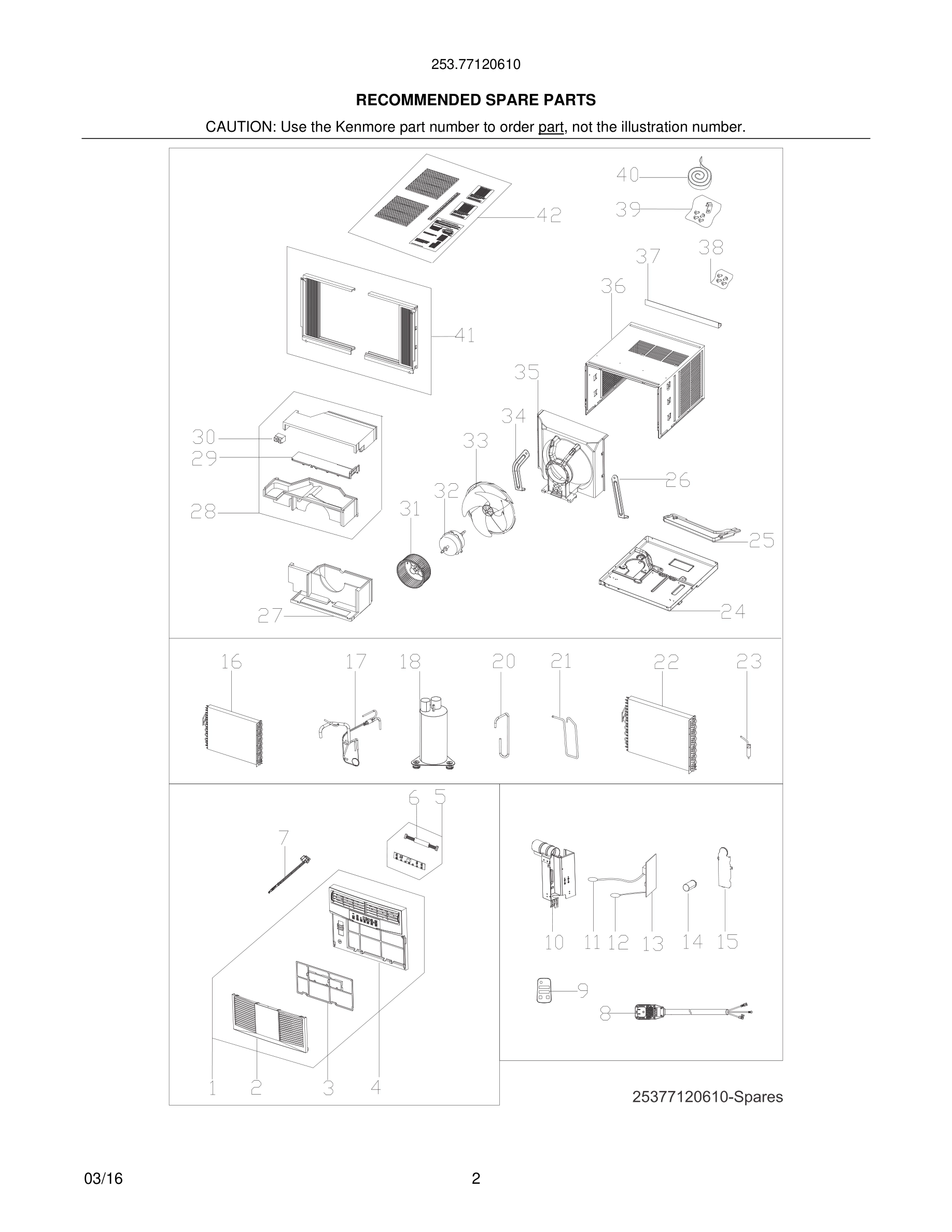

01 - COVER

Print

• This Diagram
• All Diagrams

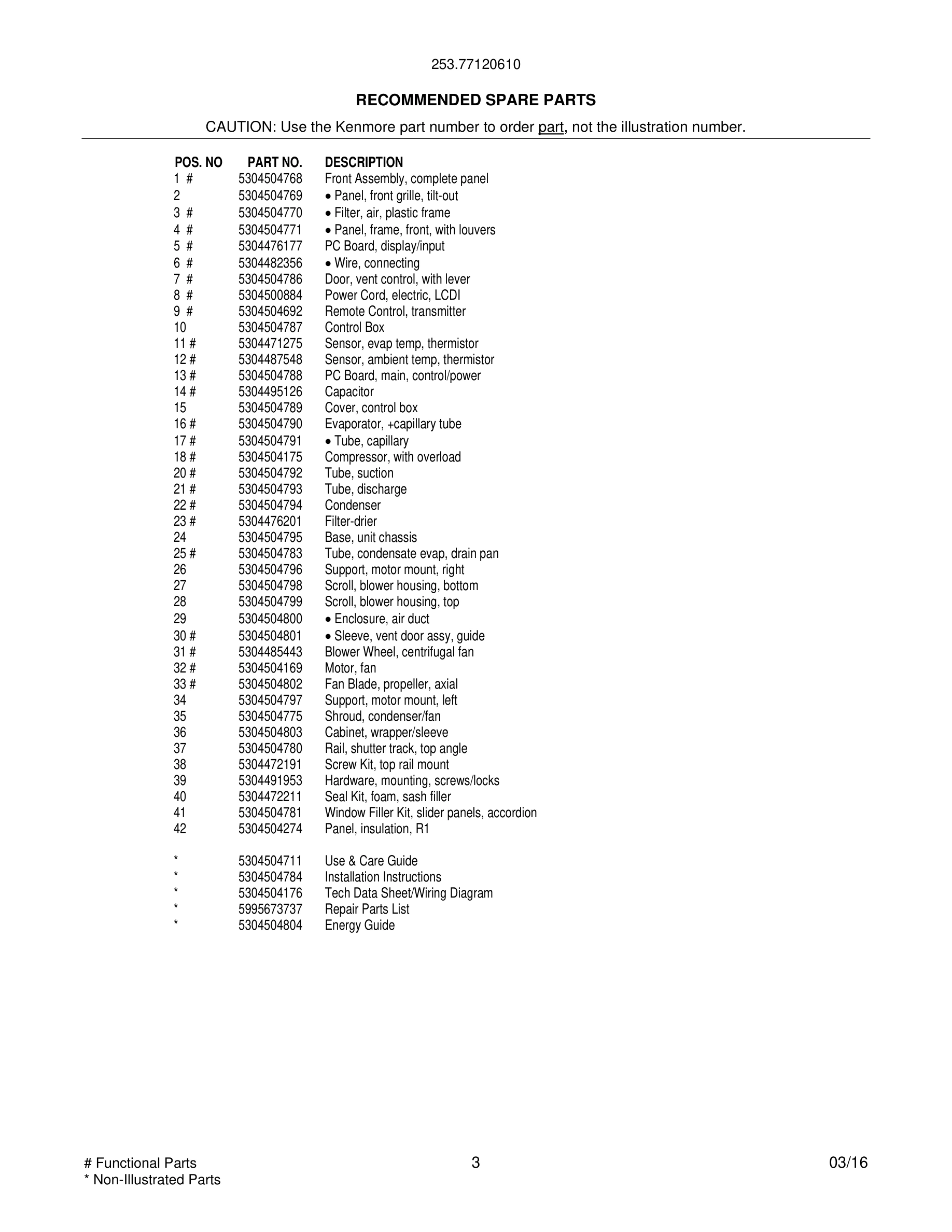

2

 Panel, front grille, tilt-out WCI 5304504769 Contact Us For Availability

View on Model

5#

5304536384 Frigidaire Electrical Control Backorder WCI 5304536384 View Details $25.36

View on Model

6#

5304482356 Frigidaire Wire Assembly Backorder WCI 5304482356 View Details $25.52

View on Model

7#

5304504786 Frigidaire Door Backorder WCI 5304504786 View Details $8.85

View on Model

8#

5304536807 Frigidaire Power Cord Backorder WCI 5304536807 View Details $105.03

View on Model

9#

5304504692 Frigidaire Air Conditioner Remote Backorder WCI 5304504692 View Details $87.59

View on Model

10

Control Box WCI 5304504787 Contact Us For Availability

View on Model

11#

5304471275 Frigidaire Air Conditioner Sensor Backorder WCI 5304471275 View Details $31.04

View on Model

12#

5304504724 Frigidaire Sensor In Stock WCI 5304504724 View Details $15.51

View on Model

13#

5304504788 Frigidaire Air Conditioner Printed Backorder WCI 5304504788 View Details $204.12

View on Model

14#

5304495126 Frigidaire Air Conditioner Capacit Backorder WCI 5304495126 View Details $115.35

View on Model

15

Cover, control box WCI 5304504789 Contact Us For Availability

View on Model

16#

Evaporator, +capillary tube WCI 5304504790 Contact Us For Availability

View on Model

17#

5304504791 Frigidaire Tube Assembly Backorder WCI 5304504791 View Details $59.91

View on Model

18#

5304504175 Frigidaire Air Conditioner Compres Backorder WCI 5304504175 View Details $165.18

View on Model

20#

5304504792 Frigidaire Tube Backorder WCI 5304504792 View Details $49.90

View on Model

21#

5304504793 Frigidaire Tube Assembly Backorder WCI 5304504793 View Details $46.05

View on Model

22#

Condenser WCI 5304504794 Contact Us For Availability

View on Model

23#

5304476201 Frigidaire Air Conditioner Filter Backorder WCI 5304476201 View Details $30.50

View on Model

24

Base, unit chassis WCI 5304504795 Contact Us For Availability

View on Model

25#

5304504783 Frigidaire Air Conditioner Tube Backorder WCI 5304504783 View Details $68.21

View on Model

26

Support, motor mount, right WCI 5304504796 Contact Us For Availability

View on Model

27

Scroll, blower housing, bottom WCI 5304504798 Contact Us For Availability

View on Model

28

Scroll, blower housing, top WCI 5304504799 Contact Us For Availability

View on Model

29

 Enclosure, air duct WCI 5304504800 Contact Us For Availability

View on Model

30#

5304504801 Frigidaire Air Conditioner Sleeve Backorder WCI 5304504801 View Details $7.77

View on Model

31#

5304485443 Frigidaire Air Conditioner Blower Backorder WCI 5304485443 View Details $57.14

View on Model

32#

5304504169 Frigidaire Air Conditioner Motor Backorder WCI 5304504169 View Details $315.67

View on Model

33#

5304504802 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304504802 View Details $63.23

View on Model

34

Support, motor mount, left WCI 5304504797 Contact Us For Availability

View on Model

35

Shroud, condenser/fan WCI 5304504775 Contact Us For Availability

View on Model

36

Cabinet, wrapper/sleeve WCI 5304504803 Contact Us For Availability

View on Model

37

5304504780 Frigidaire Rail Backorder WCI 5304504780 View Details $41.59

View on Model

38

Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability

View on Model

39

5304491953 Frigidaire Air Conditioner Hardwar Backorder WCI 5304491953 View Details $14.97

View on Model

40

Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability

View on Model

41

Window Filler Kit, slider panels, accordion WCI 5304504781 Contact Us For Availability

View on Model

42

Panel, insulation, R1 WCI 5304504274 Contact Us For Availability

View on Model

×
