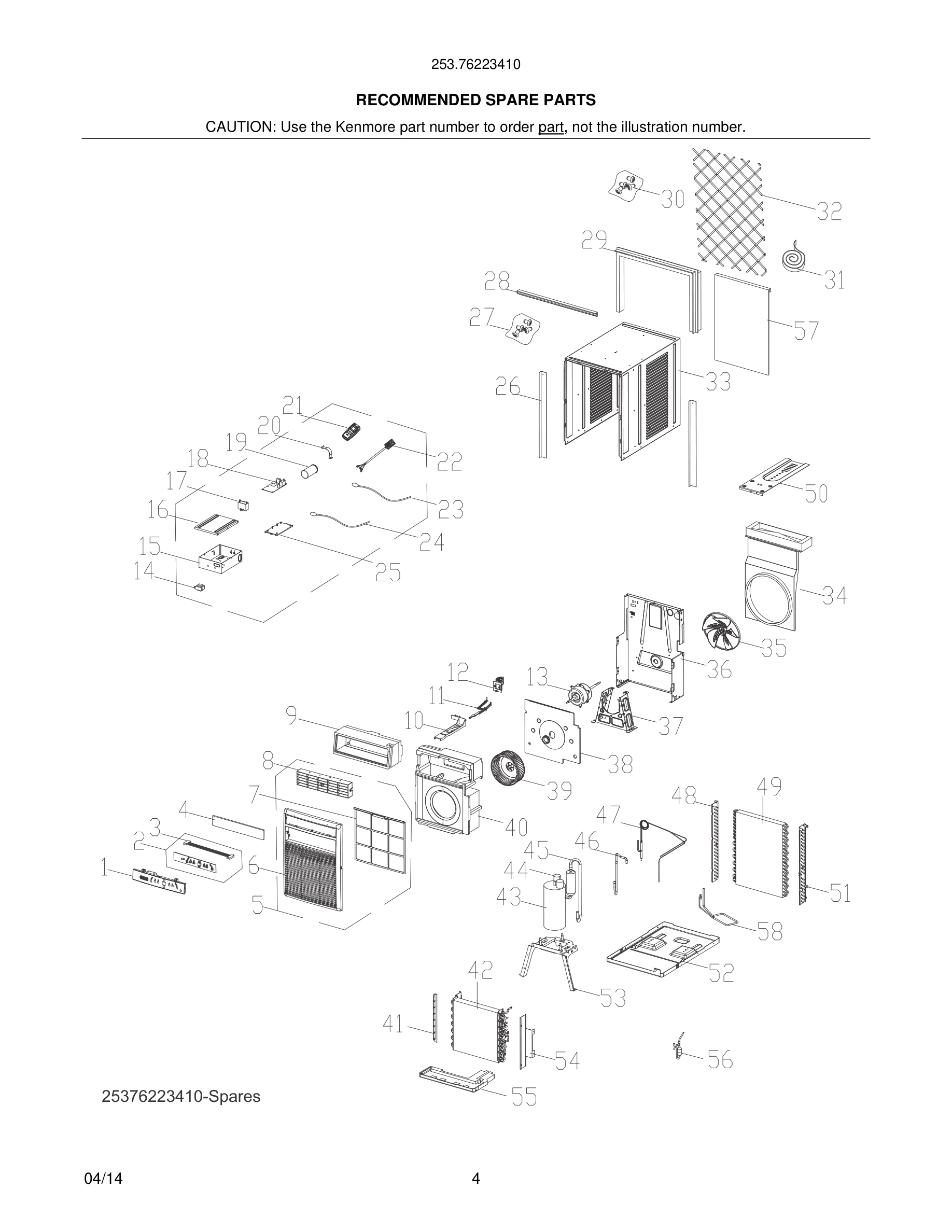

Model Kenmore 253.76223410 ROOM AIR CONDITIONER – Common Parts & Diagrams

*
Use & Care Guide
Use & Care Guide WCI 5304495804 Contact Us For Availability
View on Model
*

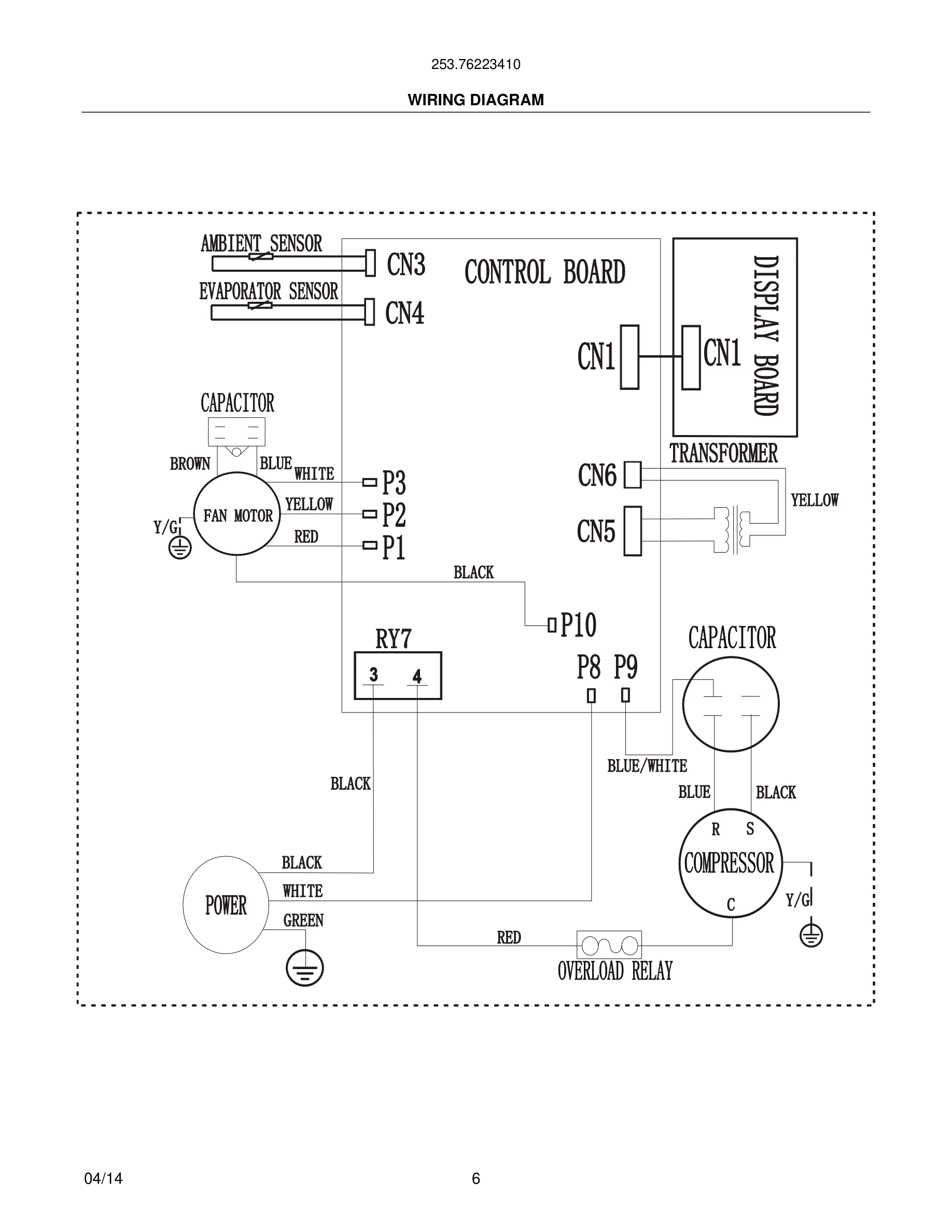

Tech Data Sheet/Wiring Diagram
Tech Data Sheet/Wiring Diagram WCI 5304493246 Contact Us For Availability
View on Model
*

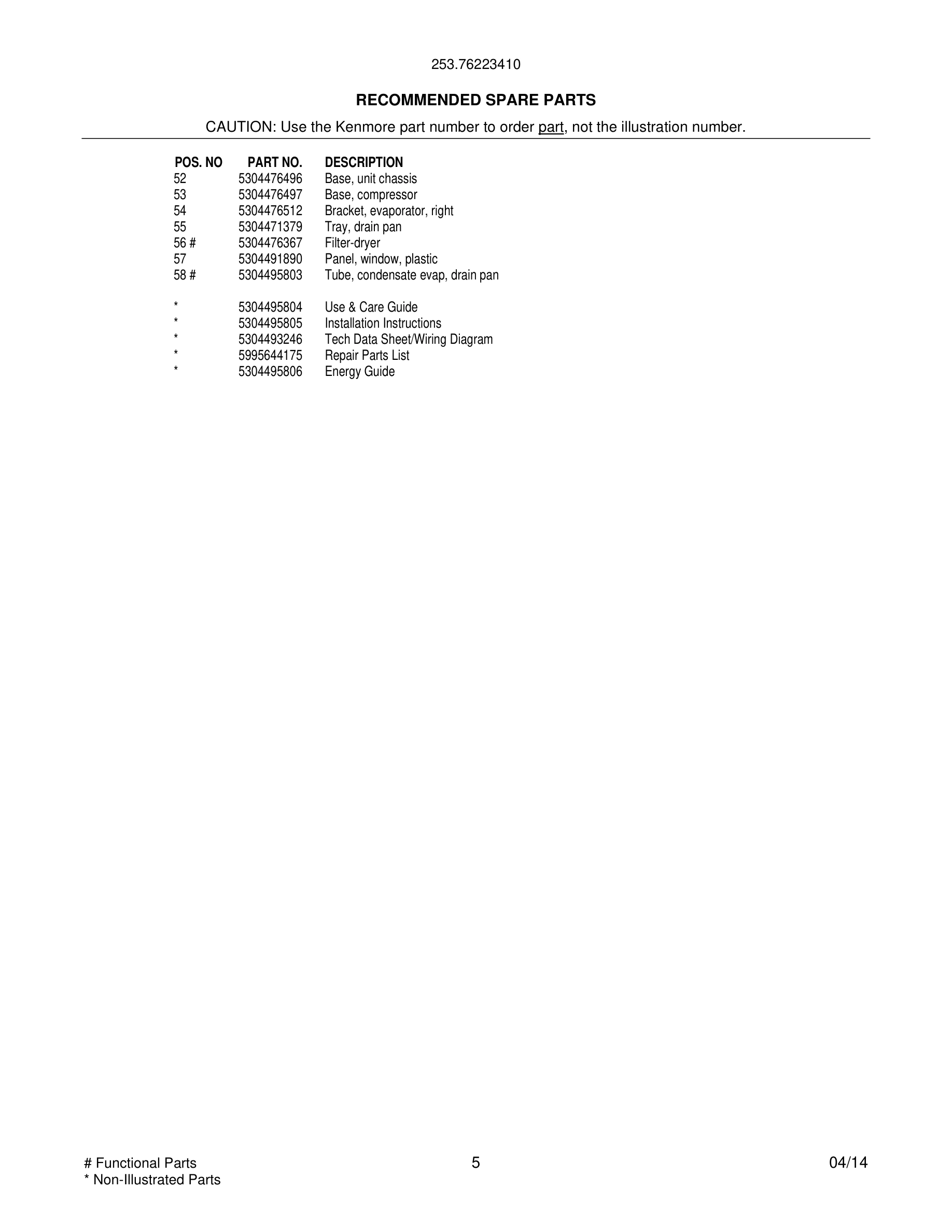

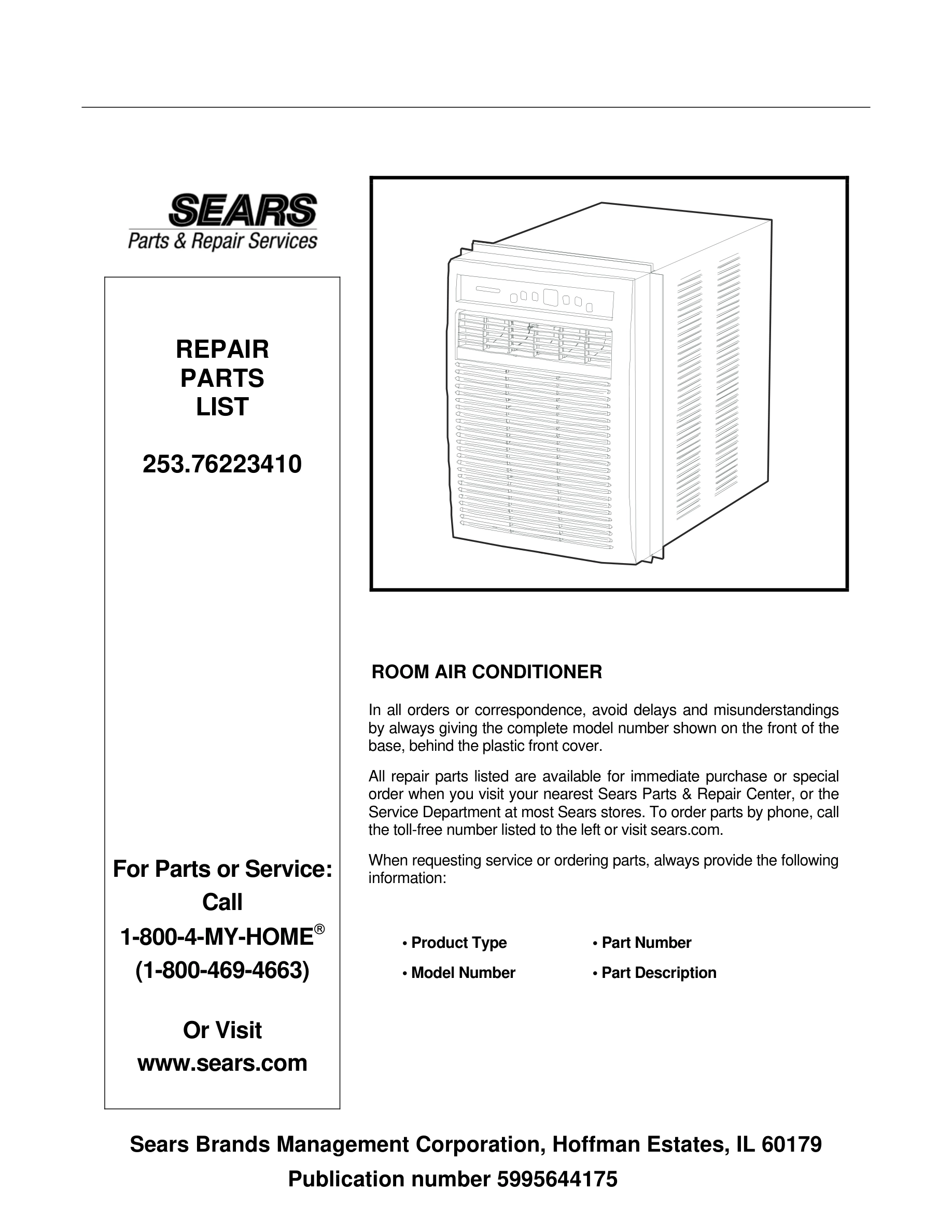

Repair Parts List
Repair Parts List WCI 5995644175 Contact Us For Availability
View on Model
*
Energy Guide
Energy Guide WCI 5304495806 Contact Us For Availability
View on Model
13#
Motor, fan
Motor, fan WCI 5304475761 No Longer Available
View on Model
18#
PC Board, control/power, main
PC Board, control/power, main WCI 5304495779 Contact Us For Availability
View on Model
19#
Capacitor, compressor
Capacitor, compressor WCI 5304474928 Contact Us For Availability
View on Model
20
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304487586 Contact Us For Availability
View on Model
22#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476502 Contact Us For Availability
View on Model
23#
Thermistor, temp sensor, indoor
Thermistor, temp sensor, indoor WCI 5304487589 Contact Us For Availability
View on Model
24#
Thermistor, evaporator, sensor
Thermistor, evaporator, sensor WCI 5304476473 Contact Us For Availability
View on Model
25
Holder, mounting plate, control
Holder, mounting plate, control WCI 5304495029 Contact Us For Availability
View on Model
26
Channel, side mount, slide
Channel, side mount, slide WCI 5304476474 Contact Us For Availability
View on Model
28
Rail, shutter track, top channel
Rail, shutter track, top channel WCI 5304476475 Contact Us For Availability
View on Model
31
Seal Kit, window, foam strips
Seal Kit, window, foam strips WCI 5304471646 Contact Us For Availability
View on Model
32
Grille, rear
Grille, rear WCI 5304476477 Contact Us For Availability
View on Model
33
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304495796 Contact Us For Availability
View on Model
34
Shroud, fan housing, condenser
Shroud, fan housing, condenser WCI 5304495797 Contact Us For Availability
View on Model
36
Bulkhead, partition, front
Bulkhead, partition, front WCI 5304487591 Contact Us For Availability
View on Model
37
Support, fan motor mount
Support, fan motor mount WCI 5304476480 Contact Us For Availability
View on Model
38
Panel, scroll, rear
Panel, scroll, rear WCI 5304487590 Contact Us For Availability
View on Model
39#
Blower Wheel, centrifugal fan
Blower Wheel, centrifugal fan WCI 5304471360 Contact Us For Availability
View on Model
40
Scroll, blower housing
Scroll, blower housing WCI 5304487592 Contact Us For Availability
View on Model
41
Bracket, evaporator, left
Bracket, evaporator, left WCI 5304476504 Contact Us For Availability
View on Model
42#
Evaporator
Evaporator WCI 5304495798 Contact Us For Availability
View on Model
43#
Compressor, with overload
Compressor, with overload WCI 5304493244 Contact Us For Availability
View on Model
44#
 Overload Protector, compressor
 Overload Protector, compressor WCI 5304495799 Contact Us For Availability
View on Model
45#
Tube, suction
Tube, suction WCI 5304495800 Contact Us For Availability
View on Model
46#
Tube, discharge
Tube, discharge WCI 5304495801 Contact Us For Availability
View on Model
47#
Tube, capillary
Tube, capillary WCI 5304495802 Contact Us For Availability
View on Model
48
Bracket, condenser, left
Bracket, condenser, left WCI 5304476509 Contact Us For Availability
View on Model
49#
Condenser
Condenser WCI 5304487597 Contact Us For Availability
View on Model
50
Platform, unit support
Platform, unit support WCI 5304476494 Contact Us For Availability
View on Model
51
Bracket, condenser, right
Bracket, condenser, right WCI 5304476511 Contact Us For Availability
View on Model
52
Base, unit chassis
Base, unit chassis WCI 5304476496 Contact Us For Availability
View on Model
53
Base, compressor
Base, compressor WCI 5304476497 Contact Us For Availability
View on Model
54
Bracket, evaporator, right
Bracket, evaporator, right WCI 5304476512 Contact Us For Availability
View on Model
55
Tray, drain pan
Tray, drain pan WCI 5304471379 Contact Us For Availability
View on Model
58#
Tube, condensate evap, drain pan
Tube, condensate evap, drain pan WCI 5304495803 Contact Us For Availability
View on Model
